Page 2: Important Safety Instructions

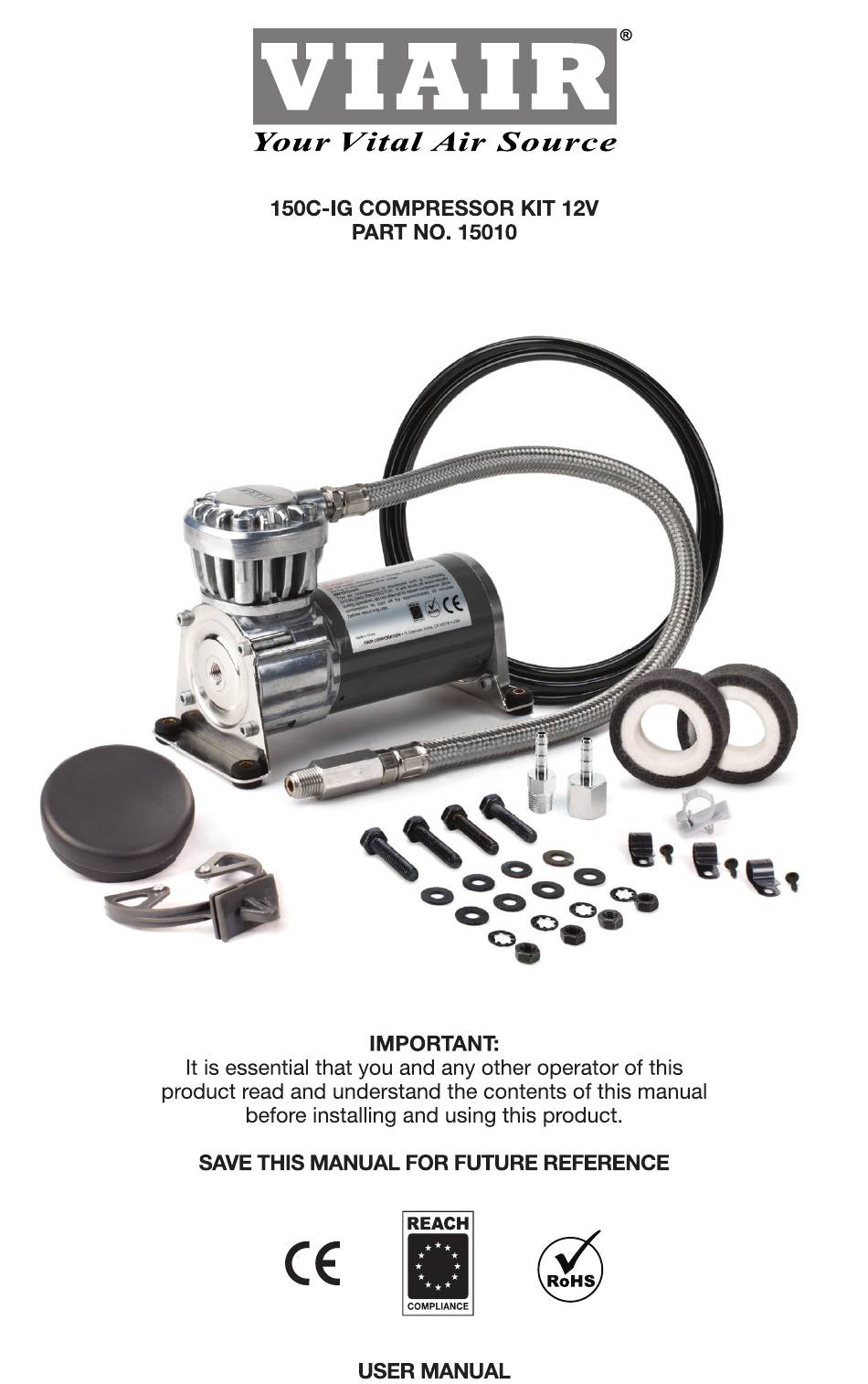

150C-IG COMPRESSOR KIT IMPORTANT SAFETY INSTRUCTIONS CAUTION - To reduce risk of electrical shock or electrocution: - Do not disassemble. Do not attempt repairs or modifications. Refer to qualified service agencies for all service and repairs. - Do not use this product in an area where it can fall or be pulled into water or other liquids. -
Page 3: Mounting And Wiring

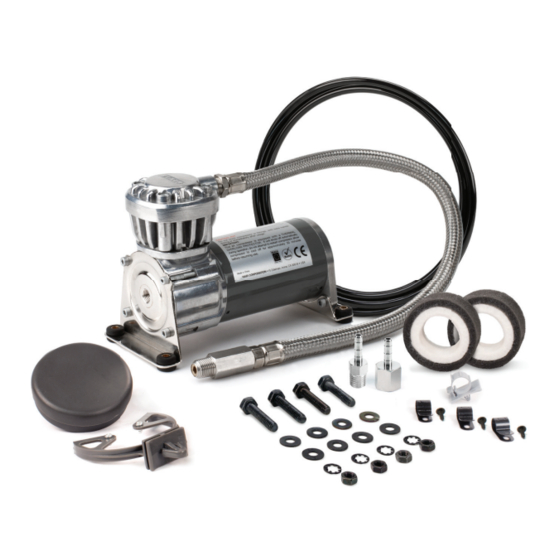

Inspect all air line connections for leaks with soap and water solution. If a leak is detected, the air line may not be cut squarely or pushed all the way in. Fix leaking connections as needed. (Fig. 1) 150C-IG Compressor Installation Parts List: C D E A. Hose Bracket (1pc) B. -
Page 4: Maintenance And Repairs
150C-IG COMPRESSOR KIT OPERATING INSTRUCTIONS 1. IMPORTANT: Always operate the compressor at or below the MAXIMUM PRESSURE RATING of the compressor. Please refer to Application & Specifications Sections of this manual for details. 2. Always observe the MAXIMUM DUTY CYCLE of the air compressor. Refer to Compressor Applications and Specifications Sections of this manual for details. -
Page 5: Specifications
150C-IG COMPRESSOR KIT SPECIFICATIONS • Part No. 15010 / 150C-IG-12V Compressor Kit (CE Certified) Motor Voltage: 12-Volts Max. Current Consumption: 15-Amps Recommended Fuse: 20-Amps Motor Type: Permanent Magnetic Horsepower: Max. Working Pressure: 150 PSI Max. Duty Cycle (@ 72°F & 100 PSI): Minutes On/Off (@ 72°F &... - Page 6 150C-IG COMPRESSOR KIT COMPRESSOR APPLICATION GUIDE To ensure that you get the highest level of satisfaction from your compressor’s performance, refer to information below: VIAIR COMPRESSOR REFERENCE CHART COMPRESSOR SERIES MAX. WORKING DUTY CYCLE PRESSURE (100 PSI @ 72°F) 090 SERIES...
-
Page 7: Troubleshooting Guide
150C-IG COMPRESSOR KIT TROUBLESHOOTING GUIDE: Tank pressure drops when 1. Loose drain cock 1. Tighten drain cock compressor (s) shut off 2. Check valve leaking 2. Replace check valve or 3. Loose connections compressor(s) 3. Check all connections with soap and water solution... - Page 8 Manual. Users must be aware that updates and amendments will be made from time to time to the Manual. It is the user’s responsibility to determine whether there have been any such updates or amendments. Neither VIAIR nor any of its directors, officers, employees ®...
