VIAIR 40043- 400P User Manual

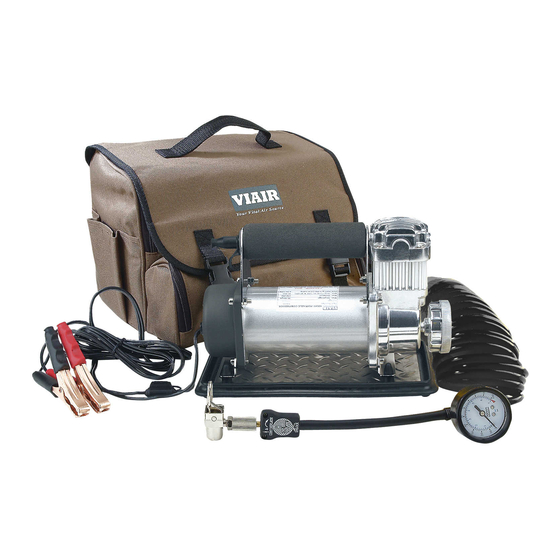

Portable compressor
Hide thumbs
Table of Contents

Advertisement

Quick Links

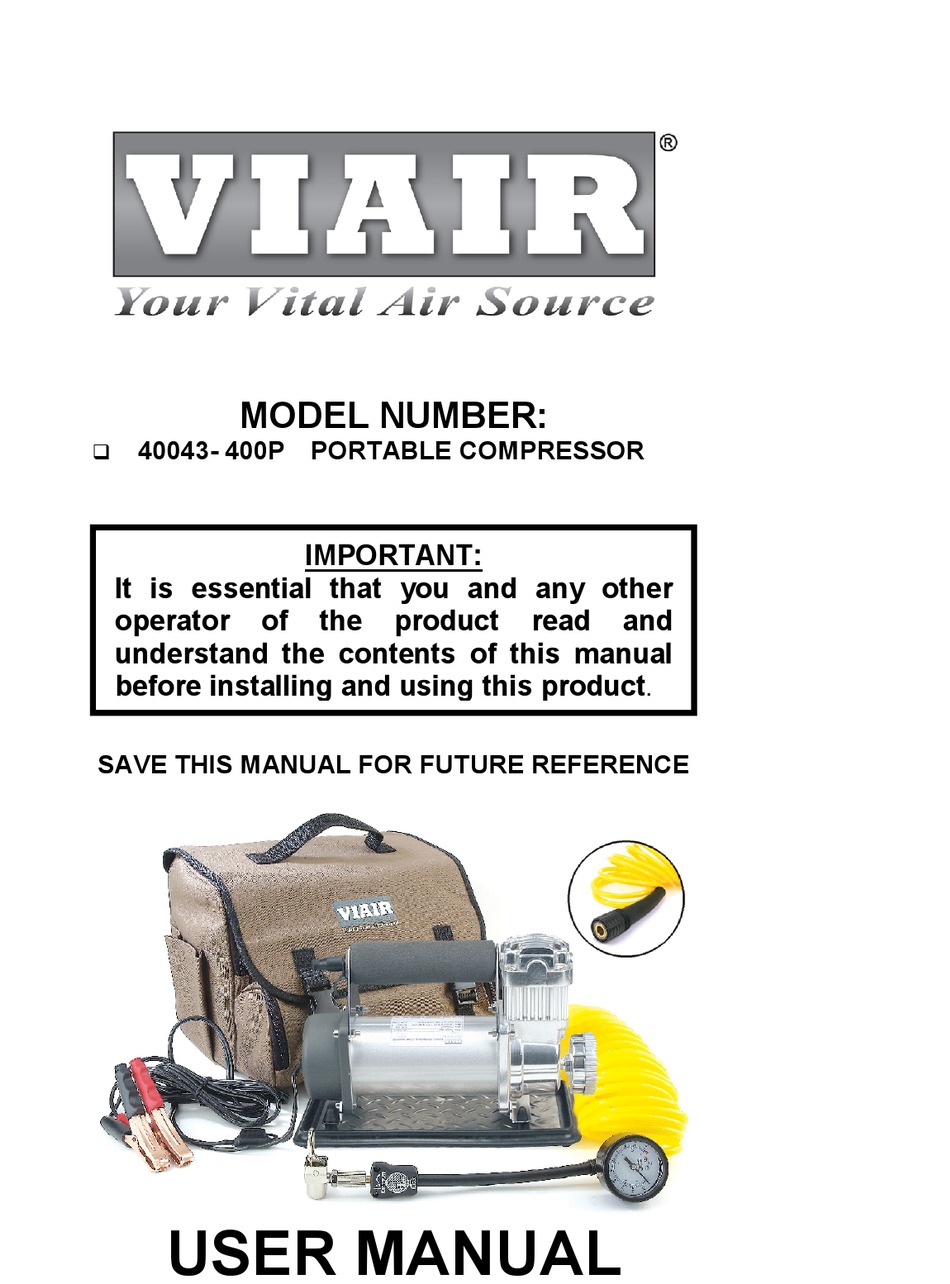

MODEL NUMBER:
40043- 400P PORTABLE COMPRESSOR
IMPORTANT:
It is essential that you and any other
operator
of
the
product
read
and
understand the contents of this manual
before installing and using this product.
SAVE THIS MANUAL FOR FUTURE REFERENCE
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40043- 400P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VIAIR 40043- 400P

Summary of Contents for VIAIR 40043- 400P

  • Page 1 MODEL NUMBER: 40043- 400P PORTABLE COMPRESSOR  IMPORTANT: It is essential that you and any other operator product read understand the contents of this manual before installing and using this product. SAVE THIS MANUAL FOR FUTURE REFERENCE USER MANUAL...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS CAUTION - To reduce risk of electrical shock or electrocution:  Do not disassemble. Do not attempt repairs or modifications. Refer to qualified service agencies for all service and repairs.  Do not use this product in or area where it can fall or be pulled into water or other liquids.

  • Page 3: Operating Instructions

    OPERATING INSTRUCTIONS Please read and follow the operating instructions carefully to assure that you will enjoy the convenience and best use out of your air compressor. IMPORTANT: Always operate the compressor AT OR BELOW THE MAXIMUM PRESSURE RATING of the compressor. Refer to Specifications section of this manual.

  • Page 4: Tire Inflation & Deflation

    TIRE INFLATION & DEFLATION IMPORTANT : Before attaching air compressor power cord to power source, check to make sure that the ON\/OFF switch of your compressor is in the Off position. Attach the Positive (+) battery clamp (Red) to the Positive terminal of the battery and the Negative (-) battery clamp (Black) to the Negative terminal of the battery.
  • Page 5 5-in-1 INLINE INFLATOR / DEFLATOR HOSE OPERATION INSTRUCTIONS: This air compressor comes with ¼” quick connect stud. Your Inline Deflator comes with extension coil hose with ¼” quick coupler. Simply attach this multi- function extension coil hose to the ¼” quick connect stud and you are ready to inflate tires.

  • Page 6: Safety Precautions

    SAFETY PRECAUTIONS Always inflate tires manufacturer’s recommended tire pressures. Exercise extreme caution when driving with aired-down tires. Re- inflate tires before high-speed roadway travel. Never exceed 20 M.P.H. when driving with partially inflated tires. Never make sharp turns while driving with reduced tire pressure.

  • Page 7: Troubleshooting Chart

    TROUBLESHOOTING CHART PROBLEM POSSIBLE CAUSE(S) CORRECTIVE ACTION Compressor No power, or switch in OFF position Make sure compressor switch is ON will not run Blown fuse Disconnect compressor from power source, replace fuse. (Refer to Specifications section for correct fuse) Motor overheats Let compressor cool off for about 30 minutes for thermal overload switch reset...

  • Page 8: Specifications

    SPECIFICATIONS Part No. 40043 / 400 Automatic Portable Motor Voltage: 12-volt Motor Type: Permanent Magnetic Max. Intermittent Pressure: 150 PSI Max. Duty Cycle: 33% (15 on / 30 off) (Min. On/Off @ 72ºF & 100 PSI) Continuous Use @ 72ºF & 30 PSI: Approx.

  • Page 9: Limited Warranty

    Returns should be made within one year of the date of purchase, after a Return Goods Authorization (RGA) number has been assigned by VIAIR Corporation. To obtain RGA, fax a copy of your receipt to (949) 585- 0188. For complete warranty details, please visit: www.viaircorp.com/warranty...
