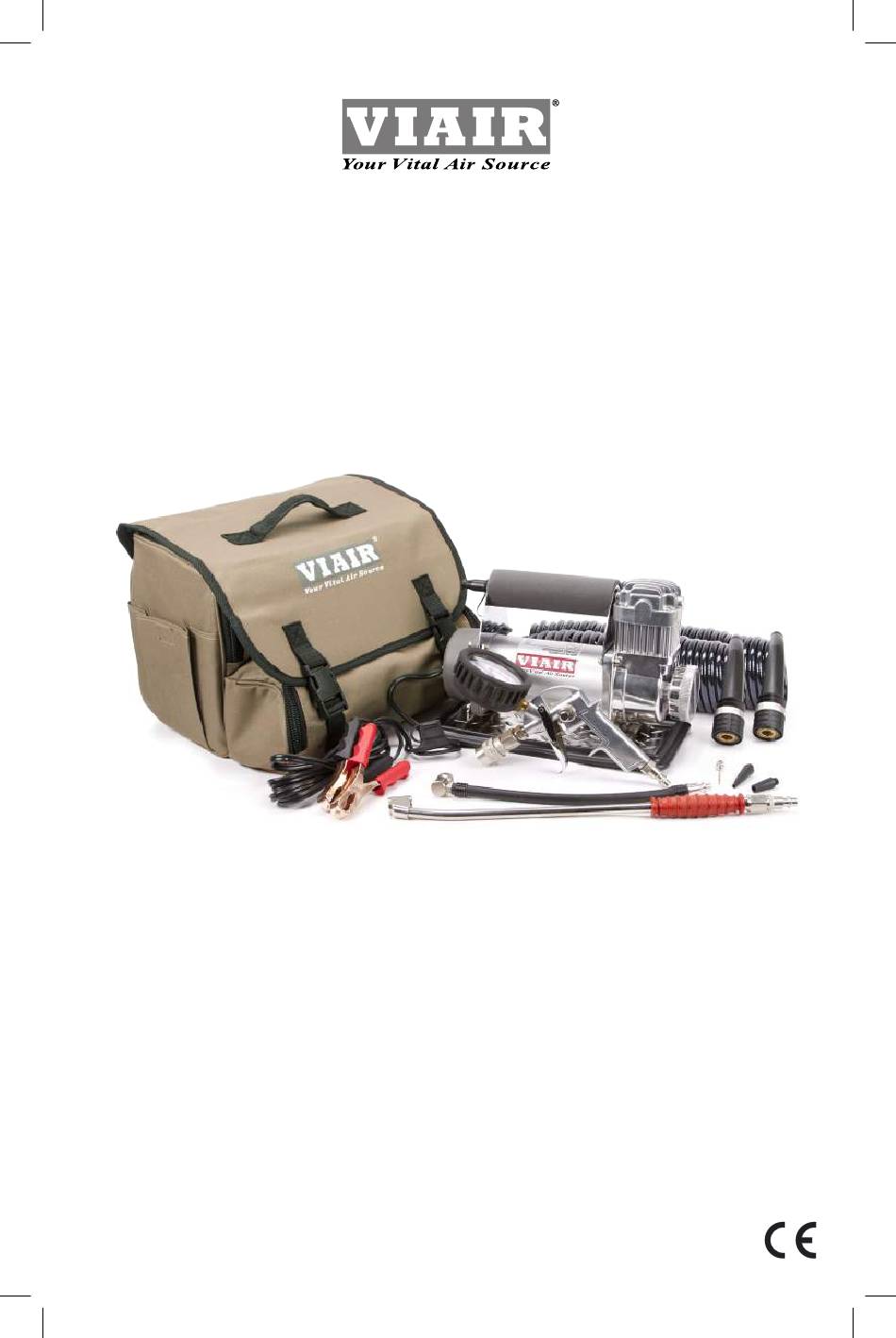

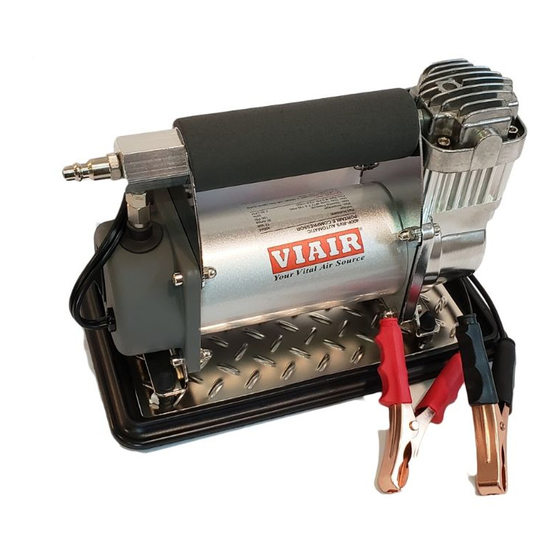

- Page 1 400P-RV AUTOMATIC PORTABLE COMPRESSOR HEAVYWEIGHT SERIES PART NO. 40047 IMPORTANT: It is essential that you and any other operator of this product read and understand the contents of this manual before installing and using this product. SAVE THIS MANUAL FOR FUTURE REFERENCE...
-
Page 2: Important Safety Instructions
400P-RV AUTOMATIC PORTABLE COMPRESSOR IMPORTANT SAFETY INSTRUCTIONS: CAUTION: To reduce risk of electrical shock or electrocution: - Do not disassemble. Do not attempt repairs or modifications. Refer to qualified service agencies for all service and repairs. - Do not use this product in or area where it can fall or be pulled into water or other liquids. - Page 3 400P-RV AUTOMATIC PORTABLE COMPRESSOR OPERATING INSTRUCTIONS: Please read and follow the operating instructions carefully to assure that you will enjoy the convenience and best use out of your air compressor. 1. A lways operate the compressor AT OR BELOW THE MAXIMUM PRESSURE RATING of the compressor. Refer to Specifications section of this manual. 2. A lways OBSERVE THE MAXIMUM DUTY CYCLE of the air compressor. Refer to Specifications section of this manual for details. Operations exceeding maximum pressure ratings and or duty cycle will result in damage to air compressor. 3. Y our air compressor is equipped with an AUTOMATIC THERMAL OVERLOAD PROTECTOR. This feature is designed to protect the air compressor from over-heating and causing permanent damage to your air compressor. The thermal overload protector will automatically cut off power to air compressor should internal operating temperature of the air compressor rise above safe levels during excessive use. 4. S hould your compressor shut off suddenly after extended use, do not attempt to restart air compressor. Turn ON/OFF switch of air compressor to the OFF position. The automatic thermal overload protector will automatically reset when internal temperature of the air compressor drops below safe level. After allowing air compressor to cool off for about 30 minutes, you can safely resume use of the air compressor by turning on the air compressor.
- Page 4 400P-RV AUTOMATIC PORTABLE COMPRESSOR OPERATING INSTRUCTIONS (cont’d): This air compressor comes with 1/4” quick connect stud. A primary coil hose, an extension coil hose and a tire inflation gun are also included with your compressor. Both ends of the primary hose are equipped with 1/4” quick connect couplers. The rubber overmold end should be connected to the compressor itself.
-
Page 5: Safety Precautions
400P-RV AUTOMATIC PORTABLE COMPRESSOR 400P-RV-AUTOMATIC ACCESSORIES: 45-Degree Extended Reach, Angled Chuck: Open-ended air chuck allows reach into areas difficult to reach by hand. Connects to Tire Inflation Gun. 90-Degree Twist-on Chuck: This open-ended air chuck can be attached to any inflation valve where there is limited clearance. Primary Hose & Extension Hoses: Dual hoses, with quick connect couplings. Tire Inflation Gun: Normally closed-ended chuck, (until lever is engaged) all air chucks attach to the Tire Inflation Gun with quick connect couplings. SAFETY PRECAUTIONS: 1. Always inflate tires to manufacturer’s recommended tire pressures. Exercise extreme caution when driving with aired-down tires. Reinflate tires before high-speed roadway travel. - Page 6 400P-RV AUTOMATIC PORTABLE COMPRESSOR INLET AIR FILTER INSTALLATION INSTRUCTION: 1. C heck to make sure air filter element is properly installed in your Inlet Air Filter Assembly 2. R emove the temporary protective red plug from compressor’s air inlet port. 3. I nstall inlet air filter onto compressor’s air inlet port. (Teflon tape Not Recommended). 4. H and tighten inlet air filter. IMPORTANT: For optimal compressor performance, replace filter element periodically. Clogged filter will drastically reduce compressor flow rate and performance. USER MANUAL...
-
Page 7: Troubleshooting Guide
400P-RV AUTOMATIC PORTABLE COMPRESSOR TROUBLESHOOTING GUIDE: PROBLEM: POSSIBLE CAUSE(S) CORRECTIVE ACTION Compressor will not run 1. No power, or power switch 1. Make sure compressor in OFF position switch is ON 2. Blown fuse 2. Disconnect compressor 3. Motor overheats from power source, replace fuse. (Refer to Specifications section for correct fuse amperage) 3. Let compressor cool off for about 30 minutes to allow thermal overload switch to reset. Thermal overload 1. Lack of proper ventilation or 1. Move compressor to well protector cuts out... - Page 8 400P-RV AUTOMATIC PORTABLE COMPRESSOR MODEL 400P-RV AUTOMATIC SPECIFICATIONS: Part Number: 40047 / 400P-RV Automatic Motor Voltage: 12-volt Motor Type: Permanent Magnetic Max. Intermittent Pressure: 150 PSI Max. Duty Cycle: 33% (20 min. on / 40 min. off) (Min. On/Off @ 72ºF & 100 PSI) Max. Current Consumption: 30 amps Fuse: 40 amp Inline Pressure Gauge: 160 PSI *Tolerance: ± 3% Built-in Pressure Switch: 130 PSI / On 155 PSI / Off Automatic Reset Thermal Protection: LIMITED WARRANTY: VIAIR Corporation warrants this product, when properly installed and under normal conditions of use, to be free from defects in workmanship and materials for a period of one year from its original date of purchase. To receive warranty service or repair, please contact VIAIR Corporation. Returns should be made within one year of the date of purchase, after a Return Goods Authorization (RGA) number has been assigned by VIAIR Corporation. To obtain RGA, fax a copy of your receipt to (949) 585-0188. For complete warranty details, please visit: www.viaircorp.com/warranty PLEASE NOTE: THIS WARRANTY COVERS PRODUCT DEFECTS ONLY; IT DOES NOT COVER INCIDENTAL OR CONSEQUENTIAL DAMAGES...
