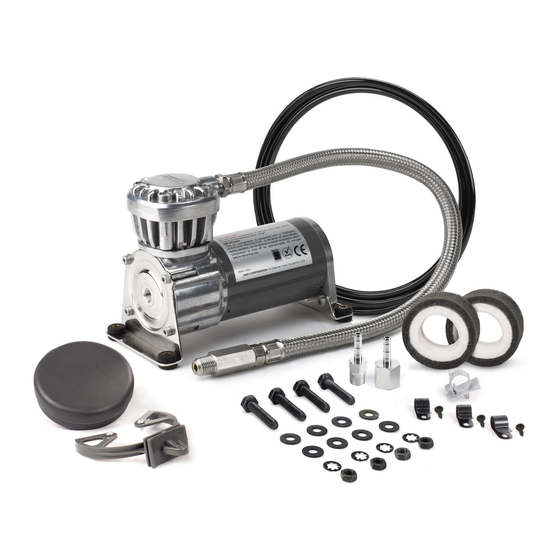

- Page 1 150C-IG COMPRESSOR KIT 12V PART NO. 15010 150C-IG COMPRESSOR KIT 24V PART NO. 15018 IMPORTANT: It is essential that you and any other operator of this product read and understand the contents of this manual before installing and using this product.
-
Page 2: Important Safety Instructions
- Do not use this product in an area where it can fall or be pulled into water or other liquids. - Do not reach for this product if it has fallen into liquid. - Use this compressor with 12-Volt (P/N 15010) or 24-Volt (P/N 15018) DC systems only. - This product should not be left unattended during use. -
Page 3: Mounting And Wiring
150C-IG COMPRESSOR KIT MOUNTING AND WIRING 1. Disconnect ground cable from vehicle’s battery. 2. Temporarily position the air compressor in the location where it will be mounted. 3. Route ground wire to the negative post of the battery or to an appropriate grounding point and cut ground wire to length as needed. -
Page 4: Maintenance And Repairs
150C-IG COMPRESSOR KIT OPERATING INSTRUCTIONS 1. IMPORTANT: Always operate the compressor at or below the MAXIMUM PRESSURE RATING of the compressor. Please refer to Application & Specifications Sections of this manual for details. 2. Always observe the MAXIMUM DUTY CYCLE of the air compressor. Refer to Compressor Applications and Specifications Sections of this manual for details. -
Page 5: Specifications
150C-IG COMPRESSOR KIT SPECIFICATIONS • Part No. 15010 / 150C-IG-12V Compressor Kit (CE Certified) Motor Voltage: 12-Volts Max. Current Consumption: 15-Amps Recommended Fuse: 20-Amps Motor Type: Permanent Magnetic Horsepower: Max. Working Pressure: 150 PSI Max. Duty Cycle (@ 72°F & 100 PSI): Minutes On/Off (@ 72°F &... - Page 6 150C-IG COMPRESSOR KIT COMPRESSOR APPLICATION GUIDE To ensure that you get the highest level of satisfaction from your compressor’s performance, refer to information below: VIAIR COMPRESSOR REFERENCE CHART COMPRESSOR SERIES MAX. WORKING DUTY CYCLE PRESSURE (100 PSI @ 72°F) 090 SERIES...
-
Page 7: Troubleshooting Guide
150C-IG COMPRESSOR KIT TROUBLESHOOTING GUIDE: Tank pressure drops when 1. Loose drain cock 1. Tighten drain cock compressor (s) shut off 2. Check valve leaking 2. Replace check valve or 3. Loose connections compressor(s) 3. Check all connections with soap and water solution and tighten Compressor runs 1. - Page 8 ® used, reproduced, translated, converted, adapted, stored in a retrieval system, communicated or transmitted by any means, for any commercial purpose, including without limitation, sale, resale, license, rental or lease, without the prior express written consent of VIAIR ® VIAIR does not make any representations, warranties or guarantees, express or implied, as to the accuracy or completeness of the ®...
