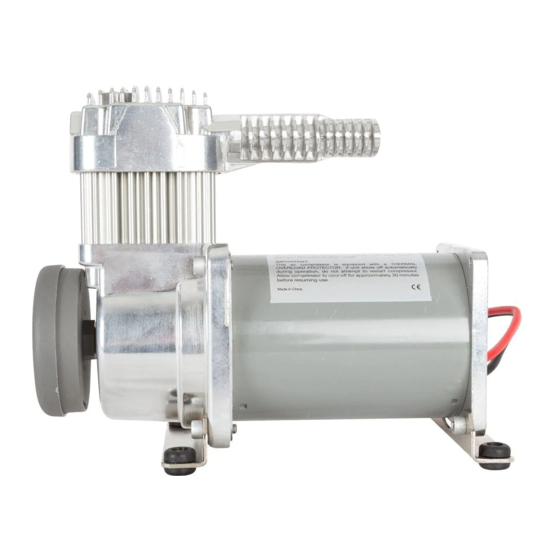

- Page 1 250C-IG COMPRESSOR KIT 12V PART NO. 25050 250C-IG COMPRESSOR KIT 24V PART NO. 25058 IMPORTANT: It is essential that you and any other operator of this product read and understand the contents of this manual before installing and using this product.
-
Page 2: Important Safety Instructions
250C-IG COMPRESSOR KIT IMPORTANT SAFETY INSTRUCTIONS CAUTION - To reduce risk of electrical shock or electrocution: - Do not disassemble. Do not attempt repairs or modifications. Refer to qualified service agencies for all service and repairs. - Do not use this product in an area where it can fall or be pulled into water or other liquids. -
Page 3: Mounting And Wiring
Inspect all air line connections for leaks with soap and water solution. If a leak is detected, the air line may not be cut squarely or pushed all the way in. Fix leaking connections as needed. (Fig. 1) 250C-IG Compressor Installation Parts List: C D E A. Hose Bracket (1pc) B. -
Page 4: Maintenance And Repairs
250C-IG COMPRESSOR KIT OPERATING INSTRUCTIONS 1. IMPORTANT: Always operate the compressor at or below the MAXIMUM PRESSURE RATING of the compressor. Please refer to Application & Specifications Sections of this manual for details. 2. Always observe the MAXIMUM DUTY CYCLE of the air compressor. Refer to Compressor Applications and Specifications Sections of this manual for details. -
Page 5: Specifications
250C-IG COMPRESSOR KIT SPECIFICATIONS • Part No. 25050 / 250C-IG-12V Compressor Kit (CE Spec.) Motor Voltage: 12 Volts Max. Current Consumption: 11 Amps Recommended Fuse: 15 Amps Motor Type: Permanent Magnetic Horsepower: Max. Working Pressure: 150 PSI Max. Duty Cycle (@ 72°F & 100 PSI): 100% Minutes On/Off (@ 72°F &... - Page 6 250C-IG COMPRESSOR KIT COMPRESSOR APPLICATION GUIDE To ensure that you get the highest level of satisfaction from your compressor’s performance, refer to information below: VIAIR COMPRESSOR REFERENCE CHART COMPRESSOR SERIES DUTY CYCLE MAX. WORKING PRESSURE (100 PSI @ 72°F) 090 SERIES...
-
Page 7: Troubleshooting Guide
250C-IG COMPRESSOR KIT TROUBLESHOOTING GUIDE: Tank pressure drops when 1. Loose drain cock 1. Tighten drain cock compressor (s) shut off 2. Check valve leaking 2. Replace check valve or 3. Loose connections compressor(s) 3. Check all connections with soap and water solution... -
Page 8: Limited Warranty
Returns should be made within one year of the date of purchase, after a Return Goods Authorization (RGA) number has been assigned by VIAIR Corporation. To obtain RGA, fax a copy of your receipt to (949) 585-0188. For complete warranty details, please visit: www.viaircorp.com/warranty PLEASE NOTE: THIS WARRANTY COVERS PRODUCT DEFECTS ONLY;...
