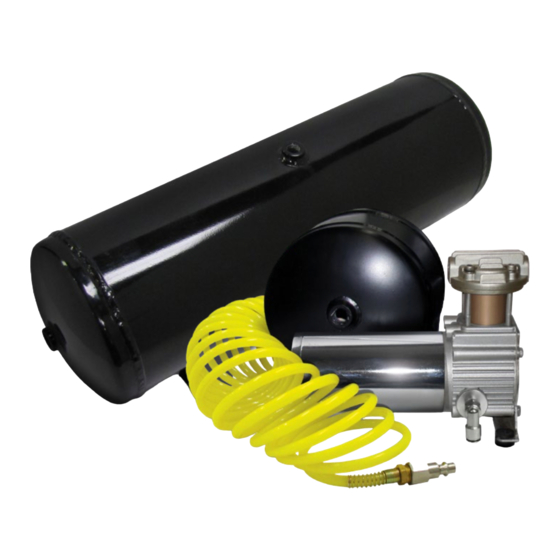

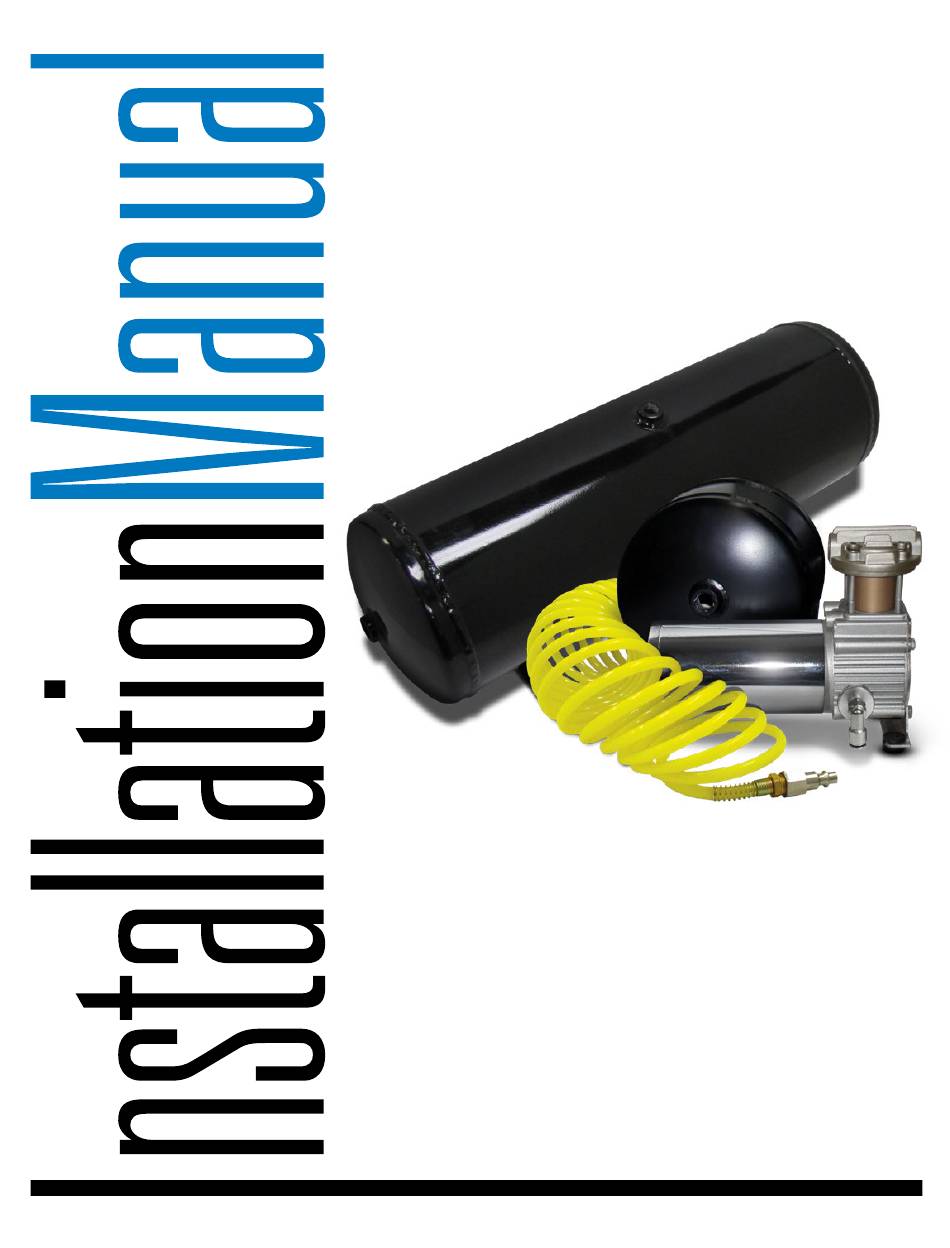

- Page 1 10163 / 10164 KITS ONBOARD AIR SYSTEM Universal Vehicle Applications Perfect for a multitude of air applications: air suspension, air horns, inflatables, flat tires & small air tools. L6127_REV3_11.09.2020...
-
Page 2: Before Starting The Installation
It is recommended to use a good quality anti-seize on all fasteners. This will reduce the chance of corrosion on the fasteners and will help facilitate removal, if required at a later date. 10163 KITS - Includes a ½ Gallon Air Tank PLEASE NOTE: This kit contains push-to-connect fittings;... -
Page 3: Electrical Connections
Onboard Air Systems L6127 AIR COMPRESSOR AND AIR TANK MOUNTING Thread sealant or Teflon tape must be applied to all the fitting threads installed throughout the installation to prevent air leaks. Install the push-to-connect fittings into the check valve, then install the assembly into the compressor head, (as shown in Figure 1). - Page 4 Onboard Air Systems L6127 Locate the white wire of the relay harness. Connect it to an ignition T-tap connector ® power source through the 5 amp inline fuse provided. This wire can be connected through an ON/OFF switch to override the compressor activation should the customer prefer this option.
- Page 5 Onboard Air Systems L6127 BASIC AIRLINE & WIRING DIAGRAM QUICK DISCONNECT FITTING NYLON HOSE TO ACCESSORY ONE WAY PRESSURE CHECK VALVE SWITCH AIR TANK Black DRAIN VALVE 30 AMP FUSE BATTERY RELAY MALE AIR FITTING AIR FILTER White “T” TAP 5 AMP TO IGNITION FUSE...
