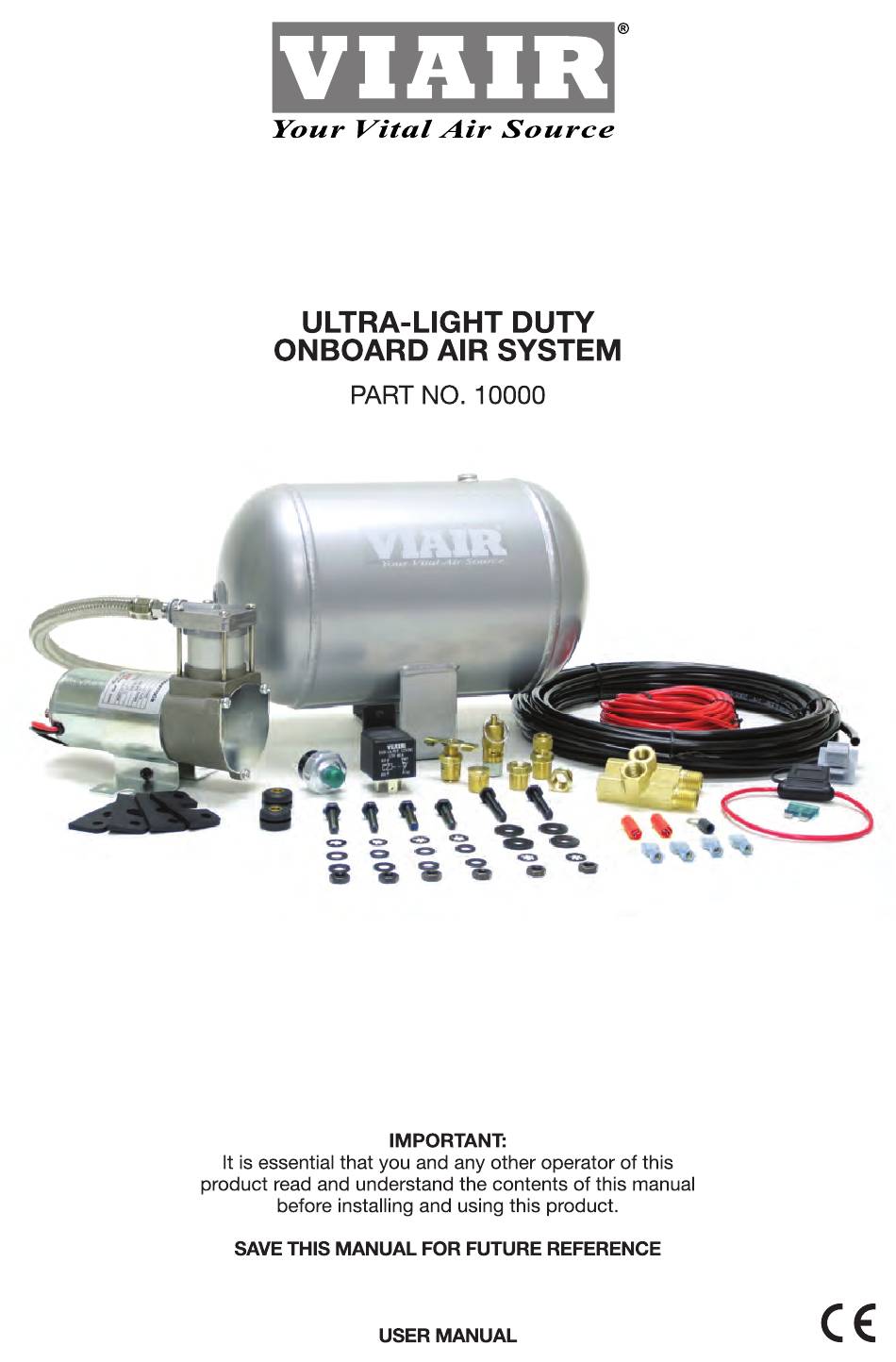

- Page 2 1 - 1.0 Gallon, 4 port VIAIR Air Tank 1 - 98C model VIAIR compressor with leader hose and check valve (Check to make sure that you have eight labeled packages in your kit. Each package contains the parts needed for specific areas of installation, and may contain smaller bags within each package for specific uses.)

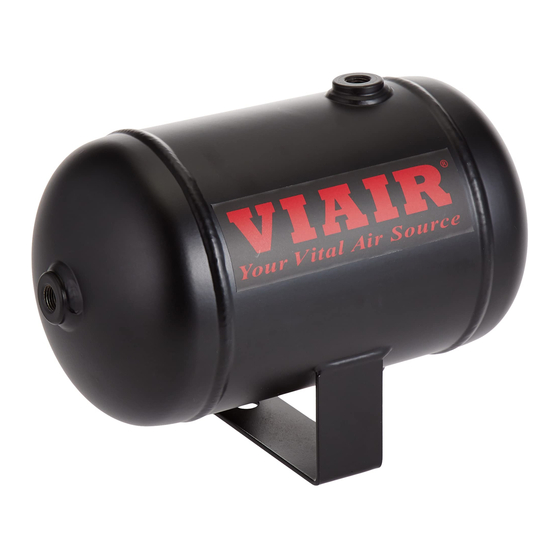

- Page 3 ULTRA-LIGHT DUTY ONBOARD AIR SYSTEM P/N 10000 OBA PLUMBING DIAGRAM 1.0 GALLON AIR TANK & PLUMBING Your 1.0 gallon air tank comes with four 1/4" NPT port openings. To ensure safe & trouble-free use of your air tank, install the drain cock and a safety pressure relief valve. (See Figure 1)
- Page 4 - If it is necessary to mount the air compressor further from the battery, such as inside your vehicle or in the bed of your pickup, VIAIR recommends using wire larger than 12 AWG as a positive lead for remote installation.
- Page 5 PRESSURE SWITCH WITH RELAY INSTALLATION Your VIAIR Ultra-Light Duty Onboard Air System comes complete with a pressure switch and a 40-amp relay that will turn on the compressor at 80 PSI, and off at 105 PSI. The pressure switch has a 1/8" NPT inlet at the bottom that will need to be installed into the 1/8"...
- Page 6 ULTRA-LIGHT DUTY ONBOARD AIR SYSTEM COMPRESSOR APPLICATION GUIDE To ensure that you get the highest level of satisfaction from your compressor performance, refer to information below: VIAIR COMPRESSOR REFERENCE CHART COMPRESSOR SERIES DUTY CYCLE MAX. WORKING PRESSURE (100 PSI @ 72°F)
-
Page 7: Troubleshooting Guide
ULTRA-LIGHT DUTY ONBOARD AIR SYSTEM TROUBLESHOOTING GUIDE: PROBLEM POSSIBLE CAUSE(S) CORRECTIVE ACTION Tank pressure drops when 1. Loose drain cock 1. Tighten drain cock compressor (s) shut off 2. Check valve leaking 2. Replace check valve 3. Loose connections or compressor(s) 3. -
Page 8: Limited Warranty
Manual. It is the user’s responsibility to determine whether there have been any such updates or amendments. Neither VIAIR nor any of its directors, officers, employees or agents shall be liable in contract, tort or in any other manner whatsoever to any person for any loss, damage, injury, liability, cost or expense of any nature, including without limitation incidental, special, direct or consequential damages arising out of or in connection with the use of the Manual.
