System Configuration
SYSMAC Support Software
and SYSMAC-CPT Support
Software
IBM PC/AT or compatible
SSS
SYSMAC-
CPT
Name
RS-232C Adapter
Connecting Cable
SYSMAC Support Software For IBM PC/AT or compatible computers (3.5" disks, 2HD)
SYSMAC-CPT Support
Software

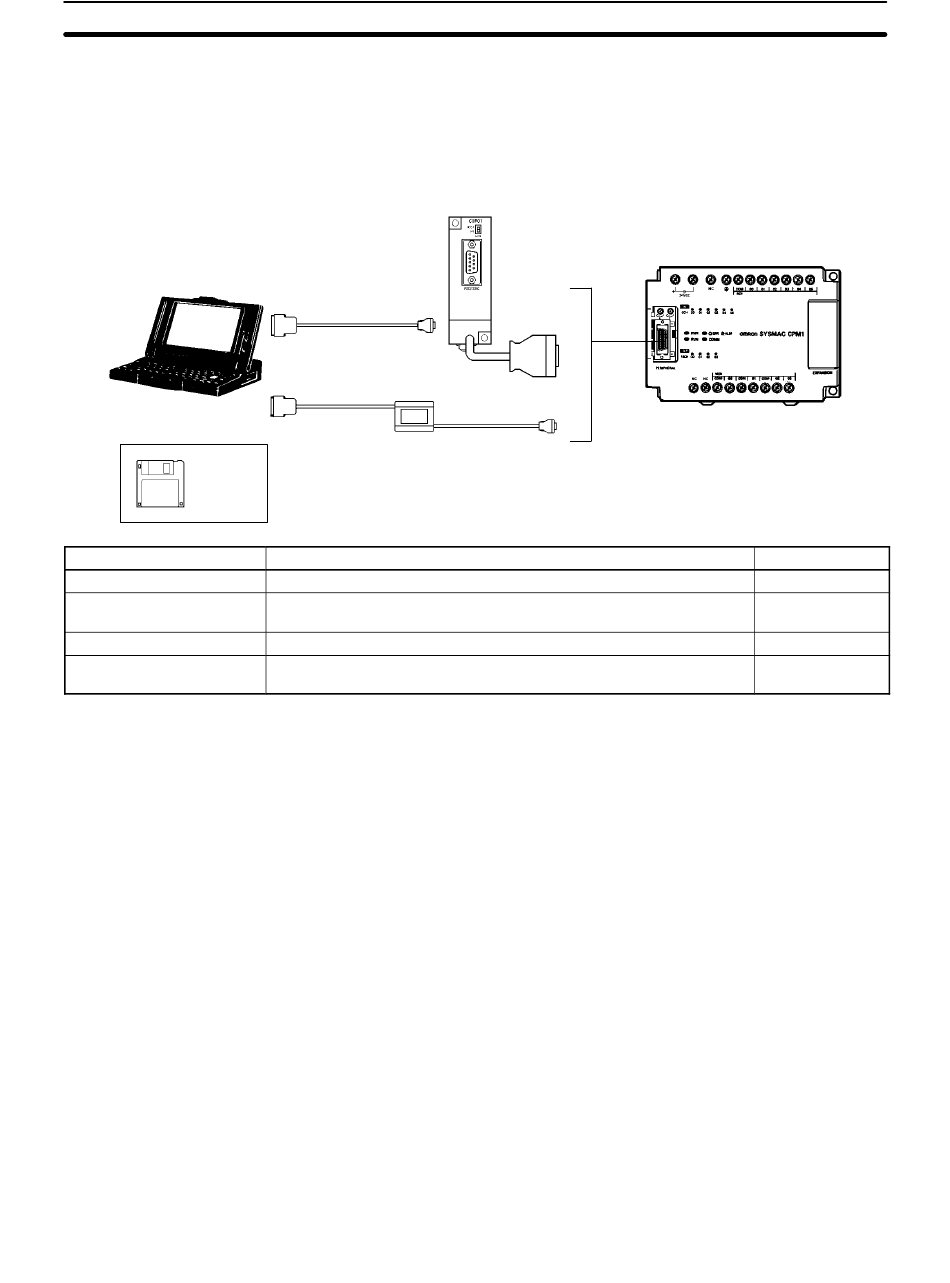

An IBM PC/AT or compatible personal computer running SSS or the SYSMAC-
CPT Support Software can be connected to the CPM1A as shown in the follow-
ing diagram. Refer to 3-4-7 Host Link Connections for a diagram showing the
standard wiring for the RS-232C cable.
Any version of the Support Software may be used. Refer to 4-1 Support Soft-
ware Capabilities for further details on installing and using Support Software.
RS-232C Adapter
RS-232C Cable
CQM1-CIF02
Converts to Peripheral Port format level communications.
Used to connect IBM PC/AT or compatible computers. (Length: 3.3 m)
For IBM PC/AT or compatible computers
(3.5" disks (2HD) and CDROM)
Note Specify the model number when making a new purchase of a product.
Usage
Section 1-2
CPM1 CPU Unit
Model Number
CPM1-CIF01
CQM1-CIF02
(see note)
C500-ZL3AT1-E
WS01-CPTB1-E
13
