System Configuration

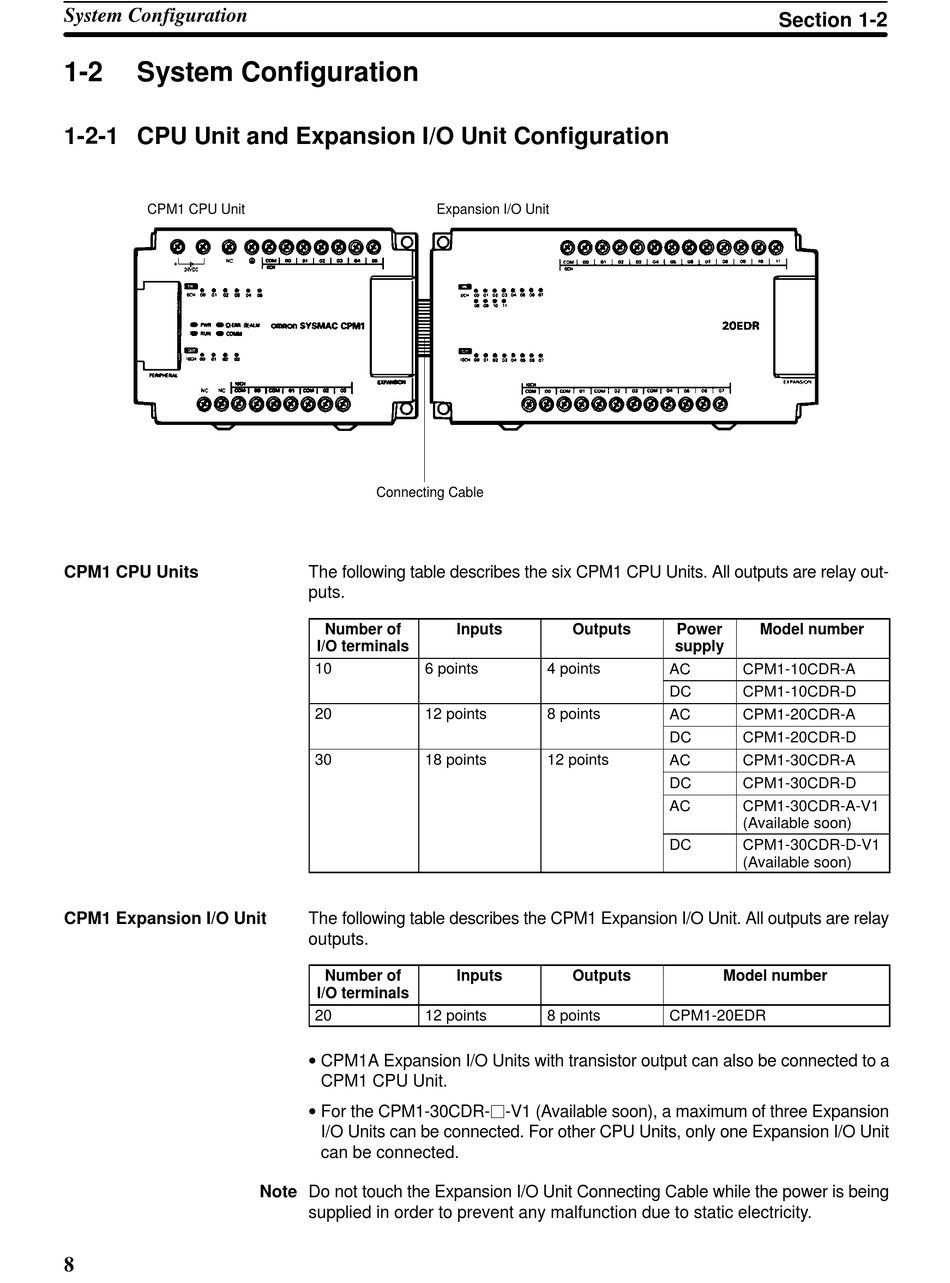

1-2 System Configuration
1-2-1 CPU Unit and Expansion I/O Unit Configuration
CPM1 CPU Unit
CPM1 CPU Units
CPM1 Expansion I/O Unit
8
Expansion I/O Unit
Connecting Cable
The following table describes the six CPM1 CPU Units. All outputs are relay out-
puts.
Number of
I/O terminals
10 6 points
20 12 points
30 18 points
The following table describes the CPM1 Expansion I/O Unit. All outputs are relay
outputs.
Number of
I/O terminals
20 12 points
• CPM1A Expansion I/O Units with transistor output can also be connected to a
CPM1 CPU Unit.
• For the CPM1-30CDR-j-V1 (Available soon), a maximum of three Expansion
I/O Units can be connected. For other CPU Units, only one Expansion I/O Unit
can be connected.
Note Do not touch the Expansion I/O Unit Connecting Cable while the power is being
supplied in order to prevent any malfunction due to static electricity.
Inputs Outputs
4 points
8 points
12 points
Inputs Outputs
8 points
Section 1-2
Power Model number
supply
AC CPM1-10CDR-A
DC CPM1-10CDR-D
AC CPM1-20CDR-A
DC CPM1-20CDR-D
AC CPM1-30CDR-A
DC CPM1-30CDR-D
AC CPM1-30CDR-A-V1
(Available soon)
DC CPM1-30CDR-D-V1
(Available soon)
Model number
CPM1-20EDR
