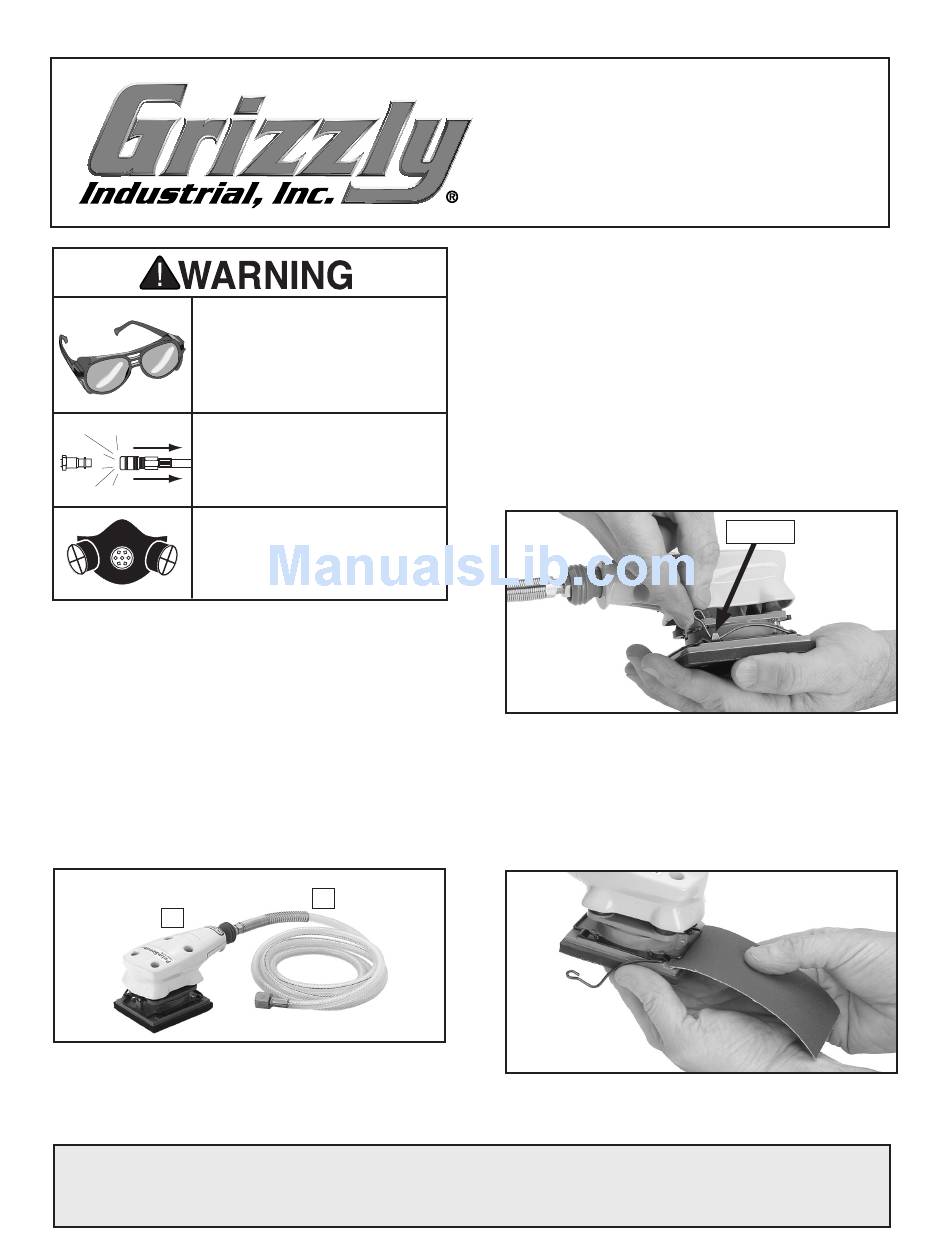

Grizzly G5344 Instruction Sheet

EYE INJURY HAZARD!
Always wear safety glasses
when using this tool to
prevent serious personal
injury.
Always disconnect tool from
air to prevent unexpected
Operation during service.
Always wear respirator when

Introduction

This 15,000 RPM air sander requires 75 PSI and
3" x 4 / " sanding sheets. (You can cut a standard
1
2
9" x 11" sanding sheet into sixths and trim each
piece to size.) Air hose inlet is

Inventory

A. Air Palm Sander ......................................... 1
B. Air Hose ...................................................... 1
A
Figure 1
.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
INJURY HAZARD!
DUST HAZARD!
using this tool.
/ " NPT.
1
4
B
Model G5344.
COPYRIGHT © MAY, 2006 BY GRIZZLY INDUSTRIAL, INC.
#BL8253 PRINTED IN TAIWAN
MODEL G5344
AIR PALM SANDER
INSTRUCTION SHEET

Assembly and Attaching Abrasives

To assemble the sander and attach sandpa-
per:
1. Thread the air hose into the sander.
2. Install a ⁄ " NPT male quick-disconnect fitting
1
4
(not included) into the end of the hose.
3. Lift one clamp up over the bracket (Figure 2),
then pull the clamp down to open it.
Figure 2. Opening clamp.
4.
Insert one end of the sandpaper between the
clamp and base as shown in Figure 3, and
lift the clamp up and back over the bracket to
secure the sandpaper.
Figure 3. Attaching and securing sanding sheet.
Bracket
