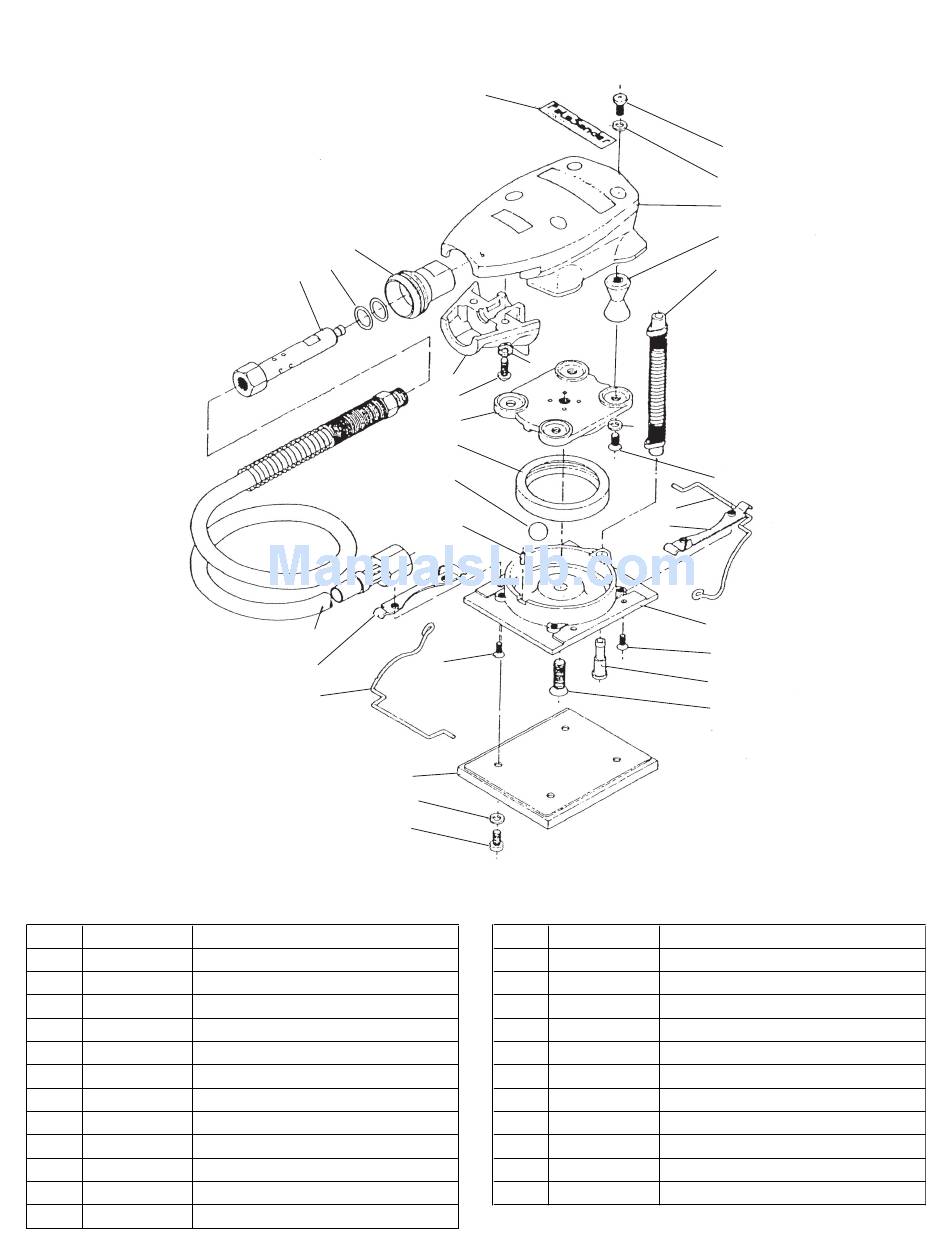

Grizzly G5344 Parts Breakdown

REF PART # DESCRIPTION
1 PS07M PHLP HD SCR M4-.7 X 8
2 PLW02M LOCK WASHER 4MM
3 P5344003 HOUSING COVER
4 P5344004 RUBBER SUPPORT ASSEMBLY
5 P5344005 TUBE ASSEMBLY
6 P5344006 MODEL LABEL
7 P5344007 RUBBER PAD ASSEMBLY
8 P5344008 THROTTLE VALVE
9 P5344009 O-RING
10 P5344010 VALVE FITTING
11 P5344011 HOUSING CAP
12 PS38M PHLP HD SCR M4-.7 X 10
13 P5344013 END PLATE
G5344 Parts Breakdown and List
�
�
��
��
��
��
��
�
�
��
��
��
��
��
��
��
��
�
REF PART #
14 P5344014
15 P5344015
16 P5344016
17 P5344017
18 P5344018
19 PFH49M
20 P5344020
21 P5344021
22 PLW02M
23 P5344023
24 P5344024
25 P5344025
�
�
�
�
�
�
��
��
��
��
��
��
��
DESCRIPTION
CYLINDER
STEEL BALL
CLAMP SPRING
FLAT HEAD SCREW
CYLINDER SUB ASSEMBLY
FLAT HD SCR M3-.5 X 6
VALVE BUSHING
FLAT HEAD SCREW
LOCK WASHER 4MM
HOSE SUB ASSEMBLY
CLAMP STOMPER
ROLL PIN
