Installation Camera series SDF6000DN
INSTALLATION AND CONNECTION OF A DOMERA® DUAL MATRIX LED RING
© 2022 Dallmeier electronic
V1.0.0

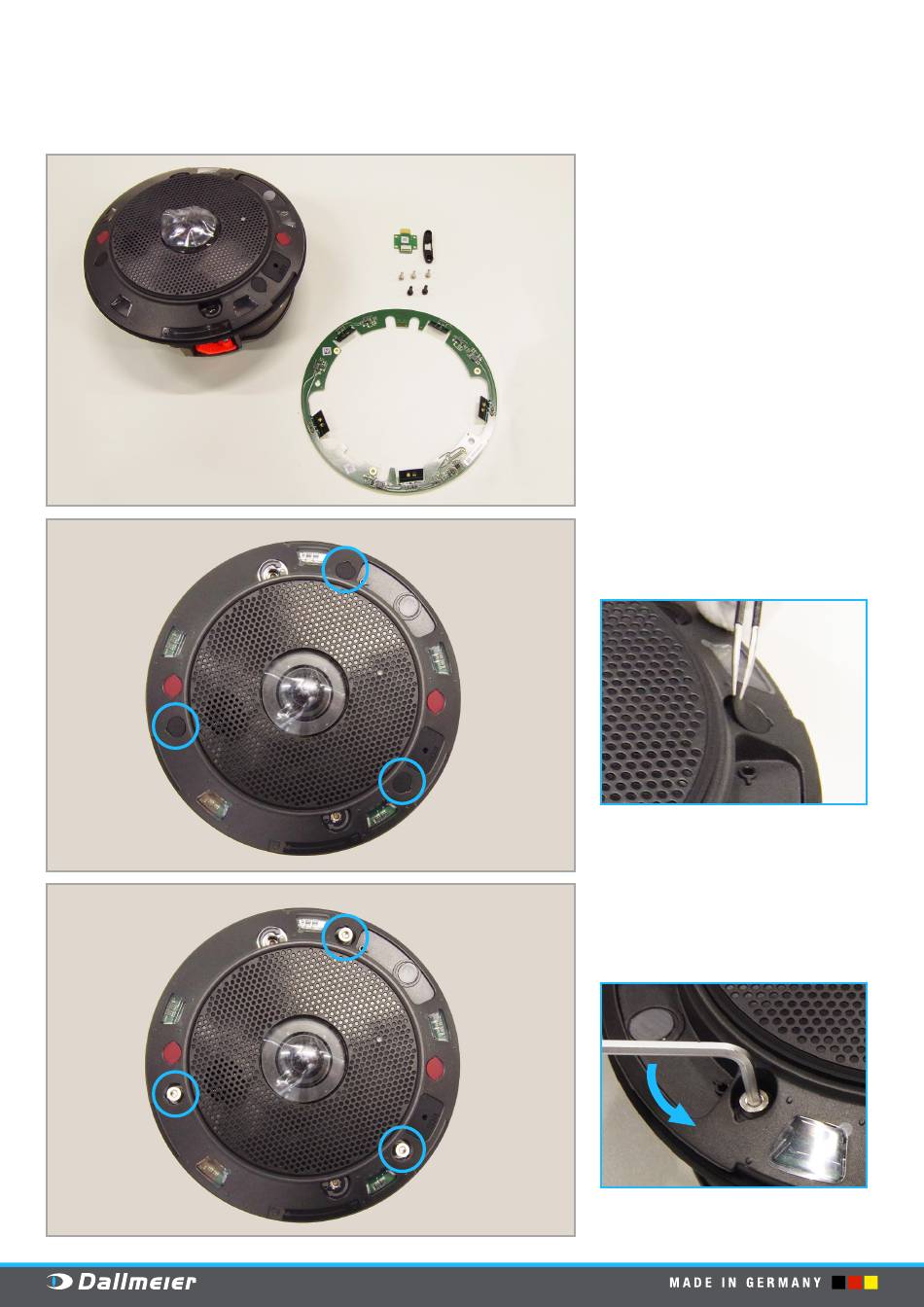

Preparing the Camera
Required for mounting:
▶
1 x DOMERA® SDF6000DN
1 x DOMERA® Dual Matrix LED Ring
Retrofit Kit
1 x Allen key (3)
1 x Tweezers
1 x Torx screwdriver (TX 8)
Carefully remove the three rubber
▶
covers from the screws.
Open the three screws of the cover ring
▶
counterclockwise using an Allen key (3).
2022.08.02
1/6
Advertisement
Table of Contents
Related Manuals for dallmeier SDF6000DN Series
Summary of Contents for dallmeier SDF6000DN Series
- Page 1 1 x Tweezers 1 x Torx screwdriver (TX 8) Carefully remove the three rubber ▶ covers from the screws. Open the three screws of the cover ring ▶ counterclockwise using an Allen key (3). © 2022 Dallmeier electronic V1.0.0 2022.08.02...
- Page 2 Carefully remove the rubber seal ▶ from the camera housing, ideally with a pair of tweezers. Insert the circuit board into the ▶ corresponding opening and press it carefully with light pressure. © 2022 Dallmeier electronic V1.0.0 2022.08.02...
- Page 3 Installing the Dual Matrix LED Ring Place the Dual Matrix LED Ring on ▶ the camera. Make sure that the connector snaps into the socket of the board and press the ring firmly with light pressure. © 2022 Dallmeier electronic V1.0.0 2022.08.02...
- Page 4 Before assembling, pay attention to the alignment of the camera lens. If necessary, rotate the lens until the arrow mark points to the position of the clip for the safety rope. Afterwards, reconnect the sensor plug. ▶ © 2022 Dallmeier electronic V1.0.0 2022.08.02...
- Page 5 Place the cover ring on the LED ring ▶ of the camera. Then tighten the screws clockwise ▶ using the Allen key. Replace the rubber covers over the ▶ three screws. © 2022 Dallmeier electronic V1.0.0 2022.08.02...
- Page 6 All trademarks identified by ® are registered trademarks of Dallmeier electronic GmbH & Co.KG. Third-party trademarks are named for information purposes only. Dallmeier electronic respects the intellectual property of third parties and always attempts to ensure the complete identification of third-party trademarks and indication of the respective holder of rights.
