INSTALLATION OF A SPEAKER RETROFIT KIT IN A DOMERA® WALL BRACKET
© 2023 Dallmeier electronic
V1.0.1

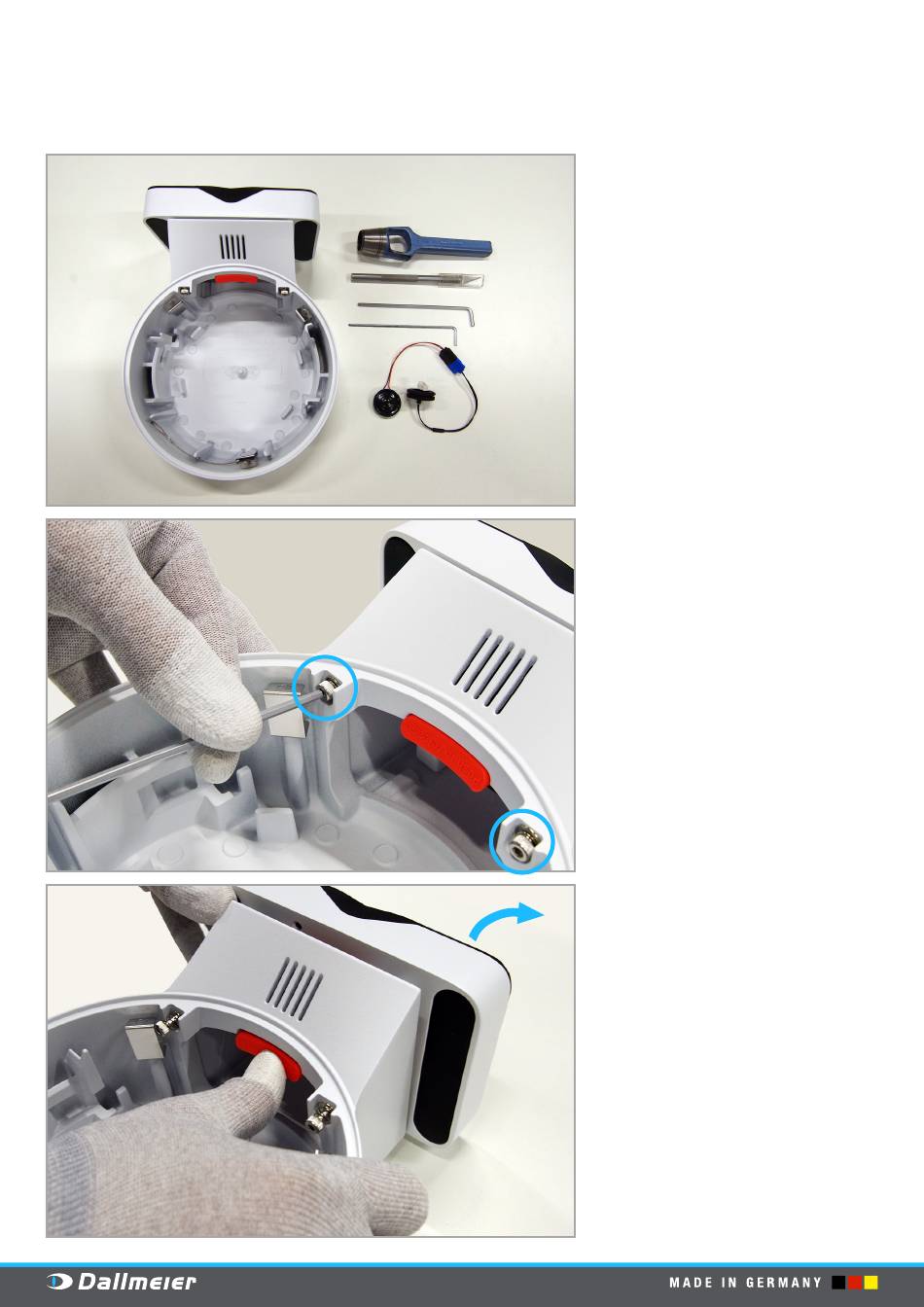

Preparing the Domera® Wall Bracket
Required for mounting:
▶
1 x Domera® Wall Bracket
1 x Speaker Retrofit Kit
1 x Allen key (3)
1 x Allen key (2.5)
1 x Hole punch (22 mm ⌀)
1 x Utility knife
Use an Allen key (3) to loosen the
▶
two retaining screws.
Unlock and remove the adapter
▶
plate by pressing the red button in
the wall bracket.
2023.06.01
1/5
