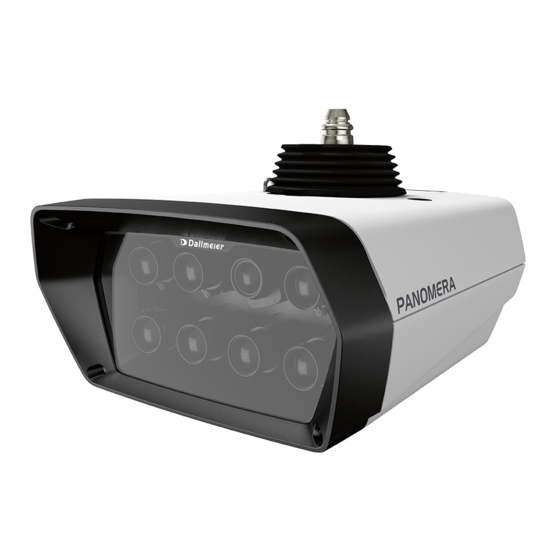

S Series
COMMISSIONING
008035 | REV. 1.0.1 | 2020-07-24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Panomera S Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dallmeier Panomera S Series

Summary of Contents for dallmeier Panomera S Series

  • Page 1 S Series COMMISSIONING 008035 | REV. 1.0.1 | 2020-07-24...
  • Page 2 NVIDIA and GeForce of NVIDIA Corporation headquartered in Santa Clara, California, USA. Third-party trademarks are named for information purposes only. Dallmeier respects the intellectual property of third parties and always attempts to ensure the complete identification of third-party trademarks and indication of the respective holder of rights.
  • Page 3 COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 5: Table Of Contents

    11 Connections and Pin Assignment 12 Configuration System Requirements Configuration Steps Establishing the Connection (Panomera® WebConfig) First-Time Access (Panomera® WebConfig) Login (Panomera® WebConfig) 13 Technical Product Specification (Basic Data) 14 Dimensions COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 6: Validity

    Keep all documents in legible condition and in a suitable location for future reference. Regularly check the website www.dallmeier.com for the latest product documentation updates. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 7: This Document

    In this context, also note the information in the current documentations for the following Dallmeier software applications: • PService3 • SMAVIA Recording Server • SMAVIA Viewing Client COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 8: Typographical Conventions

    NOTICE addresses practices not related to physical injury and indicates measures to prevent device and/or property damage due to improper installation, assembly, wiring, operation, configuration or maintenance of the device. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 9 (menu items, buttons, etc.). Paragraphs in italics provide information on basic principles, special features and efficient procedure as well as general recommendations. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 10: Approvals/Certifications

    Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interfer- ence at his own expense. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 11: Safety Instructions

    Dallmeier. Inappropriate modifications (e.g. unapproved paintwork or housing add-ons) may cause malfunctions, damage and data loss and may result in the loss of warranty. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 12 DIN, VDE and ISO standards and which provide for a standard-compliant earthing/grounding and a correct equipotential bonding of electrical and electronic devices, are mandatory and must be fulfilled by all means. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 13 Interrupt the power supply to the device (e.g. switch off the correspond- ing circuit breaker) and remove all connected peripherals. Return the device to the sales partner responsible for your area. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 14: General Notes

    The use of the safety cable as secondary safety component in a Mountera® bracket is not possible. Fig. 1: Supplied safety cable (length: 100 cm) according to BGI 810-3 COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 15: Transportation And Packaging

    (IR-Cut Removable – ICR), the cameras of the Panomera® S Series are suitable for residential, public, commercial and industrial use in both indoor and outdoor areas during the day and at night (24/7/365 continuous operation). COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 16: Operation

    Mixed light (consisting of artificial light and daylight) may cause color distortions (inaccurate color reproduc- tion). • Poor lighting can lead to an incorrect white balance. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 17: Remedies At High Ambient Temperatures

    Increase the f-stop number of each lens via the WebConfig user inter- face (for example, go from f/2 to f/4) to increase the depth of field in the image. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 18: Formation Of Condensation

    Pressure equalization elements are used to prevent the formation of con- densation in sealed enclosures, where humidity normally cannot escape to the outside. Fig. 2: Pressure equalization element COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 19 This results in condensation on the outer surface of the front glass (like dew on the grass). This phenomenon is due to physical reasons and, therefore, does not consti- tute a defect. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 20: Requirements

    Use of the device under unfavorable ambient conditions may shorten its lifetime and may cause malfunction or damage to the device. ➡ Only install/operate the device under favorable ambient conditions. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 21: Earthing/Grounding

    (EMI). ➡ Observe the locally applicable regulations (regional and country-specific legal requirements and standards) regarding the required minimum cross-section for the earthing/grounding cable used. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 22: Power Supply

    Damage to electronic components or serious malfunctions ➡ Observe the correct polarity when connecting the device to the used power supply unit (see chapter “Connections and Pin Assignment” on page 54). COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 23: Maintenance, Inspection And Cleaning

    DIN VDE 0701-0702 series of standards (VDE 0701-0702: “Inspection after repair, modification of electrical appliances – Periodic inspection on electrical appliances – General requirements for electrical safety”). COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 24 Only use a small amount of the recommended detergent. • Avoid excessive rubbing. • Do not let residues of the detergent dry on the front glass as this may damage the coated surface. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 25: Limits Of The System

    (e.g. of poles and brackets), image changes may occur mainly in more distant scene areas (e.g. changes of image section and edge transitions). COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 26: 10 Mounting, Connection And Commissioning

    (safety cable) on the outside of the housing. In addition, strictly observe the locally applicable regulations regard- ing the mandatory measures for securing your camera system against falling while in operation. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 27 In the following, the mounting of the device on the Mountera® Ceiling Bracket is described. Fig. 4: Mountera® Ceiling Bracket with internal cable routing and pre-assembled internal safety cable (secondary safety component – supplied with bracket) COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 28 ➡ Place the device in its original packaging on a level, clean and stable surface. ➡ Open the device packaging. Be careful not to damage the original packaging for future transpor- tation. ➡ Remove the accessory box. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 29 ❷ Fig. 6 ➡ Carefully pull the top foam insert out of the packaging. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 30 ➡ Carefully pull the device by its plastic handle (red) out of the pack- aging. The bottom foam insert has to be lifted out together with the device and must not be removed from the device at this time. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 31 ➡ Carefully pull the device out of the foam insert. ➡ Rotate the carrying handle vertically by 90°. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 32 (Fig. 9). ➡ Separate the two halves of the remaining cap and then remove both parts from the device (Fig. 10). COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 33 Fig. 11 Place the individual parts of the plastic handle back into the original packaging of the device for later reuse. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 34 ❻ Fig. 12 ➡ Attach the supplied flexible rubber sleeve (bellows) from the accessory box to the connecting plate of the Mountera® Quick-Lock System. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 35 Fig. 13 ➡ Make sure that the rubber sleeve is correctly seated on all sides to prevent any moisture, dust and dirt from penetrating the device later on. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 36 ➡ Make sure that the locking screw of the Mountera® Quick-Lock System is fully open (turned in counterclockwise direction). For this purpose, use the supplied hexagon socket screw key (size 5) from the accessory box. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 37 (secondary safety component), as shown in Fig. 15, in order to pre- vent the device from accidentally falling down during the following mounting steps. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 38 ➡ Before assembling the device to the bracket, hold the device so that the adjusting screw of the Mountera® Plug is aligned with the lock- ing screw of the bracket. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 39 ➡ Insert the Mountera® Plug into the Mountera® Lock until the spring mechanism inside the bracket locks into place (make sure to keep the device straight when inserting so that the Mountera® Plug does not get jammed). COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 40 ➡ Secure the Mountera® Quick-Lock System by turning the locking screw of the bracket fully in clockwise direction. For this purpose, use the supplied hexagon socket screw key (size 5) from the accessory box. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 41 ⓫ Fig. 19 ➡ Open the rubber protective cover (captive) of the housing cover locking screw. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 42 ⓬ Fig. 20 ➡ Loosen the housing cover locking screw in counterclockwise direc- tion with the supplied hexagon socket screw key (size 5). COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 43 ⓭ Fig. 21 ➡ Turn the housing cover lock ring in counterclockwise direction as far as it will go. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 44 ⓮ Fig. 22 ➡ Open the housing cover (first lift the cover slightly and then slide it carefully backwards and downwards). COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 45 ➡ Carry out the cabling and a proper earthing/grounding of the device (see chapter “Connections and Pin Assignment” on page 54). COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 46 ⓰ Fig. 24 ➡ Close the housing cover. ➡ Turn the housing cover lock ring in clockwise direction as far as it will COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 47 ➡ Tighten the housing cover locking screw in clockwise direction with the supplied hexagon socket screw key (size 5). ➡ Close the rubber protective cover of the housing cover locking screw. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 48 ➡ If necessary, pan the device carefully and with normal force in the required horizontal direction (first turn the locking screw of the Mountera® Quick-Lock System by 180° in counterclockwise direction and tighten it again when finished). COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 49 ➡ Turn the locking screw of the ball head with the supplied hexagon socket screw key (size 5) in counterclockwise direction (beyond a noticeable end-stop) until you can tilt the device with your hands in all directions with little effort. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 50 ⓴ Fig. 28 ➡ Tilt the device in the required vertical direction (observe the recom- mended tilt angle in the product specification of your Panomera® model). COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 51 (check the live image of the Panomera® master module on a monitor or use a spirit level and rotate the device around its roll axis if necessary). COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 52 ㉑ Fig. 30 ➡ Finally tighten the locking screw of the ball head in clockwise direction. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 53 Make sure that the rubber sleeve is correctly seated on all sides to prevent any moisture, dust and dirt from getting between the device and the Mountera® bracket later on. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 54: Connections And Pin Assignment

    Fixation point for safety cable (secondary safety component) LAN 2 Power In LAN 1 Fig. 32 Important information on the earthing/grounding connection can be found in the section “Earthing/Grounding” on page 21. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 55 ③ +48 V DC Heater black / ④ GND Heater black / Functional Earth green-yellow Fig. 34: Power cable (5-core, HARTING plug on multi-stranded wires with wire-end ferrules) COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 56: 12 Configuration

    1× NVIDIA*) GeForce*) GTX 1070 Ethernet 1000 Mbps (Gigabit Network) Web browser Microsoft Internet Explorer*) 11 Google*) Chrome*) Mozilla*) Firefox*) (latest available version of each browser) Browser settings JavaScript*) enabled COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 57: Configuration Steps

    Step 5: Displaying configuration (SMAVIA Viewing Client) For further descriptions on the most important configuration steps of a Panomera® multifocal sensor system, refer to the Panomera® documentation “Configuration – Quick Guide”. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 58: Establishing The Connection (Panomera® Webconfig)

    The language of the graphical user interface (GUI) can be switched in the top-left corner of the screen without the need to login. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 59: First-Time Access (Panomera® Webconfig)

    (the strength of the selected password is displayed during input). ➡ Click “OK”. After the first successful access to the device, the login dialog is displayed. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 60: Login (Panomera® Webconfig)

    ➡ Finally, click “LOGOUT” to properly log out of the Panomera® multifocal sensor system. Detailed descriptions of the configuration settings can be found in separate documentations that are available at www.dallmeier.com. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 62: Technical Product Specification (Basic Data)

    HARTING connector (5-pole) Mechanical Data Construction material Aluminum Processing Chromated Finish Powder coating (tested for seawater resistance according to DIN EN 60068-2) Adjustment Stepless adjustment on three axes COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 63 Detailed information and possible updates can be found in the currently valid product specification of your Panomera® model at www.dallmeier.com. COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...

  • Page 64: 14 Dimensions

    14 Dimensions 348 mm (13.7") 331 mm (13.0") 348 mm (13.7") Fig. 35 COMMISSIONING – Panomera® S Series | REV. 1.0.1 | © 2020 Dallmeier...
  • Page 68 HEADQUARTERS Dallmeier electronic GmbH & Co.KG Bahnhofstr. 16 93047 Regensburg Germany +49 941 8700-0 +49 941 8700-180 mail info@dallmeier.com www.dallmeier.com...
