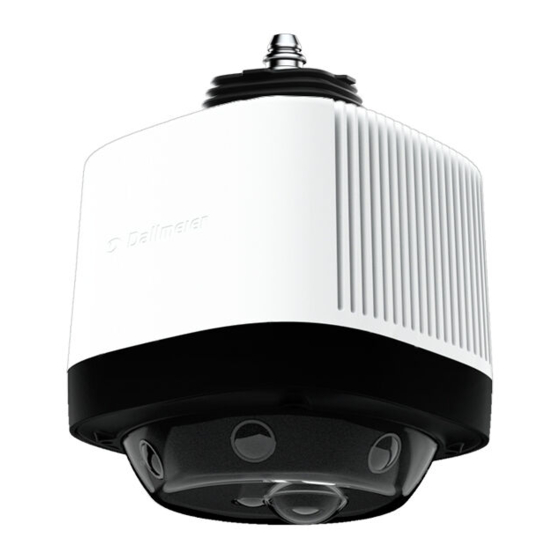

W Series
COMMISSIONING
007425 | REV. 2.0.4 | 2020-11-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Panomera W Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dallmeier Panomera W Series

Summary of Contents for dallmeier Panomera W Series

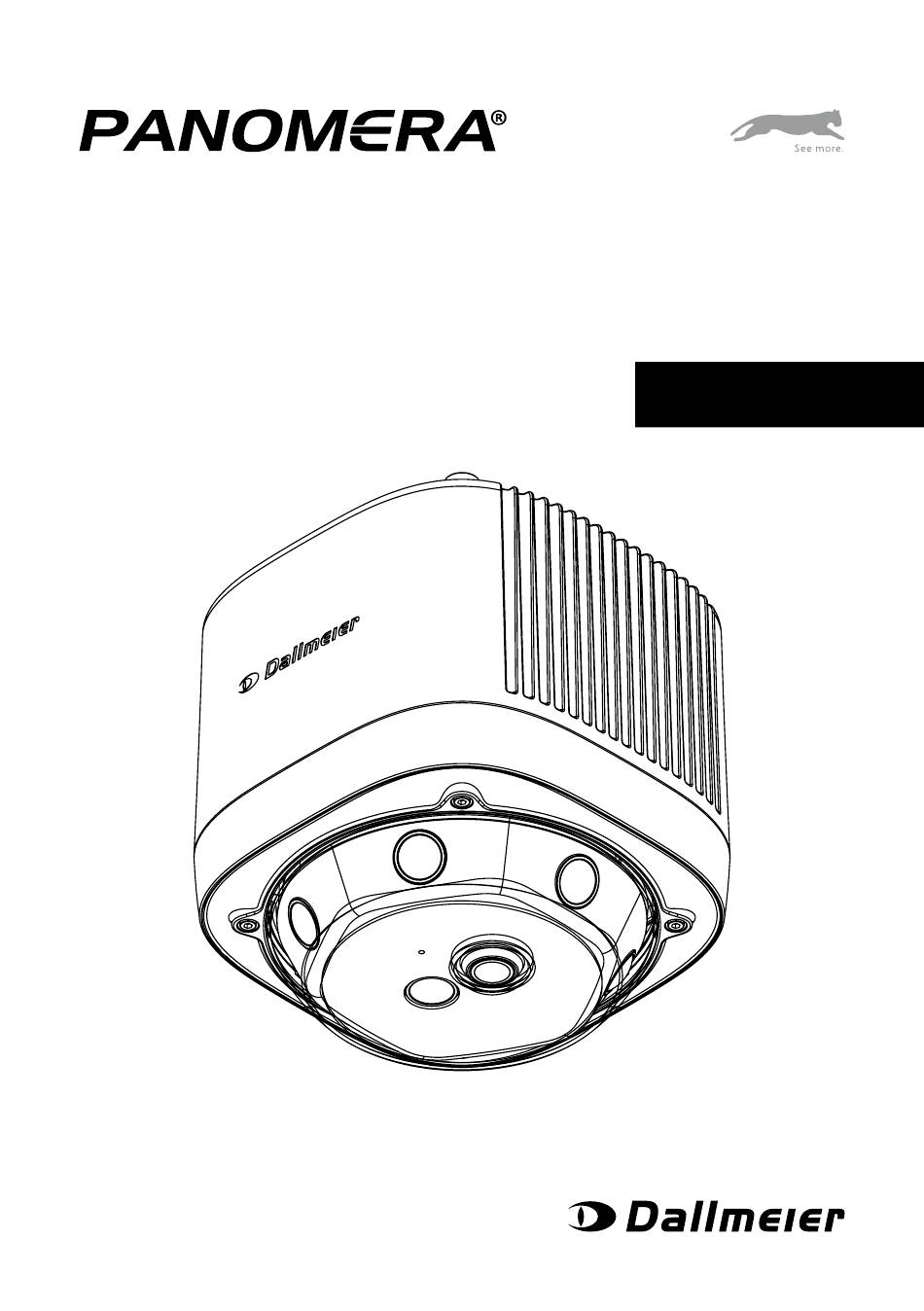

  • Page 1 W Series COMMISSIONING 007425 | REV. 2.0.4 | 2020-11-02...
  • Page 2 NVIDIA and GeForce of NVIDIA Corporation headquartered in Santa Clara, California, USA. Third-party trademarks are named for information purposes only. Dallmeier respects the intellectual property of third parties and always attempts to ensure the complete identification of third-party trademarks and indication of the respective holder of rights.
  • Page 3 COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 5: Table Of Contents

    10 Connections and Pin Assignment 11 Configuration System Requirements Configuration Steps Establishing the Connection (Panomera® WebConfig) First-Time Access (Panomera® WebConfig) Login (Panomera® WebConfig) 12 Technical Product Specification (Basic Data) 13 Dimensions COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 6: Validity

    Keep all documents in legible condition and in a suitable location for future reference. Regularly check the website www.dallmeier.com for the latest product documentation updates. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 7: This Document

    In this context, also note the information in the current documentations for the following Dallmeier software applications: • PService3 • SMAVIA Recording Server • SMAVIA Viewing Client COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 8: Typographical Conventions

    NOTICE addresses practices not related to physical injury and indicates measures to prevent device and/or property damage due to improper installation, assembly, wiring, operation, configuration or maintenance of the device. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 9 (menu items, buttons, etc.). Paragraphs in italics provide information on basic principles, special features and efficient procedure as well as general recommendations. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 10: Approvals/Certifications

    Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interfer- ence at his own expense. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 11: Safety Instructions

    Dallmeier. Inappropriate modifications (e.g. unapproved paintwork or housing add-ons) may cause malfunctions, damage and data loss and may result in the loss of warranty. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 12 DIN, VDE and ISO standards and which provide for a standard-compliant earthing/grounding and a correct equipotential bonding of electrical and electronic devices, are mandatory and must be fulfilled by all means. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 13 Interrupt the power supply to the device (e.g. switch off the correspond- ing circuit breaker) and remove all connected peripherals. Return the device to the sales partner responsible for your area. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 14: General Notes

    The device should only be shipped in the original packaging. If the original packaging is no longer available, ensure that the used packag- ing sufficiently protects the device against damage, moisture, heat and cold. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 15: Warranty

    Panomera® W Series is suitable for residential, public, commercial and industrial use in both indoor and outdoor areas during the day and at night (24/7/365 continuous operation). COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 16: Operation

    Mixed light (consisting of artificial light and daylight) may cause color distortions (inaccurate color reproduc- tion). • Poor lighting can lead to an incorrect white balance. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 17: Remedies At High Ambient Temperatures

    No remedy for this situation possible. • High Brightness Level (50 k – 100 k lux) Remedy: Enable the “Auto contrast” function for all sensors via the WebConfig user interface. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 18: Formation Of Condensation

    Pressure equalization elements are used to prevent the formation of con- densation in sealed enclosures, where humidity normally cannot escape to the outside. Fig. 1: Pressure equalization element COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 19 This results in condensation on the outer surface of the polycarbonate dome/bubble (like dew on the grass). This phenomenon is due to physical reasons and, therefore, does not consti- tute a defect. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 20: Requirements

    Use of the device under unfavorable ambient conditions may shorten its lifetime and may cause malfunction or damage to the device. ➡ Only install/operate the device under favorable ambient conditions. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 21: Earthing/Grounding

    ISO standards in order to ensure the safety of the device (protection against lightning strikes and over-voltages) and its immunity to electromagnetic interferences (EMI). Observe the locally applicable regulations regarding the minimum required cross-section of the earthing/grounding cable. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 22: Power Supply

    Damage to electronic components or serious malfunctions ➡ Observe the correct polarity when connecting the device to the used power supply unit (see chapter “Connections and Pin Assignment” on page 54). COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 23: Maintenance, Inspection And Cleaning

    To dry the polycarbonate dome/bubble, dab it carefully and gently with a clean, soft, dry and antistatic cloth (e.g. a glasses cleaning cloth) to avoid scratching the surface. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 24: Mounting, Connection And Commissioning

    (safety cable) on the outside of the housing. In addition, strictly observe the locally applicable regulations regard- ing the mandatory measures for securing your camera system against falling while in operation. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 25 Mountera® Wall Bracket is described. Fig. 3: Mountera® Wall Bracket with internal cable routing and pre-assembled internal safety cable (secondary safety component) COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 26 ➡ Place the device in its original packaging on a level, clean and stable surface. ➡ Open the device packaging. Be careful not to damage the original packaging for future transpor- tation. ➡ Remove the accessory box. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 27 ❷ Fig. 5 ➡ Carefully pull the top foam insert out of the packaging. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 28 ➡ Carefully pull the device by its plastic handle (red) out of the pack- aging. The bottom foam insert has to be lifted out together with the device and must not be removed from the device at this time. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 29 ➡ Rotate the carrying handle vertically by 90°. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 30 (Fig. 8). ➡ Separate the two halves of the remaining cap and then remove both parts from the device (Fig. 9). COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 31 Fig. 10 Place the individual parts of the plastic handle back into the original packaging of the device for later reuse. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 32 ❻ Fig. 11 ➡ Attach the supplied flexible rubber sleeve (bellows) from the accessory box to the connecting plate of the Mountera® Quick-Lock System. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 33 Fig. 12 ➡ Make sure that the rubber sleeve is correctly seated on all sides to prevent any moisture, dust and dirt from penetrating the device later on. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 34 ➡ Make sure that the locking screw of the Mountera® Quick-Lock Sys- tem is fully open (turned in counterclockwise direction). For this purpose, use the supplied hexagon socket screw key (size 5) from the accessory box. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 35 (secondary safety component), as shown in Fig. 14, in order to pre- vent the device from accidentally falling down during the following mounting steps. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 36 ➡ Before assembling the device to the bracket, hold the device so that the adjusting screw of the Mountera® Plug is aligned with the lock- ing screw of the bracket. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 37 ➡ Insert the Mountera® Plug into the Mountera® Lock until the spring mechanism inside the bracket locks into place (make sure to keep the device straight when inserting so that the Mountera® Plug does not get jammed). COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 38 ➡ Secure the Mountera® Quick-Lock System by turning the locking screw of the bracket fully in clockwise direction. For this purpose, use the supplied hexagon socket screw key (size 5) from the accessory box. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 39 ⓫ Fig. 18 ➡ Remove the bottom foam insert from the device. ➡ Place the foam insert back into the original packaging of the device for later reuse. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 40 ⓬ Fig. 19 ➡ Open the rubber protective cover (captive) of the housing cover locking screw. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 41 Fig. 20 ➡ Loosen the housing cover locking screw in counterclockwise direc- tion with the supplied hexagon socket screw key (size 5). COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 42 ⓭ Fig. 21 ➡ Turn the housing cover lock ring in counterclockwise direction as far as it will go. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 43 Fig. 22 ➡ Open the housing cover. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 44 Fig. 23. ➡ Carry out the cabling and a proper earthing/grounding of the device (see chapter “Connections and Pin Assignment” on page 54). COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 45 (secondary safety component), as shown in Fig. 24, in order to prevent the device from accidentally falling down during operation. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 46 ⓰ Fig. 25 ➡ Close the housing cover. ➡ Turn the housing cover lock ring in clockwise direction as far as it will COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 47 ➡ Tighten the housing cover locking screw in clockwise direction with the supplied hexagon socket screw key (size 5). ➡ Close the rubber protective cover of the housing cover locking screw. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 48 ⓲ Fig. 27 By default, the Mountera® Plug is perpendicular to the housing. Therefore, the device should usually be exactly level to the ground after mounting. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 49 ➡ Check whether the device is exactly level to the ground by means of a spirit level. If this is not the case, follow the instructions described for Fig. 29 and Fig. 30 (see below). COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 50 ➡ Turn the locking screw of the ball head with the supplied hexagon socket screw key (size 5) in counterclockwise direction (beyond a noticeable end-stop) until you can tilt the device with your hands in all directions with little effort. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 51 ➡ Using a spirit level, align the device so that it is exactly level to the ground (finally tighten the locking screw of the ball head in clock- wise direction again). COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 52 ➡ If necessary, pan the device carefully and with normal force in the required direction (first turn the locking screw of the Mountera® Quick-Lock System by 180° in counterclockwise direction and tighten it again when finished). COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 53 Make sure that the rubber sleeve is correctly seated on all sides to prevent any moisture, dust and dirt from getting between the device and the Mountera® bracket later on. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 54: 10 Connections And Pin Assignment

    10 Connections and Pin Assignment Earthing/Grounding LAN 2 LAN 1 Power In Fig. 33 Important information on the earthing/grounding connection can be found in the section “Earthing/Grounding” on page 21. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 55 ③ +48 V DC Heater black / ④ GND Heater black / Functional Earth green-yellow Fig. 35: Power cable (5-core, HARTING plug on multi-stranded wires with wire-end ferrules) COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 56: Configuration

    1× NVIDIA*) GeForce*) GTX 1070 Ethernet 1000 Mbps (Gigabit Network) Web browser Microsoft Internet Explorer*) 11 Google*) Chrome*) Mozilla*) Firefox*) (latest available version of each browser) Browser settings JavaScript*) enabled COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 57: Configuration Steps

    Step 5: Displaying configuration (SMAVIA Viewing Client) For further descriptions on the most important configuration steps of a Panomera® multifocal sensor system, refer to the Panomera® documentation “Configuration – Quick Guide”. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 58: Establishing The Connection (Panomera® Webconfig)

    The language of the graphical user interface (GUI) can be switched in the top-left corner of the screen without the need to login. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 59: First-Time Access (Panomera® Webconfig)

    (the strength of the selected password is displayed during input). ➡ Click “OK”. After the first successful access to the device, the login dialog is displayed. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 60: Login (Panomera® Webconfig)

    ➡ Finally, click “LOGOUT” to properly log out of the Panomera® multifocal sensor system. Detailed descriptions of the configuration settings can be found in separate documentations that are available on www.dallmeier.com. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 62: Technical Product Specification (Basic Data)

    Construction material Aluminum Processing Chromated Finish Powder coating (tested for seawater resistance according to DIN EN 60068-2) Dome/Bubble Polycarbonate Adjustment Stepless alignment on 3 axes up to ±5° COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
  • Page 63 The technical product specification (basic data) in this document is based on the information at the time of this document’s compilation. Detailed information and possible updates can be found in the currently valid product specification on www.dallmeier.com. COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...

  • Page 64: 13 Dimensions

    13 Dimensions 245 mm (9.65") Fig. 36 COMMISSIONING – Panomera® W Series | REV. 2.0.4 | © 2020 Dallmeier...
