Panomera® S4/8
Conversion of the Panomera® S4/8 Mountera® Plug from top to bottom
© 2020 Dallmeier electronic
V1.0.0
Preparation of the Panomera® S4/8

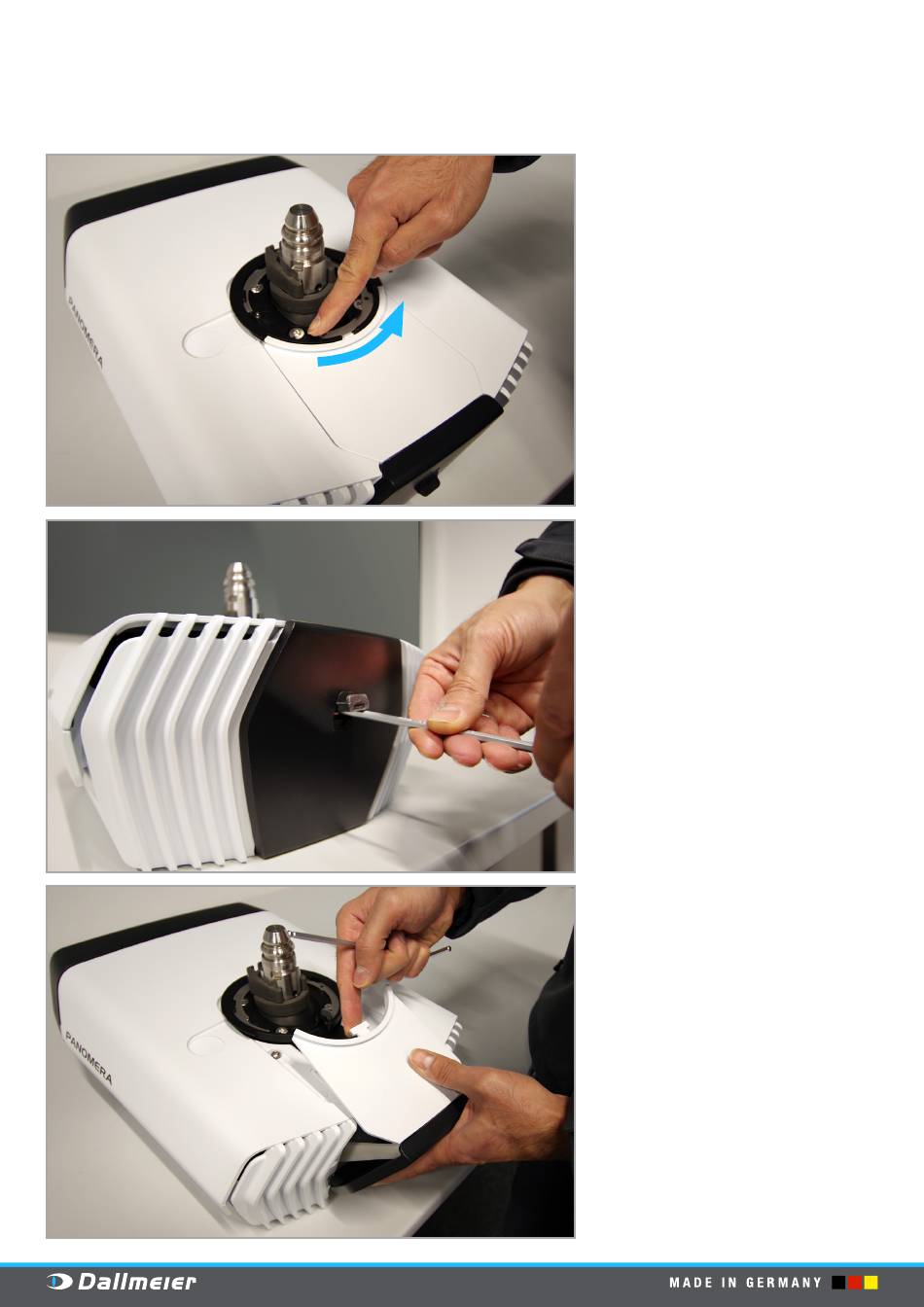

Open the locking ring counterclockwise.
Open the screw on the rear camera cover.
Lift up the upper camera cover.
2020-01-30
1/8
Advertisement
Related Manuals for dallmeier Panomera S4/8
Summary of Contents for dallmeier Panomera S4/8
- Page 1 Conversion of the Panomera® S4/8 Mountera® Plug from top to bottom Preparation of the Panomera® S4/8 Open the locking ring counterclockwise. Open the screw on the rear camera cover. Lift up the upper camera cover. © 2020 Dallmeier electronic V1.0.0 2020-01-30...
- Page 2 Pull the cover system back and press the guiding rails together. Remove the cover system from the housing. Put the camera on the front side and open the screw of the lower cover plate. © 2020 Dallmeier electronic V1.0.0 2020-01-30...
- Page 3 Conversion of the Panomera® S4/8 Mountera® Plug from top to bottom Remove the lower cover plate on the bottom of the camera. Put the camera back on its bottom side and push down the locking pin of the locking ring. Remove the locking ring. © 2020 Dallmeier electronic V1.0.0 2020-01-30...
- Page 4 Conversion of the Panomera® S4/8 Mountera® Plug from top to bottom Loosen the screws of the Mountera® Plug. Remove the Mountera® Plug. Insert the cover plate removed from the bottom on the top of the camera. © 2020 Dallmeier electronic V1.0.0 2020-01-30...
- Page 5 Conversion of the Panomera® S4/8 Mountera® Plug from top to bottom Tighten the cover plate locking screw. Turn the camera over and insert the Mountera® Plug on the intended lower mounting surface. Tighten all four screws. © 2020 Dallmeier electronic V1.0.0 2020-01-30...
- Page 6 Conversion of the Panomera® S4/8 Mountera® Plug from top to bottom Insert the locking ring. Loosen the two outer screws of the upper cover plate from the cover system and remove them. Insert the cover plate. © 2020 Dallmeier electronic V1.0.0 2020-01-30...
- Page 7 Conversion of the Panomera® S4/8 Mountera® Plug from top to bottom Tighten the cover plate locking screw. Retighten the two outer screws of the rear cover plate. Insert the rear cover plate into the guiding rails. © 2020 Dallmeier electronic V1.0.0 2020-01-30...
- Page 8 Panomera® S4/8 Conversion of the Panomera® S4/8 Mountera® Plug from top to bottom Close the cover plate. Tighten the fastening screw of the rear cover plate. The conversion of the Panomera® S4/8 is thus completed. © 2020 Dallmeier electronic V1.0.0 2020-01-30...
