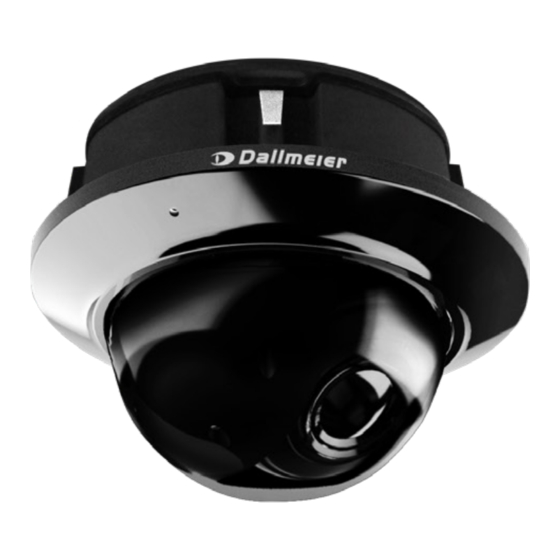

camera series RDF5000(E)
INSTALLATION AND CONNECTION OF A DOMERA® IR LED STRIPE INCLUDING DOMERA® HOUSING COVER ALUMINIUM LED BLACK
approx. 10°
© 2022 Dallmeier electronic
V1.0.0

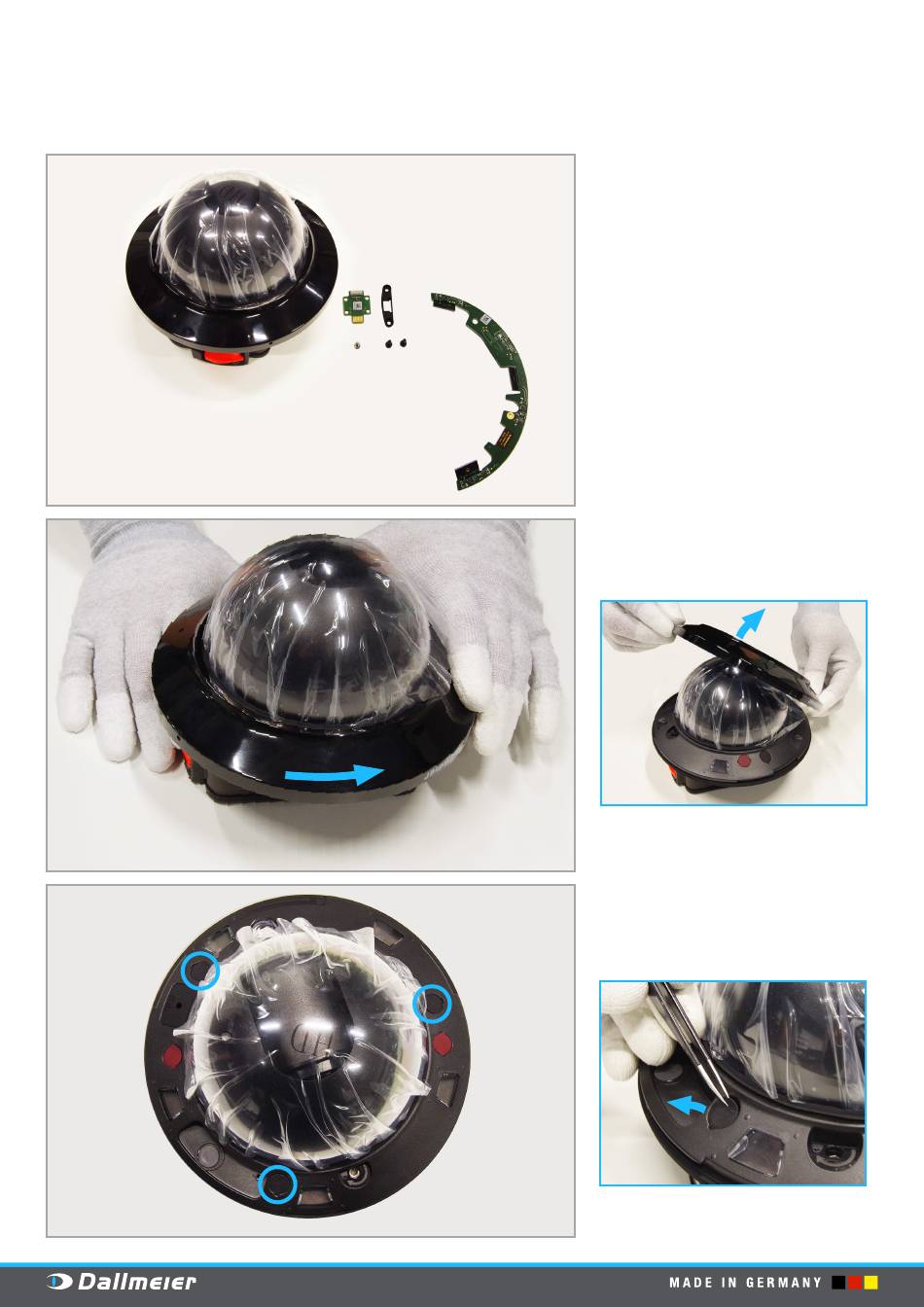

Preparing the camera
Required for mounting:
▶
1 x DOMERA® RDF5000(E)
1 x DOMERA® IR LED Stripe Retrofit Kit
1 x Allen key (3)
1 x Tweezers
1 x Torx screwdriver (TX 8)
Remove the camera's housing cover
▶
by turning and lifting it.
Carefully remove the three rubber
▶
covers of the screws with tweezers.
2022.11.17
1/7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for dallmeier RDF5000 Series
Summary of Contents for dallmeier RDF5000 Series
- Page 1 1 x Tweezers 1 x Torx screwdriver (TX 8) Remove the camera‘s housing cover ▶ by turning and lifting it. approx. 10° Carefully remove the three rubber ▶ covers of the screws with tweezers. © 2022 Dallmeier electronic V1.0.0 2022.11.17...
- Page 2 Open the three screws of the cover ▶ ring counterclockwise using an Allen key. Then remove the cover ring including ▶ the dome from the camera. Carefully lift the rubber seal out of ▶ the camera housing using tweezers. © 2022 Dallmeier electronic V1.0.0 2022.11.17...
- Page 3 Insert the new seal into the slot ▶ and press firmly until it rests evenly on the surface. Insert the screws and tighten ▶ them clockwise with an Allen key. © 2022 Dallmeier electronic V1.0.0 2022.11.17...
- Page 4 Insert the screw into the IR LED ▶ Stripe and tighten it clockwise. Place the cover ring with the dome ▶ on the IR LED stripe of the camera. Pay attention to the alignment of the three bracket screws. © 2022 Dallmeier electronic V1.0.0 2022.11.17...
- Page 5 INSTALLATION AND CONNECTION OF A DOMERA® IR LED STRIPE INCLUDING DOMERA® HOUSING COVER ALUMINIUM LED BLACK Then tighten the screws clockwise ▶ using an Allen key. Carefully remove the protective ▶ foil with tweezers. Remove the protective foil from ▶ all five viewing windows. © 2022 Dallmeier electronic V1.0.0 2022.11.17...
- Page 6 Reinsert the rubber covers over ▶ the three screws. Installing the aluminum ring Mount the safety strap on the ▶ camera with the self-tapping screw and on the housing cover with the metric screw. © 2022 Dallmeier electronic V1.0.0 2022.11.17...
- Page 7 All trademarks identified by ® are registered trademarks of Dallmeier electronic GmbH & Co.KG. Third-party trademarks are named for information purposes only. Dallmeier electronic respects the intellectual property of third parties and always attempts to ensure the complete identification of third-party trademarks and indication of the respective holder of rights.
