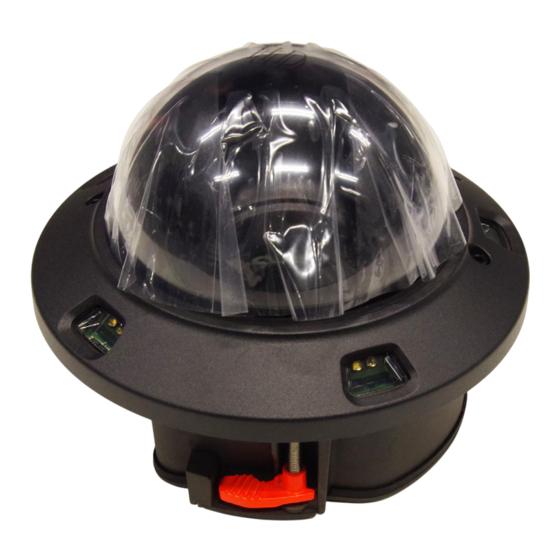

camera series RDF6000DN and RDF5000DN
INSTALLATION AND CONNECTION OF A DOMERA® DUAL MATRIX LED RING
INCLUDING DOMERA® HOUSING COVER ALUMINIUM LED BLACK
ca. 10°
© 2022 Dallmeier electronic
V2.0.0

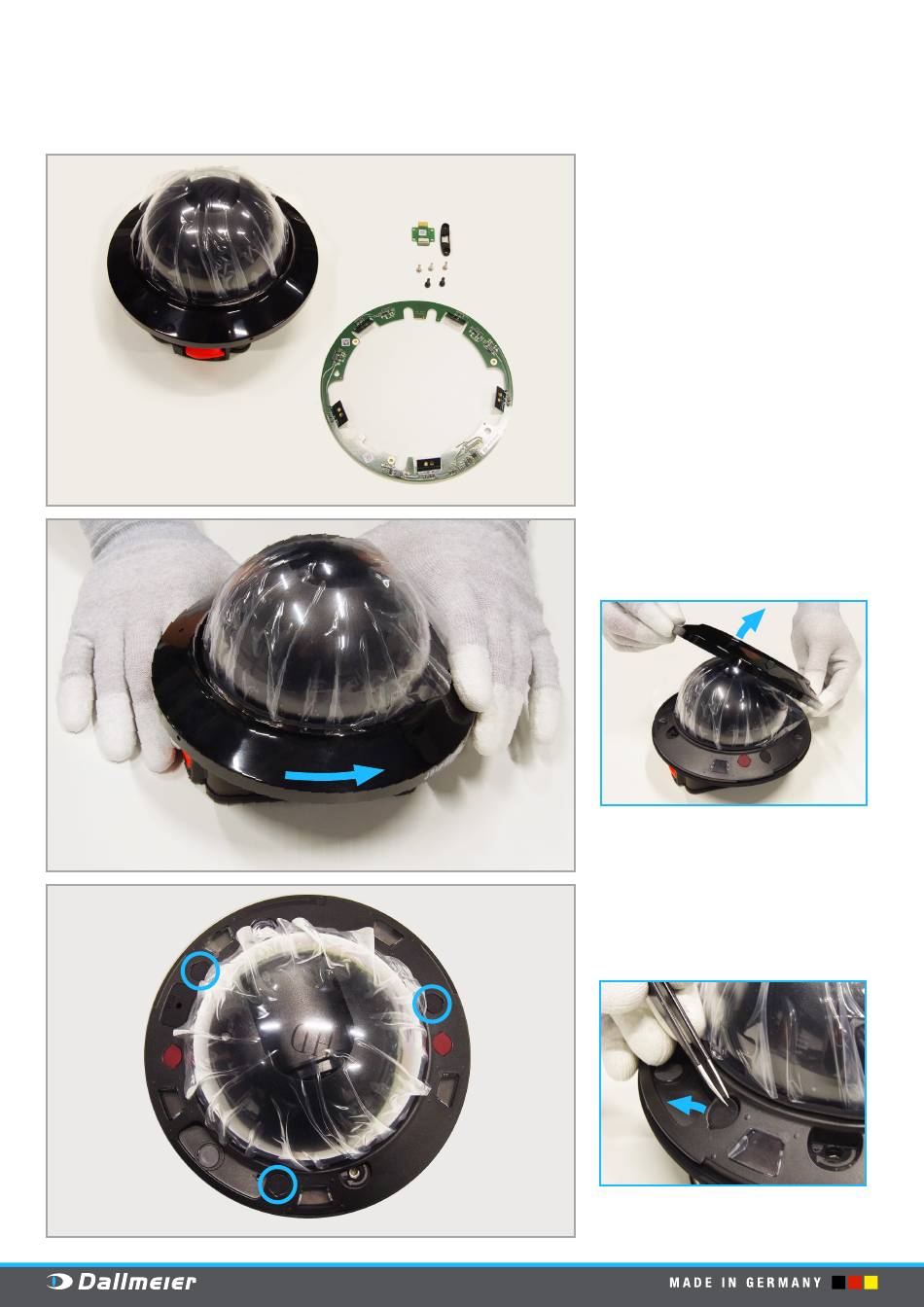

Preparing the camera
Required for mounting:
▶
1 x DOMERA® RDF6000DN / RDF5000DN
1 x DOMERA® Dual Matrix LED Ring
Retrofit Kit
1 x Allen key (3)
1 x Tweezers
1 x Torx screwdriver (TX 8)
Remove the camera's housing cover
▶
by turning and lifting it.
Carefully remove the three rubber
▶
covers of the screws with tweezers.
2022.11.17
1/7
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for dallmeier DOMERA RDF6000DN
Summary of Contents for dallmeier DOMERA RDF6000DN
- Page 1 1 x Tweezers 1 x Torx screwdriver (TX 8) Remove the camera’s housing cover ▶ by turning and lifting it. ca. 10° Carefully remove the three rubber ▶ covers of the screws with tweezers. © 2022 Dallmeier electronic V2.0.0 2022.11.17...
- Page 2 Open the three screws of the ▶ cover ring counterclockwise using an Allen key. Then remove the cover ring ▶ including the dome from the camera. Carefully lift the rubber seal ▶ out of the camera housing using tweezers. © 2022 Dallmeier electronic V2.0.0 2022.11.17...
- Page 3 Insert the new seal into the slot ▶ and press firmly until it rests evenly on the surface. Insert the screws and tighten them ▶ clockwise with an Allen key. © 2022 Dallmeier electronic V2.0.0 2022.11.17...
- Page 4 Dual Matrix LED Ring and tighten them clockwise. Place the cover ring with the dome ▶ on the Dual Matrix LED ring of the camera. Pay attention to the alignment of the three bracket screws. © 2022 Dallmeier electronic V2.0.0 2022.11.17...
- Page 5 Then tighten the screws clockwise ▶ using the Allen key. Carefully remove the protective ▶ foil from all five LED viewing windows using tweezers. Use the tweezers to remove ▶ the foil over the microphone. © 2022 Dallmeier electronic V2.0.0 2022.11.17...
- Page 6 Reinsert the rubber covers ▶ over the three screws. Installing the aluminum ring Mount the safety strap on the ▶ camera with the self-tapping screw and on the housing cover with the metric screw. © 2022 Dallmeier electronic V2.0.0 2022.11.17...
- Page 7 All trademarks identified by ® are registered trademarks of Dallmeier electronic GmbH & Co.KG. Third-party trademarks are named for information purposes only. Dallmeier electronic respects the intellectual property of third parties and always attempts to ensure the complete identification of third-party trademarks and indication of the respective holder of rights.
