dallmeier MDF5450HD-DN Commissioning Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

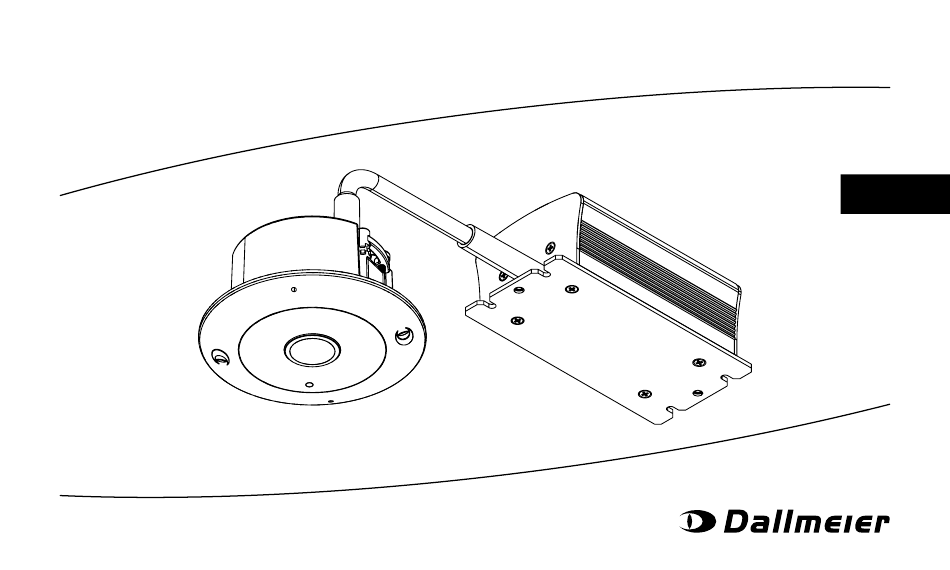

MDF5450HD-DN
Commissioning
English
007810 | Rev. 1.0.0 | 2019-10-30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDF5450HD-DN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dallmeier MDF5450HD-DN

Summary of Contents for dallmeier MDF5450HD-DN

  • Page 1 MDF5450HD-DN Commissioning English 007810 | Rev. 1.0.0 | 2019-10-30...
  • Page 2 Third-party trademarks are named for information purposes only. Dallmeier respects the intellectual property of third parties and always attempts to ensure the complete identification of third-party trademarks and indication of the respective holder of rights. In case that protected rights are not indicated separately, this circumstance is no reason to assume that the respective trademark is unprotected.

  • Page 3: Table Of Contents

    Scope of Delivery Transportation and Packaging Warranty Appropriate Use Operation Approvals/Certifications 6 Requirements Ambient Conditions Power Supply 7 Maintenance, Inspection and Cleaning 8 Installation and Commissioning 9 Interfaces 10 Inserting a Memory Card 11 Pin Assignment 12 Connection, First-Time Access and Login 13 Technical Product Specification (Basic Data) 14 Dimensions Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 4: Validity

    Always observe and follow the contained instructions, notes and warnings as well as the technical data in the currently valid product specification. Keep all documents in legible condition and in a suitable location for future reference. Regularly check the website www.dallmeier.com for the latest product documentation updates. This Document Commissioning The document entitled “Commissioning”...

  • Page 5: Other Applicable Documents

    The target audience of the document is trained system integrators (installation contractors of video security/surveillance systems). Configuration The document entitled “Configuration” contains detailed information concerning the configuration of the device. The target audience of the document is trained system integrators (installation contractors of video security/surveillance systems). Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 6: Typographical Conventions

    CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE NOTICE addresses practices not related to physical injury and indicates measures to prevent device and/or property damage due to improper installation, assembly, wiring, operation, configuration or maintenance of the device. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 7 (menu items, buttons, etc.). Paragraphs in italics provide information on basic principles, special features and efficient procedure as well as general recommendations. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 8: Safety Instructions

    • Modifications to the Device Do not make any modifications to the hardware or software of the device that have not been tested and approved by Dallmeier. Inappropriate modifications may cause malfunctions, damage and data loss and may result in the loss of warranty.
  • Page 9 Keep all documents in legible condition and in a suitable location for future reference. Regularly check the website www.dallmeier.com for the latest product documentation updates. • Condensation If the device is brought from a cold to a warm environment, resulting condensation may cause malfunctions and damage.
  • Page 10 Do not dispose waste electrical and electronic equipment into the household trash. Disconnect the device from the power supply. Remove all connected peripherals. Return the device to the sales partner responsible for your area. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 11: General Notes

    Transportation and Packaging Store the original packaging for later transportation. Dallmeier is not responsible for any damage resulting from unprofessional or improper transportation. The device should only be shipped in the original packaging. If the original packaging is no longer available, ensure that the used packaging sufficiently protects the device against damage, moisture, heat and cold.

  • Page 12: Appropriate Use

    Commissioning Appropriate Use The MDF5450HD-DN is a high-resolution single-sensor network camera with fisheye lens for detailed capturing of a 360° panoramic field of view within a complete half-space (hemisphere – half of a sphere). The lens-sensor unit of the device is built into an ultra-compact dome housing, the connected encoder unit into a separate box housing.

  • Page 13: Operation

    Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 14: Requirements

    NOTICE Damage to the device due to unfavorable ambient conditions Use of the device under unfavorable ambient conditions may shorten its lifetime and may cause malfunction or damage to the device. ➡ Only install/operate the device under favorable ambient conditions. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 15: Power Supply

    ➡ Carry out all protective measures for a standard-compliant grounding/earthing and a correct equipotential bonding of the device in accordance with the currently applicable DIN, VDE and ISO standards in order to ensure the safety of the device (protection against over-voltages) and its immunity to electromagnetic interferences (EMI). Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 16 ➡ Always disable PoE on the relevant port of your PoE switch (or PoE midspan device) or disconnect the used single-port PoE injector from the power supply before un-mating the jack-plug connection in order to prevent damage to the contacts of the RJ45 connectors by contact erosion. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 17: Maintenance, Inspection And Cleaning

    ➡ To remove greasy dirt such as fingerprints, only use cleaning products (lens cleaning solutions, cleaning wipes, etc.) that are specially designed for cleaning optical surfaces. • Do not use organic solvents (alcohol, benzine) for cleaning the lens element. • Generally, be aware not to touch the lens element to avoid fingerprints. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 18: Installation And Commissioning

    ➡ Before installing the device, follow the manufacturer’s instructions regarding the maximum permissible carrying capacity of the suspended ceiling or ceiling panel. ➡ Only use screws and, if necessary, anchors/dowels that are suitable for the construction material and thickness of the ceiling panel. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 19 Commissioning MDF5450HD-DN Suspended Ceiling – Panel Thickness t t = 9 – 18 mm t < 9 mm or t > 18 mm Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 20 When using an electrically powered jigsaw or a hand saw, you should first draw a circle line with a radius of 35 mm around the center point to ensure the specified diameter and roundness of the installation hole. If necessary, use the drilling template provided. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 21 If necessary, use the provided hand tool as shown above to loosen the screw connection more easily. NOTICE: When using the provided hand tool, be careful not to scratch the housing ring. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 22 Proceed with caution when lifting out the plastic cap with a screwdriver. Be careful not to scratch the housing (wrap a protective tape around the screwdriver if necessary) and not to damage any components. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 23 ➡ Pass the encoder unit through the ceiling panel and insert the dome housing into the installation hole. Before inserting the dome housing, make sure that both retaining wings are swiveled in (left picture – default position ex works). Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 24 To do this, tighten the Phillips PH1 screw of both retaining wings with a suitable screwdriver in clockwise direction until both retaining wings swivel out and the dome housing is firmly anchored in the ceiling panel (see next page). Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 25 MDF5450HD-DN When removing the device at a later date, the retaining wings on the dome housing must be swiveled back to their default position (by simply turn- ing the corresponding screws counterclockwise). Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 26 Commissioning A-❻ ➡ Reinsert the plastic cap back to its original position in the dome housing. When doing so, ensure that the cylindrical mount for the ambient light sensor is aligned correctly. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 27 ➡ Screw the housing ring in clockwise direction back onto the dome housing as far as it will go. Use the provided hand tool as shown above to tighten the housing ring. NOTICE: Be careful not to scratch the housing ring with the hand tool. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 28 (e.g. when replacing the ceiling panel). NOTICE: Pay attention to the suitable screw length, depending on the panel thickness, in order not to penetrate the ceiling panel on the later visible side. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 29 ➡ Connect the required cables and finally establish the power supply (via PoE or by an external power supply unit). The device starts up and is ready for operation after a few minutes. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 30 MDF5450HD-DN Commissioning B-❶ Panel thickness t < 9 mm or t > 18 mm Ø 5 mm (3×) The drilling/cutting entry point should always be on the later visible side of the ceiling panel. Ø 70 mm Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 31 If you no longer have the provided drilling template at hand, you can also find it at www.dallmeier.com on the corresponding product page for the device. However, make sure to print the downloaded drilling template in its original size (at a 1:1 scale).
  • Page 32 If necessary, use the provided hand tool as shown above to loosen the screw connection more easily. NOTICE: When using the provided hand tool, be careful not to scratch the housing ring. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 33 ➡ Pass the encoder unit through the ceiling panel and insert the dome housing into the installation hole (insert suitable anchors/dowels into the existing drill holes beforehand, if applicable). Before inserting the dome housing, make sure that both retaining wings are swiveled in (left picture – default position ex works). Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 34 MDF5450HD-DN Commissioning B-❹ ➡ Fix the dome housing with three suitable screws (e.g. chipboard screws with a diameter of 3 – 4 mm) in the ceiling panel. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 35 ➡ Screw the housing ring in clockwise direction back onto the dome housing as far as it will go. Use the provided hand tool as shown above to tighten the housing ring. NOTICE: Be careful not to scratch the housing ring with the hand tool. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 36 (e.g. when replacing the ceiling panel). NOTICE: Pay attention to the suitable screw length, depending on the panel thickness, in order not to penetrate the ceiling panel on the later visible side. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 37 ➡ Connect the required cables and finally establish the power supply (via PoE or by an external power supply unit). The device starts up and is ready for operation after a few minutes. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 38: Interfaces

    MDF5450HD-DN Commissioning 9 Interfaces ⓒ ⓑ ⓓ ⓔ ⓐ ⓕ Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 39 The orientation of your device’s RJ45 jack may differ from the figure previously shown. ➡ Observe the chapter “Pin Assignment” on page 42. ➡ Connect the required cables to the relevant interfaces of the encoder unit. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 40: Inserting A Memory Card

    MDF5450HD-DN Commissioning 10 Inserting a Memory Card ⓐ ⓐ microSDXC card (optional) Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 41 The use of an incompatible memory card may damage the device or memory card or corrupt the data stored on it, resulting in malfunctions and loss of data. ➡ Only use memory cards that have been tested and approved by Dallmeier (failure to do so may result in the loss of warranty). Damage to the device or memory card due to incorrect card insertion ➡...

  • Page 42: Pin Assignment

    Line OUT (stereo) Left channel Left channel Ring Right channel Right channel Sleeve Ground Ground Audio Line IN (stereo) Audio Line OUT (stereo) Input level: max. 2.83 V Output level at 10 kΩ load: max. 3.11 V Input impedance: 29 kΩ Output impedance: 320 Ω Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 43 ➡ Do not operate the device with Power over Ethernet (PoE) if the device is powered by an external DC power supply unit. In order to comply with UL’s requirements, only use a UL certified “Limited Power Source (LPS)” power supply unit when powering the device by an external DC power supply unit. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 44: Connection, First-Time Access And Login

    Microsoft Internet Explorer 11 (Windows 7) Microsoft Edge (Windows 10) Google Chrome Mozilla Firefox (latest available version of each browser) Browser settings JavaScript enabled Sound Sound card or on-board sound chip (min. 16 bit) Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 45 192.168.2.28 You can change the IP address, subnet mask and gateway addressing of the device using the Dallmeier software PService3. ➡ Ensure that your PC/web browser can establish an Ethernet connection to your device (if necessary, contact your network administrator for more information and assistance).
  • Page 46 The default password is the complete serial number of the device. The serial number is printed on the type plate of the device and can also be determined using the Dallmeier software PService3. ➡ Enter the default password (serial number of the device).
  • Page 47 ➡ Click “OK”. After a successful login, the graphical user interface of the configuration mode is displayed. ➡ Configure all required settings. ➡ Finally, click “LOGOUT” to properly log out of the device. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 48: Technical Product Specification (Basic Data)

    • PoE (IEEE 802.3af) Power IN 1× Weidmüller male connector SL 3.50/02/90G (mating connector: Weidmüller plug-in connector BL 3.50/02/180 SN) Memory card slot 1× (microSDXC compatible) Additional Features Ambient light sensor 1× Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 49 Approx. 400 g (encoder unit with cable) Color Black with white housing ring Environmental Conditions Suitable installation sites Indoor Operating temperature −20 °C to +50 °C (−4 °F to 122 °F) Relative humidity 0 % – 90 % RH, non-condensing Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 50 The technical product specification (basic data) in this document is based on the information at the time of this document’s compilation. Detailed information and possible updates can be found in the currently valid product specification on www.dallmeier.com. Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...

  • Page 52: Dimensions

    MDF5450HD-DN Commissioning 14 Dimensions 37.10 mm 37.48 mm 48.76 mm Max. 18 mm Ø 23 mm Ø 94.60 mm Min. 9 mm Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 53 Commissioning MDF5450HD-DN 136.60 mm 62 mm 100 mm 36.60 mm 41.50 mm 2 mm 57 mm 111 mm 12.50 mm 32 mm 57 mm 12.50 mm 5 mm 121 mm Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com...
  • Page 56 Dallmeier electronic GmbH & Co.KG Bahnhofstr. 16 · 93047 Regensburg · Germany Phone +49 941 8700-0 · Fax +49 941 8700-180 www.dallmeier.com · info@dallmeier.com...
