Summary of Contents for dallmeier DDF3000A

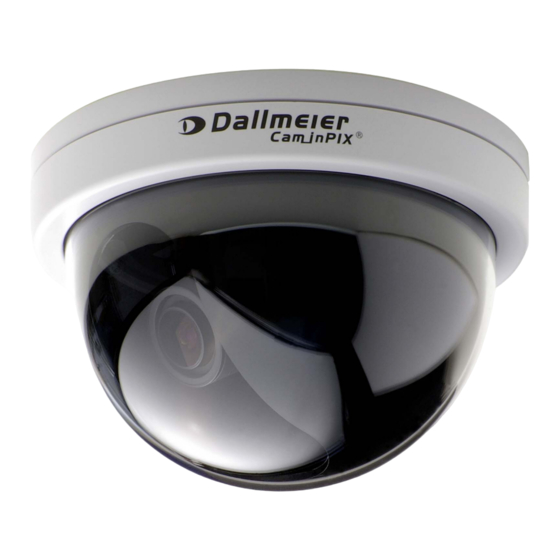

- Page 1 Installation and Configuration English Colour minidome (Day/Night) DDF3000A(-DN) DDF3000A(-DN) CasinoCam ® Rev. 4.0.4 / 080610...
- Page 2 All rights reserved. This document may not be copied, photocopied, reproduced, translated, transferred to an electronic medium or converted to a machine-readable form either whole or in part without first receiving written permission from Dallmeier electronic GmbH & Co.KG. We reserve the right to make technical modifications.
-
Page 3: Table Of Contents
® DDF3000A(-DN) / DDF3000A(-DN) CasinoCam Table of contents This document .................... 4 Validity ......................4 Documents ....................4 Convention ....................4 Safety instructions ..................6 General notes ....................8 Scope of delivery ..................8 Transportation and packaging ............... 8 Appropriate use ..................... 8 Performance features ................... -
Page 4: This Document
® DDF3000A(-DN) / DDF3000A(-DN) CasinoCam This document Validity This document applies to the colour minidome DDF3000A(-DN) / DDF3000(-DN) ® CasinoCam . It has been produced on the basis of version 2.1 (software). The descriptions in this document apply to all above-mentioned camera versions. For simplification reasons, the term “DDF3000A(-DN)”... - Page 5 ® DDF3000A(-DN) / DDF3000A(-DN) CasinoCam IMPORTANT The word IMPORTANT denotes information for preventing damage, incorrect configurations or incorrect actions. NOTE A NOTE offers information on principles, special features and efficient procedure as well as general recommendations. Expression Expressions in bold and italics generally indicate a control element on the device (switches or labels) or on its user interface (buttons, menu entries).
-
Page 6: Safety Instructions
Do not make any modifications to the unit (neither to the software nor the hardware) without consulting Dallmeier electronic. Improper modifications can cause malfunctions or damages. Dallmeier electronic accepts no liability for damages resulting from unauthorized or improper modifications to the unit. - Page 7 ® DDF3000A(-DN) / DDF3000A(-DN) CasinoCam Do not open the unit Do not open the housing of the unit. There are no components inside the unit that require maintenance by the user. The inspection, maintenance and repair with an open housing must only be carried out by trained and authorized professionals (installer).
-
Page 8: General Notes
Transportation and packaging Store the original packaging for transportation at a later date. Dallmeier electronic is not responsible for damage resulting from unprofessional/improper transportation. The goods should only be shipped in their original packaging. -
Page 9: Warranty
® DDF3000A(-DN) / DDF3000A(-DN) CasinoCam NOTE For detailled information please see the chapter Technical data. Warranty The terms and conditions valid at the signing of the contract apply. Certifications The following certifications were in effect at the time this document was produced:... -
Page 10: Notes On Operating The Camera
® DDF3000A(-DN) / DDF3000A(-DN) CasinoCam Notes on operating the camera The camera is operated at 12V DC. If the camera or the cables connected to the camera are located near sources of strong radiation, the video picture may be distorted. -
Page 11: Views And Connection Assignment
® DDF3000A(-DN) / DDF3000A(-DN) CasinoCam Views and connection assignment Views Camera mount Housing ring Camera module Housing base plate Camera support Bubble Fig. 5-1 Connection assignment Video ground Video signal Ground + 12V Fig. 5-2 Dallmeier electronic... -
Page 12: Installation
DDF3000A(-DN) / DDF3000A(-DN) CasinoCam Installation Requirements at the installation site The DDF3000A(-DN) is designed for indoor use. Unfavorable local conditions may shorten the life of the product or lead to malfunctions. Do not install/operate the DDF3000A(-DN) in places: with large scale dust and dirt with steam or oil vapors (e.g. -
Page 13: Setting Up And Adjustment
® DDF3000A(-DN) / DDF3000A(-DN) CasinoCam WARNING Danger of death from lightning strike. Do not connect the power supply/video cable during a thunderstorm. black (-) Ground red (+) Fig. 6-2 Video 9. Fix the housing base plate to the wall or to the ceiling. - Page 14 ® DDF3000A(-DN) / DDF3000A(-DN) CasinoCam IMPORTANT Possible damage or malfunction caused by pulled plugs or jammed/kinked cables. Proceed with caution when aligning and adjusting the camera. Do not use any force. 2. Align the camera horizontally. Fig. 6-5 3. Align the camera vertically.
-
Page 15: Closing The Housing
® DDF3000A(-DN) / DDF3000A(-DN) CasinoCam Closing the housing 1. Place the dome and the housing ring onto the housing. IMPORTANT Possible damage to the lens and the dome with extreme alignment of the camera (vertical, horizontal). When mounting, ensure that the dome does not jam the lens. -
Page 16: Preparing To Configure
® DDF3000A(-DN) / DDF3000A(-DN) CasinoCam Preparing to configure The camera is supplied with factory settings which enable it to be used for most scenarios without further configuration. However, if required certain camera properties can be configured using the camera menu. -
Page 17: Dms Recorder
® DDF3000A(-DN) / DDF3000A(-DN) CasinoCam DMS recorder Fig. 7-3 Camera Recorder Monitor NOTE This method requires a recorder with software version 5.3.1 or higher and a built-in FG-11 frame grabber card. PView Fig. 7-4 Camera Recorder PView Station Monitor NOTE This method requires a recorder with software version 5.3.1 or... -
Page 18: Configuration
® DDF3000A(-DN) / DDF3000A(-DN) CasinoCam Configuration The configuration dialog is opened as follows: UTC Remote Box: Press the OK button for approx. 2 seconds. DMS Recorder: Select Camera control > Open / Close menu PView: Select Camera control > Open / Close menu Navigating the configuration menu is always by means of 4 directions keys, which are referred to as Selector in the following. - Page 19 ® DDF3000A(-DN) / DDF3000A(-DN) CasinoCam Details 1/2 Scenes full of contrast with strong backlights. Details are displayed in high resolution. The maximum dynamic range of the camera is used. Indoor / Shadow Indoor scenes full of contrast. The relevant details are in the shadow.
- Page 20 ® DDF3000A(-DN) / DDF3000A(-DN) CasinoCam As an alternative to the presets, the following settings can be manually changed to adapt the camera to the prevailing conditions: Brightness Select Brightness to adjust the image brightness. Gamma Gamma defines the brightness range within the color space and thus the differentiation between lights and shadows.
-
Page 21: Basic Functions
® DDF3000A(-DN) / DDF3000A(-DN) CasinoCam Basic functions In the Basic Functions area you can make essential settings and specifications for picture display. 8.2.1 Camera ID Camera ID allows you to assign a unique name to the camera. --------- Basic Functions --------- The maximum length of the ID is 8 characters. -
Page 22: Horizontal Flip
V-Phase After selecting the video level and synchronization you can adjust the V-Phase, if necessary. NOTE The V-Phase function is not supported by the DDF3000A(-DN). 8.2.3 Horizontal Flip Set Horizontal Flip = On to horizontally flip the image. --------- Basic Functions --------- This setting is necessary to obtain an accurate-to-side Previous Page. -
Page 23: Day / Night Setup
Night Control = Auto is set by default for the Night: max. Gain DDF3000A(-DN). NOTE Night Control = Off is set by default for the DDF3000A(-DN) ® CasinoCam Do not change these settings when using the camera in a casino environment. -
Page 24: Image Functions
The “interlace effect” is thus prevented, whereas rapid movements are displayed in a more jerky manner. NOTE To record camera images with maximum resolution the Dallmeier recorder should be operated in full picture mode and the camera should be set to Progressive Scan = On. 8.3.2 Backlight... -
Page 25: Digital Zoom
® DDF3000A(-DN) / DDF3000A(-DN) CasinoCam Press the Enter button. The field of view is displayed in green. The field of view can be enlarged with the selector. Press the Enter button. The field of view is displayed in red. The field of view can be reduced with the selector. -
Page 26: Exit Menu
® DDF3000A(-DN) / DDF3000A(-DN) CasinoCam With ATW.. (Auto Tracking White Balance) the white balance is continually recalculated. The white balance is readjusted accordingly in different recording conditions. The WB Offset function can be used when the automatic white balance produces an unsatisfactory color representation of "monochrome“... -
Page 27: Appendix
® DDF3000A(-DN) / DDF3000A(-DN) CasinoCam Appendix Menu structure ----------------- 3000 ------------------ > Presets.. Basic Functions.. Image Functions.. Save / Exit Menu.. --------------- Presets ---------------- Previous Page. > Presets Universal. Brightness Gamma Auto ® Range Bias (only CasinoCam version) Range Bias ®... -
Page 28: Technical Data
® DDF3000A(-DN) / DDF3000A(-DN) CasinoCam Technical data Technical specifications Sensor 1/3" DPS sensor -CMOS- Signal processing 17-bit Digital Signal Processing Dynamic range 102 dB typical - 120 dB max. Video capture Progressive Scan Transfer format PsF - Progressive With Segmented Frames... -
Page 29: Technical Drawings
® DDF3000A(-DN) / DDF3000A(-DN) CasinoCam Technical drawings Fig. 9-1 Fig. 9-2 Unit: mm Dallmeier electronic... - Page 30 ® DDF3000A(-DN) / DDF3000A(-DN) CasinoCam Declaration of Conformity This declaration is valid for following product: Equipment: Analogue camera Type: DDF3000A(-DN) Hereby the equipment is confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility 89/336/ EEC and the Council Directive relating to Low Voltage 73/23/EEC and 2006/95/EEC.
