Camera series RDF
INSTALLATION OF A DOMERA® BREAKOUT CABLE ON A WALL BRACKET WITH SPEAKER
© 2023 Dallmeier electronic
V1.0.0
Preparing the Domera® Breakout Cable
Required for mounting:
▶
1 x Domera® Wall Bracket
1 x Domera® RDF Camera including
Domera® Breakout Cable
Installing the Domera® Breakout Cable

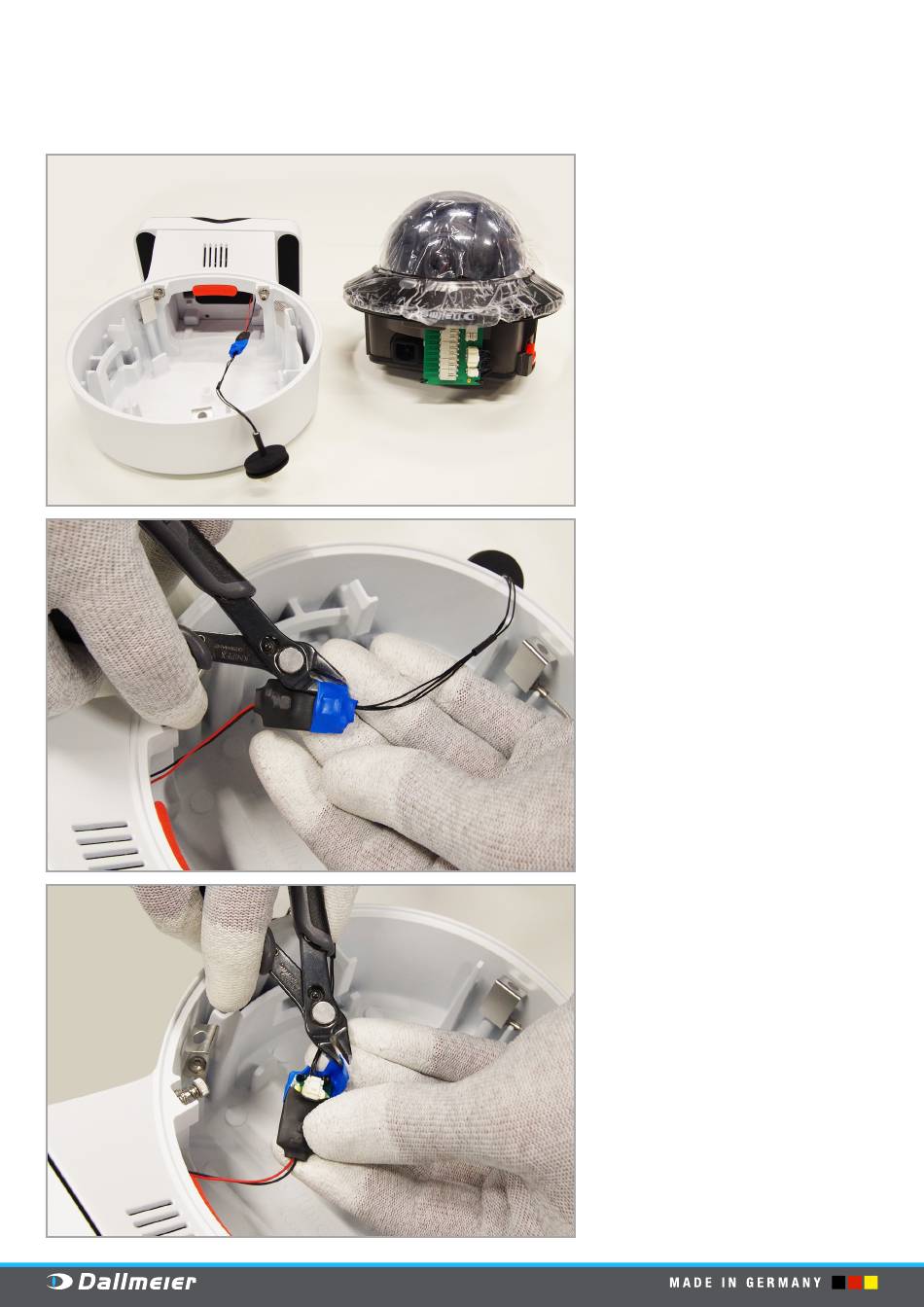

Carefully cut the blue insulation of the
▶
plug connection with a side cutter.
Remove the blue insulation and
▶
expose the plug.
2023.06.02
1/3
