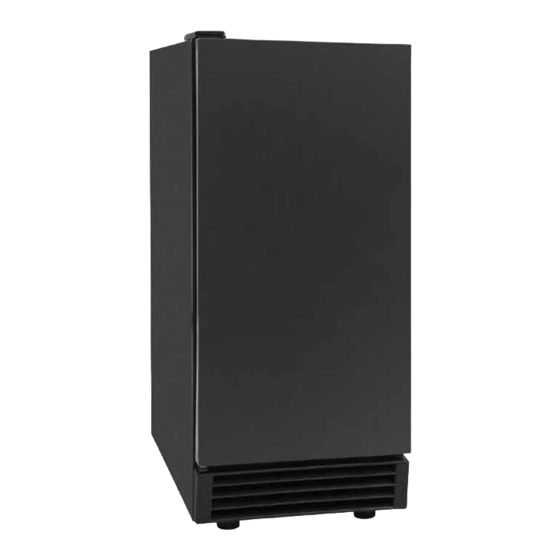

Maxx Ice MIM50V Instruction Manual
Hide thumbs
Also See for MIM50V:
- Service, installation, and instruction manual (60 pages) ,
- Service, installation, and instruction manual (22 pages)
Related Manuals for Maxx Ice MIM50V
Summary of Contents for Maxx Ice MIM50V

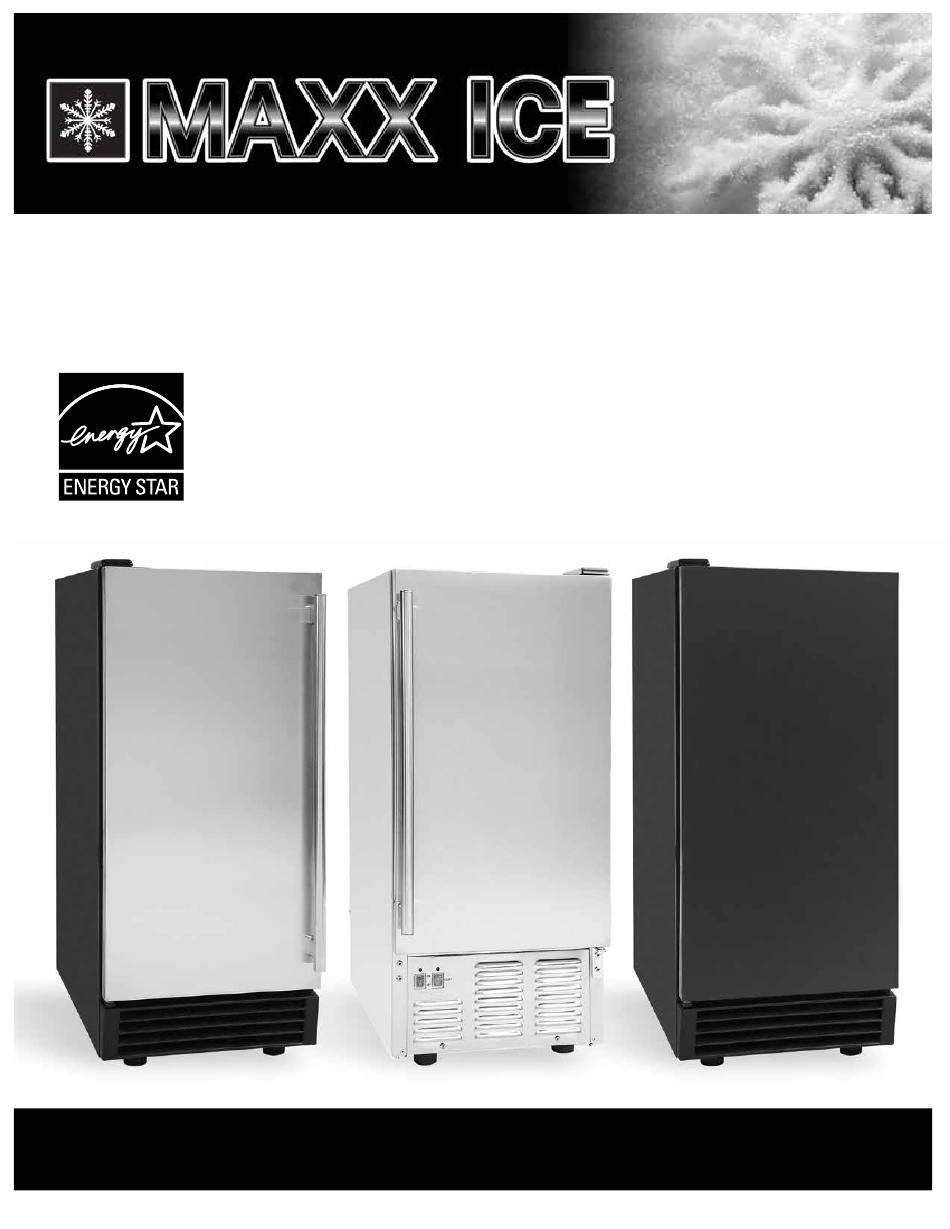

- Page 1 MIM50 / MIM50-O / MIM50V INSTRUCTION MANUAL MODE D’EMPLOI MANUAL DE INSTRUCCIONES MIM50 MIM50-O MIM50V 020916...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ICE MAKER SAFETY ..................1 IMPORTANT SAFEGUARDS . -
Page 3: Ice Maker Safety
Before the ice maker is used, it must be properly positioned and installed as described in this manual, read the manual carefully. Maxx Ice strongly recommends that you have a professional install your new machine. The warranty may be affected or voided by an incorrect installation. To reduce the risk of fire, electrical shock or injury when using the ice maker, follow basic precautions, including the following: •... - Page 4 WARNING • Use two or more people to move and install ice maker. Failure to do so can result in back or other injury. • Never install or operate the unit behind closed doors. To ensure proper ventilation for your ice maker, the front of the unit must be completely unobstructed.
-
Page 5: Technical Information
This user’s manual is intended as a resource for persons installing, using and servicing the MIM50 series. It contains valuable information on safety and maintenance. Maxx Ice strongly recommends that this manual be kept in a place where it can be accessed when needed. -
Page 6: Ice Maker Installation
ICE MAKER INSTALLATION Unpacking WARNING Excessive Weight Hazard Use two or more people to move and install ice maker. Failure to do so can result in back or other injury. Remove Packaging Materials IMPORTANT: Do not remove any permanent instruction labels or the data label on your ice maker. Remove tape and glue from your ice maker before using. -
Page 7: Electrical Requirements
WARNING Normal operating ambient temperature should be between 50°F (10°C) to 100°F (38°C). Normal operating water temperature should be between 41°F (5°C) and 90°F (32°C). Operation of the ice maker for extended periods outside of these normal temperature ranges may affect production capacity. •... -
Page 8: Reversing The Door Swing
REVERSING THE DOOR SWING Tools needed: Flathead screwdriver, Phillips screwdriver NOTE: Before you begin, unplug the ice maker or disconnect power. To Remove Door From Hinges 1. Remove the top hinge cover. 2. Using a Phillips screwdriver, remove the screws, remove the top hinge mat and top hinge. Keep the parts together and set them aside. -
Page 9: Drain
A stand pipe with a trap below it would be acceptable for the drain/waste receptacle. A floor drain is also acceptable. If this is not possible, Maxx Ice recommends the use of a condensate pump. Available at local hardware stores. -
Page 10: Operation
OPERATION Final Check List Prior To Operation 1. Have all packing materials and tape been removed from the interior and exterior of the ice maker? 2. Did you clean the ice storage bin? 3. Have the installation instructions been followed, including connecting the machine to water, drain and electricity? 4. -
Page 11: How The Machine Makes Ice
How The Machine Makes Ice Set the ON/OFF button to the ON position. The machine will automatically go to the ice making stage. There are two distinct cycles: ice freeze and harvest. 1. The freeze cycle happens when water flows to the evaporator surface. 2. -
Page 12: Preparing The Ice Maker For Long Storage
Preparing The Ice Maker For Long Storage If the ice maker will not be used for a long time, or is to be moved to another place, it will be necessary to drain the system of water. 1. Shut off the water supply at the main water source. 2. -
Page 13: Condenser Cleaning
1. Disconnect the power to the unit. 2. Open the door and take out the removable ice storage bin. With a clean cloth, wipe down the interior of unit and ice bin with a sanitizing solution made of 1 ounce of household bleach or chlorine and 2 gallons of hot (95˚F –... -
Page 14: Control Panel
Carefully read the material safety instructions on the container of the ice machine cleaner. Discard the first batch of ice produced after cleaning. CONTROL PANEL MIM50-O MIM50V - MIM50 Front Inside Door Back Front Inside Door Description Of LEDs And Buttons 1. -
Page 15: Major Functions
MAJOR FUNCTIONS 1. The operating procedure is completely automatic. 2. When the ice storage bin is full of ice cubes, the machine stops making ice automatically. It starts making ice again after ice cubes are removed. 3. The different colors of the LED display indicate various work modes. 4. -
Page 16: French
3355 Enterprise Avenue • Suite 160 • Fort Lauderdale, FL 33331 Tel: 954.202.7419 • Fax: 954.202.7337 www.MaxximumFoodService.com...
