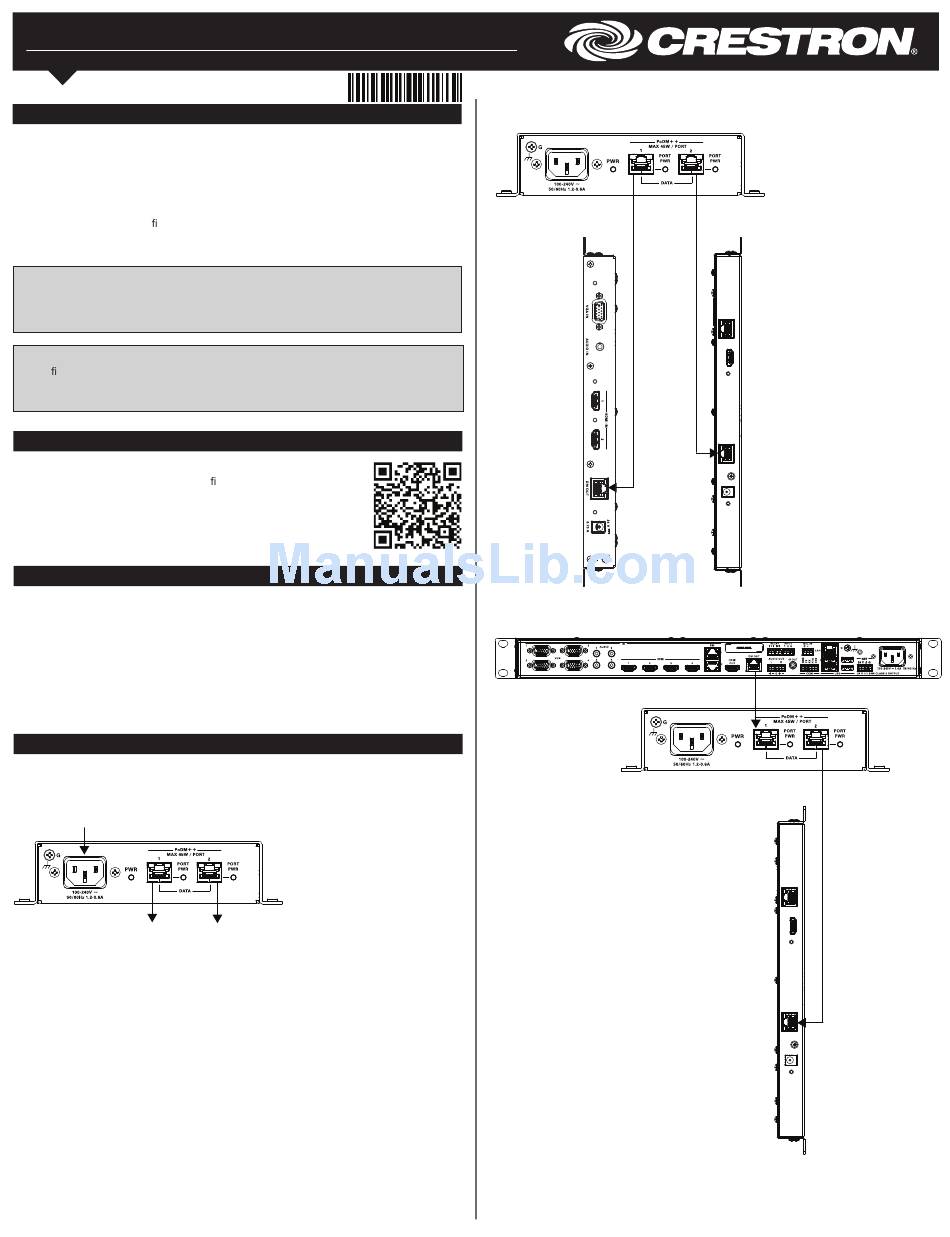

Crestron DM-PSU-ULTRA-MIDSPAN Installation Manual

DM-PSU-ULTRA-MIDSPAN
DigitalMedia™ Ultra Midspan PoDM++ Injector
Installation Guide

Description

The DM-PSU-ULTRA-MIDSPAN provides two PoDM++ power sourcing equipment (PSE)
ports designed to power DM 8G+ PoDM powered devices (PDs). Each PoDM++ port of
®
the DM-PSU-ULTRA-MIDSPAN can supply up to 45 watts of power to a PoDM++,
PoDM+, or PoDM powered device. (Due to the inherent power loss over CATx cable, a
maximum of 40 watts is delivered to the powered device.)
The DM-PSU-ULTRA-MIDSPAN can simultaneously power a DM 8G+ transmitter and
receiver in a standalone con guration while passing data between the two devices.
The DM-PSU-ULTRA-MIDSPAN can also power a touch screen that has a DM 8G+ input
(for example, a TS-1542-C).
NOTE: The DM-PSU-ULTRA-MIDSPAN supplies power to a connected device only if
the device requests power. As a result, the DM-PSU-ULTRA-MIDSPAN can be
connected to the PSE port of a device that does not require power from the
DM-PSU-ULTRA-MIDSPAN (for example, a DMPS3-4K-150-C).
NOTE: The DM-PSU-ULTRA-MIDSPAN is compatible with HDBaseT Alliance
speci cations and can be used to supply up to 30 watts of power to IEEE 802.3at
compliant HDBaseT devices. (Due to the inherent power loss over CATx cable, a
®
maximum of 25.5 watts is delivered to the HDBaseT PoE+ or PoE powered device.)

Additional Resources

Visit the product page on the Crestron website (www.crestron.com)
for additional information and the latest rmware updates. Use a QR
reader application on your mobile device to scan the QR image.

Mounting

The DM-PSU-ULTRA-MIDSPAN can be mounted into a rack, onto a rack rail, or under a
table:
• To mount the DM-PSU-ULTRA-MIDSPAN into a rack, use the Crestron
Rack Mount Kit (sold separately).
• To mount the DM-PSU-ULTRA-MIDSPAN onto a rack rail, use two mounting screws
(not included).
• To mount the DM-PSU-ULTRA-MIDSPAN to the underside of a table, use four
#12 x 5/8-inch mounting screws (not included).

Hardware Hookup

Connect the DM-PSU-ULTRA-MIDSPAN as required for the application.
Hardware Hookup
From ac power
source
To PoDM++
powered device powered device
1, 2
The PoDM++ PSE ports are also compatible with PoDM+, PoDM, HDBaseT PoE+, and HDBaseT PoE
1
powered devices.
Any wiring that is connected to a PoDM++ PSE port is for intrabuilding use only and should not be connected
2
to a line that runs outside of the building in which the PSE is located.
Refer to the following illustrations for sample connection diagrams.
To PoDM++
1, 2

Connection to DM-TX-4K-302-C Transmitter and DM-RMC-4K-SCALER-C-DSP Receiver

DM-PSU-ULTRA-MIDSPAN
DM-TX-4K-302-C,
side panel
Connection to DMPS3-4K-150-C and DM-RMC-4K-SCALER-DSP
DMPS3-4K-150-C, rear panel
ST-RMK
®
DM-RMC-4K-SCALER-C-DSP,
side panel
2
DM-PSU-ULTRA-MIDSPAN
DM-RMC-4K-SCALER-C-DSP,
side panel
3
