Crestron CSA-PWS225 & CSA-PWS450
Power Supply for Crestron QMT Motors
®
Operations & Installation Guide
Further Inquiries
To locate specific information or resolve questions after reviewing this guide, contact Crestron's True Blue Support at
1-888-CRESTRON [1-888-273-7876] or refer to the listing of Crestron worldwide offices on the Crestron Web site
(www.crestron.com/offices) for assistance within a particular geographic region.
To post a question about Crestron products, log onto the online help section of the Crestron Web site
(www.crestron.com/onlinehelp). First-time users must establish a user account to fully benefit from all available
features.
Future Updates
As Crestron improves functions, adds new features and extends the capabilities of the CSA-PWS225 and
CSA-PWS450, additional information may be made available as manual updates. These updates are solely
electronic and serve as intermediary supplements prior to the release of a complete technical documentation
revision.
Check the Crestron Web site periodically for manual update availability and its relevance. Updates are identified as
an "Addendum" in the Download column.
WARNING: To avoid fire, shock, or death; turn off power at circuit breaker or fuse and test that power is off before
Wiring!
NOTES: Install and use in accordance with appropraite electrical codes and regulations.
Crestron Electronics, Inc. Operations & Installation Guide - DOC. 7360C
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
REGULATORY COMPLIANCE
This product is Listed to applicable
UL Standards and requirements by
Underwriters Laboratories Inc.
Federal Communications Commission (FCC) Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase separation between the equipment and the receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV technician for help
Industry Canada (IC) Compliance Statement
Operation is subject to the following two conditions:
• This device may not cause interference, and
• This device may accept any interference, including interference that may cause undesired operation
of the device.
DESCRIPTION
The CSA-PWS225 and CSA-PWS450 power supplies are designed for use with Crestron
QMT motors (sold separately) and other standard Cresnet
For simplicity in this guide the CSA-PWS225 and CSA-PWS450 shall be referred to as the
CSA-PWS225/450, except where noted.

Specifications

Specifications for the CSA-PWS225/450 are listed in the following table.
CSA-PWS225/450 Specifications
SPECIFICATION
Line Power 100-120 Vac, 50/60 Hz;
Nema 5-15P line cord attached for 120 Vac input;
Load Rating
CSA-PWS225
Per Segment 75 Watts @ 24 Vdc
Total Load Rating 225 Watts (75 W x 3 segments) @ 24Vdc;
Powers up to 6 QMT motors (sold separately)
CSA-PWS450
Per Segment 75 Watts @ 24 Vdc
Total Load Rating 450 Watts (75 W x 6 segments) @ 24Vdc;
Powers up to 12 QMT motors (sold separately)
Load Protection Each segment is protected by a self resetting
thermal fuse and a replaceable 4 A slow-blow fuse
Enclosure Wall mount, steel;
Indoor use only
Connections
Cresnet (2) 4-pin detachable terminal blocks; Cresnet slave
ports, paralleled; Connect to Cresnet control
network, power not supplied to these connections
Cresnet power output ports with data pass-through
Segment A-C (6) 4-pin detachable terminal blocks comprising (2)
(CSA-PWS225 only) paralleled Cresnet ports per each of (3) output
segments; 24 Vdc power outputs
Segment A-F (12) 4-pin detachable terminal blocks comprising (2)
(CSA-PWS450 only) paralleled Cresnet ports per each of (6) output
segments; 24 Vdc power outputs
Wire Connectors accept Cresnet or Cresnet-HP wire
(12 AWG max)
Dimensions
CSA-PWS225
Height 9 13/16 in (249 mm)
Width 10 7/8 in (277 mm)
Depth 5 7/16 in (139 mm)
CSA-PWS450
Height 10 3/16 in (259 mm)
(2033190) Width 14 7/8 in (379 mm)
03.13
Depth 5 7/16 in (139 mm)
Weight
CSA-PWS225 8 lb (4 kg)
CSA-PWS450 15 lb (7 kg)

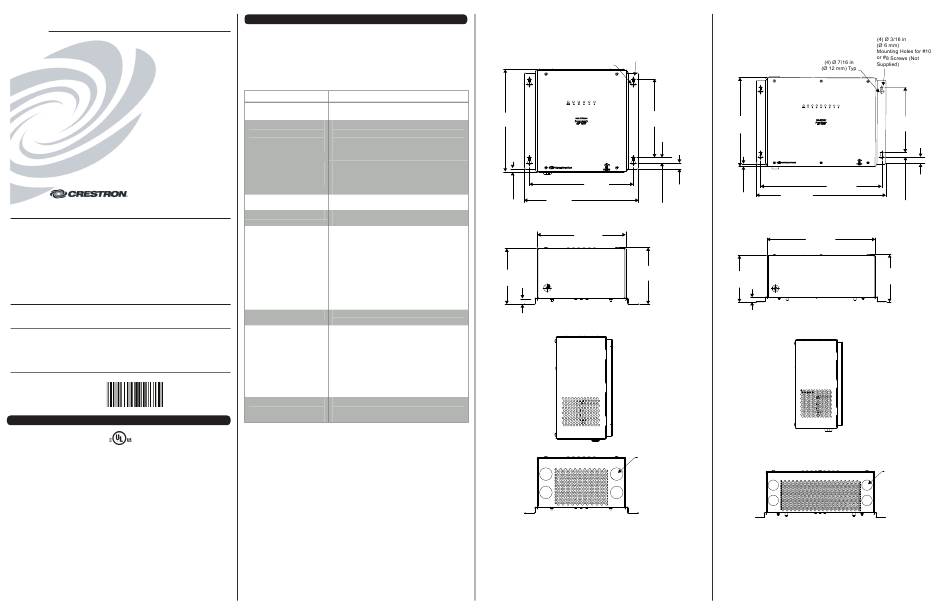

Physical Description

This section provides information on the dimensions for the CSA-PWS225/450.
®
CSA-PWS225 Overall Dimensions
® products.
DETAILS
9 13/16 in
(249 mm)
10 7/8 in
5/16 in (277 mm)
(8 mm) Typ
5 3/8 in
(136 mm)
9/16 in
(15 mm)
CSA-PWS450 Overall Dimensions
(4) Ø 3/16 in
(Ø 6 mm)
Mounting Holes for #10 or
(4) Ø 7/16 in #8 Screws (not supplied)
(Ø 12 mm) Typ
7 1/2 in
10 3/16 in
(191 mm)
(259 mm)
9 7/8 in
(252 mm) 9/16 in
(16 mm)
5/16 in
(8 mm) Typ
1/2 in
(13 mm) Typ
8 7/16 in
(214 mm)
5 7/16 in
(139 mm) 5 3/8 in
(136 mm)
9/16 in
(15 mm)
4 Removable Plugs
for Field Wiring
7 1/2 in
(191 mm)
13/16 in
13 7/8 in
(21 mm)
(354 mm)
14 7/8 in
(379 mm)
1/2 in
(13 mm) Typ
12 7/16 in
(317 mm)
5 7/16 in
(139 mm)
4 Removable
Plugs for Field
Wiring
