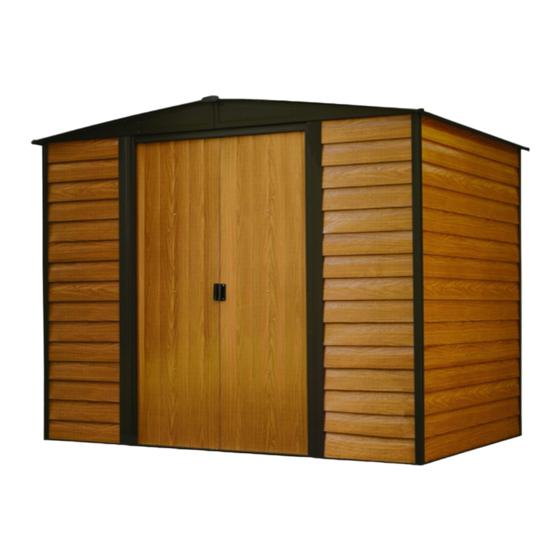

Arrow ED65 Owner's Manual & Assembly Instructions
  1. Manuals
  2. Brands
  3. Arrow Manuals
  4. Outdoor Storage
  5. ED65
  6. Owner's manual & assembly instructions

Arrow ED65 Owner's Manual & Assembly Instructions

Hide thumbs

Advertisement

Quick Links

Download this manual
Owner's Manual & Assembly Instructions
BH1
Model No.
708431207
BUILDING DIMENSIONS
*Approx.
Foundation
Size
Size
6' x 5'
74" x 57"
1,8m x 1,4m
188cm x 145cm
ED65
* Size rounded off to the nearest foot
Storage Area
Sq. Ft. Cu. Ft.
27
167
2,5m
2
4,7m
3
GD65-B
Exterior Dimensions
(Roof Edge to Roof Edge)
Width
Depth
Height
76 1/4"
59 1/2"
79 1/8"
194cm
151cm
201cm
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
Interior Dimensions
(Wall to Wall)
Width
Depth
71 1/4"
54 1/4" 77 7/8"
181cm
138cm
Door
Opening
Height Width Height
32"
69 1/4"
198cm
81cm 176cm

Advertisement

loading
Need help?

Need help?

Do you have a question about the ED65 and is the answer not in the manual?

Questions and answers

Related Manuals for Arrow ED65

Summary of Contents for Arrow ED65

  • Page 1 Owner's Manual & Assembly Instructions Model No. ED65 GD65-B CAUTION: SOME PARTS HAVE SHARP EDGES. CARE MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ 708431207 SAFETY INFORMATION PROVIDED IN THIS MANUAL BEFORE BEGINNING CONSTRUCTION.
  • Page 2 Anchoring and foundation materials are not included with your building. We recommend the combined use of an Arrow Floor Frame Kit and an Arrow Anchoring Kit as an effective method of securing your building to the ground (Available by mail order or at your local dealer) or you may construct a foundation and anchoring system of your choice.
  • Page 3 PLAN AHEAD..Watch the Weather: Be sure the day you select to install your building is dry and calm. Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground. Teamwork: Whenever possible, two or more people should work together to assemble your building.
  • Page 4 SAFETY FIRST..Safety precautions are important to follow throughout the construction of your building. •Care must be taken when handling various •Practice caution with the tools being used in the pieces of your building since some contain assembly of this building. Be familiar with the sharp edges.
  • Page 5 Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy amounts of snow on roof can damage building making it unsafe to enter. In snow country, Roof Strengthening Kits are available for most Arrow Buildings for added protection against heavy snow accumulation.
  • Page 6 For buildings ATTIC KIT / WORKBENCH KIT larger than 10'x9', use 2 kits. Heavy-duty galvanized steel bars that fit all 10' wide Arrow buildings. They Model No. AK100 install quickly and easily to help New concrete anchor system permits...
  • Page 7 THIS PAGE LEFT BLANK INTENTIONALLY...
  • Page 8 THIS PAGE LEFT BLANK INTENTIONALLY...
  • Page 9 OPTION 1: ARROW FLOOR FRAME KIT: (Order No. FB5465) Arrow has the best base for your building in this simple kit. It keeps stored items above the ground. This kit should be used with one of the following: A. To support a plywood deck B. To be filled with sand. We recommend the combined use of 1.
  • Page 10 It is important that the entire floor frame be anchored after the building is erected. Below are recommended ways of anchoring. Anchoring into Wood/Post: Arrow Anchoring Kit: (Model No. AK4 or 60298) Use 1/4" Wood Screws. There are 1/4" (0,63cm) dia.
  • Page 11 65109 Washer (96) Weather Stripping (1) Handle (2) #8-32 Acorn Nut (2) (3 sheets of 40) 66183 67468 66769 66382 Roof Trim Cap Peak Cap (2) Lower Door Guide (4) (2 right & 2 left) Arrow Logo Door Slide (4)
  • Page 12 Parts List BH12 Assembly Part Part Quantity Check Key No. Number Description in Carton List 9403 Front Floor Frame 9914 Rear Floor Frame 9907 Rear Wall Angle 9396 Door Track 5997 Left Gable 5996 Right Gable 9402 Side Floor Frame 5288 Corner Post 9912...
  • Page 13 Assembly by Key No. BH13...
  • Page 14 ● Parts Needed For ● Step 1 ● ● ● ● ● 9396 Door Track (1) Door Track Assembly The door track assembly supports the sliding doors and reinforces the front wall. Hint: The holes in the top side of the door track are for fastening the gable to the top of the front wall in a later step.
  • Page 15 ● Parts Needed For ● ● ● ● ● ● 9403 Front Floor Frame (1) Step 2 ● ● ● ● ● 9914 Rear Floor Frame (1) Floor Frame ● ● ● ● ● 9402 Side Floor Frame (2) BH15 RIGHT REAR 9402...
  • Page 16 ● ● ● ● ● 5288 Corner Post (4) ● Parts Needed For ● ● ● ● ● ● Door Track Assembly (1) Step 3 ● ● ● ● ● 9907 Rear Wall Angle (1) Posts/Top Frames ● ● ● ● ● 9912 Side Wall Angle (2) BH16 NOTE The remainder of the building assembly...
  • Page 17 ● Parts Needed For ● ● ● ● ● ● 7311 Door Jamb (2) Step 4 ● ● ● ● ● 9344 Siding Stud (4) Door Jambs/Studs BH17 The door jambs reinforce the door opening and provide an attractive trim. The studs provide a surface for attaching the siding panels.
  • Page 18 ● Parts Needed For ● Step 5 ● ● ● ● ● 9911 Side Siding (6) Side Siding BH18 Each screw in the wall requires a washer. Slide side siding into channels of corner posts, flat edge upward, bottom edge down resting on floor frame.
  • Page 19 ● Parts Needed For ● Step 6 ● ● ● ● ● 9910 Rear Siding (3) Rear/Front Siding ● ● ● ● ● 9913 Front Siding (6) BH19 STEP STEP Slide rear siding into channels of corner posts fastening to rear frame Fasten Top Center of as shown in previous Step.
  • Page 20 ● ● ● ● ● 5996 Right Gable (2) ● Parts Needed For ● Step 7 ● ● ● ● ● 5997 Left Gable (2) Gables/Braces ● ● ● ● ● 6658 Gable Brace (2) BH20 The gables go on top of the front and rear walls to support the roof beams.
  • Page 21 ● Parts Needed For ● Step 8 ● ● ● ● ● 5964 Roof Beam (1) Roof Beam/Angle ● ● ● ● ● 5982 Roof Angle (1) BH21 Fasten the roof beam, small holes STEP on top, to the gable brace of the front gable.
  • Page 22 ● Parts Needed For ● Step 9 ● ● ● ● ● 6442 Right Roof Panel (1) Right Roof Panel BH22 Installing the roof panels is best done with a step ladder. Begin installing roof panels at the back right corner of the building.
  • Page 23 ● Parts Needed For ● Step 10 ● ● ● ● ● 6443 Left Roof Panel (1) Left Roof Panel BH23 Install a left roof panel at the left rear corner of the roof. STEP 6443...
  • Page 24 ● Parts Needed For ● ● ● ● ● ● 6443 Left Roof Panel (1) Step 11 ● ● ● ● ● 6442 Right Roof Panel (1) Front of Roof BH24 Cover the joint at the peak with weather stripping tape. Unroll the tape and press it down over the open- ing at the ridge as you install each roof panel.
  • Page 25 ● Parts Needed For ● ● ● ● ● ● 6869 Ridge Cap (1) Step 12 ● ● ● ● ● 6015 Side Roof Trim (2) Ridge Cap/Roof Trim BH25 Install the ridge cap on the com- pleted roof section using bolts and 6869 STEP nuts.
  • Page 26 ● Parts Needed For ● ● ● ● ● ● 6657 Door Handle Brace (2) Step 13 ● ● ● ● ● 10482 Right and Left Doors (2) Door Assembly ● ● ● ● ● 10499 Horizontal Door Brace (4) BH26 The steps on this page tell how to assemble the right door.
  • Page 27 ● Parts Needed For ● ● ● ● ● ● Right Door Assembly (1) Step 14 ● ● ● ● ● Left Door Assembly (1) Door Installation & Adjustment Horizontal Door Brace Gable Door Track Door Slide From inside the building, put the bottom of the right door assembly (on your left when you are inside the building) behind door jamb into the...
  • Page 28 ED65 GD65-B BH28 SOME FACTS ABOUT RUST 1. Avoid nicking or scraping the coating surface, Rusting is a natural oxidizing process that occurs inside and out. when bare metal is exposed to moisture. Problem areas include screw holes, unfinished edges, or 2.
