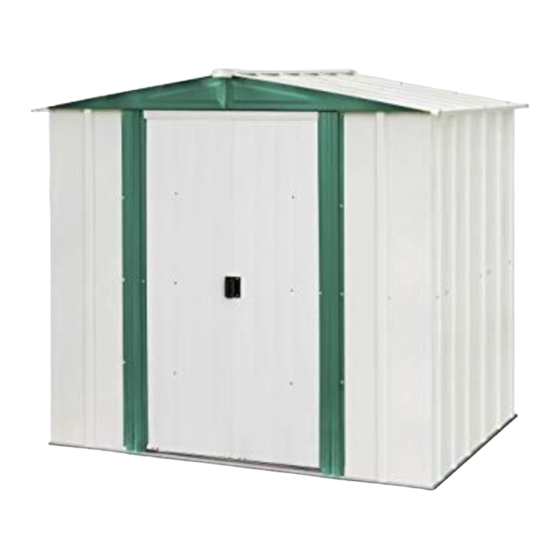

Arrow EN65-A Owner's Manual & Assembly Instructions

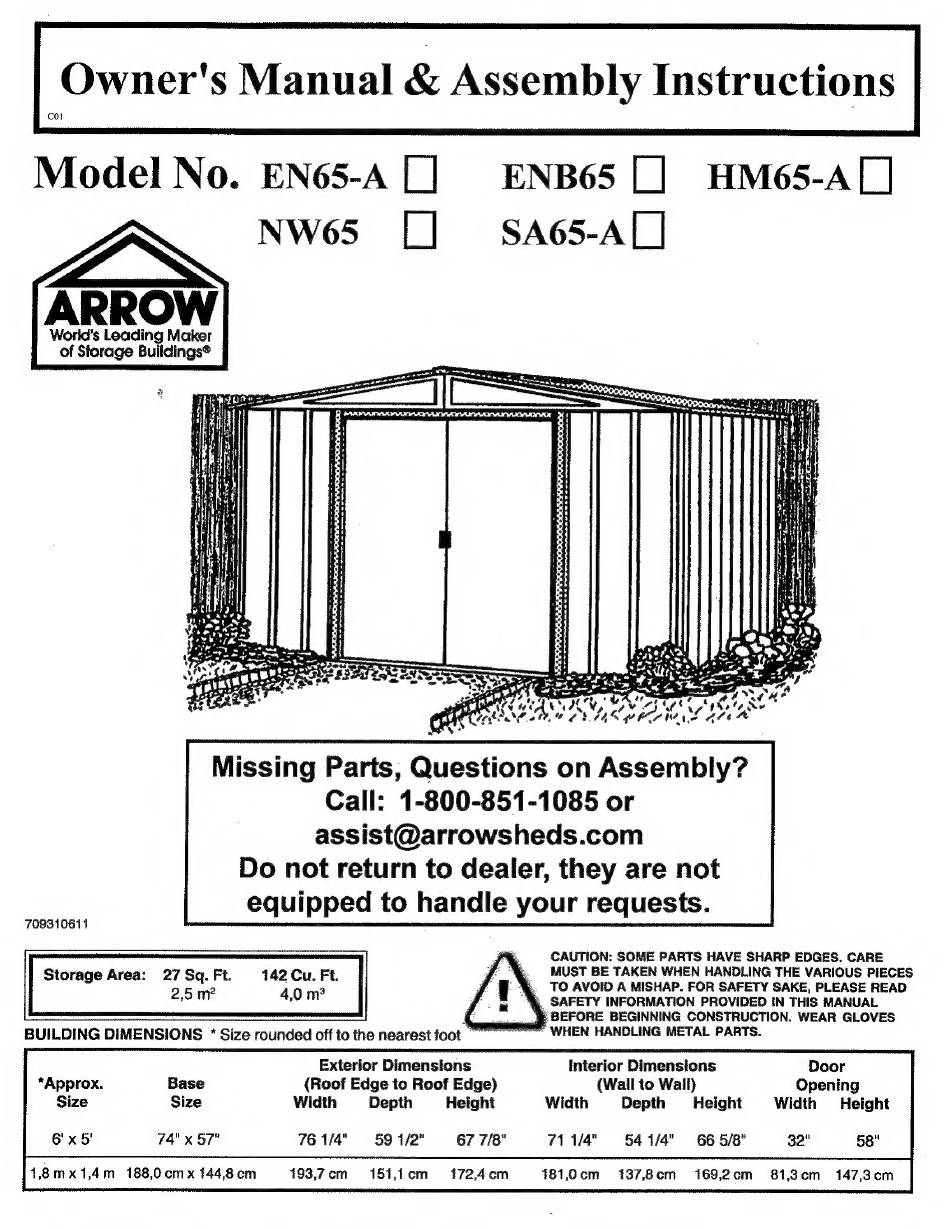

Owner's Manual & Assembly Instructions
col
Model No. EN65-A [U] ENBO6S [U HMé65-A[ ]
NW65 [] SA65-A[_]
i = ry
ny 1 ROE L hti
ARROW
World's Leading Maker
of Storage Buildings®
SA RAO
wee =,
Missing Parts, Questions on Assembly?
Call: 1-800-851-1085 or
assist@arrowsheds.com
Do not return to dealer, they are not
equipped to handle your requests.
709310611
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
$: MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
ģ& TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
%, SAFETY INFORMATION PROVIDED IN THIS MANUAL
| BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
" WHEN HANDLING METAL PARTS.
Storage Area: 27Sq. Ft 142 Cu. Ft.
2,5 m? 4,0 m?
BUILDING DIMENSIONS * Size rounded off to the nearest foot "nemes
Exterior Dimensions Interior Dimensions Door
*Approx. Base {Roof Edge to Roof Edge) (Wall to Wall) Opening
Size Size Width Depth Height Width Depth Height Width Height
6x5! 74" x 57" 76 1/4" 59 t/2" 67 7/8" 71 1/4" 541/4" 66 5/8" 32" 58"
1,8 mx1,4m 188,0 cmx 144,8 cm 193,7cm 15ł,1cm 172,4 cm 181,0cm 137,8cm 169,2cm 81,3cm 147,3 cm
