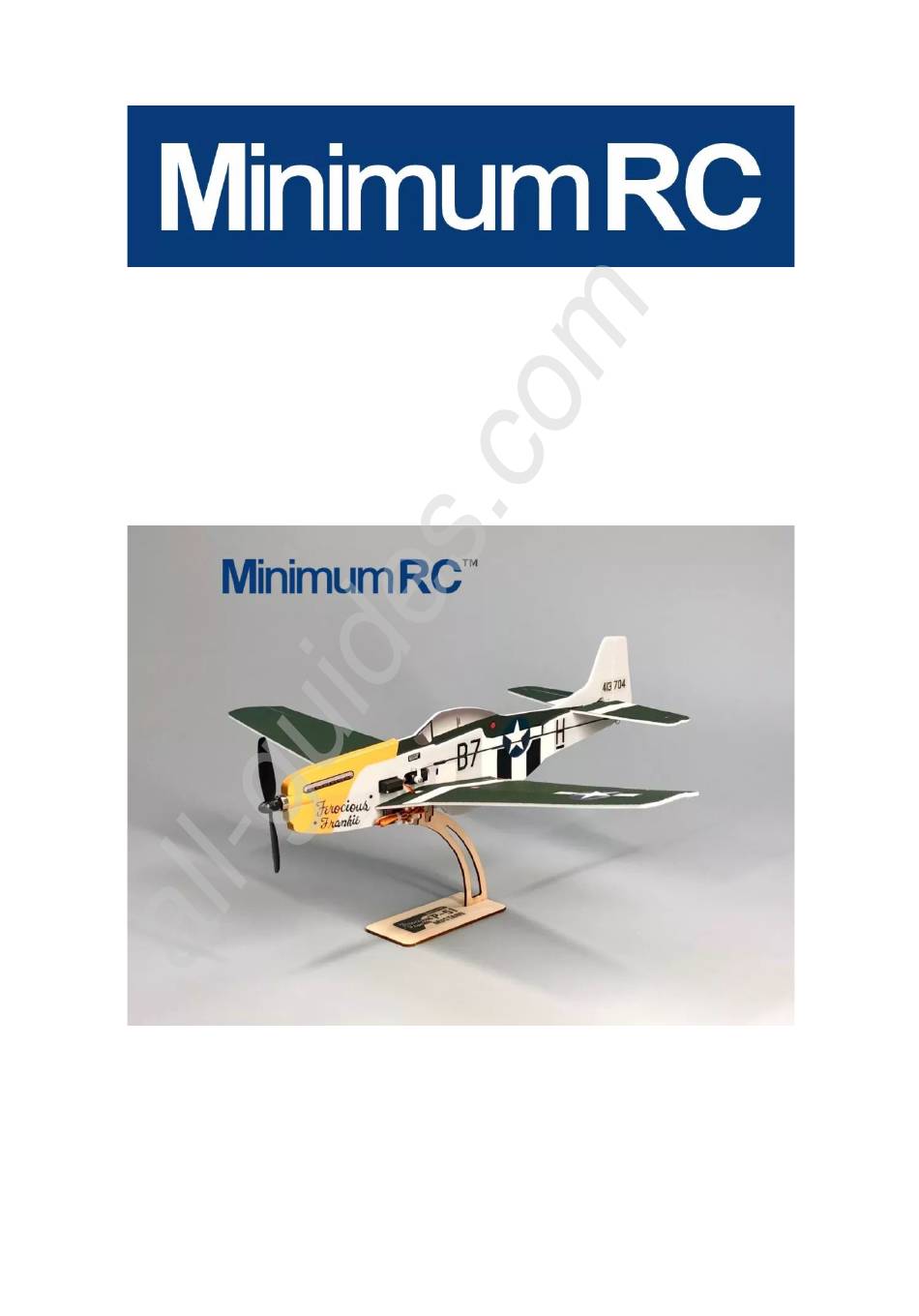

- Page 1 All manuals and user guides at all-guides.com P-51 Mustang Assembly Instruction...
- Page 2 All manuals and user guides at all-guides.com 1. Assemble the base. 2. Cut off the rudder parts.
- Page 3 All manuals and user guides at all-guides.com 3. Connect the rudder to the fuselage with paint sticker. Note that the distance between the rudder surface and the fuselage plate is 1mm.
- Page 4 All manuals and user guides at all-guides.com 4.Installing the servo base（plywood）. 5. Paste fuselage coated stickers and assemble fuselage panels.
- Page 5 All manuals and user guides at all-guides.com 6. Installation of wing support; Install aileron servo and cover it with sticker.
- Page 6 All manuals and user guides at all-guides.com 7. Coating paper coated motor. 8. After the motor wire passes through the hole in the middle of the fuselage, the bottom of the fuselage is filled.
- Page 7 All manuals and user guides at all-guides.com 9. Cut off the elevator and connect with the hinge patch. (the patch is better fixed with glue). Note that there is a 1 mm gap between the rudder and the tail plate.
- Page 8 All manuals and user guides at all-guides.com 10. Install the horizontal tail, the elevator needs to move freely. 11. Cut off the aileron and connect with the hinge patch. (the patch is better fixed with glue). Note that there is a 1 mm gap between the aileron and the wing.
- Page 9 All manuals and user guides at all-guides.com 12. Transparent tape can improve the torsional rigidity of aileron.
- Page 10 All manuals and user guides at all-guides.com 13. Bend the wing along the notch. 14. Installation of the wing.
- Page 11 All manuals and user guides at all-guides.com 15. Reinforce the wing with φ1mm carbon rods. 16. Installation of the control horns.
- Page 12 All manuals and user guides at all-guides.com...
- Page 13 All manuals and user guides at all-guides.com 19. Installation of the servos.
- Page 14 All manuals and user guides at all-guides.com 20. Connect the pushrod clips & pushrods with heat shrinkable tube and fix them with glue. 21. Installation of the pushrods.
- Page 15 All manuals and user guides at all-guides.com 22. Connect the pushrod clips & pushrods with heat shrinkable tube and fix them with glue. 23. Installation of the pushrods.
- Page 16 All manuals and user guides at all-guides.com 24. Attach the receiver to the fuselage with Velcro.
- Page 17 ·The amount of elevator, rudder and aileron is 5 mm for each side. Please adjust the rudder surface to the level before flight test. Explore the ultimate possibility of airplane kits MinimumRC.COM...
