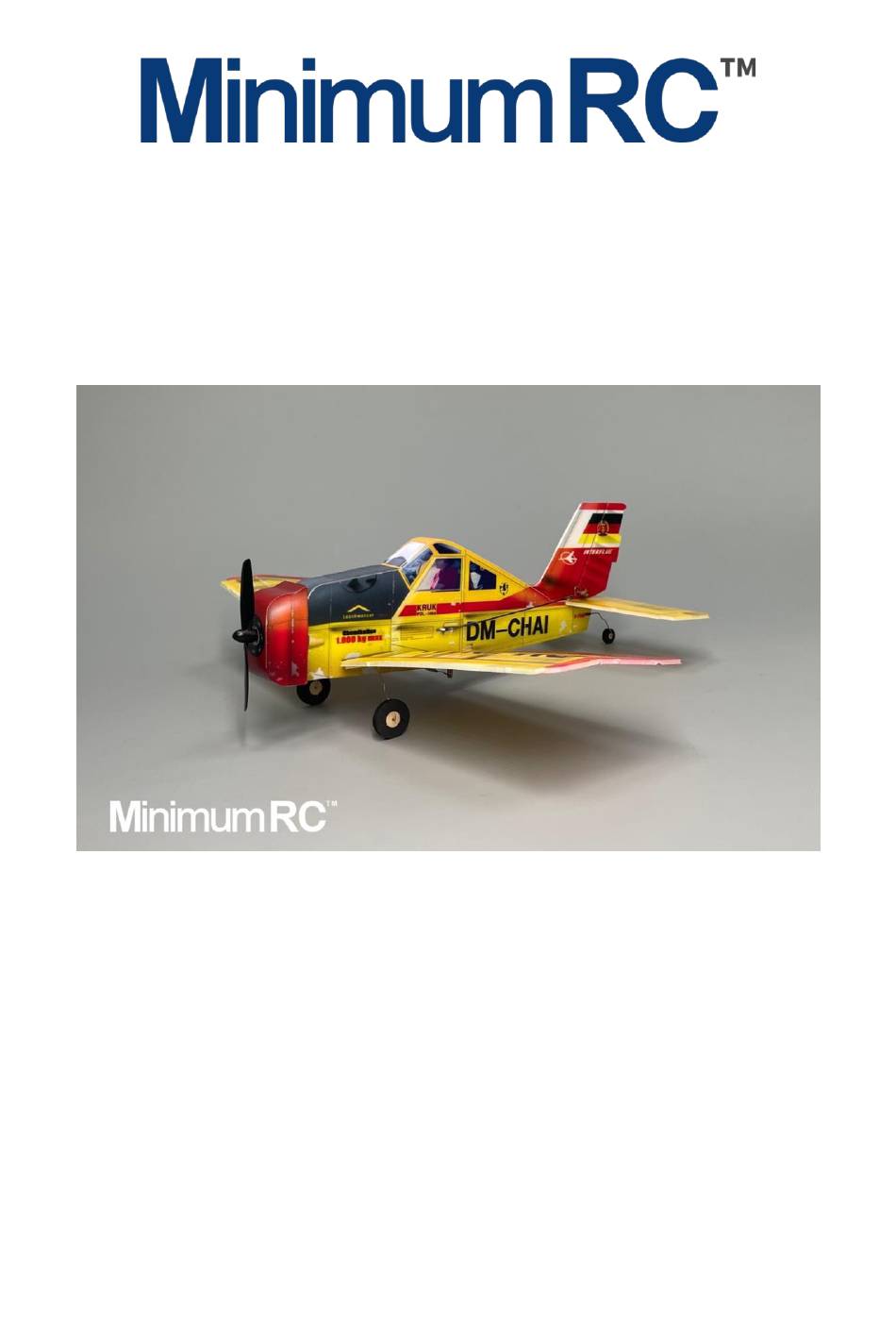

PZL106 Q-Series
Assembly Instructions
Important notification
1.The model is supplied with UFO and 502 glue. UFO is for bonding foam parts, and 502 for
bonding wood, carbon fiber and metal parts. 502 glue will cause serious corrosion to foam parts.
2.Please wait for the glue to dry and solidify in each installation step before the next installation.
3.Please avoid using flame to heat the heat shrinkable tube on the model. Electric iron shall be
used for heating.
4.Please use razor blade to remove the parts from the plate. Do not tear the parts by force.
Advertisement
Related Manuals for MinimumRC PZL106 Q Series
Summary of Contents for MinimumRC PZL106 Q Series
- Page 1 PZL106 Q-Series Assembly Instructions Important notification 1.The model is supplied with UFO and 502 glue. UFO is for bonding foam parts, and 502 for bonding wood, carbon fiber and metal parts. 502 glue will cause serious corrosion to foam parts. 2.Please wait for the glue to dry and solidify in each installation step before the next installation.
- Page 2 1. Fuselage internals. 2. Bond the inner structure of the fuselage with 502 glue.
- Page 3 3. Connect the servos to a powered receiver. Bind the receiver with your transmitter to make the servos arms return to their neutral point. Test whether the servos are working normally, and install the servo arms according to the position shown in the picture. Note: Please make sure that the servos have been tested and installed in strict acc ordance with the following picture.
- Page 4 5. Connect the receiver to the motor, install the propeller and test whether the rotation direction of the motor is correct. If the motor is reversed, reverse the motor line. Test whether the corresponding relationship between the three steering gears and th e transmitter channel is correct (as shown in the figure).
- Page 5 7. Align the scribed line on the inner side of the fuselage and fix the wooden s tructure with glue. 8. Align the scribed line on the inner side of the fuselage and fix the wooden s tructure with glue.
- Page 6 9. Note: the position shown in the figure is the battery cover plate that can be opened and closed. No glue shall be applied to the area marked by the red line. 10. Press the top plate and bottom plate of the fuselage and bend them into the corresponding shape of the fuselage contour.
- Page 7 11. Combine the fuselage. 12. Fix the battery cover magnet with glue and cover it with stickers. 13. The battery cover can be opened, and can be adsorbed in the closed position by magnet.
- Page 8 14. Paste the fuselage sticker and install the propeller. 15. Use the end of a carbon fiber rod to score through the half -cut line of the wing surface. 16.Use the end of a carbon fiber rod to score through the aileron half-cut line of the wing surface.
- Page 9 17. Use the end of a carbon fiber rod to score through the half -cut line of the tail surface. 18. Use the end of a carbon fiber rod to score through the half -cut line of the rudder surface. 19.
- Page 10 20. Attach the wings to the fuselage. 22. Insert the copper axle core into the center of the wood wheel core.
- Page 11 23. Glue the tires. 24. bend the steel wire with pointed nose pliers as shown in the picture. 25. bend the outer end of the steel wire with pointed nose pliers.
- Page 12 26. Install the landing gears. 27. Install tail landing gear. 28. Install aileron control horns.
- Page 13 29. Install rudder control horns. 30. Install elevator control horns. 31. Use heat shrinkable tube to connect tail push rod and steel wire clip.
- Page 14 32. Use heat shrinkable tube to connect the pull rod and wire clip, then use glue to fix them. 33. Attach the steel wire hooks to the control horns. 34. cut the carbon rod to proper length and connect the wire hooks with heat shrinkable tubes.
- Page 15 35. Use heat shrinkable tube to connect aileron steel wire clips. 36. Attach the steel wire clip to the aileron servo arm. 37. Connect the wire hooks with heat shrinkable tubes.
- Page 16 38. Paste the carbon fiber rod at the broken line at the bottom of the wing to increase the strength. 41. The battery is directly placed in the battery compartment. Assembly complete!
-
Page 17: Maiden Flight
Maiden flight ·The center of gravity of the aircraft is located at the front score line of the wing. ·The active range of ailerons, elevator and rudder is 5mm on both sides. ·choose grass land for maiden flight.
