Instruction Sheet
TOR SERIES

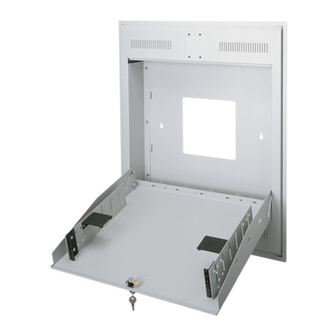

TOR-X-20RP
Flush Mount tilt out wall rack
U L
C
US
R
LISTED
THANK YOU
Thank you for purchasing the TOR-X-20RP Flush Mount. Please read these instructions thoroughly
before installing / assembling this product.
PRODUCT FEATURES
- Convenient tip-out design allows easy access to equipment controls
- Rackrail is included for use with rackmount equipment
- Mount non-rackmount equipment using included clamp bars
I-00106
Rev F
Advertisement
Table of Contents
Related Manuals for Middle Atlantic Products TOR Series
Summary of Contents for Middle Atlantic Products TOR Series
- Page 1 Instruction Sheet TOR SERIES TOR-X-20RP Flush Mount tilt out wall rack LISTED THANK YOU Thank you for purchasing the TOR-X-20RP Flush Mount. Please read these instructions thoroughly before installing / assembling this product. PRODUCT FEATURES - Convenient tip-out design allows easy access to equipment controls...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS • Read these instructions. WARNING: A WARNING ALERTS YOU TO A SITUATION THAT COULD RESULT IN SERIOUS PERSONAL INJURY • Keep these instructions. OR DEATH. • Heed all warnings. CAUTION: A CAUTION ALERTS YOU TO A SITUATION THAT MAY RESULT IN MINOR PERSONAL INJURY OR •... - Page 3 ASSEMBLY Tools needed: - Socket wrench set - Power Drill and bit set LIFT 1) Construct a rough opening - 24.75" W x 30.312" H: 2 space - 2 x 4 3 space - 2 x 4 for partial, 2 x 6 for flush 4 space - 2 x 4, 2 x 6 for partial, 2 x 8 for flush ROTATE 2) Disassembly is required prior to mounting.
-
Page 4: Clamp Assembly
CLAMP ASSEMBLY NOTE: Middle Atlantic Products provides a clamp for use on non-rackmount equipment. On equipment that is rackmounted, clamp is not required and can be discarded. Choose a desired location for clamp and assemble clamp to ears using screws and nuts provided (See FIGURE D). -
Page 5: Grounding And Bonding
GROUNDING AND BONDING Protective Earth Terminals (PET) are located in backpan of the wall rack. These terminals are marked with the symbol Wall rack parts, center section and door, contain or are provided with bonding points for connection to the backpan / PET. Protective earth and bonding connections shall be in accordance with Article 250 of the National Electric Code. -
Page 6: Warranty
WARRANTY Middle Atlantic Products (the "Company") warrants the TOR-X-20RP Flush Mount to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product. The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and...
