PCB Construction

This section discusses the construction of the EVM boards. It includes the board schematics and layout files to show how the board was built.
6.1

TUSB1002 EVM Board Schematics

Figure 3 and Figure 4 illustrate the EVM schematics.
VBUS
P1
1
VBUS
USB2_DM
2
USB2_DM
3 USB2_DP
USB2_DP
4
GND
9
SS_RX_P
8
SS_RX_N
10 7
Shield1 GND_DRAIN
11 6 TX1P_Conn
Shield2 SS_TX_P
TX1N_Conn
5
SS_TX_N
USB3.0 Type B Receptacle
VBUS
C5
10uF
SLLU245 – May 2016
Submit Documentation Feedback
CH2_EQ1
CH2_EQ2
VBUS
USB2_DM
USB2_DP
RX2P
RX2N
C1 0.1uF
TX1P
TX1N
C2 0.1uF
RSVD1
RSVD1
CH1_EQ1
CH1_EQ2
U2
1 5
3.3V
VIN VOUT
2 C6
GND
C7
1uf
3 4 10uF
EN N/C
LP5907

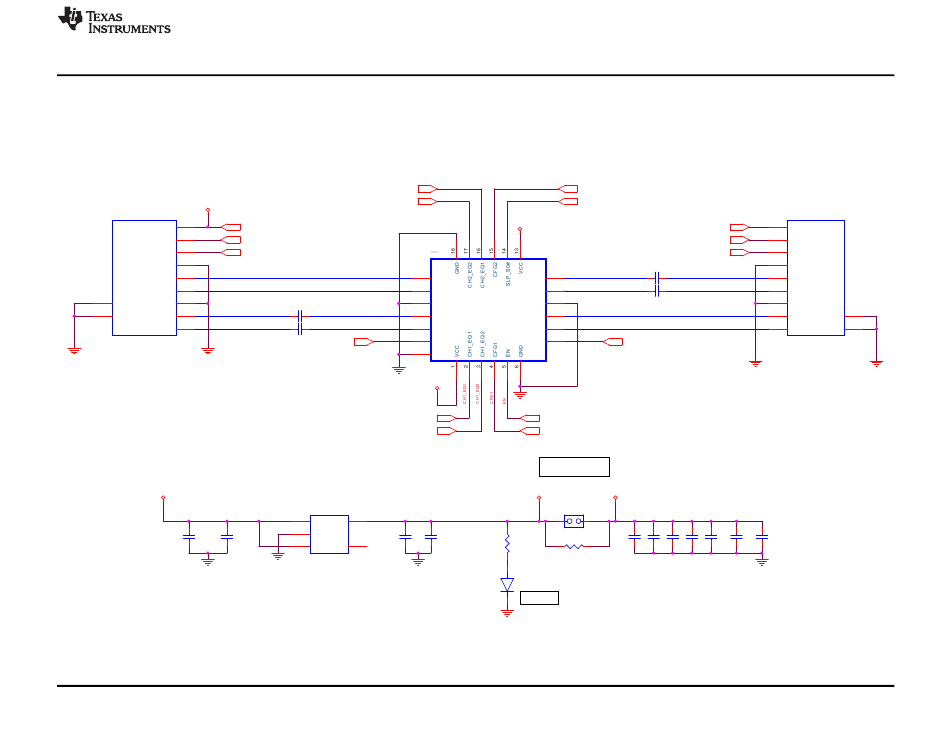

Figure 3. TUSB1002 EVM Schematic (High Speed Pins and Power)
