User's Guide
TUSB216IEVM User's Guide
This user guide for the evaluation module (EVM) of the TUSB216I devices is available to provide an easy
evaluation process of our TUSB216I USB High-Speed signal conditioners.
This user's guide provides an overview of the EVMs, which includes highlighting key features, operating
conditions, and how to setup for use in system-level evaluation.
The construction of the EVM also serves as a reference design that is easily modified for any intended
application. Target applications include Cell Phones, Desktop or Notebook Computers, Docking Stations, TVs,
and active Cables. Additional schematic and layout information is available on TI.com.
1 TUSB216IEVM.........................................................................................................................................................................
2 TUSB216EVM Board Description..........................................................................................................................................
2.1 TUSB216IEVM Kit Contents..............................................................................................................................................
4 EVM Operation........................................................................................................................................................................
5 TUSB216IEVM Schematic......................................................................................................................................................
BOM..............................................................................................................................................................10
Figure 2-1. TUSB216IEVM .........................................................................................................................................................
Figure 5-1. TUSB216IEVM Schematic........................................................................................................................................
Header....................................................................................................................................................4
Table 3-3. RX_SEN 3x3 Header..................................................................................................................................................
Table 3-4. RX_SEN/BOOST Setting Based on Cable Length.....................................................................................................
Trademarks
All trademarks are the property of their respective owners.
SLLU330 - MARCH 2021
Submit Document Feedback
ABSTRACT

Table of Contents

Configuration................................................................................................................................4
..........................................................................................................................................5
List of Figures
List of Tables
Pinout................................................................................................................................4
Copyright © 2021 Texas Instruments Incorporated
Table of Contents
2
3
3
5
6
3
6
4
5
TUSB216IEVM User's Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TUSB216IEVM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments TUSB216IEVM

  • Page 1: Table Of Contents

    Header..............................4 Table 3-3. RX_SEN 3x3 Header..............................Table 3-4. RX_SEN/BOOST Setting Based on Cable Length..................... Trademarks All trademarks are the property of their respective owners. SLLU330 – MARCH 2021 TUSB216IEVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 2: Tusb216Ievm

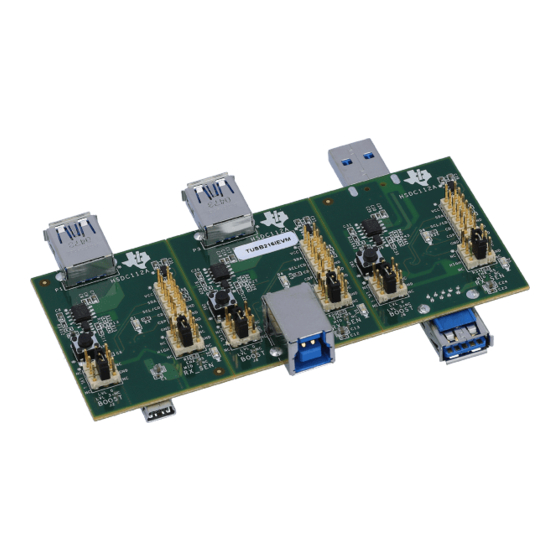

    The TUSB216IEVM was designed to be used in path connection between a USB host and a USB device. The EVM is designed to provide multiple connector options to help eliminate the use of adapters. The upstream interface to the EVM consists of three possible input connectors: a USB 2.0 Mini-B Receptacle, a USB 3.1...
  • Page 3: Tusb216Evm Board Description

    The TUSB216IEVM is designed to provide easy evaluation of the redriver device for various types of applications. The TUSB216IEVM is also meant to serve as a reference design to show a practical example of how to use the device in a mass-production system.
  • Page 4: Evm Jumper And Switch Configuration

    3 EVM Jumper and Switch Configuration The TUSB216IEVM has two 3x3 headers and a 6x2 header in each board partition to facilitate configuration changes. The BOOST and RX_SEN 3x3 headers are arranged to allow for all possible device configurations, including connecting RX_SEN to a LED so that the ENA_HS status output can be viewed easily.
  • Page 5: Selecting Configuration Levels

    (P1, P3 or P5) on the EVM. 3. The upstream connection and downstream connections must be on the same board section of the EVM. SLLU330 – MARCH 2021 TUSB216IEVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 6: Tusb216Ievm Schematic

    TUSB216IEVM Schematic www.ti.com 5 TUSB216IEVM Schematic Figure 5-1. TUSB216IEVM Schematic TUSB216IEVM User's Guide SLLU330 – MARCH 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 7 TUSB216IEVM Schematic SLLU330 – MARCH 2021 TUSB216IEVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 8 TUSB216IEVM Schematic www.ti.com TUSB216IEVM User's Guide SLLU330 – MARCH 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 9 TUSB216IEVM Schematic SLLU330 – MARCH 2021 TUSB216IEVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 10: Tusb216Ievm Bom

    22 k R15,R29,R45 75k 1% DNI R46,R47,R48,R49,R50,R51 4.7 k SHNT1,SHNT2,SHNT3, SHNT4,SHNT5,SHNT6 QPC02SXGN-RC SW1,SW2,SW3 Switch - Push Button U1,U4,U7 TUSB216IRWB U2,U5,U8 TPS2024D U3,U6,U9 SN74AHC1G86DBV U10,U11,U12 TPS70633 TUSB216IEVM User's Guide SLLU330 – MARCH 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 11 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2022, Texas Instruments Incorporated...
