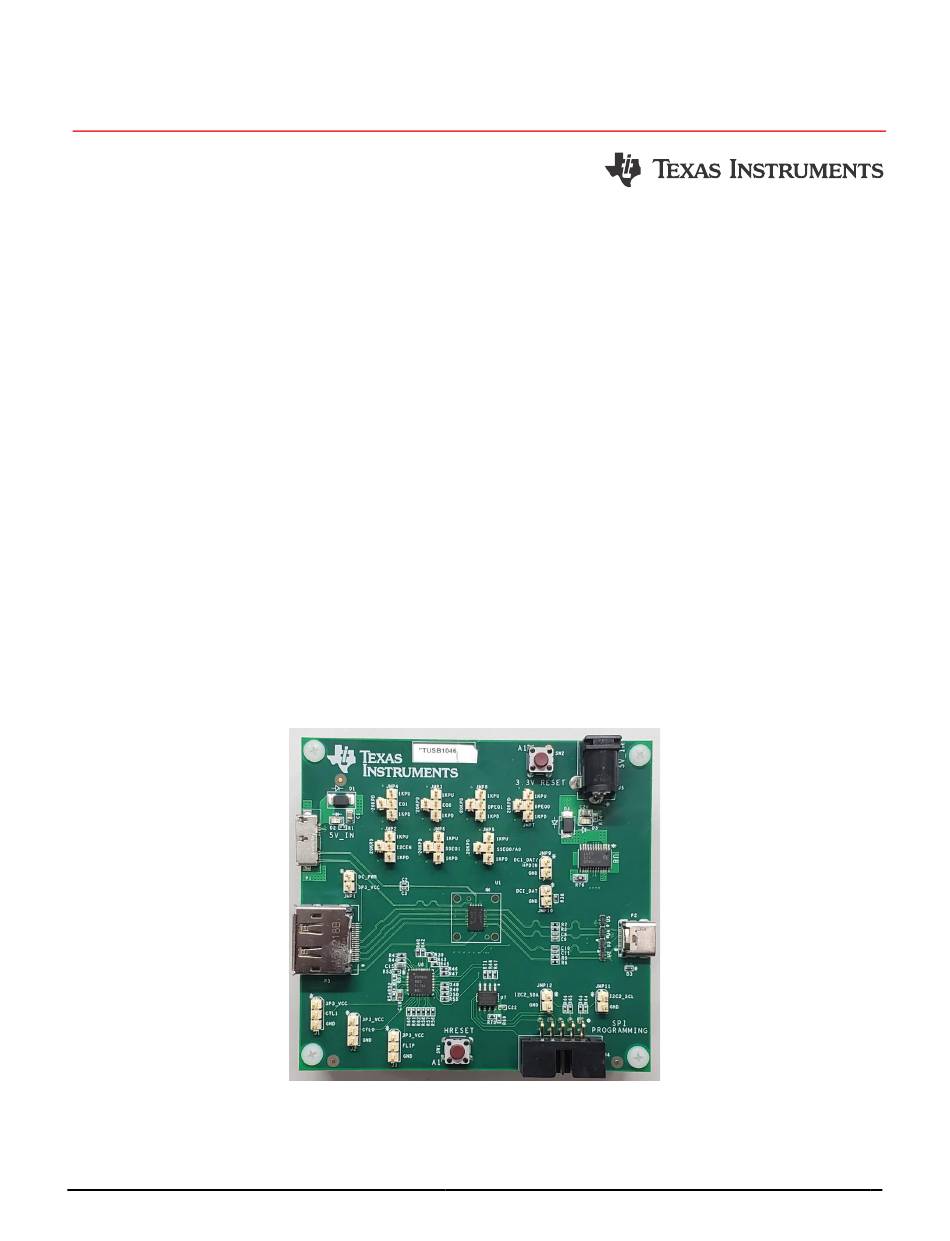

EVM User's Guide: TUSB1046EVM
TUSB1046 USB Type-C™ Enabler
Description
The TUSB1046 USB Type-C
driving switch supports data rates up to 10Gbps
for a downstream facing port (host). This user's
guide describes how to use the EVM and includes
schematics that can be used as a reference design
for the alternate mode implementations of the host
system with the TUSB1046 device.
Get Started
1. Order the EVM
2. Configure the board headers to fit your application
3. Use the EVM and associated design files to
evaluate the TUSB1046
4. For issues, reach out to us directly on the TI E2E
forum
SLLU255A – OCTOBER 2016 – REVISED NOVEMBER 2024
Submit Document Feedback
™
Alternate Mode re-
Copyright © 2024 Texas Instruments Incorporated
Features
•
USB Type-C™ crosspoint switch supporting
– USB 3.1 SSP + 2 DisplayPort
– 4 DisplayPort™ lanes
•
USB 3.1 Gen 1/Gen 2 up to 10Gbps
•
DisplayPort™ 1.4 up to 8.1Gbps (HBR3)
•
VESA
®
DisplayPort™ Alt mode DFP redriving
crosspoint switch supporting C, D, E and F
configurations
•
Ultra-low-power architecture
•
Linear redriver with up to 14dB equalization
•
Transparent to DisplayPort™ link training
•
Automatic LFPS de-emphasis control to meet USB
3.1 certification requirements
•
Configuration through GPIO or I
•
Hot-plug capable
Applications
•
Tablets
•
Notebooks
•
Desktops
•
Smartphones
•
Docking stations
•
Automotive infotainment
TUSB1046 USB Type-C™ Enabler
Description
™
lanes
2
C
1
Advertisement
Related Manuals for Texas Instruments TUSB1046EVM
Summary of Contents for Texas Instruments TUSB1046EVM
-
Page 1: Description
4. For issues, reach out to us directly on the TI E2E forum Applications • Tablets • Notebooks • Desktops • Smartphones • Docking stations • Automotive infotainment SLLU255A – OCTOBER 2016 – REVISED NOVEMBER 2024 TUSB1046 USB Type-C™ Enabler Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... -
Page 2: Table Of Contents
Figure 2-1. Test Board Setup...............................4 Figure 4-1. TUSB1046EVM Block Diagram..........................7 Figure 4-2. TUSB1046EVM Schematics (1 of 4)......................... Figure 4-3. TUSB1046EVM Schematics (2 of 4)......................... Figure 4-4. TUSB1046EVM Schematics (3 of 4)......................... Figure 4-5. TUSB1046EVM Schematics (4 of 4)........................Figure 4-6. PCB Layer 1 (Top Side)............................10... -
Page 3: Evaluation Module Overview

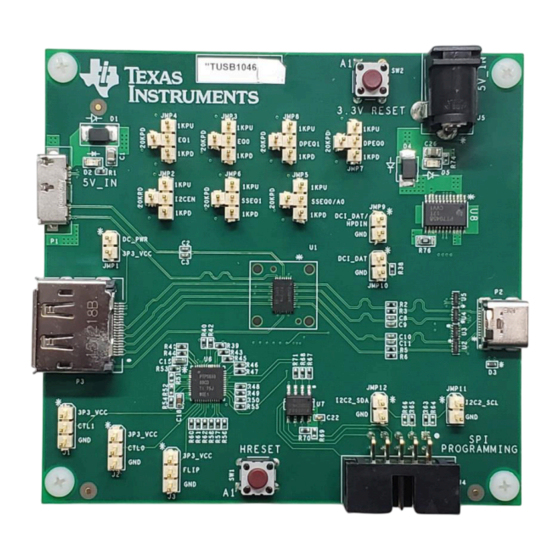

(1) DisplayPort receptacle that connects to a DisplayPort-capable host • (1) Standard 5V barrel jack receptacle • Headers for configuring various TUSB1046 features 1.3 Specification Figure 1-1 shows the power and data path of the TUSB1046EVM. 3.3V 5V IN TPS70458 VBUS USB Micro B Receptacle... -
Page 4: Hardware
If testing the DisplayPort only, or if bypassing VBUS power, the EVM must be powered through the J5 (5V, 1A input). 2.2 TUSB1046EVM-SRC Test Board Setup The TUSB1046EVM-SRC can be used with a legacy DP Source or USB Host system to evaluate the USB Type-C implementation. Figure 2-1 is a typical test setup. -
Page 5: Table 2-3. Usb 3.1 Eq Settings
All DisplayPort Lanes DPEQ1 Pin Level DPEQ0 Pin Level EQ Gain at 4.05GHz (dB) Lowest EQ setting Highest EQ setting SLLU255A – OCTOBER 2016 – REVISED NOVEMBER 2024 TUSB1046 USB Type-C™ Enabler Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... -
Page 6: Software
3 Software 3.1 Firmware Description The TUSB1046EVM uses the TPS65987 power delivery (PD) controller to manage the USB Type-C VBUS, handle the configuration channel negotiation, and to set the FLIP, CTL0, and CTL1 pins on the TUSB1046. The TPS65987 can be configured by loading firmware through the SPI programming header located on the side of the EVM. -
Page 7: Hardware Design Files
TX2N TX2N NC10 NC10 TX2P TX2P RX2N RX2N RX2P RX2P TPD4E02B04 TPD4E02B04 Figure 4-2. TUSB1046EVM Schematics (1 of 4) SLLU255A – OCTOBER 2016 – REVISED NOVEMBER 2024 TUSB1046 USB Type-C™ Enabler Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... -
Page 8: Figure 4-3. Tusb1046Evm Schematics (2 Of 4)
1 Port USB3.1 + 2 Lane Header 2x1 HIGH HIGH HIGH DP With FLIP Figure 4-3. TUSB1046EVM Schematics (2 of 4) TUSB1046 USB Type-C™ Enabler SLLU255A – OCTOBER 2016 – REVISED NOVEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... -
Page 9: Figure 4-4. Tusb1046Evm Schematics (3 Of 4)
9 and 10. TPS65987 Host I2C JMP11 JMP12 I2C2_SCL I2C2_SDA Header 2x1 Header 2x1 Figure 4-4. TUSB1046EVM Schematics (3 of 4) SLLU255A – OCTOBER 2016 – REVISED NOVEMBER 2024 TUSB1046 USB Type-C™ Enabler Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... -
Page 10: Pcb Layouts
3P3_VCC 1046_VCC Switch - Push Button De-populate R75, R78 and populate R76 for DS. Figure 4-5. TUSB1046EVM Schematics (4 of 4) 4.2 PCB Layouts Figure 4-6. PCB Layer 1 (Top Side) TUSB1046 USB Type-C™ Enabler SLLU255A – OCTOBER 2016 – REVISED NOVEMBER 2024 Submit Document Feedback Copyright ©... -
Page 11: Figure 4-7. Pcb Layer 2 (Gnd Plane)
Hardware Design Files Figure 4-7. PCB Layer 2 (GND Plane) Figure 4-8. PCB Layer 3 (Signal) SLLU255A – OCTOBER 2016 – REVISED NOVEMBER 2024 TUSB1046 USB Type-C™ Enabler Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... -
Page 12: Figure 4-9. Pcb Layer
Hardware Design Files www.ti.com Figure 4-9. PCB Layer 4 (Ground) Figure 4-10. PCB Layer 5 (Power) TUSB1046 USB Type-C™ Enabler SLLU255A – OCTOBER 2016 – REVISED NOVEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... -
Page 13: Figure 4-11. Pcb Layer 6 (Signal)
Hardware Design Files Figure 4-11. PCB Layer 6 (Signal) Figure 4-12. PCB Layer 7 (Ground) SLLU255A – OCTOBER 2016 – REVISED NOVEMBER 2024 TUSB1046 USB Type-C™ Enabler Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... -
Page 14: Figure 4-13. Pcb Layer 8 (Bottom Side)
Hardware Design Files www.ti.com Figure 4-13. PCB Layer 8 (Bottom Side) TUSB1046 USB Type-C™ Enabler SLLU255A – OCTOBER 2016 – REVISED NOVEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... -
Page 15: Bill Of Materials (Bom)
Hardware Design Files 4.3 Bill of Materials (BOM) Table 4-1 lists the TUSB1046EVM bill of materials (BOM). Table 4-1. TUSB1046EVM Bill of Materials MANUFACTURER PART ITEM REFERENCE PART MANUFACTURER FOOTPRINT NUMBER C1,C26 10uF Murata GRM219R60J106KE19D c0805 C2,C3,C4,C5,C12,C13,C14 100nF Murata... - Page 16 Hardware Design Files www.ti.com Table 4-1. TUSB1046EVM Bill of Materials (continued) MANUFACTURER PART ITEM REFERENCE PART MANUFACTURER FOOTPRINT NUMBER Panasonic Electronic R7,R9,R13,R36,R37,R63,R65 0 DNI ERJ-2GE0R00X r0402 Components Panasonic Electronic R12,R14 ERJ-2GEJ205X r0402 Components R15,R16,R17,R19,R21,R23, Panasonic Electronic 1K +/- 5% ERJ-2GEJ102X...
- Page 17 Hardware Design Files Table 4-1. TUSB1046EVM Bill of Materials (continued) MANUFACTURER PART ITEM REFERENCE PART MANUFACTURER FOOTPRINT NUMBER TPS65987D Texas Instruments TPS65987D RSH0056_7x7mm W25Q80 WINBOND W25Q80DVSNIG SOIC_8_197x157_50 TPS70458 Texas Instruments TPS70458PWP SLLU255A – OCTOBER 2016 – REVISED NOVEMBER 2024 TUSB1046 USB Type-C™...
-
Page 18: Additional Information
........................• Changed the schematic images......................... • Added PCB layouts images..........................10 • Changed the Bill of Materials (BOM) table....................... TUSB1046 USB Type-C™ Enabler SLLU255A – OCTOBER 2016 – REVISED NOVEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... - Page 19 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2024, Texas Instruments Incorporated...
