www.ti.com

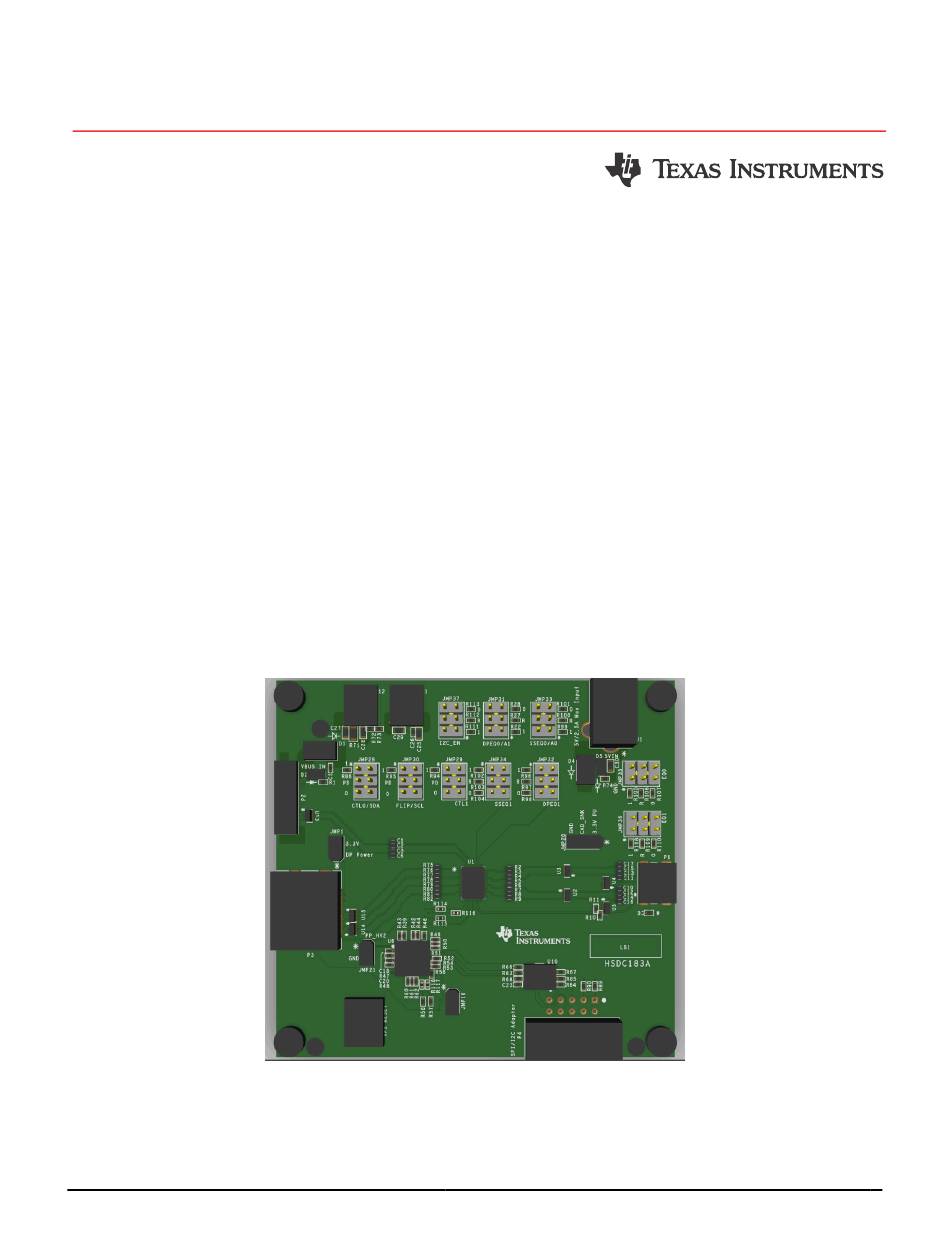

EVM User's Guide: TUSB1146Q1-EVM

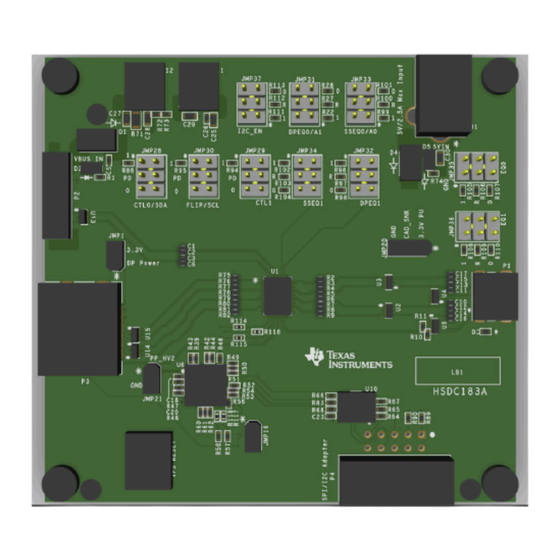

TUSB1146-Q1 USB Type-C® Evaluation Module
Description
The TUSB1146-Q1 USB Type-C
redriving switch supports data rates up to 10Gbps for
a downstream facing port (host). The TUSB1146Q1-
EVM uses the TPS65987 PD controller for CC pin
control and to configure the device in pin-strap mode.
Get Started
1. Order the EVM
2. Configure the board headers to fit your
application.
3. Use the EVM and associated design files to
evaluate the TUSB1146-Q1.
4. For issues, reach out to us directly on the TI E2E
forum.
SLLU394 – FEBRUARY 2025
Submit Document Feedback
®
Alternate Mode
Copyright © 2025 Texas Instruments Incorporated
Features
®
•
USB Type-C
crosspoint switch supporting
– USB 3.1 Gen 2+ 2 DP 1.4 lanes
– 4 DP 1.4 lanes
•
USB 3.1 Gen 2 up to 10Gbps
™
•
DisplayPort
1.4 up to 8.1Gbps
•
VESA
®
DisplayPort™ alt mode DFP redriving
crosspoint switch supporting pin assignments C,
D, and E
•
Choice between adaptive or fixed equalization for
USB DFP receivers
•
Configuration through GPIO or I
Applications
•
PC and notebooks
•
TV
•
Gaming
•
Home theater and entertainment
•
Smart phones
•
Tablets
•
Automotive infotainment
TUSB1146-Q1 USB Type-C® Evaluation Module
Description
2
C
1
Advertisement
Related Manuals for Texas Instruments TUSB1146-Q1
Summary of Contents for Texas Instruments TUSB1146-Q1
- Page 1 Description EVM User's Guide: TUSB1146Q1-EVM TUSB1146-Q1 USB Type-C® Evaluation Module Description Features ® ® The TUSB1146-Q1 USB Type-C Alternate Mode • USB Type-C crosspoint switch supporting redriving switch supports data rates up to 10Gbps for – USB 3.1 Gen 2+ 2 DP 1.4 lanes a downstream facing port (host).
-
Page 2: Kit Contents
1.4 Device Information The TUSB1146-Q1 is a VESA USB Type-C alt mode redriving switch supporting USB 3.1 data rates up to 10Gbps and DisplayPort 1.4 up to 8.1Gbps for a downstream facing port (source). The device is used for D_DFP pin assignments C, D, and E from the VESA DisplayPort alt mode on USB Type-C standard. - Page 3 Shunt on pin 3 - 4 (PD) 2.1.1 Power The TUSB1146-Q1 EVM is designed to draw power from the upstream USB connection. If DisplayPort-only operation is desired, a 5V power source must be attached to J1. 2.2 TUSB1146-Q1 Equalization Control Equalization (EQ) can be controlled using I C or pin-strapping.
- Page 4 3 Software 3.1 Firmware Description The TUSB1146-Q1 EVM uses the TPS65987 power delivery (PD) controller to manage the Type-C VBUS, handle configuration channel negotiation, and to set the CTL0/CTL1/FLIP pins on the TUSB1146-Q1. The TPS65987 can be configured by loading firmware through the SPI programming header located on the side of the EVM.
- Page 5 Hardware Design Files 4 Hardware Design Files 4.1 Schematics Figure 4-1. TUSB1146-Q1 EVM Schematic (Page 1) SLLU394 – FEBRUARY 2025 TUSB1146-Q1 USB Type-C® Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 6 HDR3X2 .1X.1 HDR3X2 .1X.1 R3822 SILKSCREEN 1 - 3.3V CAD_SNK 2 - CAD_SNK 3 - GND FLIP_PD CTL1_PD CTL0_PD Figure 4-2. TUSB1146-Q1 EVM Schematic (Page 2) SILKSCREEN LDO_3V3 TPS RESET LDO_3V3 R39100k R42100k R43100k R44100k 10k DNI 10k DNI R45100...
- Page 7 Sys_5V PMEG3050EP, 115 SILKSCREEN 4.8V - 5.2V / 2.5A Max INPUT DC_POWER_JACK LED Green 10uF Figure 4-4. TUSB1146-Q1 EVM Schematic (Page 4) SLLU394 – FEBRUARY 2025 TUSB1146-Q1 USB Type-C® Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
-
Page 8: Pcb Layouts
Hardware Design Files www.ti.com 4.2 PCB Layouts Figure 4-5. TUSB1146-Q1 EVM PCB Layer 1 (Top) TUSB1146-Q1 USB Type-C® Evaluation Module SLLU394 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated... - Page 9 Hardware Design Files Figure 4-6. TUSB1146-Q1 EVM PCB Layer 2 (GND) SLLU394 – FEBRUARY 2025 TUSB1146-Q1 USB Type-C® Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 10 Hardware Design Files www.ti.com Figure 4-7. TUSB1146-Q1 EVM PCB Layer 3 (Power) TUSB1146-Q1 USB Type-C® Evaluation Module SLLU394 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 11 Hardware Design Files Figure 4-8. TUSB1146-Q1 EVM PCB Layer 4 (Signal) SLLU394 – FEBRUARY 2025 TUSB1146-Q1 USB Type-C® Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 12 Hardware Design Files www.ti.com Figure 4-9. TUSB1146-Q1 EVM PCB Layer 5 (GND) TUSB1146-Q1 USB Type-C® Evaluation Module SLLU394 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 13 Hardware Design Files Figure 4-10. TUSB1146-Q1 EVM PCB Layer 6 (Bottom) SLLU394 – FEBRUARY 2025 TUSB1146-Q1 USB Type-C® Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 14 Header 5x2 0.1" Shroud RA thru- D2510-5002-AR hole R1,R74 Panasonic Electronic Components ERJ-2GEJ331X R2,R3,R4,R5,R6,R7,R8,R9,R75,R76,R77,R78, Panasonic Electronic Components ERJ-1GNJ1R0C R79,R80,R81,R82 R10,R11 Panasonic Electronic Components ERJ-2GEJ205X TUSB1146-Q1 USB Type-C® Evaluation Module SLLU394 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 15 Texas Instruments TUSB1146-Q1 U2,U3,U4,U5,U13,U14,U15 PUSB3FR4 Nexperia PUSB3FR4Z TPS65987D Texas Instruments TPS65987DDHRSHR W25Q80 WINBOND W25Q80DVSNIG TPS7A4533 Texas Instruments TPS7A4533DCQR TPS7A4501 Texas Instruments TPS7A4501DCQR SLLU394 – FEBRUARY 2025 TUSB1146-Q1 USB Type-C® Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
-
Page 16: Additional Information
All trademarks are the property of their respective owners. 6 Related Documentation For related documentation, see the following: • Texas Instruments, TUSB1146-Q1 USB Type-C® DisplayPort™ Alt Mode Source 8.1Gbps Linear Redriver Crosspoint Switch data sheet TUSB1146-Q1 USB Type-C® Evaluation Module SLLU394 – FEBRUARY 2025 Submit Document Feedback... - Page 17 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 18 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
- Page 19 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
- Page 20 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
- Page 21 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
-
Page 22: Important Notice
TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2025, Texas Instruments Incorporated...
