This is the user guide for the evaluation module (EVM) of the TUSB1002. The purpose of this user guide
is to facilitate an easy evaluation process of our TUSB1002 USB 3.1 SuperSpeed (5 Gbps) and
SuperSpeed Plus (10 Gbps) Re-Driver.
The contents of this user's guide are meant to provide an overview of the TUSB1002, which includes
highlighting its key features, operating conditions, and how to setup this EVM for use in a system-level
evaluation.
The construction of the TUSB1002 EVM also serves as a reference design that can be easily modified for
any intended application. Target applications include cell phones, computers, docking stations, TVs, and
active cables. The schematics and layout information is included at the end of this manual.
...................................................................................................................
1
2
2.1
2.2
3
4
5
6
6.1
6.2
6.3
1
2
3
4
5
6
7
8
1
2
3
4
SLLU245 - May 2016
Submit Documentation Feedback
.............................................................................................
.....................................................................................
.........................................................................................
.............................................................................
............................................................................
.............................................................................................
............................................................................................................
..............................................................................
....................................................................................
................................................................................
List of Figures
................................................................................................
...................................................................................
..................................................................................
.................................................................................
..............................................................................
List of Tables
.........................................................................................
...............................................................................
.........................................................................................
Copyright © 2016, Texas Instruments Incorporated
TUSB1002 Evaluation Module
Contents
...................................................................
...........................................................
......................................................................
...........................................................
User's Guide
SLLU245 - May 2016
TUSB1002 Evaluation Module
2
3
3
3
5
5
6
7
7
9
11
2
3
7
8
9
9
10
10
4
5
5
11
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TUSB1002EVM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments TUSB1002EVM

  • Page 1: Table Of Contents

    TUSB1002 EVM Jumper / Switch Description and Settings ..................TUSB1002 Equalization Selection ................TUSB1002 Adjustable VOD and DC Gain ..................TUSB1002 EVM Bill of Materials SLLU245 – May 2016 TUSB1002 Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 2: Introduction

    Type- W Cable USB 3.1 Type-B Receptacle USB 3.1 Device/Sink (External Hard Drive, Thumb Drive, and so forth) Copyright © 2016, Texas Instruments Incorporated Figure 1. TUSB1002 Functional System Level Block Diagram TUSB1002 Evaluation Module SLLU245 – May 2016 Submit Documentation Feedback...
  • Page 3: Tusb1002 Evm Configuration

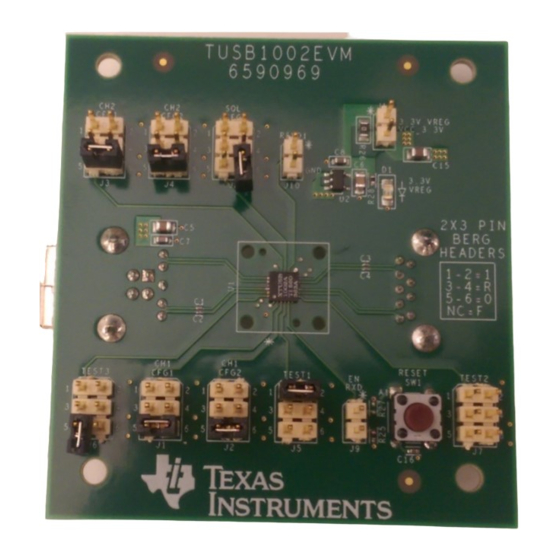

    Figure 2 highlights the jumpers and switch installed on this EVM and Table 1 highlights their functionality and configuration. Figure 2. TUSB1002 EVM (Top Side) SLLU245 – May 2016 TUSB1002 Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
