The TUSB1044 device is a Video Electronics Standards Association (VESA
Mode (Alt Mode) re-driving switch supporting data rates up to 10Gbps for a downstream facing port (Host)
or upstream facing port (Device). This guide describes how to bring up the EVM and includes schematics
that can be used as reference for the cable implementations with the TUSB1044 device. This EVM is
intended to demonstrate the SuperSpeed and SuperSpeed+ functionality of the TUSB1044.
1
2
3
TUSB1044EVM Schematics
4
Bill of Materials
1
2
TUSB1044 System Example
3
4
5
TUSB1044EVM Schematic (Page 1)
6
TUSB1044EVM Schematic (Page 2)
7
TUSB1044EVM Schematic (Page 3)
8
TUSB1044EVM Schematic (Page 4)
1
TUSB1044 Configuration Pins
2
3
4
USB 3.1 EQ Settings
5
6
Trademarks
USB Type-C is a trademark of USB Implementer's Forum.
DisplayPort is a trademark of Video Electronics Standards Association.
VESA is a registered trademark of Video Electronics Standards Association.
All other trademarks are the property of their respective owners.
SLLU265B - March 2018 - Revised August 2018
Submit Documentation Feedback
..............................................................................................................
.............................................................................................
...............................................................................................
.............................................................................................................
.............................................................................................................
...............................................................................................
..............................................................................
..................................................................................
......................................................................................
......................................................................................
......................................................................................
....................................................................................
.............................................................................................
........................................................................................................
................................................................................................
........................................................................................................
..........................................................................................
...............................................................................................
Copyright © 2018, Texas Instruments Incorporated
SLLU265B - March 2018 - Revised August 2018
TUSB1044 Active Cable EVM
Contents
List of Figures
List of Tables
User's Guide
) USB Type-C™ Alternate
®
TUSB1044 Active Cable EVM
2
3
7
11
2
2
3
4
7
8
9
10
3
4
5
5
6
11
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TUSB1044 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Texas Instruments TUSB1044

Summary of Contents for Texas Instruments TUSB1044

  • Page 1: Table Of Contents

    (Device). This guide describes how to bring up the EVM and includes schematics that can be used as reference for the cable implementations with the TUSB1044 device. This EVM is intended to demonstrate the SuperSpeed and SuperSpeed+ functionality of the TUSB1044.

  • Page 2: Tusb1044Evm

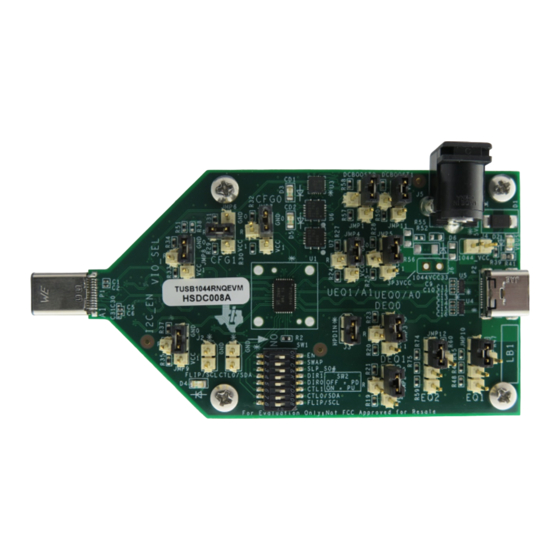

    TUSB1044EVM www.ti.com TUSB1044EVM Figure 1 illustrates the TUSB1044 Active Cable EVM. Figure 1. TUSB1044 EVM The TUSB1044EVM can be used with a DFP or UFP USB Type-C source or device to evaluate the USB Type-C implementation. Figure 2 is a typical test set-up.

  • Page 3: Tusb1044Evm Configuration

    This section provides the configuration options available in the TUSB1044EVM. TUSB1044 EVM Default Jumper and Switch Configuration The following headers are provided for TUSB1044 configuration by default, configuration settings may need to be optimized depending on the amount of loss of each channel in the system.

  • Page 4: Early Board Jmp10 And Jmp12 Layout

    Figure 4. Early Board JMP10 and JMP12 Layout Table 2. Switch Configuration SW1 Position Control Signal Configuration SWAP SLP_S0# DIR1 DIR0 CTL1 CTL0/SDA FLIP/SCL TUSB1044 Active Cable EVM SLLU265B – March 2018 – Revised August 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...

  • Page 5: Config Pin-Level Definitions

    TUSB1044EVM Configuration www.ti.com TUSB1044 EQ Control Each of the TUSB1044 receiver lanes has individual controls for receiver equalization. Table 3 through Table 5 detail the gain values for each available combination for downstream, upstream, and all DisplayPort™ configurations. Table 3. Config Pin-Level Definitions...

  • Page 6: Vod Linear Range And Dc Gain

    If testing DisplayPort only, or if bypassing VBUS power, the EVM must be powered via J4 (5 V, 1-A input). TUSB1044 Active Cable EVM SLLU265B – March 2018 – Revised August 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 7 DRX2p TPD4E02B04 TPD4E02B04 TUSB212 RSTN VREG 0.1uF 0.1uF 1044_VCC UDM2 UDP2 Green Green Figure 5. TUSB1044EVM Schematic (Page 1) SLLU265B – March 2018 – Revised August 2018 TUSB1044 Active Cable EVM Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 8 See Hardware Page for assembly notes. I2C_EN 4 Pin-T Berg Jumper Figure 6. TUSB1044EVM Schematic (Page 2) TUSB1044 Active Cable EVM SLLU265B – March 2018 – Revised August 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 9 DNI - Green DNI - 22uF DNI - TPS62082DSGT DNI - 330 Ohm Figure 7. TUSB1044EVM Schematic (Page 3) SLLU265B – March 2018 – Revised August 2018 TUSB1044 Active Cable EVM Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 10 SHUNTS SHNT1 SHNT2 SHNT3 SHNT4 SHNT9 SHNT10 SHNT11 SHNT12 SHNT5 SHNT6 SHNT7 SHNT8 Figure 8. TUSB1044EVM Schematic (Page 4) TUSB1044 Active Cable EVM SLLU265B – March 2018 – Revised August 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...

  • Page 11: Tusb1044 Bill Of Materials

    Bill of Materials www.ti.com Bill of Materials Table 6 lists the TUSB1044EVM bill of materials (BOM). Table 6. TUSB1044 Bill of Materials Item Reference Part Footprints Manufacturer Manufacturer Part No Description C1,C2,C3,C4,C5,C6,C7,C8,C 220nF c0201 TDK Corporation C0603X5R1A224K CAP CER 0.22UF 10V X5R 0201...
  • Page 12 Bill of Materials www.ti.com Table 6. TUSB1044 Bill of Materials (continued) Item Reference Part Footprints Manufacturer Manufacturer Part No Description 0 Ohm r1206 Vishay Dale CRCW12060000Z0EA RES SMD 0.0 OHM JUMPER 1/4W 1206 DNI - 0 Ohm r1206 Vishay Dale CRCW12060000Z0EA RES SMD 0.0 OHM JUMPER 1/4W 1206...
  • Page 13 ..................... • Added NOTE: and Figure 3 Figure ................• Changed schematic images: Figure 5 through Figure ........................• Changed Table SLLU265B – March 2018 – Revised August 2018 Revision History Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
