This is the user guide for the evaluation module (EVM) of the TUSB1002. The purpose of this user guide
is to facilitate an easy evaluation process of our TUSB1002 USB 3.1 SuperSpeed (5 Gbps) and
SuperSpeed Plus (10 Gbps) Re-Driver.
The contents of this user's guide are meant to provide an overview of the TUSB1002, which includes
highlighting its key features, operating conditions, and how to setup this EVM for use in a system-level
evaluation.
The construction of the TUSB1002 EVM also serves as a reference design that can be easily modified for
any intended application. Target applications include cell phones, computers, docking stations, TVs, and
active cables. The schematics and layout information is included at the end of this manual.
...................................................................................................................
1
2
2.1
2.2
3
4
5
6
6.1
6.2
6.3
1
2
3
4
5
6
7
8
1
2
3
4
SLLU245 - May 2016
Submit Documentation Feedback
All manuals and user guides at all-guidesbox.com
Contents
.............................................................................................
.....................................................................................
.........................................................................................
.............................................................................
............................................................................
.............................................................................................
............................................................................................................
..............................................................................
....................................................................................
................................................................................
List of Figures
................................................................................................
...................................................................................
..................................................................................
.................................................................................
..............................................................................
List of Tables
.........................................................................................
...............................................................................
.........................................................................................
Copyright © 2016, Texas Instruments Incorporated
TUSB1002 Evaluation Module
...................................................................
...........................................................
......................................................................
...........................................................
User's Guide
SLLU245 - May 2016
TUSB1002 Evaluation Module
2
3
3
3
5
5
6
7
7
9
11
2
3
7
8
9
9
10
10
4
5
5
11
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TUSB1002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments TUSB1002

  • Page 1: Table Of Contents

    SLLU245 – May 2016 TUSB1002 Evaluation Module This is the user guide for the evaluation module (EVM) of the TUSB1002. The purpose of this user guide is to facilitate an easy evaluation process of our TUSB1002 USB 3.1 SuperSpeed (5 Gbps) and SuperSpeed Plus (10 Gbps) Re-Driver.
  • Page 2: Introduction

    Introduction The TUSB1002 is a dual-channel, USB 3.1 SuperSpeed Plus re-driver and signal conditioner supporting data rates of 10.0 Gbps. The device complies with USB 3.1 specification revision 1.0, supporting electrical idle condition and low-frequency periodic signals (LFPS) for USB 3.1 power management modes.
  • Page 3: Tusb1002 Evm Configuration

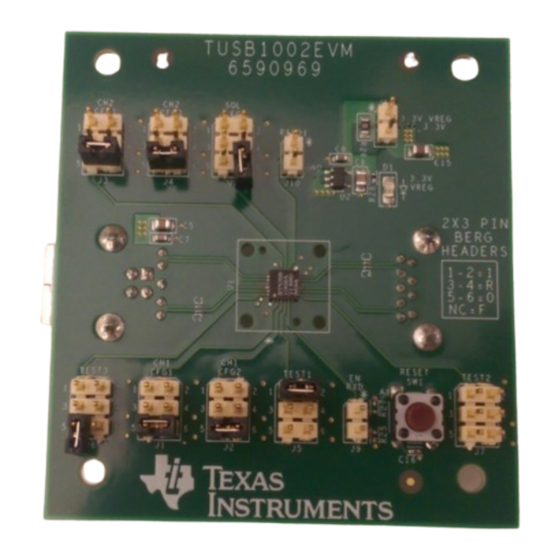

    Description of EVM Board The TUSB1002 EVM is designed to provide easy evaluation of the TUSB1002 device. It is also meant to serve as a reference design to show a practical example of how to use the device in a mass-production system.
  • Page 4: Tusb1002 Evm Jumper / Switch Description And Settings

    All manuals and user guides at all-guidesbox.com TUSB1002 EVM Configuration www.ti.com Table 1. TUSB1002 EVM Jumper / Switch Description and Settings Jumper Functionality and Configuration CH1_EQ1 1-2 = 1 (1K to VCC) 3-4 = R (20K to GND) 5-6 = 0 (1K to GND)
  • Page 5: Selecting Equalization Level For Tusb1002

    14.2 14.7 15.1 Adjustable VOD Linear Range and DC Gain The CFG1 and CFG2 pins can be used to adjust the TUSB1002 output voltage swing linear range and receiver equalization DC gain. Table 3 details the available options. Table 3. TUSB1002 Adjustable VOD and DC Gain...
  • Page 6: Monitoring The Device Current

    Monitoring the Device Current The TUSB1002 EVM includes the option of monitoring the current draw of the device. In order to enable this feature, the following steps must be taken: 1. Un-install the shunt located at JMP11 and remove R26.
  • Page 7: Pcb Construction

    0 Ohm LP5907 LED Green 0805 Silkscreen: 3.3V VREG Copyright © 2016, Texas Instruments Incorporated Figure 3. TUSB1002 EVM Schematic (High Speed Pins and Power) SLLU245 – May 2016 TUSB1002 Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 8: Tusb1002 Evm Schematic (Device Control Pins)

    Silkscreen: Silkscreen: 200nF SLP_S0# Silkscreen: RESET Switch - Push Button Copyright © 2016, Texas Instruments Incorporated Figure 4. TUSB1002 EVM Schematic (Device Control Pins) TUSB1002 Evaluation Module SLLU245 – May 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 9: Tusb1002 Evm Board Layout

    TUSB1002 EVM Board Layout This EVM was designed to show the implementation on a 4-layer board. Figure 5. TUSB1002 EVM Layout Layer 1 (Top) Figure 6. TUSB1002 EVM Layout Layer 2 (GND) SLLU245 – May 2016 TUSB1002 Evaluation Module Submit Documentation Feedback Copyright ©...
  • Page 10: Tusb1002 Evm Layout Layer 3 (Vcc)

    All manuals and user guides at all-guidesbox.com PCB Construction www.ti.com Figure 7. TUSB1002 EVM Layout Layer 3 (VCC) Figure 8. TUSB1002 EVM Layout Layer 4 (Bottom) TUSB1002 Evaluation Module SLLU245 – May 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 11: Tusb1002 Evm Material Listing

    All manuals and user guides at all-guidesbox.com PCB Construction www.ti.com TUSB1002 EVM Material Listing Table 4 lists the complete BOM for the TUSB1002 EVM. Table 4. TUSB1002 EVM Bill of Materials Item Quantity Reference Part C1,C2,C3,C4,C11,C12 0.1uF C5,C6 10uF C7,C8,C9,C10 C13,C14 0.01uF...
