IEI Technology S24A-QM87 User Manual

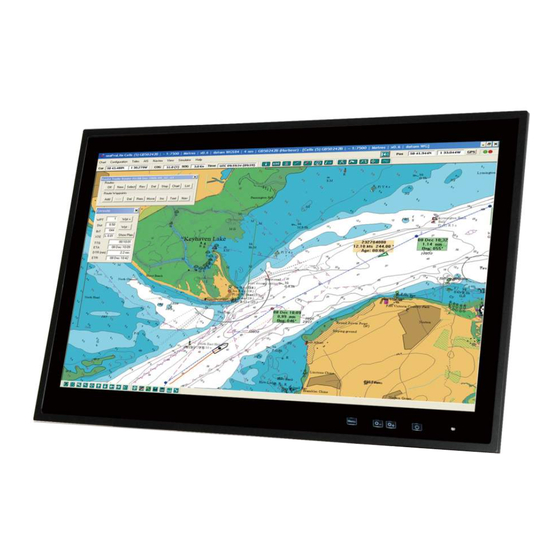

Marine panel pc with intel core i5-4400e dual-core cpu, intel qm87 express chipset, gbe lan, four isolated rs-232/422/485, can bus, hdmi, dvi-d, vga, cfast slot, usb 2.0, usb 3.0, iris-2400, rohs compliant
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
S19A/S24A-QM87i Marine Panel PC
MODEL:
S19A/S24A-QM87i
Marine Panel PC with Intel® Core™ i5-4400E
Dual-Core CPU, Intel® QM87 Express Chipset, GbE LAN,
Four Isolated RS-232/422/485, CAN Bus, HDMI, DVI-D, VGA,
CFast Slot, USB 2.0, USB 3.0, iRIS-2400, RoHS Compliant
User Manual
Page I
Rev. 1.01 – December 12, 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S24A-QM87 and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology S24A-QM87

Summary of Contents for IEI Technology S24A-QM87

  • Page 1 S19A/S24A-QM87i Marine Panel PC MODEL: S19A/S24A-QM87i Marine Panel PC with Intel® Core™ i5-4400E Dual-Core CPU, Intel® QM87 Express Chipset, GbE LAN, Four Isolated RS-232/422/485, CAN Bus, HDMI, DVI-D, VGA, CFast Slot, USB 2.0, USB 3.0, iRIS-2400, RoHS Compliant User Manual Page I Rev.
  • Page 2 S19A/S24A-QM87i Marine Panel PC Revision Date Version Changes December 12, 2017 1.01 Eliminate “i5” from the model name to make it consistent with other panel PC models July 8, 2015 1.00 Initial release Page II...
  • Page 3 S19A/S24A-QM87i Marine Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 4: Table Of Contents

    S19A/S24A-QM87i Marine Panel PC Table of Contents 1 INTRODUCTION ......................1 1.1 O ........................2 VERVIEW 1.2 F ........................2 EATURES 1.3 F ......................3 RONT ANEL 1.3.1 Display Control Buttons ..................4 1.4 T ......................... 4 ANEL 1.5 B ......................
  • Page 5 S19A/S24A-QM87i Marine Panel PC 3.8 P ..................35 OWERING N THE YSTEM 3.9 C CMOS ......................36 LEAR 3.10 D ................... 37 RIVER NSTALLATION 3.11 IPMI S ..................38 ETUP ROCEDURE 3.11.1 Managed System Hardware Setup ..............38 3.11.2 Using the IEI iMAN Web GUI ................ 38 4 ON-SCREEN-DISPLAY (OSD) C ONTROLS ............
  • Page 6 S19A/S24A-QM87i Marine Panel PC 5.3.12 IEI Feature ..................... 71 5.4 C ........................72 HIPSET 5.4.1 PCH-IO Configuration ..................72 5.4.2 System Agent (SA) Configuration ..............74 5.4.2.1 Graphics Configuration ................75 5.4.3 Memory Configuration ..................77 5.5 B ........................77 5.6 S .........................
  • Page 7 S19A/S24A-QM87i Marine Panel PC 7.2.16 SATA Connector (S_ATA2) ................99 7.2.17 SATA Power Connector (SATA_PWR1) ............99 7.2.18 SATA Power Connector (SATA_PWR2) ............100 7.2.19 SMBus Connector, EC (SMB1) ..............100 7.2.20 SPI Flash Connector (SPI1) ................ 100 7.2.21 SPI Flash Connector, EC (CN2) ..............101 7.2.22 TPM Connector (TPM1) ................
  • Page 8 S19A/S24A-QM87i Marine Panel PC List of Figures Figure 1-1: S19A-QM87i Marine Panel PC ..................2 Figure 1-2: S24A-QM87i Front Panel .................... 3 Figure 1-3: Display Control Buttons ..................... 4 Figure 1-4: Top Panel ........................4 Figure 1-5: Bottom Panel ....................... 6 Figure 1-6: S19A-QM87i Rear Panel ....................
  • Page 9 S19A/S24A-QM87i Marine Panel PC Figure 3-24: Alternative of Ceiling Mounting Brackets ............. 31 Figure 3-25: Serial Port Locations ....................32 Figure 3-26: CAN Bus Connector ....................34 Figure 3-27: CAN Bus Jumper Locations .................. 35 Figure 3-28: Power Input Connector Pinouts ................35 Figure 3-29: Power Connector and Power Button ..............
  • Page 10 S19A/S24A-QM87i Marine Panel PC List of Tables Table 1-1: Technical Specifications ....................9 Table 2-1: Package List ........................ 14 Table 2-2: Optional Items ......................15 Table 3-1: RS-232 Serial Port (COM1) Pinouts ................33 Table 3-2: RS-232/422/485 Serial Port Pinouts ................33 Table 3-3: CAN Bus Connector Pinouts ..................
  • Page 11 S19A/S24A-QM87i Marine Panel PC Table 7-22: SPI Flash Connector, EC (CN2) ................101 Table 7-23: TPM Connector (TPM1) Pinouts ................101 Table 7-24: Rear Panel Connectors ..................102 Table 7-25: CAN Bus Connector (CAN1) Pinouts ..............102 Table 7-26: DVI Connector (DVI) Pinouts .................102 Table 7-27: VGA Connector (VGA1) Pinouts ................103 Table 7-28: HDMI Connector (HDMI1) Pinouts .................103 Table 7-29: RJ-45 GbE Connector (LAN1/2-CN1) Pinouts ............104...
  • Page 12 S19A/S24A-QM87i Marine Panel PC List of BIOS Menus BIOS Menu 1: Main ........................50 BIOS Menu 2: Advanced ......................51 BIOS Menu 3: ACPI Configuration ....................52 BIOS Menu 4: RTC Wake Settings ....................53 BIOS Menu 5: Trusted Computing ....................54 BIOS Menu 6: CPU Configuration ....................

  • Page 13: Introduction

    S19A/S24A-QM87i Marine Panel PC Chapter Introduction Page 1...

  • Page 14: Overview

    S19A/S24A-QM87i Marine Panel PC 1.1 Overview Figure 1-1: S19A-QM87i Marine Panel PC The S19A/S24A-QM87i series is a 19”/24” marine panel PC with Intel® Core™ i5-4400E processor and Intel® QM87 Express Chipset. The S19A/S24A-QM87i is preinstalled with 4 GB of DDR3 SO-DIMM and can accommodate up to 16 GB of DDR3 memory. Storage in the system is handled by two 2.5”...

  • Page 15: Front Panel

    S19A/S24A-QM87i Marine Panel PC  19"/24" screen display with 0 to 100% full range dimming  Projected capacitive type touchscreen  2.7 GHz Intel® Core™ i5-4400E CPU supported  Intel® QM87 chipset  Isolated CAN bus 2.0B supported  Four isolated RS-232/422/485 serial ports and one RS-232 DB-9 serial ports ...

  • Page 16: Display Control Buttons

    S19A/S24A-QM87i Marine Panel PC 1.3.1 Display Control Buttons The display control buttons are located on the bottom right corner of the front panel. The function of each button is described in the following diagram. These buttons can also be used to control OSD (on-screen display). Please refer to Chapter 4 for more detail. Figure 1-3: Display Control Buttons 1.4 Top Panel The top panel of the S19A/S24A-QM87i provides access to the following external I/O...

  • Page 17: Bottom Panel

    S19A/S24A-QM87i Marine Panel PC NOTE: The default settings for COM2–COM5 are set to RS-485. To configure the COM port mode, please change the BIOS options in Advanced  F81866 Super IO Configuration  Serial Port Configuration (refer to Section 5.3.10.1). 1.5 Bottom Panel The S19A/S24A-QM87i bottom panel provides access to the following external I/O connectors:...

  • Page 18: Rear Panel

    S19A/S24A-QM87i Marine Panel PC Figure 1-5: Bottom Panel 1.6 Rear Panel The rear panel is installed with a SBOX marine computer which can be easily uninstalled from the display panel. In addition, there are some ventilation vents, cable tie holders and several mounting holes for panel mount and stand mount.

  • Page 19: Technical Specifications

    S19A/S24A-QM87i Marine Panel PC 1.7 Technical Specifications The specifications for the S19A/S24A-QM87i are listed below. S19A-QM87i S24A-QM87i LCD Size 19” 24” Panel Type PMVA AMVA Max. Resolution 1280 x 1024 (5:4) 1920 x 1080 (16:9) Contrast Ratio 2000:1 5000:1 Brightness (cd/m2) LCD Color 16.7M 16.7M...
  • Page 20 S19A/S24A-QM87i Marine Panel PC Display 1 x DVI-D connector 1 x HDMI connector 1 x VGA connector Serial Port 1 x RS-232 DB-9 serial port (non-isolated) 4 x RS-232/422/485 DB-9 serial port (2.5 kV isolation protection) 2 x USB 2.0 port 2 x USB 3.0 port Audio 1 x Line-in jack...

  • Page 21: Table 1-1: Technical Specifications

    S19A/S24A-QM87i Marine Panel PC Mounting Stand, panel mount, ceiling mount Watchdog Timer Supporting 1-255 levels for time interval system reset Operating Temperature -15ºC ~ 55ºC Storage Temperature -20 ºC ~ 60ºC Operating Humidity 5% ~ 95% Color Black Weight (Net/Gross) 9.91 kg/13.38 kg 13.03 kg/17.19 kg Dimensions (W x D x H)

  • Page 22: Dimensions

    S19A/S24A-QM87i Marine Panel PC 1.8 Dimensions The physical dimensions of the S19A-QM87i are shown in Figure 1-7. Figure 1-7: S19A-QM87i Dimensions (mm) Page 10...

  • Page 23: Figure 1-8: S24A-Qm87I Dimensions (Mm)

    S19A/S24A-QM87i Marine Panel PC The physical dimensions of the S24A-QM87i are shown in Figure 1-8. Figure 1-8: S24A-QM87i Dimensions (mm) Page 11...

  • Page 24: Unpacking

    S19A/S24A-QM87i Marine Panel PC Chapter Unpacking Page 12...

  • Page 25: Anti-Static Precautions

    S19A/S24A-QM87i Marine Panel PC 2.1 Anti-static Precautions WARNING: Failure to take ESD precautions during installation may result in permanent damage to the S19A/S24A-QM87i and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the S19A/S24A-QM87i. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the S19A/S24A-QM87i or any other electrical component is handled, the following anti-static precautions are strictly adhered to.

  • Page 26: Unpacking Checklist

    S19A/S24A-QM87i Marine Panel PC 2.3 Unpacking Checklist NOTE: If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the S19A/S24A-QM87i from or contact an IEI sales representative directly.

  • Page 27: Optional Items

    S19A/S24A-QM87i Marine Panel PC 2.4 Optional Items The following are optional components which may be separately purchased: Item and Part Number Image IPMI 2.0 adapter card with AST2400 BMC chip (P/N: iRIS-2400-R10) Panel mounting kit (P/N: PK-S19A-R10) (P/N: PK-S24A-R10) Desktop stand kit (P/N: STAND-S24A-R10) Ceiling mounting kit (P/N: CEILMT-S24A-R10)

  • Page 28: Installation

    S19A/S24A-QM87i Marine Panel PC Chapter Installation Page 16...

  • Page 29: Installation Precautions

    S19A/S24A-QM87i Marine Panel PC 3.1 Installation Precautions During installation, be aware of the precautions below:  Read the user manual: The user manual provides a complete description of the S19A/S24A-QM87i, installation instructions and configuration options.  DANGER! Disconnect Power: Power to the S19A/S24A-QM87i must be disconnected during the installation process, or before any attempt is made to access the rear panel.

  • Page 30: Cfast Card Installation

    S19A/S24A-QM87i Marine Panel PC The equipment is intended for installation in a RESTRICTED ACCESS LOCATION.  Access can only be gained by SERVICE PERSONS or by USERS who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken.

  • Page 31: Hdd Installation

    S19A/S24A-QM87i Marine Panel PC Step 3: Secure the CFast card with the slot cover by fastening the previously removed retention screw. 3.3 HDD Installation The S19A/S24A-QM87i has two 2.5” HDD bays inside the SBOX computer, which is attached to the rear panel of the system. To install HDDs, follow the steps below. Step 1: Remove the SBOX computer from the S19A/S24A-QM87i rear panel by removing/loosing the six retention screws indicated in Figure 3-3.

  • Page 32: Figure 3-4: Bottom Cover Retention Screws

    S19A/S24A-QM87i Marine Panel PC Step 2: Remove the bottom cover of the SBOX by removing the 11 retention screws on the bottom panel. See Figure 3-4. Figure 3-4: Bottom Cover Retention Screws Step 3: Locate the HDD brackets inside the bottom cover. Remove the four HDD bracket retention screws of one of the HDD brackets and lift the HDD bracket.

  • Page 33: Figure 3-6: Inserting The Hdd

    S19A/S24A-QM87i Marine Panel PC Figure 3-6: Inserting the HDD Step 5: Install the HDD bracket in the same position it was before. Figure 3-7: Installing the HDD Step 6: Repeat the steps described above to install another HDD if necessary. Step 7: Connect the SATA cables and the SATA power cables to the motherboard.

  • Page 34: At/Atx Mode Selection

    S19A/S24A-QM87i Marine Panel PC 3.4 AT/ATX Mode Selection AT and ATX power modes can both be used on the S19A/S24A-QM87i panel PC. The selection is made through an AT/ATX switch on the I/O interface panel. The switch is shown below. Figure 3-8: AT/ATX Mode Selection 3.5 Mounting the System WARNING:...

  • Page 35: Panel Mounting

    S19A/S24A-QM87i Marine Panel PC 3.5.1 Panel Mounting To mount the S19A/S24A-QM87i flat panel PC into a panel, please follow the steps below. Step 1: Select the position on the panel to mount the flat panel PC. Step 2: Cut out a section from the panel that corresponds to the rear panel dimensions of the flat panel PC.

  • Page 36: Figure 3-11: S19A-Qm87I Panel Mounting Hole Covers

    S19A/S24A-QM87i Marine Panel PC Step 4: Remove the panel mounting hole covers from the rear panel. Each cover is secured to the rear panel with a retention screw. Remove the retention screw to remove the cover. Figure 3-11: S19A-QM87i Panel Mounting Hole Covers Figure 3-12: S24A-QM87i Panel Mounting Hole Covers Step 5: Insert the panel mounting clamps into the pre-formed holes along the edges of...

  • Page 37: Stand Mounting

    S19A/S24A-QM87i Marine Panel PC Step 6: Tighten the screws that pass through the panel mounting clamps until the plastic caps at the front of all the screws are firmly secured to the panel (Figure 3-13).S t e p 0 : Figure 3-13: Tighten the Panel Mounting Clamp Screws 3.5.2 Stand Mounting To mount the S19A/S24A-QM87i using the optional stand mounting kit, please follow the...

  • Page 38: Figure 3-14: S19A-Qm87I Stand Mounting Screw Holes

    S19A/S24A-QM87i Marine Panel PC Figure 3-14: S19A-QM87i Stand Mounting Screw Holes Figure 3-15: S24A-QM87i Stand Mounting Screw Holes Step 2: Align the brackets with the screw holes. Step 3: To secure the brackets to the S19A/S24A-QM87i insert the retention screws into the screw holes and tighten them.

  • Page 39: Ceiling Mounting

    S19A/S24A-QM87i Marine Panel PC Figure 3-16: Installing Stand Step 4: To display the S19A/S24A-QM87i at a different viewing angle, install the stand mounting kit in the other way.S t e p 0 : Figure 3-17: Stand Mounting Method 2 3.5.3 Ceiling Mounting To mount the S19A/S24A-QM87i using the optional ceiling mounting kit, please follow the steps below.

  • Page 40: Figure 3-18: Locations Of Bracket Screw Holes For S19A-Qm87I

    S19A/S24A-QM87i Marine Panel PC Figure 3-18: Locations of Bracket Screw Holes for S19A-QM87i Figure 3-19: Locations of Bracket Screw Holes for S24A-QM87i Step 3: Drill six pilot holes at the marked locations on the ceiling for the bracket retention screws. Step 4: Please adjust the ceiling mounting brackets before installation in order to have a proper viewing angle.

  • Page 41: Figure 3-20: Ceiling Mounting Bracket Adjustment

    S19A/S24A-QM87i Marine Panel PC Figure 3-20: Ceiling Mounting Bracket Adjustment Step 5: Remove the four knockout holes on the side panels (two on each side). See Figure 3-21. Figure 3-21: Knockout Holes for Ceiling Mounting Brackets Step 6: Align the rivets on the mounting brackets with the mounting holes on the side panels.

  • Page 42: Figure 3-22: Installing Ceiling Mounting Bracket (One Side)

    S19A/S24A-QM87i Marine Panel PC Step 7: Carefully insert the rivets through the holes and pull the bracket downwards until the bracket rest securely in the slotted holes. Then, insert a captive screw and tighten it firmly to secure the bracket. See Figure 3-22. Figure 3-22: Installing Ceiling Mounting Bracket (One Side) Step 8: Follow the instruction described above to install the other bracket.

  • Page 43: Figure 3-23: Ceiling Mounting

    S19A/S24A-QM87i Marine Panel PC Figure 3-23: Ceiling Mounting Step 11: The ceiling mounting brackets can also be used to mount on other surfaces. To do so, simply install the brackets the other way around as shown in Figure 3-24. Figure 3-24: Alternative of Ceiling Mounting Brackets Page 31...

  • Page 44: Serial Device Connection

    S19A/S24A-QM87i Marine Panel PC 3.6 Serial Device Connection The S19A/S24A-QM87i series has five serial ports, including four RS-232/422/484 ports on the front panel and one RS-232 port on the rear panel. The port locations are shown in Figure 3-25. The pinouts of the serial ports are listed in the following sections. Figure 3-25: Serial Port Locations NOTE: The default settings for COM2–COM5 are set to RS-485.

  • Page 45: Serial Port (Com1)

    S19A/S24A-QM87i Marine Panel PC 3.6.1 RS-232 Serial Port (COM1) The pinouts of the RS-232 serial port are listed in the following table. PIN NO. DESCRIPTION PIN NO. DESCRIPTION Table 3-1: RS-232 Serial Port (COM1) Pinouts 3.6.2 RS-232/422/485 Serial Port (COM2–COM5) The RS-232/422/485 mode selection of COM2–COM5 is made through the system BIOS.

  • Page 46: Can Bus Connection And Configuration

    S19A/S24A-QM87i Marine Panel PC 3.7 CAN Bus Connection and Configuration The S19A/S24A-QM87i has a CAN bus connector for CAN-bus connection. The pinouts for the CAN bus connector are listed in the figure and table below. Figure 3-26: CAN Bus Connector PIN NO.

  • Page 47: Powering On The System

    S19A/S24A-QM87i Marine Panel PC Figure 3-27: CAN Bus Jumper Locations JP1 & JP2 DESCRIPTION Short Long wire transmitting Open Normal Table 3-4: CAN Bus Jumper Settings 3.8 Powering On the System To power on the system, follow the steps below: Step 1: Connect the power cable to the 3-pin power input terminal block.

  • Page 48: Clear Cmos

    S19A/S24A-QM87i Marine Panel PC Figure 3-29: Power Connector and Power Button 3.9 Clear CMOS If the S19A/S24A-QM87i fails to boot due to improper BIOS settings, the clear CMOS button clears the CMOS data and resets the system BIOS information. To do this, push the clear CMOS button for three seconds, and then restart the system.

  • Page 49: Driver Installation

    S19A/S24A-QM87i Marine Panel PC 3.10 Driver Installation NOTE: The content of the CD may vary throughout the life cycle of the product and is subject to change without prior notice. Visit the IEI website or contact technical support for the latest updates. All the drivers for the S19A/S24A-QM87i are on the utility CD that came with the system.

  • Page 50: Ipmi Setup Procedure

    S19A/S24A-QM87i Marine Panel PC 3.11 IPMI Setup Procedure The S19A/S24A-QM87i with iRIS-2400 module installed features Intelligent Platform Management Interface (IPMI) that helps lower the overall costs of server management by enabling users to maximize IT resources, save time and manage multiple systems. The S19A/S24A-QM87i supports IPMI 2.0 through the optional iRIS-2400 module.

  • Page 51: Figure 3-31: Iei Iman Web Address

    S19A/S24A-QM87i Marine Panel PC e. A serial of number shows. The last four two-digit hexadecimal numbers are the IP address. Convert the hexadecimal numbers to decimal numbers. Step 2: On the remote management console, open a web browser. Enter the managed system IP address in the web browser (Figure 3-31).
  • Page 52 S19A/S24A-QM87i Marine Panel PC NOTE: To understand how to use the IEI iMAN Web GUI, please refer to the iRIS-2400 Web GUI user manual in the utility CD came with the S19A/S24A-QM87i. The user manual describes each function in detail. Page 40...

  • Page 53: On-Screen-Display (Osd) Controls

    S19A/S24A-QM87i Marine Panel PC Chapter On-Screen-Display (OSD) Controls Page 41...

  • Page 54: User Mode Osd Structure

    S19A/S24A-QM87i Marine Panel PC 4.1 User Mode OSD Structure 4.1.1 OSD Buttons The OSD control buttons are located on the bottom right corner of the front panel. Figure 4-1: OSD Button Locations The function of each button is described in the following table. Press this button to open the OSD window.

  • Page 55: Osd Menu Structure

    S19A/S24A-QM87i Marine Panel PC 4.1.2 OSD Menu Structure Table 4-2 shows the OSD menu structure for all models of theS19A/S24A-QM87i series panel PC. Level 0 Level 1 Value Image Menu Backlight 0 to 100 Brightness 0 to 100 Contrast 0 to 100 Sharpness 0 to 100 Color...

  • Page 56: Using The Osd

    S19A/S24A-QM87i Marine Panel PC 4.2 Using the OSD OSD menu options are described below. 4.2.1 Image Menu Image menu options are shown in Figure 4-2. Figure 4-2: Image Menu Backlight Adjusts the backlight brightness of screen. Brightness Adjusts the brightness of screen. Setting this value too high or too low will affect the quality of image.

  • Page 57: System Menu

    S19A/S24A-QM87i Marine Panel PC Color Fine-tunes the palette of color hues 4.2.2 System Menu System options are shown in Figure 4-3. Figure 4-3: System Menu OSD Settings This item allows adjustment of the following items:  Timer–Determines how many seconds the OSD menu stays on screen before it disappears when OSD is left unattended.
  • Page 58 S19A/S24A-QM87i Marine Panel PC OSD buttons when OSD menu is off  Keypad LED 2–Control the brightness of the physical OSD buttons when OSD menu is on Reset Restores the default OSD settings. Note that this will restore all default display settings. Update Updates the firmware of the system.

  • Page 59: Bios Setup

    S19A/S24A-QM87i Marine Panel PC Chapter BIOS Setup Page 47...

  • Page 60: Introduction

    S19A/S24A-QM87i Marine Panel PC 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.

  • Page 61: Getting Help

    S19A/S24A-QM87i Marine Panel PC Function Decrease the numeric value or make changes Page Up key Increase the numeric value or make changes Page Dn key Decrease the numeric value or make changes Esc key Main Menu – Quit and not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu General help, only for Status Page Setup Menu and Option...

  • Page 62: Main

    S19A/S24A-QM87i Marine Panel PC 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset...

  • Page 63: Advanced

    S19A/S24A-QM87i Marine Panel PC The System Overview field has two user configurable fields:  System Date [xx/xx/xx] Use the System Date option to set the system date. Manually enter the day, month and year.  System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

  • Page 64: Acpi Settings

    S19A/S24A-QM87i Marine Panel PC 5.3.1 ACPI Settings The ACPI Settings menu (BIOS Menu 3) configures the Advanced Configuration and Power Interface (ACPI) options. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced ACPI Settings Select ACPI sleep state the system will enter ACPI Sleep State [S1 only(CPU Stop C1…]...

  • Page 65: Rtc Wake Settings

    S19A/S24A-QM87i Marine Panel PC 5.3.2 RTC Wake Settings The RTC Wake Settings menu (BIOS Menu 4) configures RTC wake event. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced Wake system with Fixed Time [Disabled] Enable or disable System wake on alarm event.

  • Page 66: Trusted Computing

    S19A/S24A-QM87i Marine Panel PC  Enabled If selected, the following appears with values that can be selected: *Wake up every day *Wake up date *Wake up hour *Wake up minute *Wake up second After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off.

  • Page 67: Cpu Configuration

    S19A/S24A-QM87i Marine Panel PC  Security Device Support [Disable] Use the Security Device Support option to configure support for the security devices.  Security device support is disabled. Disable EFAULT  Security device support is enabled. Enable 5.3.4 CPU Configuration Use the CPU Configuration menu (BIOS Menu 6) to view detailed CPU specifications and configure the CPU.
  • Page 68 S19A/S24A-QM87i Marine Panel PC  CPU Signature: Lists the CPU signature value.  Microcode Patch: Lists the microcode patch being used.  Max CPU Speed: Lists the maximum CPU processing speed.  Min CPU Speed: Lists the minimum CPU processing speed. ...

  • Page 69: Intel Virtualization Technology [Disabled]

    S19A/S24A-QM87i Marine Panel PC  Intel Virtualization Technology [Disabled] Use the Intel Virtualization Technology option to enable or disable virtualization on the system. When combined with third party software, Intel® Virtualization technology allows several OSs to run on the same system at the same time. ...

  • Page 70: Sata Configuration

    S19A/S24A-QM87i Marine Panel PC 5.3.5 SATA Configuration Use the SATA Configuration menu (BIOS Menu 7) to change and/or set the configuration of the SATA devices installed in the system. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced SATA Controller(s) [Enabled] Enable or disable SATA...

  • Page 71: Intel Rapid Start Technology

    S19A/S24A-QM87i Marine Panel PC 5.3.6 Intel Rapid Start Technology The Intel Rapid Start Technology menu (BIOS Menu 8) configures Intel® Rapid Start Technology. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced Intel(R) Rapid Start Technology [Disabled] Enable or disable Intel(R) Rapid Start Technology ----------------------...

  • Page 72: Amt Configuration

    S19A/S24A-QM87i Marine Panel PC 5.3.7 AMT Configuration The AMT Configuration menu (BIOS Menu 9) allows advanced power management options to be configured. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced Intel AMT [Enabled] Enable/Disable Intel(R) Un-Configure ME [Disabled] Active Management Technology BIOS...

  • Page 73: Usb Configuration

    S19A/S24A-QM87i Marine Panel PC  Enabled Enable ME unconfigure 5.3.8 USB Configuration Use the USB Configuration menu (BIOS Menu 10) to read USB configuration information and configure the USB settings. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB...

  • Page 74: Iwdd H/W Monitor

    S19A/S24A-QM87i Marine Panel PC  Enabled Legacy USB support enabled EFAULT  Legacy USB support disabled Disabled  Auto Legacy USB support disabled if no USB devices are connected 5.3.9 iWDD H/W Monitor The iWDD H/W Monitor menu (BIOS Menu 11) displays operating temperature and system voltages.

  • Page 75: F81866 Super Io Configuration

    S19A/S24A-QM87i Marine Panel PC +5VSB +3.3V +3.3VSB 5.3.10 F81866 Super IO Configuration Use the F81866 Super IO Configuration menu (BIOS Menu 12) to set or change the configurations for the serial ports. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced F81866 Super IO Configuration Set Parameters of Serial...

  • Page 76: Serial Port N Configuration

    S19A/S24A-QM87i Marine Panel PC 5.3.10.1 Serial Port n Configuration Use the Serial Port n Configuration menu (BIOS Menu 13) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced Serial Port 1 Configuration Enable or Disable Serial Port (COM) Serial Port...

  • Page 77: Change Settings [Auto]

    S19A/S24A-QM87i Marine Panel PC  IO=3E8h; Serial Port I/O port address is 3E8h and the interrupt IRQ=3, 4 address is IRQ3, 4  Serial Port I/O port address is 2F8h and the interrupt IO=2F8h; address is IRQ3, 4 IRQ=3, 4 ...
  • Page 78 S19A/S24A-QM87i Marine Panel PC  IO=2C8h; Serial Port I/O port address is 2C8h and the interrupt IRQ=3, 4 address is IRQ3, 4  Serial Port Mode [RS485] Use the Serial Port Mode option to set the Serial Port 2 signaling mode. ...
  • Page 79 S19A/S24A-QM87i Marine Panel PC  IO=2D0h; Serial Port I/O port address is 2D0h and the interrupt IRQ=10, 11 address is IRQ10, 11  Serial Port I/O port address is 2D8h and the interrupt IO=2D8h; address is IRQ10, 11 IRQ=10, 11 ...
  • Page 80 S19A/S24A-QM87i Marine Panel PC  IO=2E8h; Serial Port I/O port address is 2E8h and the interrupt IRQ=10, 11 address is IRQ10, 11  Serial Port I/O port address is 2D0h and the interrupt IO=2D0h; address is IRQ10, 11 IRQ=10, 11 ...

  • Page 81: Serial Port Console Redirection

    S19A/S24A-QM87i Marine Panel PC  IO=2C0h; Serial Port I/O port address is 2C0h and the interrupt IRQ=10, 11 address is IRQ10, 11  Serial Port I/O port address is 2C8h and the interrupt IO=2C8h; address is IRQ10, 11 IRQ=10, 11 ...

  • Page 82: Console Redirection [Enabled]

    S19A/S24A-QM87i Marine Panel PC Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced COM1 Console Redirection Console Redirection [Disabled] Enable/Disable > Console Redirection Settings COM2 Console Redirection [Disabled] > Console Redirection Settings COM3 Console Redirection [Disabled] > Console Redirection Settings COM4 Console Redirection [Disabled]...

  • Page 83: Iei Feature

    S19A/S24A-QM87i Marine Panel PC 5.3.12 IEI Feature Use the IEI Feature menu (BIOS Menu 15) to configure One Key Recovery function. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced iEi Feature Auto Recovery Function Reboot and recover Auto Recovery Function [Disabled] system automatically...

  • Page 84: Chipset

    S19A/S24A-QM87i Marine Panel PC 5.4 Chipset Use the Chipset menu (BIOS Menu 16) to configure the system chipset. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Server Mgmt > PCH-IO Configuration PCH Parameters >...

  • Page 85: Restore On Ac Power Loss [Last State]

    S19A/S24A-QM87i Marine Panel PC  Restore on AC Power Loss [Last State] Use the Restore on AC Power Loss BIOS option to specify what state the system returns to if there is a sudden loss of power to the system. ...

  • Page 86: System Agent (Sa) Configuration

    S19A/S24A-QM87i Marine Panel PC 5.4.2 System Agent (SA) Configuration Use the System Agent (SA) Configuration menu (BIOS Menu 18) to configure the System Agent (SA) parameters. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Chipset VT-d Capability Supported Check to enable VT-d VT-d [Disabled]...

  • Page 87: Graphics Configuration

    S19A/S24A-QM87i Marine Panel PC 5.4.2.1 Graphics Configuration Use the Graphics Configuration submenu (BIOS Menu 19) to configure the graphics settings. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Chipset Graphics Configuration Select which of Primary Display [Auto] IGFX/PEG/PCI Graphics DVMT Pre-Allocated [256M] device should be Primary...

  • Page 88: Dvmt Total Gfx Mem [256M]

    S19A/S24A-QM87i Marine Panel PC   128M  256M Default  512M  DVMT Total Gfx Mem [256M] Use the DVMT Total Gfx Mem option to select DVMT5.0 total graphic memory size used by the internal graphic device. The following options are available: ...

  • Page 89: Memory Configuration

    S19A/S24A-QM87i Marine Panel PC 5.4.3 Memory Configuration Use the Memory Configuration submenu (BIOS Menu 20) to display the memory information. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Chipset Memory Information Memory Frequency 1600 Mhz Total Memory 4096 MB (DDR3) --------------------- : Select Screen DIMM 1...

  • Page 90: Bootup Numlock State [On]

    S19A/S24A-QM87i Marine Panel PC  Bootup NumLock State [On] Use the Bootup NumLock State BIOS option to specify if the number lock setting must be modified during boot up.  Allows the Number Lock on the keyboard to be EFAULT enabled automatically when the computer system boots up.

  • Page 91: Security

    S19A/S24A-QM87i Marine Panel PC  Launch PXE OpROM [Disabled] Use the Launch PXE OpROM option to enable or disable boot option for legacy network devices.  Disabled Ignore all PXE Option ROMs EFAULT  Load PXE Option ROMs Enabled  UEFI Boot [Disabled] Use the UEFI Boot option to enable or disable to boot from the UEFI devices.

  • Page 92: Save & Exit

    S19A/S24A-QM87i Marine Panel PC  User Password Use the User Password to set or change a user password. 5.7 Save & Exit Use the Save & Exit menu (BIOS Menu 23) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility –...

  • Page 93: Server Management

    S19A/S24A-QM87i Marine Panel PC  Save as User Defaults Use the Save as User Defaults option to save the changes done so far as user defaults.  Restore User Defaults Use the Restore User Defaults option to restore the user defaults to all the setup options. 5.8 Server Management Use the Server Mgmt menu (BIOS Menu 24) to configure BMC network parameters.

  • Page 94: System Event Log

    S19A/S24A-QM87i Marine Panel PC 5.8.1 System Event Log Use the System Event Log menu (BIOS Menu 25) to configure the system event log of the BMC. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Server Mgmt Enabling/Disabling Options Change this to enable or SEL Components [Enabled]...
  • Page 95 S19A/S24A-QM87i Marine Panel PC  Yes, On Erase system event log on every reset. every reset  When SEL is Full [Do Nothing] Use the When SEL is Full option to select an reaction to a full SEL.  Do not do anything when SEL is full. Do Nothing EFAULT ...

  • Page 96: Bmc Network Configuration

    S19A/S24A-QM87i Marine Panel PC 5.8.2 BMC Network Configuration Use the BMC Network Configuration menu (BIOS Menu 26) to configure the BMC network parameters. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Server Mgmt BMC network configuration Select to configure LAN channel parameters Lan channel 1 statically or...

  • Page 97: Maintenance

    S19A/S24A-QM87i Marine Panel PC Chapter Maintenance Page 85...

  • Page 98: System Maintenance Overview

    S19A/S24A-QM87i Marine Panel PC WARNING: Take Anti-Static precautions whenever maintenance is being carried out on the system components. Failure to take anti-static precautions can cause permanent system damage. For more details on anti-static precautions, please refer to Section 2.1. 6.1 System Maintenance Overview NOTE: When doing maintenance operations on the system, please follow the instructions in this chapter.

  • Page 99: Figure 6-1: Sbox Computer Retention Screws

    S19A/S24A-QM87i Marine Panel PC WARNING: Using incorrectly specified SO-DIMM may cause permanently damage the S19A/S24A-QM87i. Please make sure the purchased SO-DIMM complies with the memory specifications of the S19A/S24A-QM87i. To replace a SO-DIMM into a SO-DIMM socket, please follow the steps below. Step 1: Remove the SBOX computer from the S19A/S24A-QM87i rear panel by removing/loosing the six retention screws indicated in Figure 6-1.

  • Page 100: Figure 6-2: Bottom Cover Retention Screws

    S19A/S24A-QM87i Marine Panel PC Step 2: Remove the bottom cover by removing the 11 retention screws. Figure 6-2: Bottom Cover Retention Screws Step 3: Locate the SO-DIMM. (Figure 6-3). Figure 6-3: SO-DIMM Locations Step 4: Remove the cable tie that secures the heatsink with the SO-DIMM. Then, remove the heatsink.

  • Page 101: Figure 6-4: So-Dimm Installation

    S19A/S24A-QM87i Marine Panel PC Step 7: Press the SO-DIMM down until the arms of the SO-DIMM socket clip into place and secure the SO-DIMM in the socket (Figure 6-4). Figure 6-4: SO-DIMM Installation Step 8: Place the heatsink and use a cable tie to secure the heatsink with the SO-DIMM. Step 9: Reinstall the bottom cover.

  • Page 102: Interface Connectors

    S19A/S24A-QM87i Marine Panel PC Chapter Interface Connectors Page 90...

  • Page 103: Peripheral Interface Connectors

    S19A/S24A-QM87i Marine Panel PC 7.1 Peripheral Interface Connectors The S19A/S24A-QM87i motherboard comes with a number of peripheral interface connectors and configuration jumpers. The connector locations are shown in Figure 7-1 and Figure 7-2. The Pin 1 locations of the on-board connectors are also indicated in the diagrams below.

  • Page 104: Figure 7-2: Main Board Layout Diagram (Solder Side)

    S19A/S24A-QM87i Marine Panel PC Figure 7-2: Main Board Layout Diagram (Solder Side) Page 92...

  • Page 105: Internal Peripheral Connectors

    S19A/S24A-QM87i Marine Panel PC 7.2 Internal Peripheral Connectors Internal peripheral connectors are found on the motherboard and are only accessible when the motherboard is outside of the chassis. The table below shows a list of the peripheral interface connectors on the S19A/S24A-QM87i motherboard. Pinouts of these connectors can be found in the following sections.

  • Page 106: Audio Connector (Audio1)

    S19A/S24A-QM87i Marine Panel PC Connector Type Label SMBus connector 4-pin wafer SMB1 SO-DIMM connectors SO-DIMM connector DIMM1, DIMM2 SPI Flash connector 6-pin wafer SPI1 SPI Flash connector (EC) 2-pin header TPM connector 20-pin header TPM1 Table 7-1: Peripheral Interface Connectors 7.2.1 Audio Connector (AUDIO1) PIN NO.

  • Page 107: Digital I/O Connector (Dio1)

    S19A/S24A-QM87i Marine Panel PC 7.2.4 Digital I/O Connector (DIO1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION DOUT3 DOUT2 DOUT1 DOUT0 DIN3 DIN2 DIN1 DIN0 Table 7-5: Digital I/O Connector (DIO1) Pinouts 7.2.5 EC Debug Connector (LPT_DB1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION KSI0 KSO0...

  • Page 108: Front Panel Connector (F_Panel1)

    S19A/S24A-QM87i Marine Panel PC 7.2.7 Front Panel Connector (F_PANEL1) DESCRIPTION DESCRIPTION Power LED PWR_LED+ Speaker SPKR+ PWR_LED+ IPMI LED IPMI ID_LED+ PWR_LED- IPMI ID_LED- Power PWR_BTN+ Speaker SPKR- Button PWR_BTN- HDD LED HDD_LED+ RESET+ HDD_LED- RESET- Table 7-8: Front Panel Connector (F_PANEL1) Pinouts 7.2.8 IPMI LED Connector (IPMI_LED1) PIN NO.

  • Page 109: Power Connector (Pwr1)

    S19A/S24A-QM87i Marine Panel PC PIN NO. DESCRIPTION PIN NO. DESCRIPTION CLK- CLK+ PCIRST# VCC3 PCIRST# PERN2 3VDual PERP2 1.5V SMBCLK PETN2 SMBDATA PETP2 USBD- USBD+ 1.5V VCC3 Table 7-11: PCIe Mini Slots (MINI-PCIE1, MINI-PCIE2) Pinouts 7.2.11 Power Connector (PWR1) PIN NO. DESCRIPTION PIN NO.

  • Page 110: Power Button Connector (Pwr_Btn1)

    S19A/S24A-QM87i Marine Panel PC 7.2.12 Power Button Connector (PWR_BTN1) PIN NO. DESCRIPTION PWRBTN_SW# Table 7-13: Power Button Connector (PWR_BTN1) Pinouts 7.2.13 PS_ON Connector (PS_ON1) PIN NO. DESCRIPTION 5VSB EC_PSON# Table 7-14: PS_ON Connector (PS_ON1) Pinouts 7.2.14 RS-232/422/485 Connector (COM2, COM3, COM4, COM5) PIN NO.

  • Page 111: Sata Connector (S_Ata2)

    S19A/S24A-QM87i Marine Panel PC Table 7-16: SATA Connector (S_ATA1) Pinouts 7.2.16 SATA Connector (S_ATA2) PIN NO. DESCRIPTION Table 7-17: SATA Connector (S_ATA2) Pinouts 7.2.17 SATA Power Connector (SATA_PWR1) Total +5V SATA power is 3A (SATA_PWR1plus SATA_PWR2) Total +12V SATA power is 3A (SATA_PWR1plus SATA_PWR2) PIN NO.

  • Page 112: Sata Power Connector (Sata_Pwr2)

    S19A/S24A-QM87i Marine Panel PC 7.2.18 SATA Power Connector (SATA_PWR2) PIN NO. DESCRIPTION +12V Table 7-19: SATA Power Connector (SATA_PWR2) Pinouts 7.2.19 SMBus Connector, EC (SMB1) PIN NO. DESCRIPTION SMB_DATA SMB_CLK +V5S Table 7-20: SMBus Connector, EC (SMB1) 7.2.20 SPI Flash Connector (SPI1) PIN NO.

  • Page 113: Spi Flash Connector, Ec (Cn2)

    S19A/S24A-QM87i Marine Panel PC 7.2.21 SPI Flash Connector, EC (CN2) PIN NO. DESCRIPTION SMCLK1_EC SMDAT1_EC Table 7-22: SPI Flash Connector, EC (CN2) 7.2.22 TPM Connector (TPM1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION LCLK LFRAME# LRERST# LAD3 LAD2 LAD1 LAD0 SB3V SERIRQ GLKRUN# LPCPD#...

  • Page 114: Can Bus Connector (Can1)

    S19A/S24A-QM87i Marine Panel PC Connector Type Label HDMI connector HDMI HDMI1 Keyboard/mouse and USB 2.0 combo connector PS/2 K/B_USB1 USB 2.0 port GbE connectors RJ-45 LAN1/2-CN1 RS-232 serial port DB-9 COM1 USB 3.0 connectors USB 3.0 port USB3_CN1 Table 7-24: Rear Panel Connectors 7.3.1 CAN Bus Connector (CAN1) PIN NO.

  • Page 115: Vga Connector (Vga1)

    S19A/S24A-QM87i Marine Panel PC 7.3.3 VGA Connector (VGA1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION GREEN GROUND BLUE DDCDA GROUND HSYNC GROUND VSYNC GROUND DDCCLK GROUND Table 7-27: VGA Connector (VGA1) Pinouts 7.3.4 HDMI Connector (HDMI1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION HDMI_DATA2+ HDMI_CLK#...

  • Page 116: Gbe Connectors (Lan1/2-Cn1)

    S19A/S24A-QM87i Marine Panel PC 7.3.5 GbE Connectors (LAN1/2-CN1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION MDIA3- MDIA2+ MDIA3+ MDIA1+ MDIA1- MDIA0- MDIA2- MDIA0+ Table 7-29: RJ-45 GbE Connector (LAN1/2-CN1) Pinouts 7.3.6 RS-232 Serial Port (COM1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION Table 7-30: RS-232 Serial Port (COM1) Pinouts 7.3.7 USB 2.0 Connectors (USB1) PIN NO.

  • Page 117: Usb 3.0 Connectors (Usb3_Cn1)

    S19A/S24A-QM87i Marine Panel PC 7.3.8 USB 3.0 Connectors (USB3_CN1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB_DATA- USB_DATA- USB_DATA+ USB_DATA+ USB3_RX- USB3_RX- USB3_RX+ USB3_RX+ USB3_TX- USB3_TX- USB3_TX+ USB3_TX+ Table 7-32: USB 3.0 Connector (USB3_CN1) Pinouts Page 105...

  • Page 118: A Regulatory Compliance

    S19A/S24A-QM87i Marine Panel PC Appendix Regulatory Compliance Page 106...
  • Page 119 S19A/S24A-QM87i Marine Panel PC DECLARATION OF CONFORMITY This equipment is in conformity with the following EU directives:  EMC Directive 2004/108/EC  Low-Voltage Directive 2006/95/EC  RoHS II Directive 2011/65/EU  Ecodesign Directive 2009/125/EC If the user modifies and/or install other devices in the equipment, the CE conformity declaration may no longer apply.
  • Page 120 S19A/S24A-QM87i Marine Panel PC Español [Spanish] IEI Integration Corp declara que el equipo cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] IEI Integration Corp ΔΗΛΩΝΕΙ ΟΤΙ ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ...
  • Page 121 S19A/S24A-QM87i Marine Panel PC Româna [Romanian] IEI Integration Corp declară că acest echipament este in conformitate cu cerinţele esenţiale şi cu celelalte prevederi relevante ale Directivei 1999/5/CE. Slovensko [Slovenian] IEI Integration Corp izjavlja, da je ta opreme v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
  • Page 122 S19A/S24A-QM87i Marine Panel PC FCC WARNING This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:  This device may not cause harmful interference, and  This device must accept any interference received, including interference that may cause undesired operation.

  • Page 123: B Safety Precautions

    S19A/S24A-QM87i Marine Panel PC Appendix Safety Precautions Page 111...

  • Page 124: Safety Precautions

    S19A/S24A-QM87i Marine Panel PC WARNING: The precautions outlined in this chapter should be strictly followed. Failure to follow these precautions may result in permanent damage to the S19A/S24A-QM87i. B.1 Safety Precautions Please follow the safety precautions outlined in the sections that follow: B.1.1 General Safety Precautions Please ensure the following safety precautions are adhered to at all times.

  • Page 125: Anti-Static Precautions

    S19A/S24A-QM87i Marine Panel PC B.1.2 Anti-static Precautions WARNING: Failure to take ESD precautions during the installation of the S19A/S24A-QM87i may result in permanent damage to the S19A/S24A-QM87i and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the S19A/S24A-QM87i.

  • Page 126: Product Disposal

    S19A/S24A-QM87i Marine Panel PC B.1.3 Product Disposal CAUTION: Risk of explosion if battery is replaced by and incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations.  Outside the European Union - If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.

  • Page 127: Cleaning Tools

    S19A/S24A-QM87i Marine Panel PC  The interior of the S19A/S24A-QM87i does not require cleaning. Keep fluids away from the S19A/S24A-QM87i interior.  Be cautious of all small removable components when vacuuming the S19A/S24A-QM87i.  Turn the S19A/S24A-QM87i off before cleaning the S19A/S24A-QM87i. ...

  • Page 128: Cbios Menu Options

    S19A/S24A-QM87i Marine Panel PC Appendix BIOS Menu Options Page 116...

  • Page 129: Bios Configuration Options

    S19A/S24A-QM87i Marine Panel PC C.1 BIOS Configuration Options Below is a list of BIOS configuration options described in Chapter 4. System Date [xx/xx/xx] ......................51 System Time [xx:xx:xx] ....................... 51 ACPI Sleep State [S1 only (CPU Stop Clock)] ..............52 Wake System with Fixed Time [Disabled] .................
  • Page 130 S19A/S24A-QM87i Marine Panel PC Serial Port Mode [RS485] ....................69 Console Redirection [Enabled]................... 70 Auto Recovery Function [Disabled] ................... 71 Restore on AC Power Loss [Last State] ................73 Azalia (HD Audio) [Enabled] ....................73 Serial IRQ Mode [Continuous] .................... 73 Power Saving Function (ERP) [Disabled] ................

  • Page 131: D Watchdog Timer

    S19A/S24A-QM87i Marine Panel PC Appendix Watchdog Timer Page 119...
  • Page 132 S19A/S24A-QM87i Marine Panel PC NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.
  • Page 133 S19A/S24A-QM87i Marine Panel PC NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 30 ;time-out value is 48 seconds ;...

  • Page 134: E Hazardous Materials Disclosure

    S19A/S24A-QM87i Marine Panel PC Appendix Hazardous Materials Disclosure Page 122...

  • Page 135: Hazardous Material Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    S19A/S24A-QM87i Marine Panel PC E.1 Hazardous Material Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 136 S19A/S24A-QM87i Marine Panel PC Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb) (Hg) (Cd) Chromium Biphenyls Diphenyl Ethers (CR(VI)) (PBB) (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply Assemblies Battery O: This toxic or hazardous substance is contained in all of the homogeneous materials for the part is below...
  • Page 137 S19A/S24A-QM87i Marine Panel PC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。 Page 125...

This manual is also suitable for:

S19a-qm87

Table of Contents
