IEI Technology AFL LX Series User Manual

All in one panel pc with amd lx 800 cpu, tft lcd, wireless lan, touch screen, res-232/422/485 and ip 64 protection
Hide thumbs Also See for AFL LX Series:
Table of Contents

Advertisement

Quick Links

Download this manual

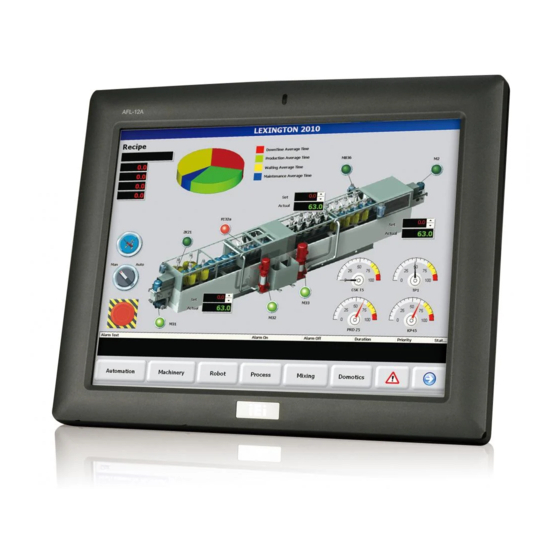

AFOLUX LX Series Flat Panel PC
IEI Technology Corp.
MODEL:
AFL LX Series
Fanless All-in-one Panel PC with AMD LX 800 CPU,
TFT LCD, Wireless LAN, Touch Screen,
RS-232/422/485 and IP 64 Protection
Rev. 2.10 – 22 February, 2012
AFOLUX LX Series Flat Panel PC
User Manual
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AFL LX Series and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology AFL LX Series

Summary of Contents for IEI Technology AFL LX Series

  • Page 1 AFOLUX LX Series Flat Panel PC AFOLUX LX Series Flat Panel PC IEI Technology Corp. MODEL: AFL LX Series Fanless All-in-one Panel PC with AMD LX 800 CPU, TFT LCD, Wireless LAN, Touch Screen, RS-232/422/485 and IP 64 Protection User Manual Page 1 Rev.
  • Page 2 AFOLUX LX Series Flat Panel PC Revision Date Version Changes 22 February, 2012 2.10 Updated for R21 version: optional Bluetooth support. 14 February, 2012 2.01 Added Section 3.10: Power-up the System 28 October, 2010 2.00 Updated for R20 version 30 September, 2009 1.21 Added screw torque warning 13 April, 2009...
  • Page 3 AFOLUX LX Series Flat Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 4: Table Of Contents

    AFOLUX LX Series Flat Panel PC Table of Contents 1 INTRODUCTION......................11 1.1 AFOLUX LX S PC O ........... 12 ERIES ANEL VERVIEW 1.1.1 Model Variations ....................12 1.1.2 Applications ..................... 13 1.1.3 Standard Features .................... 14 1.2 E ....................14 XTERNAL VERVIEW 1.2.1 General Description..................
  • Page 5 AFOLUX LX Series Flat Panel PC 2.4 G ....................29 RAPHICS UPPORT 2.5 E ..............31 THERNET ONTROLLER PECIFICATIONS 2.5.1 Overview ......................31 2.5.2 Features ......................31 2.6 P ......... 32 ERIPHERAL EVICE NTERFACES ONNECTORS LOTS 2.6.1 OEM Options ....................32 2.6.2 Internal Slots....................
  • Page 6 AFOLUX LX Series Flat Panel PC 4.3 I ..............58 NTERNAL LUMINUM OVER EMOVAL 4.3.1 AFL-07A-LX Internal Aluminum Cover Removal..........59 4.3.2 AFL-08AH-LX Internal Aluminum Cover Removal......... 60 4.3.3 AFL-10A-LX Internal Aluminum Cover Removal..........62 4.3.4 AFL-12A-LX Internal Aluminum Cover Removal..........63 4.4 M ................
  • Page 7 AFOLUX LX Series Flat Panel PC A.2.2 Cleaning Tools ....................104 B BIOS CONFIGURATION OPTIONS..............105 B.1 BIOS C ................106 ONFIGURATION PTIONS C SOFTWARE DRIVERS ................... 109 C.1 R ................110 EMOTE ANAGEMENT C.2 T ....................110 OUCH ANEL RIVER C.2.1 Introduction ....................110 C.2.2 Driver Installation..................
  • Page 8 AFOLUX LX Series Flat Panel PC List of Figures Figure 1-1: Front View ........................15 Figure 1-2: AFL-07A-LX/AFL-08AH-LX Rear View ..............15 Figure 1-3: AFL-08AH-LX Top View ....................16 Figure 1-4: AFL-08AH-LX Side View ...................16 Figure 1-5: AFOLUX LX Series Bottom View ................17 Figure 1-6: AFL-07A-LX Dimensions (units in mm) ..............22 Figure 1-7: AFL-08AH-LX Dimensions (units in mm)..............23 Figure 1-8: AFL-10A-LX Dimensions (units in mm) ..............24...
  • Page 9 AFOLUX LX Series Flat Panel PC Figure 3-22: Install into a Rack/Cabinet ..................53 Figure 3-23: LAN Connection ......................53 Figure 3-24: Serial Device Connector..................54 Figure 3-25: USB Device Connection ..................55 Figure 3-26: Power Connector and Power Button ..............56 Figure 4-1: AFL-07A-LX Aluminum Back Cover Retention Screws.........59 Figure 4-2: Four Hexagonal Pillars on the Bottom Panel (AFL-07A-LX).........59 Figure 4-3: AFL-08AH-LX Aluminum Back Cover Retention Screws ........60 Figure 4-4: Four Hexagonal Pillars on the Bottom Panel (AFL-08AH-LX) ......60...
  • Page 10 AFOLUX LX Series Flat Panel PC List of Tables Table 1-1: Model Variations ......................13 Table 1-2: AFOLUX LX Series System Specifications ..............19 Table 1-3: Motherboard Specifications ..................20 Table 1-4: TFT LCD Monitor Specifications ................20 Table 1-5: Touch Panel Specifications ..................21 Table 2-1: Geode LX Graphics Features ..................30 Table 4-1: COM3 Pin-9 Signal Select Jumper Settings.............66 Table 4-2: COM1 and COM2 Pin-9 Signal Select Jumper Settings..........67...

  • Page 11: Introduction

    AFOLUX LX Series Flat Panel PC Chapter Introduction Page 11...

  • Page 12: Afolux Lx Series Flat Panel Pc Overview

    AFOLUX LX Series Flat Panel PC 1.1 AFOLUX LX Series Flat Panel PC Overview The AFOLUX LX series flat panel PC is a flexible, multi-functional and fanless flat panel PC that can be applied in diverse operational environments and implemented in multi-faceted applications.

  • Page 13: Applications

    AFOLUX LX Series Flat Panel PC AFL-12A Brightness Memory Power Input HSUPA -LX/R/256-R21 500cd/m 12.1” 256MB DDR 12 V DC -LX/RH/256-R21 500cd/m 12.1” 256MB DDR 12 V DC -LX/R/512-R21 500cd/m 12.1” 512MB DDR 12 V DC -LX/RH/512-R21 500cd/m 12.1” 512MB DDR 12 V DC -LX24V/R/256-R21 500cd/m...

  • Page 14: Standard Features

    AFOLUX LX Series Flat Panel PC Ticket vending machine for transportation use 1.1.3 Standard Features Some of the standard features of the AFOLUX LX series flat panel PC include: Fanless Design AMD® Geode LX-800 processor Rugged mechanism design with ABS/PC case IP 64 dustproof and waterproof front panel One 256MB/512MB DDR memory module pre-installed AT/ATX power mode supported...

  • Page 15: Rear Panel

    AFOLUX LX Series Flat Panel PC Figure 1-1: Front View 1.2.3 Rear Panel The rear panel provides access to retention screw holes that support the wall mounting. Refer to F igure 1-2. Figure 1-2: AFL-07A-LX/AFL-08AH-LX Rear View 1.2.4 Top Panel and Side Panels The top panel and side panels of AFOLUX LX series provides access to slots that support panel mount and rack mount ( F igure 1-3 and...

  • Page 16: Bottom Panel

    AFOLUX LX Series Flat Panel PC Figure 1-3: AFL-08AH-LX Top View Figure 1-4: AFL-08AH-LX Side View 1.2.5 Bottom Panel The bottom panel of the AFOLUX LX series has the following I/O interfaces ( F igure 1-5): 1 x Audio jack 1 x RS-232 serial port connector 1 x RS-232 or RS-422/485 serial port connector (selected by a jumper) 1 x Power connector...

  • Page 17: Internal Overview

    AFOLUX LX Series Flat Panel PC Figure 1-5: AFOLUX LX Series Bottom View 1.3 Internal Overview The AFOLUX LX series internal components are protected in a plastic back cover. An AT/ATX switch is in the left side of the aluminum chassis inside the plastic cover. Other internal components, the motherboard, wireless LAN module and DDR memory module, are installed in the aluminum chassis on a metal sheet that protects the rear of the TFT LCD screen.

  • Page 18: System Specifications

    AFOLUX LX Series Flat Panel PC The technical specifications for some of these components and the system are shown in the sections below. 1.4.2 System Specifications The technical specifications for the AFOLUX LX series systems are listed in T able 1-2. SPECIFICATION AFL-07A-LX AFL-08AH-LX...

  • Page 19: Motherboard Specifications

    AFOLUX LX Series Flat Panel PC SPECIFICATION AFL-07A-LX AFL-08AH-LX AFL-10A-LX AFL-12A-LX Mounting Feature Panel, Rack, Wall, Arm, Stand Operating Temperature 0ºC ~ 50ºC 0ºC ~ 50ºC 0ºC ~ 50ºC 0ºC-50ºC 0ºC-40ºC (using HDD) Relative Humidity 5% ~ 80% RH, non-condensing Vibration 5 - 17Hz, 0.1”...

  • Page 20: Flat Panel Screen Specifications

    AFOLUX LX Series Flat Panel PC 1 x RS-232 or RS-422/485 serial port One 44-pin IDE connects to two IDE devices Touch Screen Controller DMC9000 Power Supply DC 12V In Dimensions 102mm x 186mm Table 1-3: Motherboard Specifications 1.4.4 Flat Panel Screen Specifications The AFOLUX LX series come with a TFT LCD monitor with LED backlight.

  • Page 21: Touch Screen Specifications

    AFOLUX LX Series Flat Panel PC 1.4.5 Touch Screen Specifications The AFOLUX LX series come with an analog resistive type touch panel. T able 1-5 lists the touch panel specifications. Specification AFL-07A-LX AFL-08AH-LX AFL-10A-LX AFL-12A-LX Model PANJIT 1070404C PANJIT 1084403B PANJIT 1104502A PANJIT 1121505B Type...

  • Page 22: Dimensions

    AFOLUX LX Series Flat Panel PC 1.5 Dimensions 1.5.1 AFL-07A-LX Dimensions The dimensions of the AFL-07A-LX flat panel PC are shown in F igure 1-6 below. Figure 1-6: AFL-07A-LX Dimensions (units in mm) Page 22...

  • Page 23: Afl-08Ah-Lx Dimensions

    AFOLUX LX Series Flat Panel PC 1.5.2 AFL-08AH-LX Dimensions The dimensions of the AFL-08AH-LX flat panel PC are shown in F igure 1-7 below. Figure 1-7: AFL-08AH-LX Dimensions (units in mm) Page 23...

  • Page 24: Afl-10A-Lx Dimensions

    AFOLUX LX Series Flat Panel PC 1.5.3 AFL-10A-LX Dimensions The dimensions of the AFL-10A-LX flat panel PC are shown in F igure 1-7 below. Figure 1-8: AFL-10A-LX Dimensions (units in mm) Page 24...

  • Page 25: Afl-12A-Lx Dimensions

    AFOLUX LX Series Flat Panel PC 1.5.4 AFL-12A-LX Dimensions The dimensions of the AFL-12A-LX flat panel PC are shown in F igure 1-7 below. Figure 1-9: AFL-12A-LX Dimensions (units in mm) Page 25...

  • Page 26: Motherboard

    AFOLUX LX Series Flat Panel PC Chapter Motherboard Page 26...

  • Page 27: Introduction

    AFOLUX LX Series Flat Panel PC 2.1 Introduction The AFOLUX LX series flat screen PC contains the AFLMB-LX800 motherboard. The motherboard is the heart of any computer and is responsible for transmitting, receiving and processing data as well as driving the different onboard devices. This chapter gives a brief introduction to the AFLMB-LX800 motherboard.

  • Page 28: Amd Geode™ Lx 800 500Mhz Power Management

    AFOLUX LX Series Flat Panel PC ® 2.2.2 AMD Geode™ LX 800 500MHz Power Management ® The power management for the 500MHz AMD Geode™ LX 800 is listed below: 1.8W Typical (3.9W TDP) @ 500MHz GeodeLink active hardware power management Hardware support for standard ACPI software power management I/O companion SUSP#/SUSPA# power controls Lower power I/O...

  • Page 29: Graphics Support

    AFOLUX LX Series Flat Panel PC Audio Codec 97 (AC97) Controller AC97 specification v2.3 compliant interface to multiple audio codecs: Serial In, Serial Out, Sync Out, Bit Clock In Legacy “PC Beep” support Diverse Device 82xx Legacy Devices IR Communication Port System Management Bus (SMB) Controller LPC (Low Pin Count) Port General Purpose I/Os (GPIOs)

  • Page 30: Table 2-1: Geode Lx Graphics Features

    AFOLUX LX Series Flat Panel PC Feature AMD Geode™ LX Processor Color Depth 8, 16, 32 bpp (A) RGB 4 and 8-bit indexed ROPs 256 (2-src, dest and pattern) BLT Buffers FIFOs in Graphics Processor BLT Splitting Managed by hardware Video Synchronized BLT/Vector Throttle by VBLANK Bresenham Lines...

  • Page 31: Ethernet Controller Specifications

    AFOLUX LX Series Flat Panel PC 2.5 Ethernet Controller Specifications 2.5.1 Overview The Realtek RTL8100C(L) is a highly integrated and cost-effective single-chip Fast Ethernet controller. It is enhanced with an ACPI (Advanced Configuration Power Interface) management function for PCI in order to provide efficient power management for advanced operating systems with OSPM (Operating System Directed Power Management).

  • Page 32: Peripheral Device Interfaces, Connectors, And Slots

    AFOLUX LX Series Flat Panel PC 2.5/3.3V power supply with 5V tolerant I/Os 2.6 Peripheral Device Interfaces, Connectors, and Slots The peripheral device connectors, interfaces and slots on the WAFER-LX motherboard are listed in the sections below. 2.6.1 OEM Options Many of the peripheral device connectors listed below are not connected to any devices.

  • Page 33: External Peripheral Device Connectors

    AFOLUX LX Series Flat Panel PC Figure 2-1: AFLMB-LX800 Connector Overview 2.6.4 External Peripheral Device Connectors The peripheral device connectors listed below are located on the rear panel of the AFLMB-LX800 motherboard. 2 x Ethernet connectors 2 x USB connectors 2 x Serial port connectors 1 x Reset button 1 x Power connector...

  • Page 34: Installation

    AFOLUX LX Series Flat Panel PC Chapter Installation Page 34...

  • Page 35: Installation Precautions

    AFOLUX LX Series Flat Panel PC 3.1 Installation Precautions When installing the flat panel PC, please follow the precautions listed below: Power turned off: When installing the flat panel PC, make sure the power is off. Failing to turn off the power may cause severe injury to the body and/or damage to the system.

  • Page 36: Installation And Configuration Steps

    AFOLUX LX Series Flat Panel PC 3.3 Installation and Configuration Steps The following installation steps must be followed. Unpack the flat panel PC Step 1: Install CF card Step 2: Install HDD (AFL-12A-LX model only) Step 3: Mount the flat panel PC Step 4: Connect peripheral devices to the bottom panel of the flat panel PC Step 5:...

  • Page 37: Packing List

    AFOLUX LX Series Flat Panel PC Pull the plastic cover off the flat panel PC. Step 6: Make sure all the components listed in the packing list are present. Step 7: Step 0: 3.4.1 Packing List The AFOLUX LX flat panel PC is shipped with the following components: Step 1: Quantity Item...

  • Page 38: Cf Card Installation

    AFOLUX LX Series Flat Panel PC 128MB CompactFlash® card with Windows CE 5.0 pre-installed and SDK 1GB CompactFlash® card with Windows XPE pre-installed If any of these items are missing or damaged, contact the distributor or sales Step 2: representative immediately. 3.5 CF Card Installation WARNING: Over-tightening back cover screws will crack the plastic frame.

  • Page 39: Figure 3-2: Afl-08Ah-Lx Plastic Back Cover Removal

    AFOLUX LX Series Flat Panel PC F igure 3-2). Push the power switch while lifting the back cover. More strength is required to separate the cover from the chassis. Figure 3-2: AFL-08AH-LX Plastic Back Cover Removal Locate the CF slot. Insert a CF card into the slot ( Step 3: F igure 3-3).

  • Page 40: Hdd Installation (Af-12A-Lx Only)

    AFOLUX LX Series Flat Panel PC 3.6 HDD Installation (AF-12A-LX Only) WARNING: Over-tightening back cover screws will crack the plastic frame. Maximum torque for cover screws is 5 kg-cm (0.36 lb-ft/0.49 Nm). To install the HDD into the AF-12A-LX, please follow the steps below: Remove the plastic back cover.

  • Page 41: Figure 3-7: Afl-12A-Lx Hdd Bracket Retention Screws

    AFOLUX LX Series Flat Panel PC Disconnect the power switch cable from the motherboard and remove the Step 5: aluminum cover. Remove the four HDD bracket retention screws ( F igure 3-7) and lift the HDD Step 6: bracket off the panel PC. Figure 3-7: AFL-12A-LX HDD Bracket Retention Screws Attach the HDD brackets to the HDD.

  • Page 42: At/Atx Mode Selection

    AFOLUX LX Series Flat Panel PC Re-connect the power switch cable to the motherboard. Step 10: Replace the aluminum back cover to the chassis. Step 11: Replace the plastic back cover. Step 12: Step 0: 3.7 AT/ATX Mode Selection AT and ATX power modes can both be used on the AFOLUX LX series. The selection is made through an AT/ATX switch on the aluminum chassis inside the plastic back cover F igure 3-9).

  • Page 43: Atx Power Mode

    AFOLUX LX Series Flat Panel PC Manufacturing shop flow 3.7.2 ATX Power Mode With the ATX mode selected, the AFOLUX LX panel PC goes in a standby mode when it is turned off. The panel PC can be easily turned on via network or a power switch in standby mode.

  • Page 44: Figure 3-10: Wall-Mounting Bracket

    AFOLUX LX Series Flat Panel PC Select the location on the wall for the wall-mounting bracket. Step 1: Carefully mark the locations of the four brackets screw holes on the wall. Step 2: Drill four pilot holes at the marked locations on the wall for the bracket retention Step 3: screws.

  • Page 45: Figure 3-11: Chassis Support Screws

    AFOLUX LX Series Flat Panel PC Figure 3-11: Chassis Support Screws NOTE: In the diagram below the bracket is already installed on the wall. Secure the panel PC by fastening the retention screw of the wall-mounting Step 9: bracket. ( F igure 3-12).

  • Page 46: Panel Mounting

    AFOLUX LX Series Flat Panel PC Figure 3-12: Secure the Panel PC 3.8.2 Panel Mounting To mount the AFOLUX LX series flat panel PC into a panel, please follow the steps below. Select the position on the panel to mount the flat panel PC. Step 1: Cut out a section from the panel that corresponds to the rear panel dimensions Step 2:...

  • Page 47: Figure 3-13: Afl-07A-Lx Panel Opening

    AFOLUX LX Series Flat Panel PC Figure 3-13: AFL-07A-LX Panel Opening Figure 3-14: AFL-08AH-LX Panel Opening Figure 3-15: AFL-10A-LX Panel Opening Page 47...

  • Page 48: Figure 3-16: Afl-12A-Lx Panel Opening

    AFOLUX LX Series Flat Panel PC Figure 3-16: AFL-12A-LX Panel Opening Slide the flat panel PC through the hole until the aluminum frame is flush against Step 3: the panel. Insert the panel mounting clamps into the pre-formed holes along the edges of Step 4: the chassis, behind the aluminum frame.

  • Page 49: Arm Mounting

    AFOLUX LX Series Flat Panel PC Figure 3-17: Tighten the Panel Mounting Clamp Screws (AFL-10A/12A-LX) 3.8.3 Arm Mounting The AFOLUX LX series is VESA (Video Electronics Standards Association) compliant and can be mounted on an arm with a 75mm or 100mm interface pad. To mount the AFOLUX LX series on an arm, please follow the steps below.

  • Page 50: Figure 3-18: Afl-07A-Lx/Afl-08Ah-Lx Arm Mounting Retention Screw Holes

    AFOLUX LX Series Flat Panel PC Once the mounting arm has been firmly attached to the surface, lift the flat panel Step 2: PC onto the interface pad of the mounting arm. Align the retention screw holes on the mounting arm interface with those in the Step 3: flat panel PC.

  • Page 51: Cabinet And Rack Installation

    AFOLUX LX Series Flat Panel PC Secure the flat panel PC to the interface pad by inserting four retention screws Step 4: through the bottom of the mounting arm interface pad and into the flat panel PC. Step 0: 3.8.4 Cabinet and Rack Installation The AFL LX series flat panel PC can be installed into a cabinet or rack.

  • Page 52: Figure 3-21: Secure The Rack/Cabinet Bracket (Afl-10A-Lx/Afl-12A-Lx)

    AFOLUX LX Series Flat Panel PC mounting clamps for AFL-07A-LX/ AFL-08AH-LX and 6 rack mounting clamps for AFL-10A-LX/AFL-12A-LX. Tighten the screws that pass through the rack mounting clamps until the plastic Step 3: caps at the front of all the screws are firmly secured to the bracket ( F igure 3-21).

  • Page 53: Bottom Panel Connectors

    AFOLUX LX Series Flat Panel PC Figure 3-22: Install into a Rack/Cabinet Once the flat panel PC with the attached rack/cabinet bracket has been properly Step 5: inserted into the rack or cabinet, secure the front of the rack/cabinet bracket to the front of the rack or cabinet ( F igure 3-22).

  • Page 54: Serial Device Connection

    AFOLUX LX Series Flat Panel PC Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN Step 3: cable RJ-45 connector into the onboard RJ-45 connector. Step 0: 3.9.2 Serial Device Connection The AFOLUX LX Series has two single female DB-9 connectors on the bottom panel for a serial device.

  • Page 55: Usb Device Connection

    AFOLUX LX Series Flat Panel PC 3.9.3 USB Device Connection There are two external USB 2.0 connectors. To connect a USB 2.0 or USB 1.1 device, please follow the instructions below. Located the USB connectors. The locations of the USB connectors are shown Step 1: in Chapter 2.

  • Page 56: Power-Up The System

    AFOLUX LX Series Flat Panel PC 3.10 Power-up the System WARNING: Make sure a power supply with the correct input voltage is being fed into the system. Incorrect voltages applied to the system may cause damage to the internal electronic components and may also cause injury to the user.

  • Page 57: System Maintenance

    AFOLUX LX Series Flat Panel PC Chapter System Maintenance Page 57...

  • Page 58: System Maintenance Introduction

    AFOLUX LX Series Flat Panel PC 4.1 System Maintenance Introduction If the components of the AFOLUX LX series fail they must be replaced, such as the wireless LAN module or the motherboard. Please contact the system reseller or vendor to purchase the replacement parts.

  • Page 59: Afl-07A-Lx Internal Aluminum Cover Removal

    AFOLUX LX Series Flat Panel PC Motherboard DDR memory module Wireless LAN module Inverter The internal aluminum back cover of the AFOLUX LX series must be removed. To remove the aluminum back cover, please follow the steps below. 4.3.1 AFL-07A-LX Internal Aluminum Cover Removal Remove the two retention screws securing the internal aluminum cover ( Step 1: F igure...

  • Page 60: Afl-08Ah-Lx Internal Aluminum Cover Removal

    AFOLUX LX Series Flat Panel PC 4.3.2 AFL-08AH-LX Internal Aluminum Cover Removal Remove the four retention screws ( F igure 4-3). Step 1: Figure 4-3: AFL-08AH-LX Aluminum Back Cover Retention Screws Remove the four hexagonal pillars on the bottom panel ( Step 2: F igure 4-4).

  • Page 61: Figure 4-6: The Internal Aluminum Cover Removal

    AFOLUX LX Series Flat Panel PC Push the external interface connector apart from the aluminum cover and lift the Step 5: cover ( F igure 4-6). Figure 4-6: The Internal Aluminum Cover Removal Disconnect the power switch cable ( F igure 4-7) from the motherboard and Step 6: remove the aluminum cover.

  • Page 62: Afl-10A-Lx Internal Aluminum Cover Removal

    AFOLUX LX Series Flat Panel PC 4.3.3 AFL-10A-LX Internal Aluminum Cover Removal Remove the eight retention screws securing the internal aluminum cover Step 1: F igure 4-10). Figure 4-8: AFL-10A-LX Aluminum Back Cover Retention Screws Remove the four hexagonal pillars on the bottom panel ( Step 2: F igure 4-11).

  • Page 63: Afl-12A-Lx Internal Aluminum Cover Removal

    AFOLUX LX Series Flat Panel PC 4.3.4 AFL-12A-LX Internal Aluminum Cover Removal Remove the eight retention screws securing the internal aluminum cover Step 1: F igure 4-10). Figure 4-10: AFL-12A-LX Aluminum Back Cover Retention Screws Remove the four hexagonal pillars on the bottom panel ( Step 2: F igure 4-11).

  • Page 64: Figure 4-12: So-Dimm Socket Location

    AFOLUX LX Series Flat Panel PC Locate the DDR memory module on the motherboard of the flat panel PC Step 3: F igure 4-12). Figure 4-12: SO-DIMM Socket Location Remove the DDR memory module by pulling both the spring retainer clips Step 4: outward from the socket.

  • Page 65: Jumper Settings

    AFOLUX LX Series Flat Panel PC Figure 4-13: DDR SO-DIMM Module Installation 4.5 Jumper Settings NOTE: A jumper is a metal bridge that is used to close an electrical circuit. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them.

  • Page 66: Jp3: Com3 Pin-9 Signal Select Jumper Settings

    AFOLUX LX Series Flat Panel PC Figure 4-14: Jumper Locations 4.5.1 JP3: COM3 Pin-9 Signal Select Jumper Settings The COM3 pin-9 signal can be selected as 12V, 5V or Ring. Description Short 1-2 COM3 pin-9 is 12V output Short 3-4 COM3 pin-9 is RI input Default Short 5-6...

  • Page 67: Jp4: Com1 And Com2 Pin-9 Signal Select Jumper Settings

    AFOLUX LX Series Flat Panel PC 4.5.2 JP4: COM1 and COM2 Pin-9 Signal Select Jumper Settings The COM1 and COM2 pin-9 signal can be selected as 12V, 5V or Ring. Description Short 1, 3 COM1 pin-9 is 12V output Short 3, 5 COM1 pin-9 is 5V output Short 5, 7 COM1 pin-9 is 5V output...

  • Page 68: Jp6: Com2 Mode Select Jumper Settings

    AFOLUX LX Series Flat Panel PC 4.5.4 JP6: COM2 Mode Select Jumper Settings The COM2 can be selected as RS-232 or RS-485. Description Short 1-2 RS-232 Default Short 2-3 RS-485 Short 4-5 RS-232 Default Short 5-6 RS-485 Short 7-8 RS-232 Default Short 8-9 RS-485...

  • Page 69: Award Bios Setup

    AFOLUX LX Series Flat Panel PC Chapter Award BIOS Setup Page 69...

  • Page 70: Introduction

    AFOLUX LX Series Flat Panel PC 5.1 Introduction A licensed copy of Phoenix Award BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed.

  • Page 71: Getting Help

    AFOLUX LX Series Flat Panel PC Previous values for the page menu items Fail-safe defaults for the current page menu items Optimized defaults for the current page menu items Menu in BIOS Save changes and Exit BIOS Table 5-1: BIOS Navigation Keys 5.1.3 Getting Help When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears.

  • Page 72: Load Fail-Safe Defaults

    AFOLUX LX Series Flat Panel PC The following sections will completely describe the menus listed below and the configuration options available to users. The following menu options are seen in B IOS Menu 1. Standard CMOS Features: Changes the basic system configuration. Advanced BIOS Features: Changes the advanced system settings.

  • Page 73: Standard Cmos Features

    AFOLUX LX Series Flat Panel PC Set User Password Use the Set User Password option to set the user password. By default no user password is set. To install a user password, select this field and enter the password. After this option is selected, a red dialogue box appears with “Enter Password: ”.

  • Page 74: Bios Menu 2: Standard Cmos Features

    AFOLUX LX Series Flat Panel PC BIOS Menu 2: Standard CMOS Features Date [Day mm:dd:yyyy] Use the Date option to set the system date. Time [hh/mm/ss] Use the Time option to set the system time. IDE Master and IDE Slave When entering setup, BIOS auto detects the presence of IDE devices.

  • Page 75: Halt On [All, But Keyboard]

    AFOLUX LX Series Flat Panel PC IDE device configurations are changed or set in the IDE Configuration menu. If an IDE device is detected, and one of the above listed two BIOS configuration options is selected, the IDE configuration options shown in Section 5 .2.1 appear.

  • Page 76: Ide Primary Master/Slave

    AFOLUX LX Series Flat Panel PC 5.2.1 IDE Primary Master/Slave Use the IDE Primary Master/Slave menu to set or change the master/slave IDE configurations. IDE HDD Auto-Detection [Press Enter] Use the IDE HDD Auto-Detection option to enable BIOS to automatically detect the IDE settings.

  • Page 77: Capacity

    AFOLUX LX Series Flat Panel PC Select this mode if the HDD capacity is less than 504MB. Select this mode if the HDD capacity is more than 8.4GB. This mode is an extended ECHS mode and while it Large supports HDDs larger than...

  • Page 78: Advanced Bios Features

    AFOLUX LX Series Flat Panel PC Sector The Sector specification indicates how many logical sectors the HDD has been divided into. 5.3 Advanced BIOS Features Use the Advanced BIOS Features menu ( B IOS Menu 3) to configure the CPU and peripheral device configuration options.

  • Page 79: Cpu Internal Cache [Enabled]

    AFOLUX LX Series Flat Panel PC appear when the program attempts to access the boot sector table. If you are running such a program, it is recommended that the virus protection function be disabled beforehand. Use the Virus Warning option to enable BIOS to monitor the boot sector and partition table of the HDD for any attempted modification.

  • Page 80: Boot Device

    AFOLUX LX Series Flat Panel PC Boot Device Use the Boot Device options to select the order of the devices the system boots from. There are three boot device configuration options: First Boot Device [Default: HDD-0] Second Boot Device [Default: HDD-1] Third Boot Device [Default: CDROM] Using the default values, the system first looks for the first HDD to boot from.

  • Page 81: Boot Up Numlock Status [On]

    AFOLUX LX Series Flat Panel PC (Default) The system looks for second and third boot devices if the Enabled first one is not found. Boot Up Numlock Status [On] Use the Boot Up Numlock Status option to specify the default state of the numeric keypad.

  • Page 82: Typematic Delay (Msec) [250]

    AFOLUX LX Series Flat Panel PC 8 characters per second 10 characters per second 12 characters per second 15 characters per second 20 characters per second 24 characters per second 30 characters per second Typematic Delay (Msec) [250] The Typematic Rate option can only be configured if the Typematic Rate Setting is enabled.

  • Page 83: Advanced Chipset Features

    AFOLUX LX Series Flat Panel PC asked to enter a password, don’t type anything, press E and the NTER security is disabled. Once the security is disabled, the system boots and Setup can be accessed. OS Select For DRAM > 64MB [Non-OS2] Use the OS Select For DRAM >...

  • Page 84: Bios Menu 4: Advanced Chipset Features

    AFOLUX LX Series Flat Panel PC BIOS Menu 4: Advanced Chipset Features CPU Frequency [500MHz] Use the CPU Frequency option to set the CPU frequency. The CPU Frequency options are: Auto 200MHz 333MHz 400MHz 433MHz 500MHz (Default) Memory Frequency [Auto] Use the Memory Frequency option to set the frequency of the installed DRAM modules.

  • Page 85: Integrated Peripherals

    AFOLUX LX Series Flat Panel PC Auto (Default) 100MHz 133MHz 166MHz 200MHz Video Memory Size [32M] Use the Video Memory Size option to determine how much memory is allocated to the video graphics device. The Video Memory Size options are: None 32M (Default) 128M...

  • Page 86: Bios Menu 5: Integrated Peripherals

    AFOLUX LX Series Flat Panel PC BIOS Menu 5: Integrated Peripherals On-Chip IDE Channel 1 [Enabled] Use the On-Chip IDE Channel 1 option to specify if the system uses the integrated primary IDE channel or not. The primary IDE channel is not used. Disabled (Default) The primary IDE channel is used.

  • Page 87: Ide Udma [Auto]

    AFOLUX LX Series Flat Panel PC Master Drive PIO Mode Slave Drive PIO Mode (Default) The computer selects the correct mode. Auto PIO mode 0 selected with a maximum transfer rate of 3.3MBps. Mode 0 PIO mode 1 selected with a maximum transfer rate of 5.2MBps. Mode 1 PIO mode 2 selected with a maximum transfer rate of 8.3MBps.

  • Page 88: Onboard Serial Port 1 [3F8/Irq4]

    AFOLUX LX Series Flat Panel PC the system IDE drive can support. Block mode is also called block transfer, multiple commands, or multiple sector read/write. Block mode is not supported. Disabled (Default) Block mode is supported. Enabled Onboard Serial Port 1 [3F8/IRQ4] Use the Onboard Serial Port 1 option to select the I/O address and IRQ for the onboard serial port 1.

  • Page 89: Power Management Setup

    AFOLUX LX Series Flat Panel PC Disabled 2E8 (Default) Touch controller Use IRQ [IRQ7] Use the Touch controller Use IRQ option to select the IRQ for the onboard touch panel controller port. The touch panel controller port can be disabled or the IRQ can be automatically selected by the BIOS.

  • Page 90: Bios Menu 6: Power Management Setup

    AFOLUX LX Series Flat Panel PC BIOS Menu 6: Power Management Setup ACPI Function [Enabled] Use the ACPI Function to enable the ACPI (Advanced Configuration and Power Interface) function. ACPI function disabled. Disabled (Default) ACPI function enabled. Enabled Page 90...

  • Page 91: Acpi Suspend Type [S1(Pos)]

    AFOLUX LX Series Flat Panel PC ACPI Suspend Type [S1(POS)] Use the ACPI Suspend Type BIOS option to specify the sleep state the system enters when not being used. (Default) System appears off. The CPU is stopped; RAM is S1 (POS) refreshed;...

  • Page 92: Suspend Mode [Disabled]

    AFOLUX LX Series Flat Panel PC 10 Sec 15 Sec 30 Sec 45 Sec 1 Min 5 Min 10 Min 15 Min 30 Min 45 Min 60 Min 90 Min 120 Min x Suspend Mode [Disabled] The Suspend Mode option can only be selected if the Power Management option is set to Legacy.

  • Page 93: Modem Use Of Irq

    AFOLUX LX Series Flat Panel PC Modem Use of IRQ Use the Modem Use of IRQ to select the IRQ address for the system modem. The following IRQ addresses are available. 3 (Default) Wake-on Lan Control [Disabled] Use the Wake-on Lan Control option to enable activity on the LAN to rouse the system from a suspend or doze state.

  • Page 94: Time (Hh:mm:ss) Alarm

    AFOLUX LX Series Flat Panel PC (Default) The real time clock (RTC) cannot generate a wake Disabled event If selected, the following appears with values that Enabled can be selected: Time (hh:mm:ss) Alarm After setting the alarm, the computer will turn itself on from a suspend state when the alarm goes off.

  • Page 95: Pnp/Pci Configurations

    AFOLUX LX Series Flat Panel PC IRQ4 (COM 1) IRQ5 (LPT 2) IRQ6 (Floppy Disk) IRQ7 (LPT 1) IRQ8 (RTC Alarm) IRQ9 (IRQ2 Redir) IRQ10 (Reserved) IRQ11 (Reserved) IRQ12 (PS/2 Mouse) IRQ13 (Coprocessor) IRQ14 (Hard Disk) IRQ15 (Reserved) 5.7 PnP/PCI Configurations Use the PnP/PCI Configurations menu ( B IOS Menu 8) to set the plug and play, and PCI options.

  • Page 96: Pnp Os Installed [No]

    AFOLUX LX Series Flat Panel PC PNP OS Installed [No] The PNP OS Installed option determines whether the Plug and Play devices connected to the system are configured by the operating system or the BIOS. (Default) If the operating system does not meet the Plug and Play specifications, BIOS configures all the devices in the system.

  • Page 97: Irq Resources [Press Enter]

    AFOLUX LX Series Flat Panel PC well as boot devices. Manually configure the plug and play devices and any Manual other boot devices. x IRQ Resources [Press Enter] The IRQ Resources option can only be selected if the Resources Controlled By option is set to Manual.

  • Page 98: Pc Health Status

    AFOLUX LX Series Flat Panel PC PCI/VGA Palette Snoop [Disabled] Use the PCI/VGA Palette Snoop option to enable the system to determine whether or not some special VGA cards, high-end hardware MPEG decoders and other similar devices are allowed to look at the VGA palette on the video card so these devices can determine what colors are in use.

  • Page 99: Voltages

    AFOLUX LX Series Flat Panel PC Voltages The following voltages are monitored: Vcore VccMem +3.3 V +12 V VBAT(V) 5VSB(V) Page 99...

  • Page 100: A Safety Precautions

    AFOLUX LX Series Flat Panel PC Appendix Safety Precautions Page 100...

  • Page 101: Safety Precautions

    AFOLUX LX Series Flat Panel PC WARNING: The precautions outlined in this chapter should be strictly followed. Failure to follow these precautions may result in permanent damage to the AFOLUX LX series. A.1 Safety Precautions Please follow the safety precautions outlined in the sections that follow: A.1.1 General Safety Precautions Please ensure the following safety precautions are adhered to at all times.

  • Page 102: Anti-Static Precautions

    AFOLUX LX Series Flat Panel PC A.1.2 Anti-static Precautions WARNING: Failure to take ESD precautions during the installation of the AFOLUX LX series may result in permanent damage to the AFOLUX LX series and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the AFOLUX LX series.

  • Page 103: Product Disposal

    AFOLUX LX Series Flat Panel PC A.1.3 Product Disposal CAUTION: Risk of explosion if battery is replaced by and incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations. Outside the European Union - If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.

  • Page 104: Cleaning Tools

    AFOLUX LX Series Flat Panel PC Except for the LCD panel, never spray or squirt liquids directly onto any other components. To clean the LCD panel, gently wipe it with a piece of soft dry cloth or a slightly moistened cloth. The interior of the AFOLUX LX series does not require cleaning.

  • Page 105: B Bios Configuration Options

    AFOLUX LX Series Flat Panel PC Appendix BIOS Configuration Options Page 105...
  • Page 106 AFOLUX LX Series Flat Panel PC BIOS Configuration Options Below is a list of BIOS configuration options described in Chapter BIOS Menu 1: Award BIOS CMOS Setup Utility ................71 　 Load Fail-Safe Defaults .......................72 　 Load Optimized Defaults.....................72 　 Set Supervisor Password....................72 　...
  • Page 107 AFOLUX LX Series Flat Panel PC 　 Gate A20 Option [Fast] ......................81 　 Typematic Rate Setting [Disabled]..................81 　 Typematic Rate (Chars/sec) [6] ..................81 　 Typematic Delay (Msec) [250].....................82 　 Security Option [Setup].......................82 　 OS Select For DRAM > 64MB [Non-OS2] ................83 　...
  • Page 108 AFOLUX LX Series Flat Panel PC BIOS Menu 8: PnP/PCI Configurations..................95 　 PNP OS Installed [No]......................96 　 Init Display First [Onboard]....................96 　 Reset Configuration Data [Disabled] .................96 　 Resources Controlled By [Auto (ESCD)]................96 　 x IRQ Resources [Press Enter]...................97 　 x Memory Resources [Press Enter] ...................97 　...

  • Page 109: C Software Drivers

    AFOLUX LX Series Flat Panel PC Appendix Software Drivers Page 109...

  • Page 110: Remote Management Tool

    AFOLUX LX Series Flat Panel PC C.1 Remote Management Tool IEI provides optional pre-installed Windows XP Embedded or Windows CE 5.0 turnkey solutions tailored for the AFOLUX series. For information about configuring the operating system, adding remote management tools or additional software and drivers, refer to the software user manuals on IEI AFOLUX series Utility CD that came with the AFOLUX series flat panel PC.

  • Page 111: Driver Installation

    AFOLUX LX Series Flat Panel PC C.2.2 Driver Installation To install the touch panel software driver, please follow the steps below. Insert the driver CD that came with the AFOLUX series into the CD drive. Step 1: Once the CD drive is installed, the screen in Figure C-1 appears. Step 2: Figure C-1: Driver CD Pop Up Screen Select the operating system installed on the system from the menu on the...
  • Page 112 AFOLUX LX Series Flat Panel PC Once the OS system is selected, a welcome screen appears (Figure C-2). To Step 4: continue the installation process click N Figure C-2: Welcome Screen The license agreement shown in Figure C-3 appears. Agree to the license by Step 5: selecting “I accept the terms in the license agreement”.
  • Page 113 AFOLUX LX Series Flat Panel PC Figure C-4: Ready to Install the Program Click I to continue. The Installing PenMount DMC9000 screen appears Step 7: NSTALL as the program is installed (Figure C-5). Figure C-5: Installing PenMount DMC9000 The user is then prompted to select to restart the computer now or later (Figure Step 8: C-6).

  • Page 114: Touch Panel Driver Configuration

    AFOLUX LX Series Flat Panel PC Figure C-6: Reboot the Computer C.2.3 Touch Panel Driver Configuration To configure the touch panel driver options, refer to the PenMount user manual located on the driver installation CD. Page 114...

  • Page 115: D Watchdog Timer

    AFOLUX LX Series Flat Panel PC Appendix Watchdog Timer Page 115...
  • Page 116 AFOLUX LX Series Flat Panel PC NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.
  • Page 117 AFOLUX LX Series Flat Panel PC NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BX, 05 ;time-out value is 5 seconds ;...
