Summary of Contents for StarTech.com 8STUSB1000IP

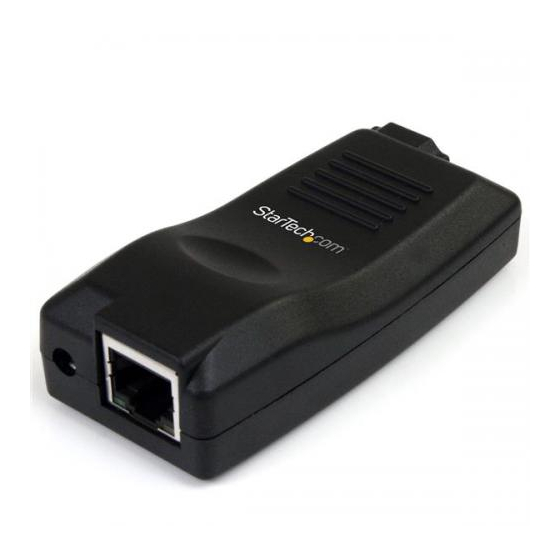

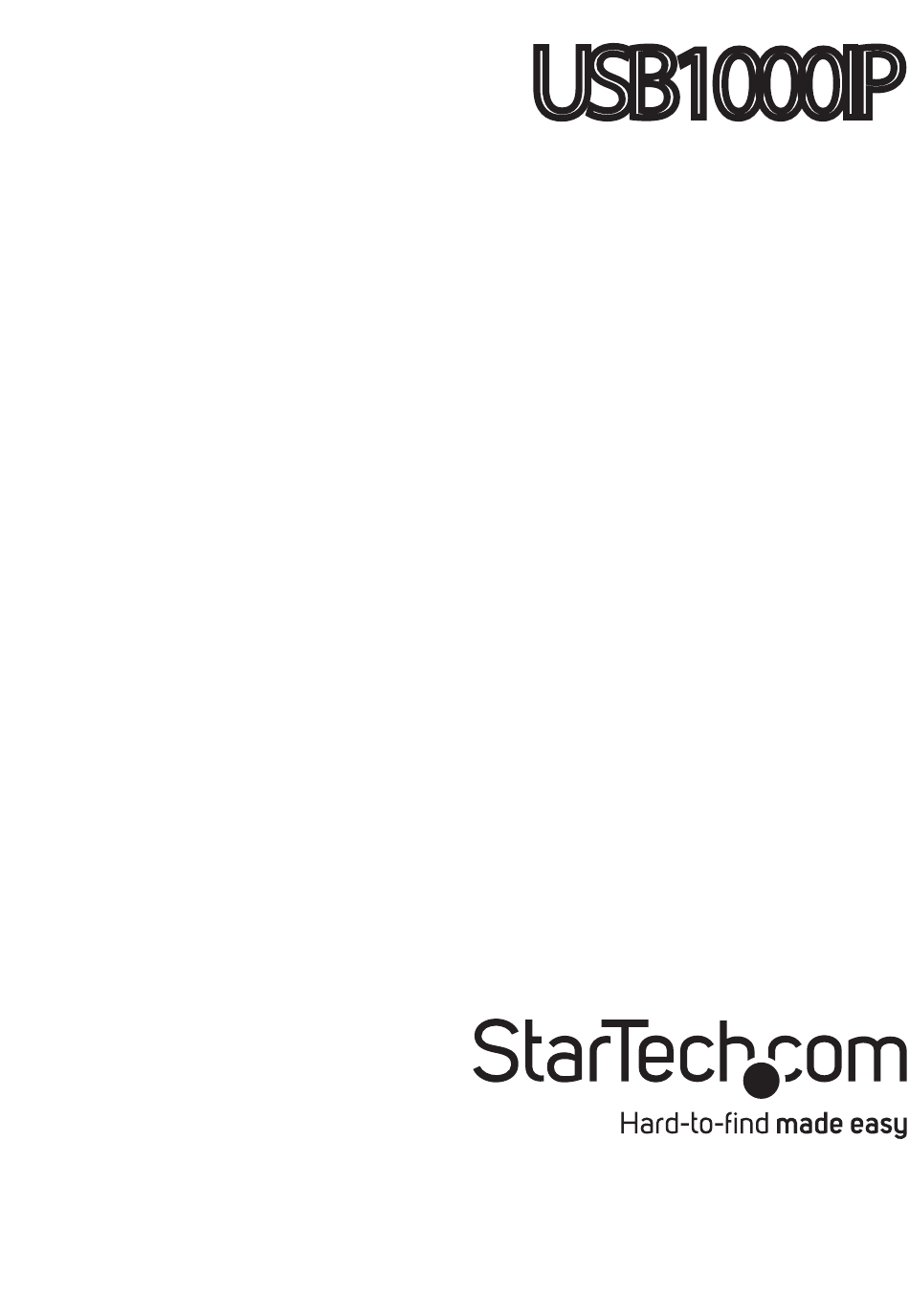

- Page 1 USB1000IP Instruction Manual USB Device Server 10/100/1000Mbps Gigabit 1-Port USB over IP Device Server Manual Revision:06/01/2015 For the most up-to-date information, please visit www.startech.com...
- Page 2 This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.
-
Page 3: Table Of Contents
Table of Contents Introduction ..........................1 Packaging Contents ............................1 System Requirements ...........................1 Side View 1 ................................2 Side View 2 ................................2 Installation ........................... 3 Hardware Installation ............................3 Software Installation ............................3 How to Use ..........................4 USB Server Software Setup .........................4 Specifications ..........................7 Technical Support ........................ -
Page 4: Introduction
Introduction The USB1000IP 10/100/1000 Mbps Gigabit 1-Port USB over IP Device Server provides a simple to use, and convenient way to extend a USB device over long distances and allows for sharing that device with multiple users over your 10/100 or 1000 Mbps Ethernet network. -
Page 5: Side View 1
Side View 1 Side View 2... -
Page 6: Installation
Installation Hardware Installation 1. Connect the USB device that will be shared to the USB IP device server. NOTE: USB hubs are not supported by the USB IP device server. 2. Connect an RJ45 terminated Ethernet cable from the network to the USB IP device server. -
Page 7: How To Use
How to Use USB Server Software Setup 1. Make sure the USB device is connected to the device server and it is powered on (if applicable). 2. Double-click the “Launch USB Server” shortcut icon on the desktop to start the program. - Page 8 the proper network settings. Consult with the network administrator if unsure how to configure. 4. The USB device connected to the device server should appear below it and list what type of device it is and it’s current status. 5. If the USB device is available, selecting it and clicking the “Connect” button will automatically link the device to the computer system, making it appear as a locally connected USB device.
- Page 9 USB Device Status Status Description The attached USB device is ready and waiting for a connection. The USB device is on a different IP range than the computer system. The network settings need to be configured. The USB device is currently connected to the computer system. The USB device is currently connected to a different computer system and unavailable.
-
Page 10: Specifications
Specifications Number of Ports Bus Interface USB 2.0 Chipset ID Elite Silicon E3868M1 1 x USB type A female Connectors 1 x RJ45 Ethernet female 1 x Power LEDs 1 x Ethernet Link/Activity Networking Standards IEEE 802.3-2002, 802.3ab USB 2.0: 480Mbps Maximum Data Transfer Rate Ethernet: 10/100/1000Mbps Auto-MDIX Support... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of...
