Luxul XAP-1440 Quick Install Manual

Luxul XAP-1440 Quick Install Manual

Ac1200 dual-band outdoor wireless access point

Advertisement

Quick Links

QUICK INSTALL GUIDE
AC1200 Dual-Band Outdoor
Wireless Access Point
XAP-1440
Includes:

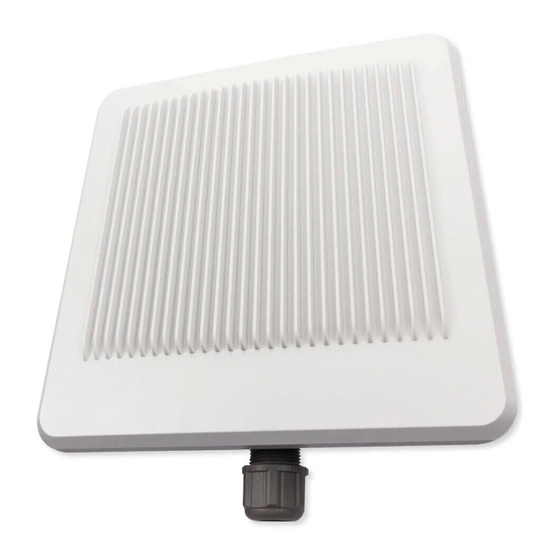

XAP-1440 Wireless Access Point
PoE Injector and Power Cord
Mounting Bracket and Hardware
Ethernet Cable

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XAP-1440 and is the answer not in the manual?

Questions and answers

Summary of Contents for Luxul XAP-1440

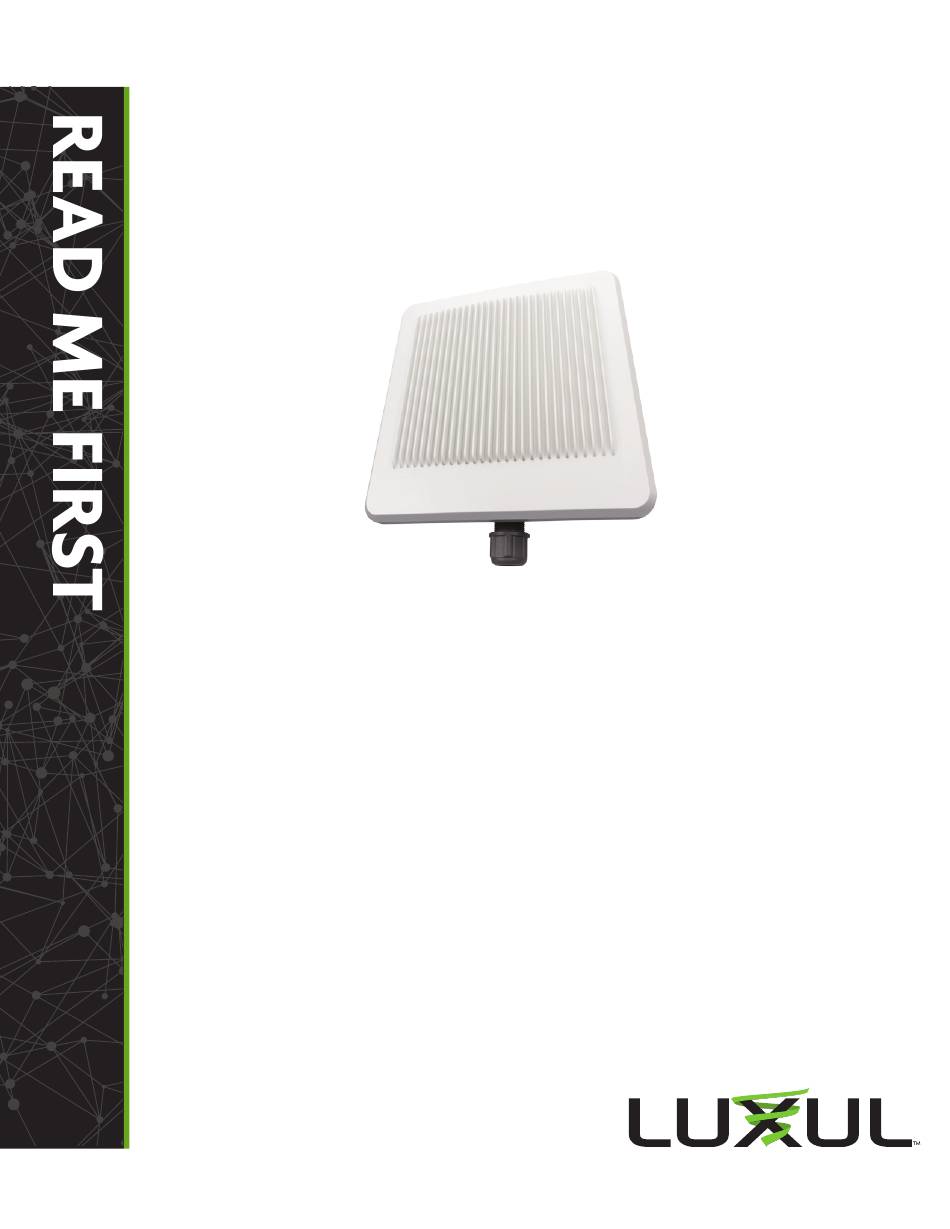

  • Page 1 QUICK INSTALL GUIDE AC1200 Dual-Band Outdoor Wireless Access Point XAP-1440 Includes: XAP-1440 Wireless Access Point „ PoE Injector and Power Cord „ Mounting Bracket and Hardware „ Ethernet Cable „...
  • Page 2 READ ME FIRST - CONTROLLER COMPATIBILITY This XAP-1440 is compatible with the Luxul Wireless Controller for fast, easy configuration and deployment of wireless networks with multiple APs. Note: If you’ll be using this AP with a Wireless Controller, refer to the Quick Install Guide included with the Wireless Controller for setup instructions.
  • Page 3 2. Thread the Ethernet cable through the cable gland assembly as shown, connect it to the Ethernet connector, secure the cable gland to the threaded recess on the access point, then tighten the cable gland nut to secure and seal the cable gland. Cable gland exploded view 3.
  • Page 4 Connecting Ethernet and Power Ethernet and Power The XAP-1440 is PoE ready and supports 802.3at PoE. A PoE injector is included with the device. To apply power, simply connect the end of the Ethernet cable to which the access point is connected to the provided PoE injector or other PoE switch.
  • Page 5 Note: Visit http://luxul.com/ip-addressing to learn more about changing your computer’s IP address and getting connected. Note: The XAP-1440 is not a router and will need to be connected to a network with a router in order to deliver Internet access.
  • Page 6 Getting Connected Connecting Via an Ethernet Device: Use Ethernet cable to connect your computer to the PoE switch or PoE injector to which the XAP-1440 is connected. Ethernet is the preferred method of connection. Connecting Via a Wireless Device: Connect your client device to the XAP-1440 default wireless network named Luxul_XAP-1440.
  • Page 7 The LED indicators are located on the bottom portion of the enclosure, near the cable gland. PWR: If the green Power LED is On, the XAP-1440 is powered. If the Power LED is Off, the XAP-1440 is not receiving power. The Power LED blinks when the XAP-1440 is booting.
  • Page 8 Luxul product. © Copyright 2017 Luxul. All rights reserved. The name Luxul, the Luxul logo, the Luxul logo mark and Simply Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other trademarks and registered trademarks are property of their respective holders.
