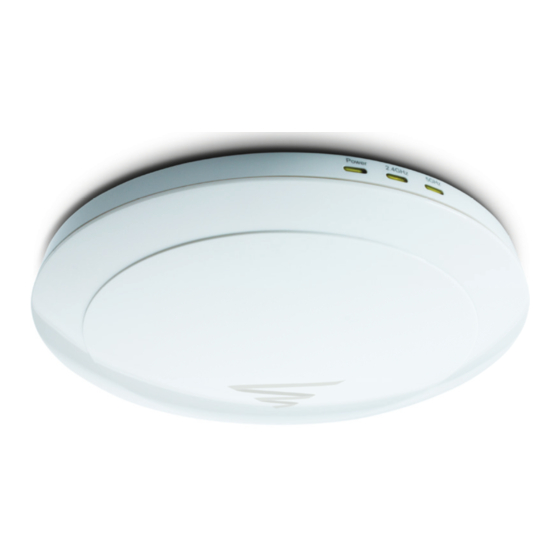

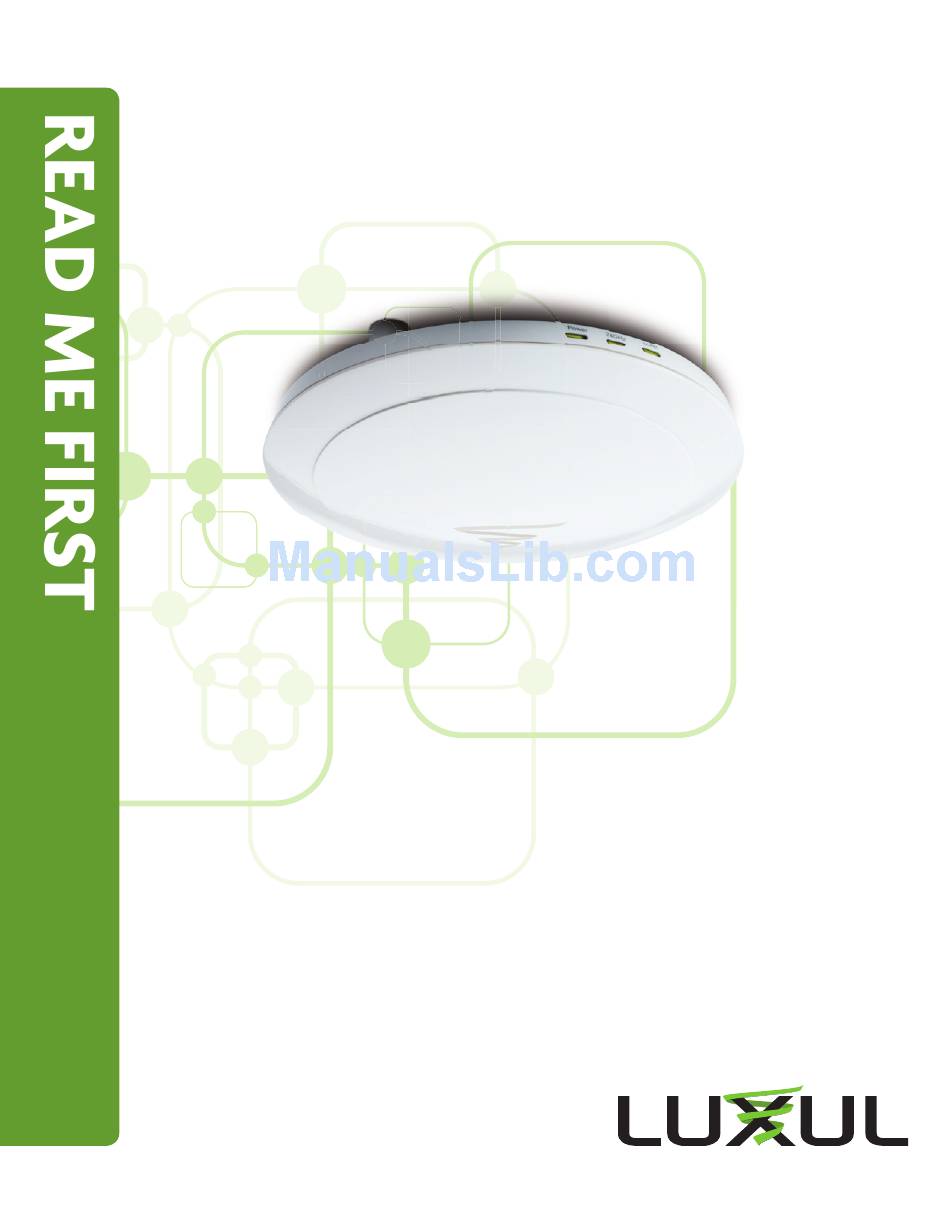

- Page 1 QUICK INSTALL GUIDE High Power Dual-Band Wireless 900N Low Profi le Access Point XAP-1500 Includes: One: XAP-1500 Dual Band Wireless AP „ One: Mounting Bracket and Hardware „ One: PoE Injector and Power Cord „ Two: Ethernet Cables „...
-
Page 2: Physical Installation
APs fi rmware before installing the Wireless Controller. Luxul APs running fi rmware version 5 or later (like the one in this package) are Wireless Controller-compatible and can be used with the Controller as-is. When purchasing Luxul APs for use with the Wireless Controller, look for an orange “Version 5 Firmware”... - Page 3 APs in the range of -60 to -70 dBm at the midway point between two APs XAP-1500 Multiple AP Coverage and Overlap Note: Consider using Ekahau HeatMapper to assist with this process, available from www.ekahau.com. Luxul also offers an informative “How-To” video on HeatMapper at luxul.com/how-to-videos.
- Page 4 PoE Injector to the PoE Port of the XAP-1500 AC Power: Connect the included AC Cord to the Power Input of the Included Injector fi rst and then to the AC outlet. Luxul AP DATA & PWR OUT...
- Page 5 Once you’re fi nished confi guring the AP, you can return your computer’ s IP confi guration to normal, typically “Obtain Automatically/DHCP.” Note: Visit http://luxul.com/ip-addressing to learn more about changing your computer’s IP address and getting connected. Access and Setup...
-
Page 6: Led Indicators
Connecting Via a Wireless Device: Connect your client device to the XAP-1500 default wireless network named Luxul1500_24 or Luxul1500_5X. Both wireless networks will run in Open Security mode, so no passphrase is required until Wireless Security is confi gured. Logging In To access the AP’... -
Page 7: Reset Button
Ethernet Ports: If the PoE (Power and Data Input) port LED is Yellow, the AP is connected at 10/100; Green indicates connection at 1000Mbps. If the LAN (Data Out) port LED is fl ashing, data packets are being passed. PoE Injector: If the PWR LED is On, Power is Connected to the injector. - Page 8 No part of this publication, or any other publication may be modifi ed or adapt- ed in any way, for any purposes without permission in writing from Luxul. The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design.
