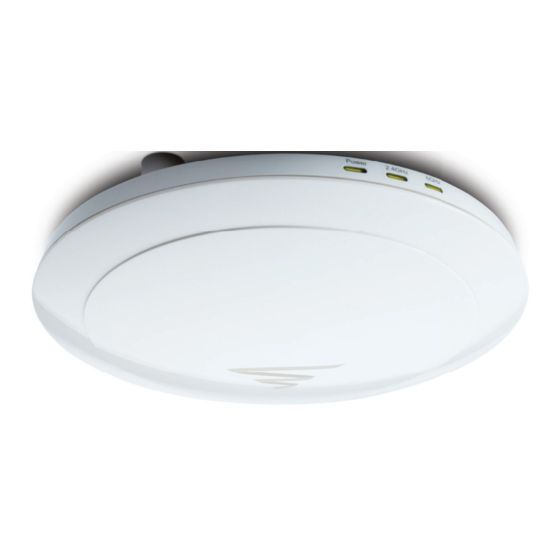

High Power Dual-Band Wireless 900N
Use the XAP-1500 to:
Deliver Broader Wi-Fi Coverage and Eliminate Client
„
Device Roaming Issues with Fewer APs
Maximize Data Rates with Concurrent Dual-Band
„
(2.4GHz and 5GHz) Technology
Optimize VoIP, Streaming Media and Other
„
Demanding Applications
Create a Secure Guest Network
„
Simplify Wi-Fi Installation while Minimizing
„
Setup Time and Costs
Minimize Unsightly Cables and Equipment
„
Quick Install Guide
Low Profi le Access Point
Simply Connected
XAP-1500

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XAP-1500 and is the answer not in the manual?

Questions and answers

Related Manuals for Luxul XAP-1500

Summary of Contents for Luxul XAP-1500

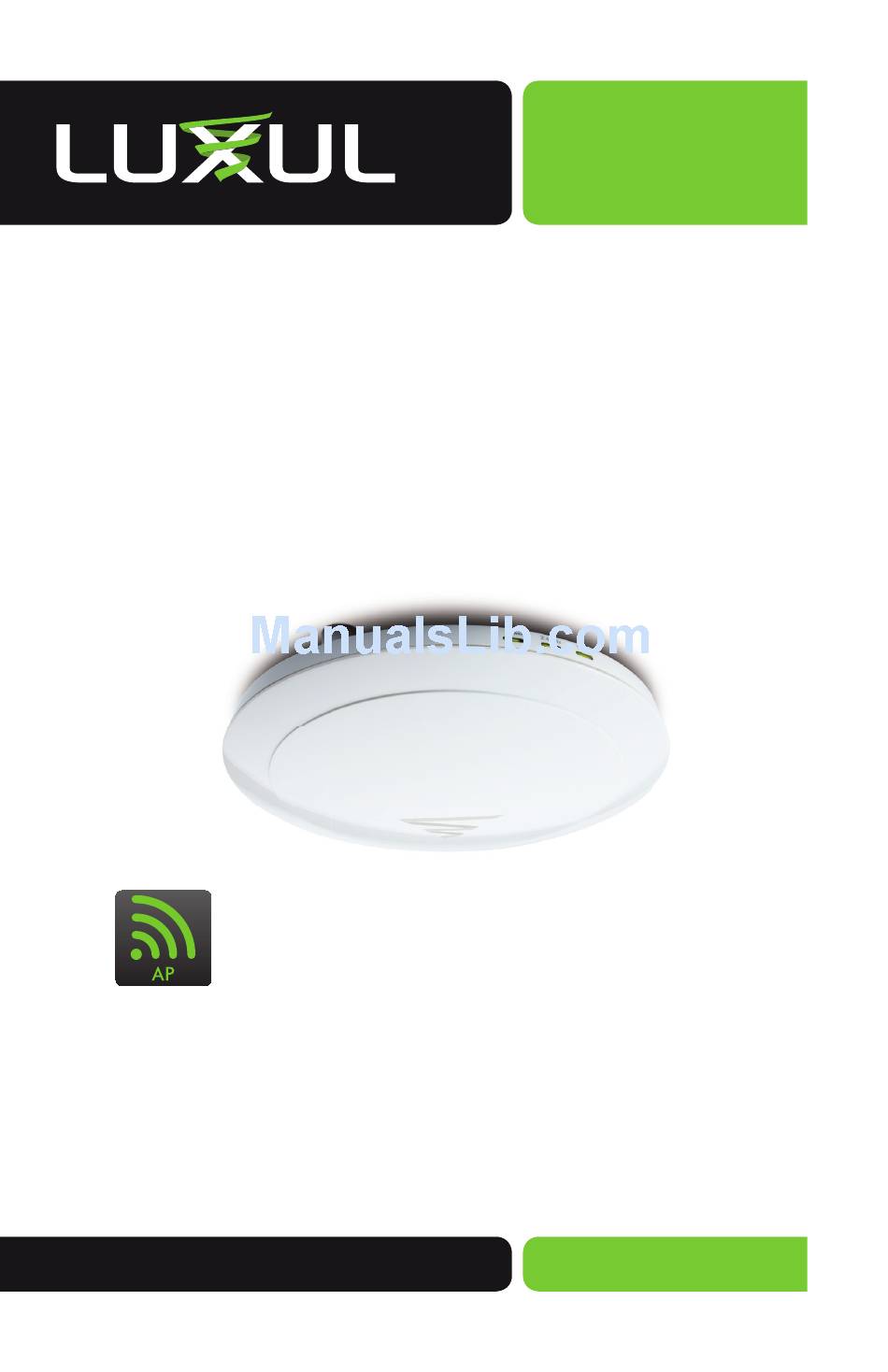

  • Page 1 Simply Connected Quick Install Guide XAP-1500 High Power Dual-Band Wireless 900N Low Profi le Access Point Use the XAP-1500 to: Deliver Broader Wi-Fi Coverage and Eliminate Client „ Device Roaming Issues with Fewer APs Maximize Data Rates with Concurrent Dual-Band „...

  • Page 2: Document Conventions

    No part of this publication may be modifi ed or adapted in any way, for any purposes without permission in writing from Luxul. The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design. No license is granted, either expressly or by implication or otherwise under any Luxul intellectual property rights.

  • Page 3: Package Contents

    Simply Connected PACKAGE CONTENTS The following items should be included in the box: One: XAP-1500 Dual Band Wireless AP „ One: Mounting Bracket and Hardware „ One: PoE Injector and Power Cord „ Two: Ethernet Cables „ One: Quick Install Guide „...

  • Page 4: Preparing For Installation

    Ceiling and Wall Mounting The XAP-1500 comes with a circular mounting bracket to mount it to the wall or ceiling. Use the Mounting Pattern (Page 6-7) for mounting bracket alignment.

  • Page 5: Desktop Installation

    Data & PWR Out: Connect an Ethernet cable from the Data & PWR Out „ port of the included PoE Injector to the PoE Port of the XAP-1500 © 2014 Luxul. All Rights Reserved. Other trademarks and registered trademarks are the property of their respective owners...

  • Page 6: Mounting Pattern

    MOUNTING PATTERN...

  • Page 8: Default Ip Address

    CONFIGURATION Default IP Address The XAP-1500 is not equipped with internal DHCP server. If connected to a Luxul Router, configuration will be automatic. Otherwise, the IP address of the computer for login and configuration will need to be manually configured. The table below lists the default parameters of the XAP-1500.

  • Page 9: Advanced Settings

    Default user name: admin Default password: admin The Luxul XAP-1500 default IP addresss is 192.168.0.16. If the IP address of your router is not set to the 192.168.0.X network, a temporary static IP address must be set on the computer being used for configuration. To do so, set the IP address of the computer to the 192.168.0.X range and then use the default IP address of your XAP-...

  • Page 10: Warnings And Safety Information

    „ ACCESSORIES OUT OF THE REACH OF CHILDREN! The XAP-1500 may become hot when in use for extended time periods. This is normal and is not a „ malfunction. DO NOT install where it will be exposed to paper, cloth or other flammable materials.

  • Page 11: Radiation Exposure Statement

    This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environ- ment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. © 2014 Luxul. All Rights Reserved. Other trademarks and registered trademarks are the property of their respective owners...
  • Page 12 RJ45 cable Hereby, Luxul, 14203 Minuteman Drive, Suite 201, Draper, Utah, 84020, declares that this Luxul XAP-1500 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For a copy of this report send a self addressed stamped envelope to: Luxul CE, 14203 Minuteman Drive, Suite 201, Draper, Utah, 84020.
