Luxul XAP-1040 User Manual

High performance outdoor 802.11b/g/n
Hide thumbs Also See for XAP-1040:
Table of Contents

Advertisement

Quick Links

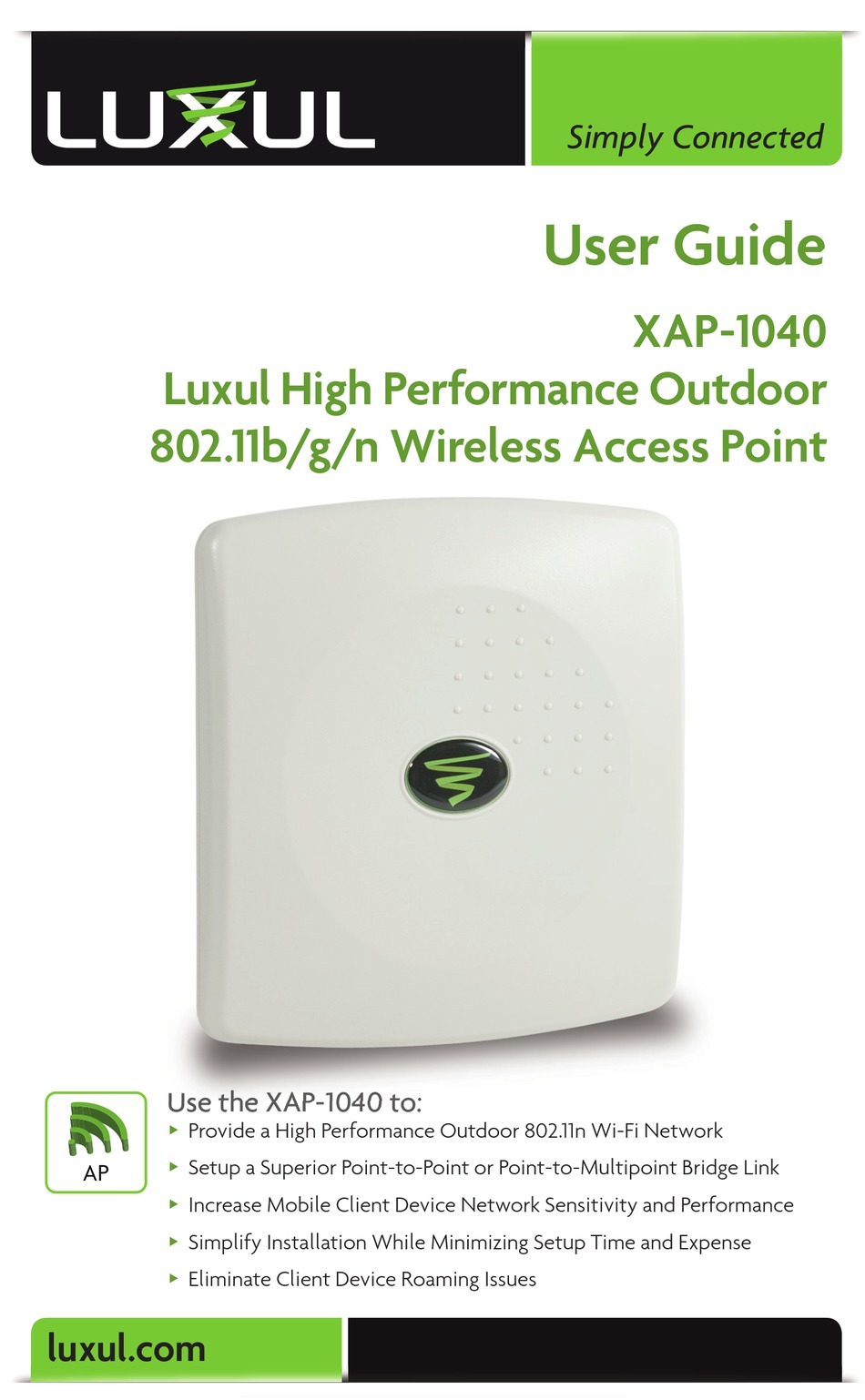

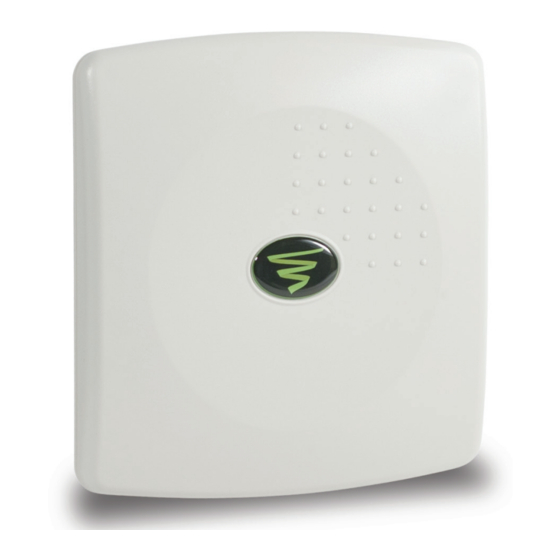

Luxul High Performance Outdoor
802.11b/g/n Wireless Access Point
Use the XAP-1040 to:
Use the XAP-1040 to:
Provide a High Performance Outdoor 802.11n Wi-Fi Network
Setup a Superior Point-to-Point or Point-to-Multipoint Bridge Link
AP
Increase Mobile Client Device Network Sensitivity and Performance
Simplify Installation While Minimizing Setup Time and Expense
Eliminate Client Device Roaming Issues
luxul.com
Simply Connected

User Guide

XAP-1040

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XAP-1040 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Luxul XAP-1040

Summary of Contents for Luxul XAP-1040

  • Page 1: User Guide

    Simply Connected User Guide XAP-1040 Luxul High Performance Outdoor 802.11b/g/n Wireless Access Point Use the XAP-1040 to: Use the XAP-1040 to: Provide a High Performance Outdoor 802.11n Wi-Fi Network  Setup a Superior Point-to-Point or Point-to-Multipoint Bridge Link  Increase Mobile Client Device Network Sensitivity and Performance ...

  • Page 2: Document Conventions

    (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 3: Table Of Contents

    User Guide CONTENTS 1 INTRODUCTION 1.1 Warnings 1.2 Site Preparation 2 XAP-1040 SPECIFICATIONS 3 GETTING STARTED 3.1 System Requirements 3.2 Package Contents 3.3 Safety Information 4 HARDWARE FEATURES AND INSTALLATION 4.1 Front View 4.2 Rear View 4.3 Bottom View 4.4 Inside View 4.5 Environmental Requirements...

  • Page 4: Introduction

    Easy 3 Step Setup through Web-based User Interface  Weather Resistant IP-66 Compliant Enclosure  Installs Directly on an Outdoor Wall or on a Pole Using Adjustable Mounting  Bracket © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 5: Warnings

    1.1 Warnings Read all installation instructions and site survey reports, and verify correct equip-  ment installation before connecting the XAP-1040 to its power source. Remove jewelry and watches before installing this equipment.  Verify that the unit is grounded before connecting it to the power source.

  • Page 6: Xap-1040 Specifications

    FCC Part 15, Class B  Power Requirements Ethernet POE in: 48VDC/0.375A for IEEE 802.3af Compliance  Power Consumption: 5W Nominal, 13W Max  © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 7: Getting Started

    3.3 Safety Information To maintain the safety of users and property, follow these safety instructions: The XAP-1040 wireless access point is designed for outdoor use and is compliant  with IP-66 standards. However, this does not mean it is waterproof or weather- proof.

  • Page 8: Hardware Features And Installation

    Because the signal generated by the XAP-1040 is directional in nature, the unit should be placed in a location that allows the antenna face to be “pointed”...

  • Page 9: Rear View

    XAP-1040 Rear View 4.3 Bottom View The bottom of the XAP-1040 provides one RJ-45 connection that is used to deliver both power and data to the access point. When installation is complete, a weather resistant RJ-45 connector gland will cover the RJ-45 connection.
  • Page 10 For troubleshooting, functional validation or system Reset, you will need to open the XAP-1040. To do so, remove the 4 screws at the back of the unit. After doing so, carefully lift the base up and to the right as demonstrated below:...
  • Page 11 No power, check power connections At startup, the Green Power LED will stay on while the amber LAN Link light fl ashes. The blue LED will come on once the XAP-1040 wireless radio is active. 11 11 a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | p: 801-822-5450...

  • Page 12: Environmental Requirements

    To Restore the Default Settings: With the XAP-1040 powered on, press and hold the Reset button for 15 seconds. When all the LEDs except the power LED turn off, release the reset button. The power LED will stay solid. The XAP-1040 will be set to factory defaults.
  • Page 13 XAP-1040 Suggested Mounting Location 4.6.2 Mounting the Access Point on a Wall or Pole The XAP-1040 can be mounted directly to a wall or pole using the included mount- ing bracket. Once the mounting location has been selected, installation is as simple...
  • Page 14 Once the RJ45 Connector Gland has been assembled and the Ethernet Cable has been terminated, the cable can now be plugged into the XAP-1040. You can now at- tach the RJ-45 Connector Gland by placing it over the cable connector and turning it clockwise until it is fi...

  • Page 15: Configuration

    5 CONFIGURATION 5.1 Login The XAP-1040 is not equipped with internal DHCP server. If connected to the Luxul XBR-2300 Enterprise Dual-WAN Router, IP address IP address confi guration will be automatic. Otherwise, the IP address of the computer for login and confi guration will need to be manually confi...

  • Page 16: Quick Setup

    IP address assigned to the Access Point. To Enable DHCP, click on the drop down menu and select Enable. Select Apply and then Reboot for the change to take effect. © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
  • Page 17 IP Address: An IP address is a numerical label assigned to each device on the net-  work. This fi eld shows the IP address that is assigned to the XAP-1040. To ensure plug and play capability with other Luxul networking products, the IP Address is automatically defaulted to 192.168.0.14.
  • Page 18 To change the WEP Key, simply enter the 26 character key then click Save and then Reboot for the change to take effect. © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 19: Wireless

    User Guide WPA Passphrase: This sets the passphrase used by client devices to connect to  the wireless network when using WPA Security Mode. For WPA the passphrase: Must be a minimum of 8, maximum of 63 characters  Can contain spaces or special characters (i.e. @#$%&*) ...
  • Page 20 If making any change to the Wireless Settings, select Save and then Reboot for the settings to take effect. 5.3.2 Wireless Profi les © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
  • Page 21 User Guide Wireless Profi les: This page allows confi guration of up to 8 Wireless Network SSID’ s : Operating Mode: Sets the Operating Mode of the Access Point the available  options are; Access Point: Allows client devices to connect (default mode) ...

  • Page 22: Bridge Setup

    5.4.2 Dedicated Bridge Mode Bridge Root: Sets the Bridge AP to root mode, this is the connection to the main  network usually with Internet feed © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
  • Page 23 Bridge’ s MAC address. Now confi gure the name of the Bridge SSID, Security Mode and Passphrase. Then simply click Save and then Reboot to apply the changes, the Luxul AP will now start running in Bridge Root mode allowing Bridge Client devices to connect.
  • Page 24 This SSID must be different than the SSID used for the bridge connection, and may match on the Bridge Root and Bridge Client devices. © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 25: Administration

    User Guide 5.5 Administration Administrator Login: Sets the password for Administrator access to the web management interface. When connecting to the Access Point through the web interface, the user is prompted for a User ID (this is always admin) and Password (the default value is “admin”).

  • Page 26: Factory Defaults

    The XAP-1040 will now have the default IP address 192.168.0.14. For login, default user name will be “admin” and default password will be “admin.” © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 27: Qos

    User Guide 5.5.3 Backup/Restore Backup/Restore: This page is used to create a backup of the XAP-1040 confi gura- tion and Restore the confi guration at a later time if desired. The backup fi le can also be used to set up multiple Luxul Access Points using the same confi guration. Click Backup to save the current confi...

  • Page 28: Status

    Security 5.7.2 Connected Clients Connected Clients: This page displays the MAC Address, Speed and Signal Strength of all currently attached wireless devices. © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 29: Regulatory Compliance

    User Guide 6 REGULATORY COMPLIANCE The device complies with internationally recognized standards covering human exposure to electromagnetic fi elds from radio devices. This equipment also complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation.

  • Page 30: Radio Frequency Interference Requirements-Fcc

    Connect the equipment into an outlet on a circuit different from that to which  the receiver is connected Consult the dealer or an experienced radio/TV technician for help.  © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 31: Radio Transmitters (Part 15)

    User Guide 6.4 Radio Transmitters (Part 15) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 32: Appendix 1: Technical Support

    APPENDIX 1: TECHNICAL SUPPORT For any problems during the installation or confi guration of your XAP-1040, contact support@luxul.com for help. To check for fi rmware updates visit http://luxul.com/fi rmware Technical Support Tel: (801) 822-5450 Email: support@luxul.com Contact Information: Luxul Corporation...
