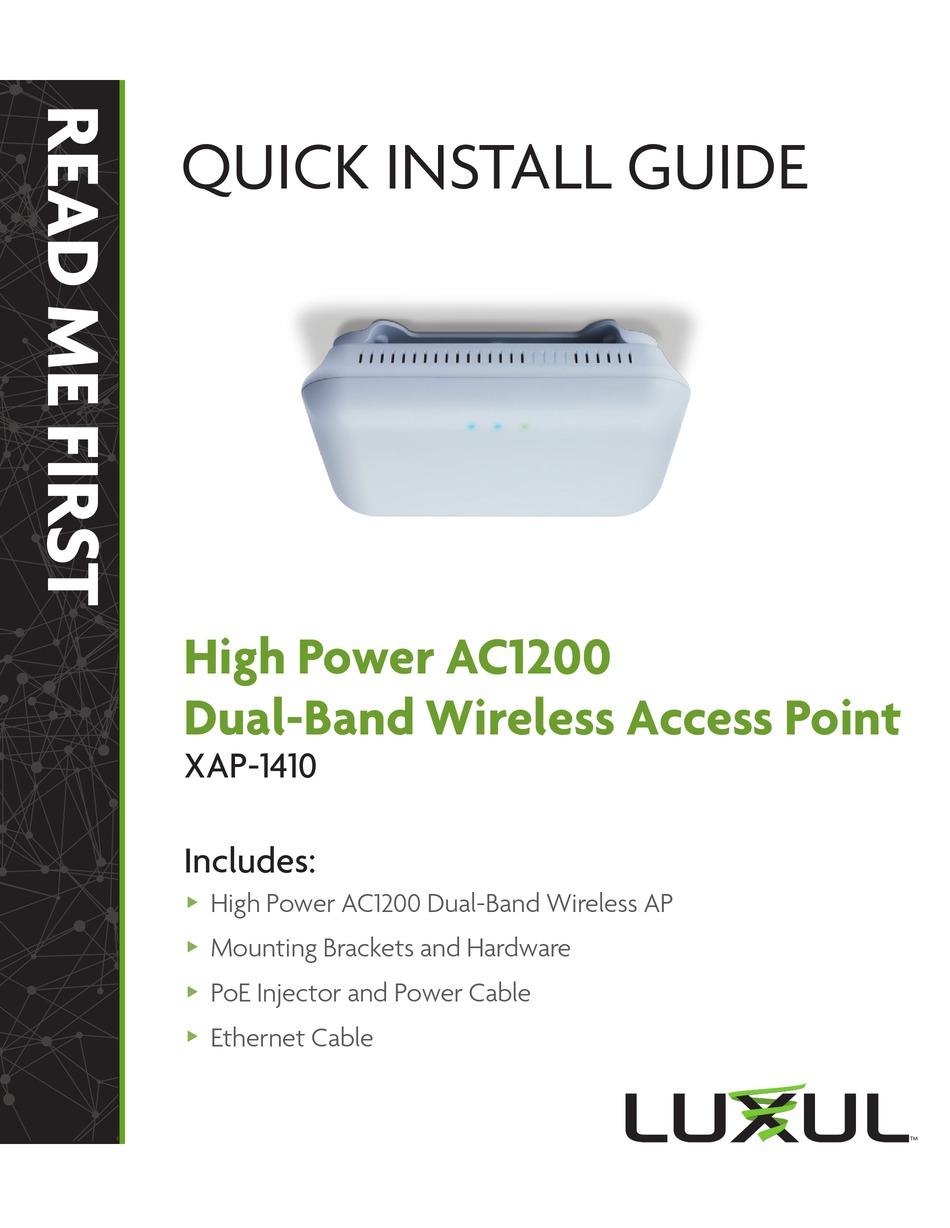

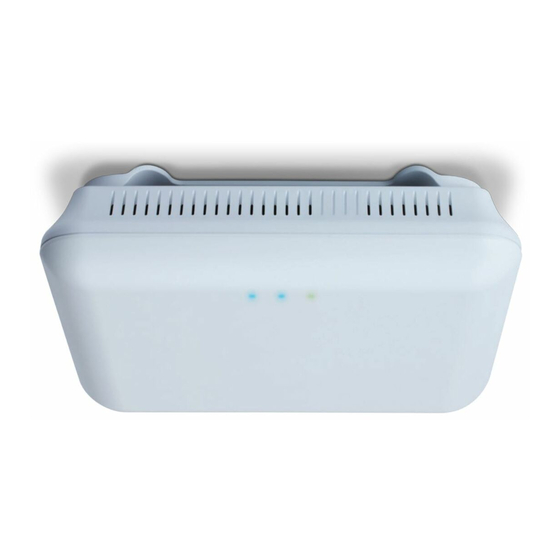

- Page 1 QUICK INSTALL GUIDE High Power AC1200 Dual-Band Wireless Access Point XAP-1410 Includes: High Power AC1200 Dual-Band Wireless AP „ Mounting Brackets and Hardware „ PoE Injector and Power Cable „ Ethernet Cable „...
-
Page 2: Physical Installation
First, the included mount is designed to attach directly to several different regions’ standard electrical boxes. Second, the XAP-1410 may be mounted on a ceiling or wall without a box by using the included mount as a guide to mark attachment locations. Finally, the XAP-1410 can be placed on a flat surface by attaching the included rubber feet to the mount. - Page 3 Ethernet and Power To apply power and network simultaneously, simply connect one end of an Ethernet cable to a PoE switch, and the other end to the XAP-1410 PoE port. To connect power and Ethernet separately, first connect an Ethernet cable from the supplied PoE Injector Data &...
- Page 4 Data & PWR Out: Connect an Ethernet cable from the Data & PWR Out port of the included PoE Injector to the PoE Port of the XAP-1410. AC Power: Connect the included AC Cord to the Power Input of the Included Injector first and then to the AC outlet.
- Page 5 Getting Connected Connecting Via an Ethernet Device: Use Ethernet cable to connect your computer to the PoE switch or PoE injector to which the XAP-1410 is connected. Ethernet is the preferred method of connection. Connecting Via a Wireless Device: Connect your client device to the XAP-1410 default wireless network named Luxul_XAP1410 or Luxul_ XAP1410_5G.
-
Page 6: Led Indicators
XAP-1410. Note: The XAP-1410 is not a router and will need to be connected to a network with a router in order to deliver Internet access. Hardware Operation LED Indicators Enclosure: If the green Power LED is on, the XAP-1410 is powered and working. -
Page 7: Reset Button
Restore Factory Defaults: With the XAP-1410 powered on, press and hold the Reset button for 10 seconds, then release the button and the XAP-1410 will restore factory defaults and reboot. CAUTION: Holding the Reset button for more than a few seconds will restore the AP to factory default and remove any custom configuration. -
Page 8: Technical Support
Luxul product. © Copyright 2016 Luxul. All rights reserved. The name Luxul, the Luxul logo, the Luxul logo mark and Simply Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other trademarks and registered trademarks are property of their respective holders.
