Luxul Commercial Grade Omni
802.11b/g/n Wireless Access Point
Use the XAP-1030 to:
Provide a Centrally Located High Performance Wi-Fi Network
AP
Deliver "Whole Home" or Offi ce 802.11n Wi-Fi Coverage With
a Single Access Point
Increase Mobile Client Device Network Sensitivity
and Performance
Simplify Installation While Minimizing Setup Time and Expense
Eliminate Client Device Roaming Issues
luxul.com
Quick Install Guide
Simply Connected
Simply Connected
Simply Connected
XAP-1030

Advertisement

Table of Contents
loading

Related Manuals for Luxul XAP-1030

Summary of Contents for Luxul XAP-1030

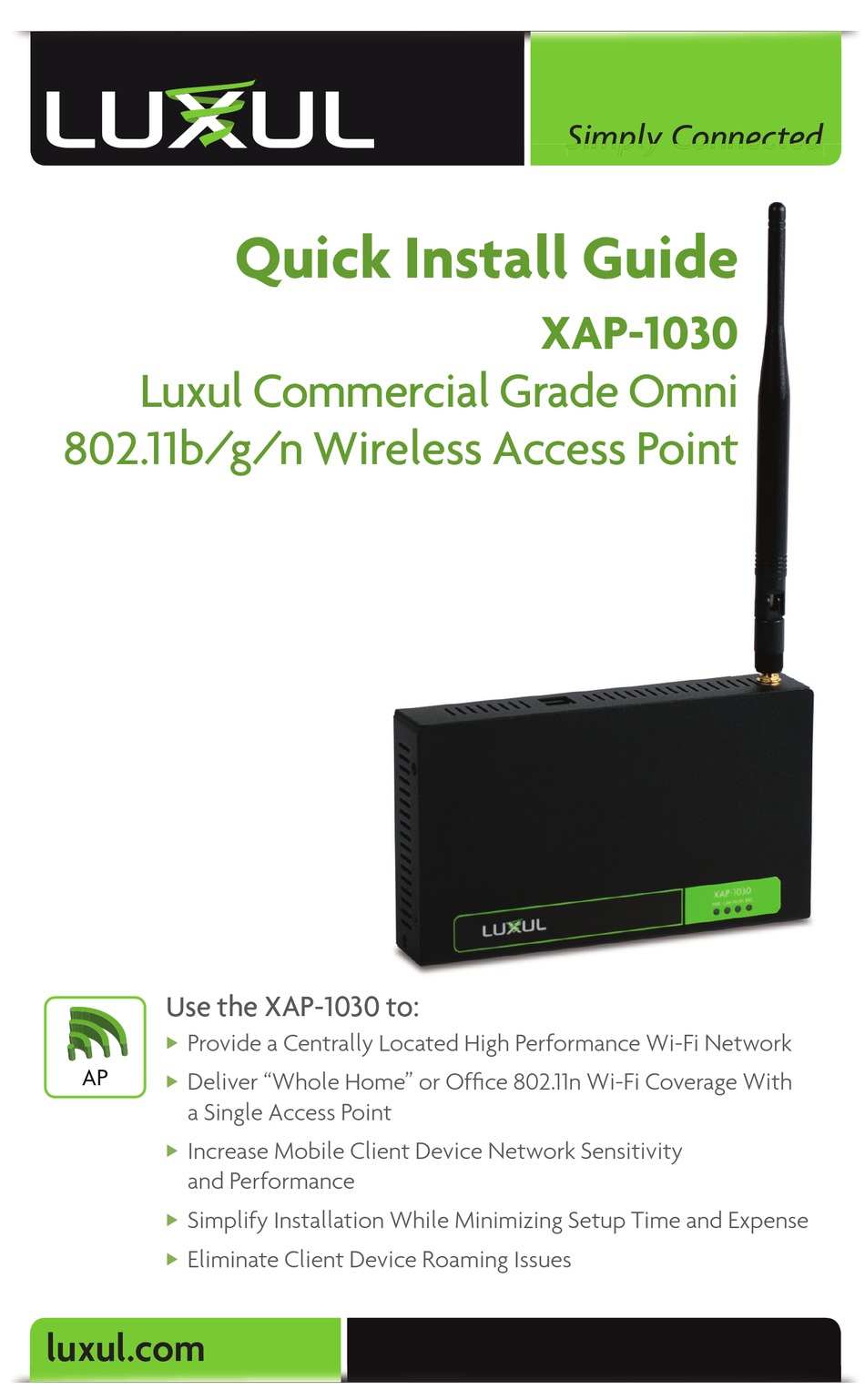

  • Page 1 Simply Connected Quick Install Guide XAP-1030 Luxul Commercial Grade Omni 802.11b/g/n Wireless Access Point Use the XAP-1030 to: Provide a Centrally Located High Performance Wi-Fi Network  Deliver “Whole Home” or Offi ce 802.11n Wi-Fi Coverage With  a Single Access Point Increase Mobile Client Device Network Sensitivity ...

  • Page 2: Document Conventions

    (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. © Copyright 2015 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 3: Site Preparation

    WARNINGS Read all installation instructions and site survey reports, and verify correct equip-  ment installation before connecting the XAP-1030 to its power source. Remove jewelry and watches before installing this equipment.  Verify that the unit is grounded before connecting it to the power source.

  • Page 4: Getting Started

    Accessories of this access point, such as mounting screws, the POE injector and  power supply may be dangerous to small children under 3 years of age. KEEP All ACCESSORIES OUT OF THE REACH OF CHILDREN! © Copyright 2015 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.

  • Page 5: Hardware Features And Installation

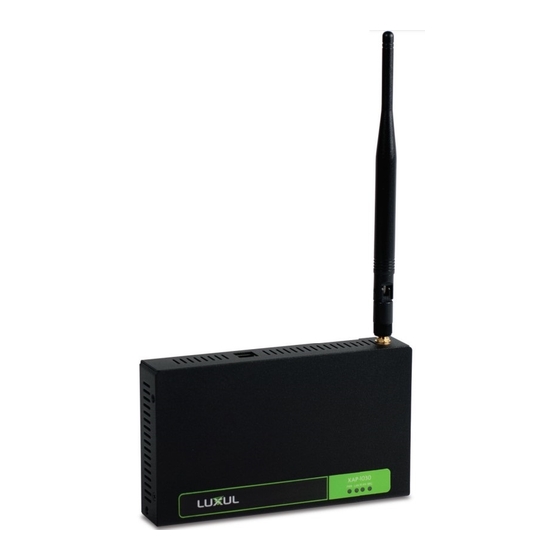

    (i.e. square) and the total area does not exceed 5,000 square feet. Front View On the front of the XAP-1030 are 4 LEDs. LEDs indicate 1) Power, 2) LAN Link/ Activity, 3) WLAN Status and 4) Bridge Mode. XAP-1030 Front View...

  • Page 6: Top View

    No power, check power connections At startup, the Green Power LED will stay on while the amber LAN Link light fl ashes. The blue LED will come on once the XAP-1030 wireless radio is active. Top View The Top of the XAP-1030 provides one SMA antenna connector and one RJ-45 con- nection that is used to deliver both power and data to the access point.

  • Page 7: Rear View

    Quick Install Guide Rear View The Rear of the XAP-1030 has two key holes to allow for easy and fl exible mounting on a wall or other solid surface. For desktop or shelf mounting, it also has guides for placement of the four rubber feet provided.

  • Page 8: Hardware Installation

    XAP-1030 Coverage Pattern Mounting the Access Point on a Wall The XAP-1030 can be mounted directly to a wall. It can also be placed on a desktop, shelf, or other fl at surface. Once the location has been selected, mounting the access point directly to the wall or place it on a fl...

  • Page 9: Connecting The Ethernet Cable

    Quick Install Guide Mounting holes to secure the XAP-1030 to a wall Install Included Rubber Feet in the Impressions in the bottom of the XAP-1030 Antenna Installation and Alignment The XAP-1030 includes a 5dBi omni-directional antenna. To install the antenna, simply align the connectors and turn it clock-wise until it is fi...

  • Page 10: Connecting To The Power Source

    Connecting to the Internet Source This Luxul device is not a router and in most installations will be connected to a Router or Switch in order to deliver Internet access. To do so, connect the POE injector (or switch) to the desired Internet source using another Ethernet cable.
  • Page 11 IP address of your Operating System. Login The XAP-1030 is not equipped with internal DHCP server. If connected to the Luxul XBR-2300 Enterprise Dual-WAN Router, confi guration will be automatic. Otherwise, the IP address of the computer for login and confi guration will need to be manually confi...

  • Page 12: Quick Setup

    Default password admin Login to the XAP-1030 Wireless Access Point with the following steps: a. Be sure the XAP-1030 is properly installed and powered on b. Open your Web Browser, and enter http://192.168.0.12. The login window appears as shown below: c.
