User Manual

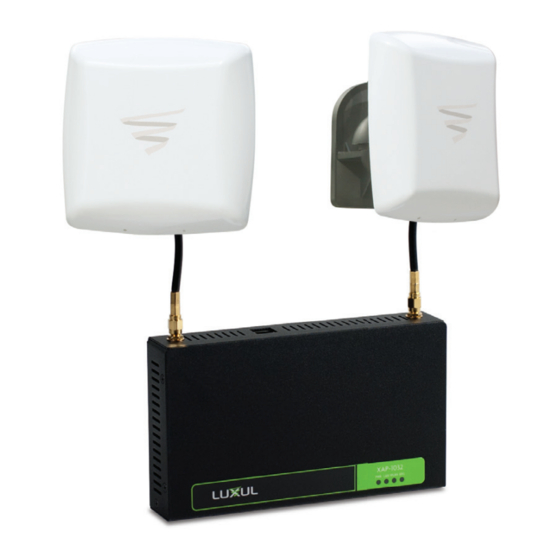

Luxul Commercial Grade Dual Directional
Use the XAP-1032 to:
Use the XAP-1032 to:
Optimize Wi-Fi Coverage in L-Shaped, Multi-Wing or Extra Large
Installations
AP
Deliver "Whole Home" or Offi ce 802.11n Wi-Fi Coverage With a
Single Access Point
Increase Mobile Client Device Network Sensitivity and
Performance
Simplify Installation While Minimizing Setup Time and Expense
Eliminate Client Device Roaming Issues
luxul.com

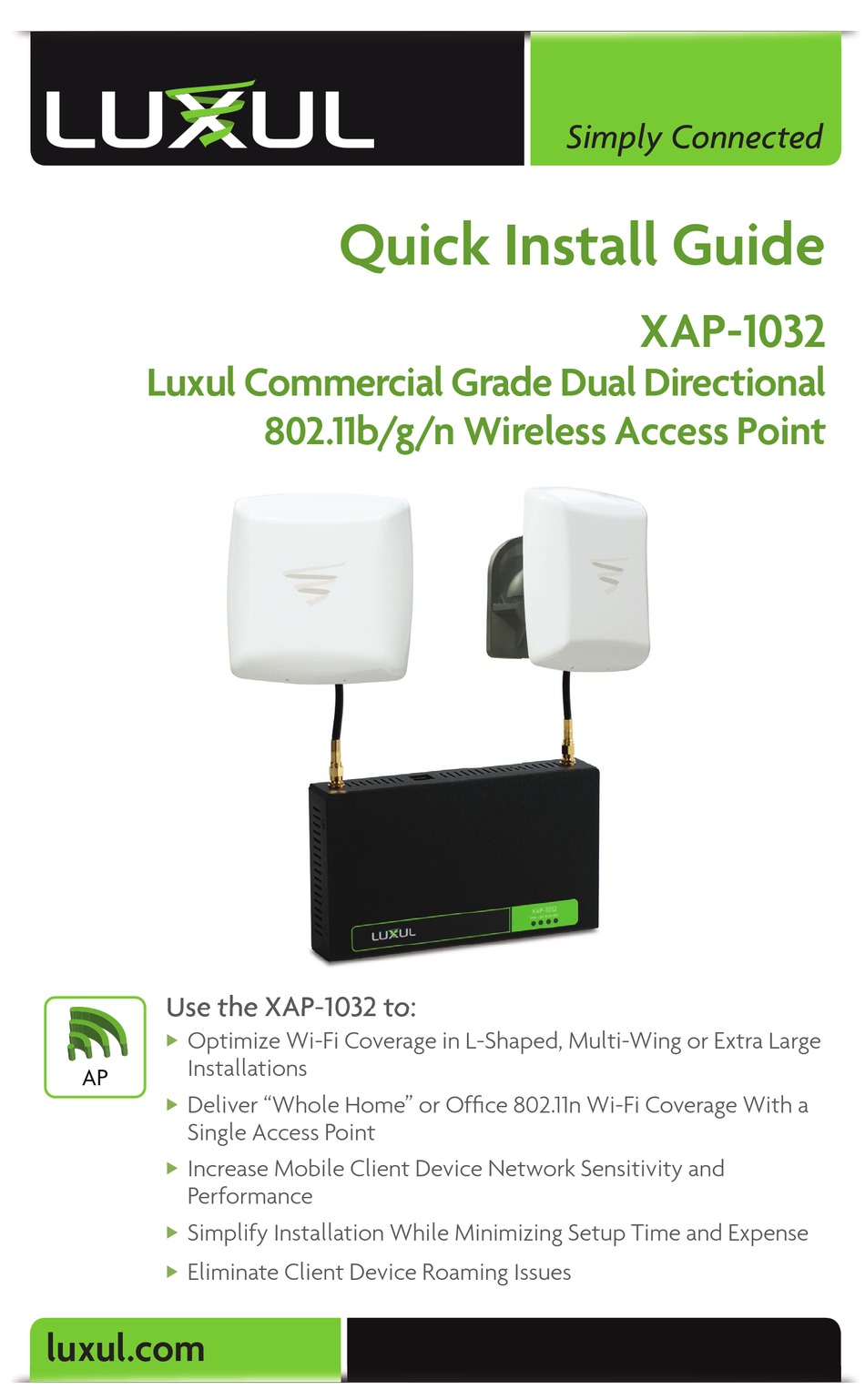

Quick Install Guide
802.11b/g/n Wireless Access Point
802.11b/g/n Wireless Access Point
802.11b/g/n Wireless Access Point
Simply Connected
XAP-1032
Advertisement
Table of Contents
Related Manuals for Luxul XAP-1032
Summary of Contents for Luxul XAP-1032
- Page 1 Simply Connected Quick Install Guide XAP-1032 Luxul Commercial Grade Dual Directional 802.11b/g/n Wireless Access Point 802.11b/g/n Wireless Access Point 802.11b/g/n Wireless Access Point Use the XAP-1032 to: Use the XAP-1032 to: Optimize Wi-Fi Coverage in L-Shaped, Multi-Wing or Extra Large ...
-
Page 2: Document Conventions
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders. -
Page 3: Site Preparation
WARNINGS Read all installation instructions and site survey reports, and verify correct equip- ment installation before connecting the XAP-1032 to its power source. Remove jewelry and watches before installing this equipment. Verify that the unit is grounded before connecting it to the power source. -
Page 4: Package Contents
The XAP-1032 contains no user-serviceable parts. If the access point is not working properly, contact your dealer and ask for help. DO NOT attempt to disassemble the access point. © Copyright 2014 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders. -
Page 5: Hardware Features And Installation
The XAP-1032 is ideal for use in L-shaped, multi-wing or very large residential or commercial installations. Front View On the front of the XAP-1032 are 4 LEDs. LEDs indicate 1) Power, 2) LAN Link/ Activity, 3) WLAN Status and 4) Bridge Mode. XAP-1032 Front View... -
Page 6: Top View
XAP-1032 Top View Rear View The Rear of the XAP-1032 has two key holes to allow for easy and fl exible mounting on a wall or other solid surface. For desktop or shelf mounting, it also has guides for placement of the four rubber feet provided. -
Page 7: Environmental Requirements
Web browser versions include Microsoft IE 7.0 and up, Safari 1.0 and up, Mozilla Firefox 1.0 and up, and Google Chrome 5.0 and up. The Web browser is used to confi gure the XAP-1032. The XAP-1032 uses 36-57VDC power. The POE injector power supply requires AC 100V ~ 240V, 50Hz ~ 60Hz. - Page 8 Quick Install Guide Mounting the Access Point on a Wall The XAP-1032 and the two antennas can be mounted directly to a wall or other surface. It can also be placed on a desktop or shelf with antennas still mounting to a wall or other surface.
- Page 9 fi rmly attached. DO NOT over tighten. Finally, aim the antennas towards the desired coverage areas. Final installation should look something like the following: XAP-1032 with Antennas mounted above. Actual cables are longer NOTE: If desired and optimal for placement and installation, longer Coax cables may be used.
-
Page 10: Connecting The Ethernet Cable
Connecting to the Internet Source Note that the Luxul device is not a router and in most installations will be con- nected to a Router or Switch in order to deliver Internet access. To do so, connect the POE injector (or switch) to the desired Internet source using another Ethernet cable. -
Page 11: Applying Power
POE injector. LED Visual Verifi cation With power applied, you can now verify that the XAP-1032 is connected and functioning properly. Prior to placing the access point cover plate, perform a visual inspection of the LEDs. -
Page 12: Quick Setup
Login The XAP-1032 is not equipped with internal DHCP server. If connected to the Luxul XBR-2300 Enterprise Dual-WAN Router, confi guration will be automatic. Otherwise, the IP address of the computer for login and confi guration will need to be manually confi...
