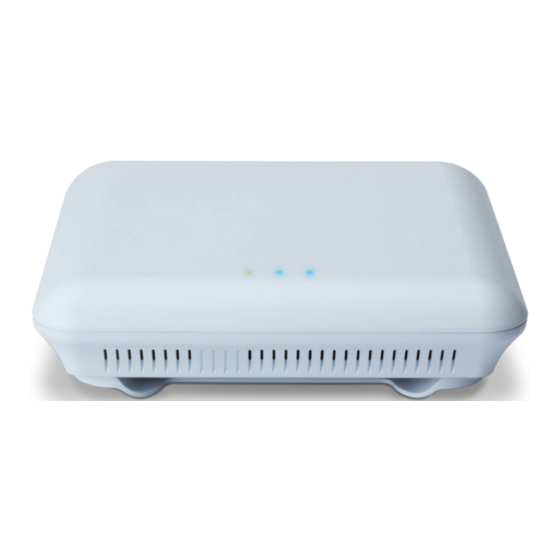

- Page 1 QUICK INSTALL GUIDE Apex ™ Wave 2 AC3100 Dual-Band Wireless Access Point XAP-1610 Includes: Wave 2 AC3100 Dual-Band Wireless AP „ Mounting Brackets and Hardware „ PoE Injector and Power Adapter „ Ethernet Cables „...
- Page 2 First, the included mount is designed to attach directly to several different regions’ standard electrical boxes. Second, the XAP-1610 may be mounted on a ceiling or wall without a box by using the included mount as a guide to mark attachment locations. Finally, the XAP-1610 can be placed on a flat surface by attaching the included rubber feet to the mount.
- Page 3 Single Access Point Placement: Because the signal generated by the XAP-1610 is omnidirectional, the unit should be located as near as possible to the center of the desired coverage area. XAP-1610 Single AP Coverage Pattern Multiple Access Point Placement: You may need to experiment with AP placement to optimize the roaming experience.
- Page 4 Ethernet and Power To apply power and network simultaneously, simply connect one end of an Ethernet cable to a PoE+ switch, and the other end to the XAP-1610 PoE port. To connect power and Ethernet separately, first connect an Ethernet cable from the supplied PoE Injector Data &...
- Page 5 Preparing for Access IP Addressing If the XAP-1610 is connected to a network with a 192.168.0.X address scheme, and your computer shares a similar address on the same network, you can skip to the next step, Access and Setup .
- Page 6 XAP-1610. Note: The XAP-1610 is not a router and will need to be connected to a network with a router in order to deliver Internet access. Hardware Operation LED Indicators Enclosure: If the green Power LED is on, the XAP-1610 is powered and working.
- Page 7 The Reset button is located underneath the mount and marked RESET. It may be used to reboot the AP or to restore factory default settings. Reboot the AP: With the XAP-1610 powered on, simply press and release the Reset button.
- Page 8 Luxul product. © Copyright 2017 Luxul. All rights reserved. The name Luxul, the Luxul logo, the Luxul logo mark and Simply Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other trademarks and registered trademarks are property of their respective holders.
