- Page 1 QUICK INSTALL GUIDE High Power Wireless 300N Outdoor Access Point XAP-1240 Includes: One:„XAP-1240„Wireless„Access„Point „ „ One:„PoE„Injector„and„Power„Cord „ „ One:„Ethernet„Cable „ „ Two:„Cable„Ties „ „...
- Page 2 READ ME FIRST - AP COMPATIBILITY This„XAP-1240„is„compatible„with„the„Luxul„XWC-1000„Wireless„Controller„for„ fast,„easy„configuration„and„deployment„of„wireless„networks„with„multiple„APs. Note:nIfnyou’llnbenusingnthisnAPnwithnanWirelessnController,nreferntonn thenQuicknInstallnGuidenincludednwithnthenWirelessnControllernfornn setupninstructions. If„you’re„using„separately-purchased„Luxul„APs„or„installing„this„AP„along„„ with„a„Wireless„Controller„in„an„existing„Luxul„deployment,„you„may„„ need„to„manually„upgrade„firmware„for„some„of„those„APs„before„installing„„ the„Wireless„Controller. Luxul„APs„running„firmware„version„5„or„later„(like„the„one„in„ this„package)„are„Wireless„Controller-compatible„and„can„ be„used„with„the„Controller„as-is.„When„purchasing„Luxul„ APs„for„use„with„the„Wireless„Controller,„look„for„an„orange„ “Version„5„Firmware”„sticker„on„the„box„to„avoid„the„manual„ upgrade„process. Note:nVisitnhttp://luxul.com/ap-upgradenfornhelpnupgradingnyournAP’sn firmwarentonversionn5nornnewer. AP SETUP AND CONFIGURATION Physical Installation The„XAP-1240„access„point„is„designed„for„simple„and„efficient„installation.„„ Four„keyholes„allow„for„easy„wall-mounting,„or„for„mounting„to„a„pole,„use„the„ included„cable„ties„(zip„ties)„to„secure„the„AP„to„the„pole.„Loosely„secure„two„ cable„ties,„one„through„each„mounting„flange„slot,„then„tighten„the„cable„ties.
- Page 3 Single Access Point Placement:„Because„the„signal„generated„by„the„ „ XAP-1240„is„directional,„the„unit„should„be„located„at„the„perimeter„„ of„the„desired„coverage„area,„with„the„large„flat„surface„aimed„toward„„ the„center. XAP-1240nSinglenAPnCoveragenPattern Multiple Access Point Placement:„You„may„need„to„experiment„with„ „ AP„placement„to„optimize„the„roaming„experience.„Place„APs„to„ensure„ adequate„coverage,„but„not„so„far„apart„that„there„is„no„signal„overlap.„ Adjacent„APs„should„overlap„enough„that„the„client„device„has„a„good„ connection„to„the„AP„to„which„it„is„currently„attached,„but„also„sees„the„ next-nearest„AP.„Ideally,„roaming„clients„should„see„signal„strength„of„„ two„overlapping„APs„in„the„range„of„-60„to„-70„dBm„at„the„midway„„ point„between„two„APs.„To„learn„more„about„AP„placement,„visit„„ luxul.com/ap-placement. Ideally, roaming clients should see signal strength of two overlapping APs in the range of -60 to -70 dBm at...

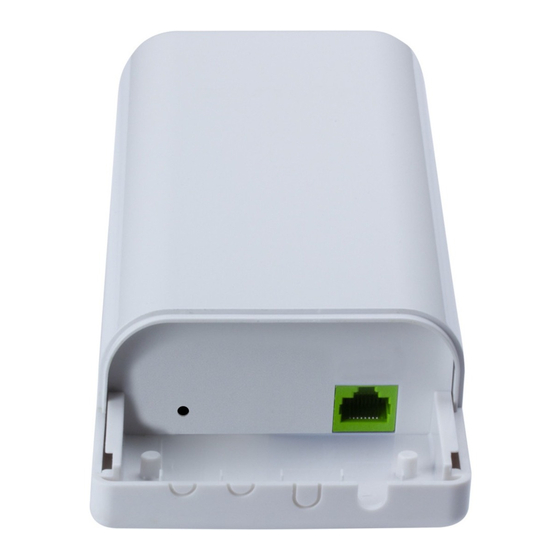

- Page 4 AP SETUP AND CONFIGURATION CONT. Connecting Antennas, Ethernet and Power Ethernet and Power With„the„XAP-1240„properly„mounted,„plug„the„Ethernet„cable„into„the„ RJ-45„connector„on„the„Access„Point. The„XAP-1240„is„PoE„ready„and„supports„802.3at„PoE.„A„PoE„injector„is„ included„with„the„device.„To„apply„power,„simply„connect„the„opposite„ end„of„the„Ethernet„cable„to„which„the„access„point„is„connected„to„the„ provided„PoE„injector„or„other„PoE„switch„or„injector.„An„Ethernet„cable„ length„of„up„to„300„feet„can„be„used. Note:nCategory-6nshieldedntwistednpairnisnrecommendednfornbestnn resultsnandnstablendatantransmissionnatnthenhighestndatanrates.n However,nCategory-5,nsupernCategory-5nornCategory-6nunshieldedn twistednpairn(CAT5/CAT5e/CAT6nUTP)ncablencannalsonbenused. PoE Injector Setup Data In:„Connect„an„Ethernet„cable„from„your„router„or„switch„to„the„ „ Data In„port„of„the„included„PoE„Injector Data & PWR Out:„Connect„an„Ethernet„cable„from„the„Data & PWR Out„ „...
- Page 5 IP Addressing If„the„XAP-1240„is„connected„to„a„network„with„a„192.168.0.X„address„scheme,„ and„your„computer„shares„a„similar„address„on„the„same„network,„you„can„skip„ to„the„next„step,„Access and Setup . Note:nn n I fnanotherndevicenonnyournnetworknsharesnthen192.168.0.10naddress,n you’llnneedntontemporarilynreassignnornremoventhatndevicenwhilen younconfigurenthenXAP-1240. If„your„network„uses„an„address„scheme„other„than„192.168.0.X,„you’ll„need„ to„set„a„temporary„static„IP„address„on„the„computer„you’re„using„for„config- uration.„To„do„so,„set„the„IP„address„of„your„computer„to„an„address„in„the„ 192.168.0.X„range,„then„set„the„Gateway/Router„address„to„192.168.0.10„(the„ default„IP„address„of„the„XAP-1240). Once„you’re„finished„configuring„the„AP,„you„can„return„your„computer’ s „IP„ configuration„to„normal,„typically„“Obtain„Automatically/DHCP.” Note:nn n V isitnhttp://luxul.com/ip-addressingntonlearnnmorenaboutn changingnyourncomputer’snIPnaddressnandngettingnconnected. Access and Setup Getting Connected Connecting Via an Ethernet Device:„Use„Ethernet„cable„to„connect„your„ „ computer„to„the„PoE„switch„or„PoE„injector„to„which„the„XAP-1240„is„ connected.„Ethernet„is„the„preferred„method„of„connection.
- Page 6 Connecting Via a Wireless Device:„Connect„your„client„device„to„the„ „ XAP-1240„default„wireless„network„named„Luxul1240.„The„wireless„network„ will„run„in„Open„Security„mode,„so„no„passphrase„is„required„until„Wireless„ Security„is„configured.„ Logging In To„access„the„AP’ s „web„configuration,„open„your„web„browser„and„enter„the„ AP’ s „default„192.168.0.10„IP„address„in„the„address„field.„Log„in„to„the„AP„using„ the„default„user„name„and„password: Default IP: 192.168.0.10 „ Username: admin Password: admin Note:nn n I fnanotherndevicenonnyournnetworknsharesnthen192.168.0.10naddress,n you’llnneedntontemporarilynreassignnornremoventhatndevicenwhilen younconfigurenthenXAP-1240. Note:nn T henXAP-1240nisnnotnanrouternandnwillnneedntonbenconnectedntonan networknwithnanrouterninnorderntondelivernInternetnaccess. Hardware Operation LED Indicators The„LED„indicators„are„located„on„...
- Page 7 PWR:„If„the„Power„LED„is„On,„the„XAP-1240„is„powered.„If„the„Power„LED„„ is„OFF,„the„XAP-1240„is„not„receiving„power„or„the„LED„has„been„turned„„ off„in„the„AP’s„software„interface.„The„Power„LED„blinks„when„the„„ XAP-1240„is„booting. LAN: If„the„LED„is„On,„there„is„an„active„Ethernet„connection.„If„the„„ LED„is„Off,„there„is„no„active„Ethernet„connection.„Flashing„indicates„„ Ethernet„activity. WLAN: If„the„LED„is„On,„the„wireless„radio„is„active„and„wireless„access„is„ enabled.„Off„indicates„the„wireless„radio„is„not„active„and„wireless„access„„ is„disabled. Luxul Icon: This„LED„is„for„future„or„custom„capabilities. PoE Injector: If„the„PWR„LED„is„On,„Power„is„Connected„ to„the„injector.„If„the„PWR„LED„is„Off,„the„injector„is„not„ receiving„power.„„ Reset Button: The„Reset„button„is„located„on„the„bottom„ panel„of„the„XAP-1240„and„is„used„to„restore„factory„default„ settings.„To„Restore„Default„Settings,„with„the„XAP-1240„ powered„on,„press„and„hold„the„Reset„button„for„10„ seconds,„then„release. CAUTION:nn H oldingnthenResetnbuttonnfornmorenthannanfewnsecondsn willnrestorenthenAPntonfactoryndefaultnandnremovenanyn customnconfiguration.
- Page 8 No„license„is„granted,„either„expressly„or„by„implication„or„otherwise„under„any„ Luxul„intellectual„property„rights.„An„implied„license„only„exists„for„equipment,„ circuits„and„subsystems„contained„in„this„or„any„Luxul„product.„ FCC Compliance This„device„complies„with„Part„15„of„the„FCC„Rules.„Operation„is„subject„to„ the„following„two„conditions:„(1)„this„device„may„not„cause„harmful„inter- ference,„and„(2)„this„device„must„accept„any„interference„received,„including„ interference„that„may„cause„undesired„operation. FCC„ID:„W59XAP1230 IC:„8584A-XAP1230 FCC Statement—Wireless FCC 2.4GHz 802.11bgn This„equipment„has„been„tested„and„found„to„comply„with„the„limits„for„a„ Class„B„digital„device,„pursuant„to„Part„15„of„the„FCC„Rules.„ Hereby,„Luxul,„14203„Minuteman„Drive,„Suite„201,„Draper,„Utah,„84020,„ declares„that„this„Luxul„XAP-1240„is„in„compliance„with„the„essential„ requirements„and„other„relevant„provisions„of„Directive„1995/5/EC. For„a„copy„of„this„report„send„a„self„addressed„stamped„envelope„„ to:„Luxul„CE,„14203„Minuteman„Drive,„Suite„201,„Draper,„Utah,„84020. Industry„Canada„(RSS-Gen„Issue„4) CAN„ICES-3(B)/NMB-3(B)„ Sales Technical Support P:„801-822-5450„ P:„801-822-5450„Option„3„ E:„sales@luxul.com E:„support@luxul.com © 2015 Luxul. All Rights Reserved. LUX-QIG-XAP-1240 05211509...
