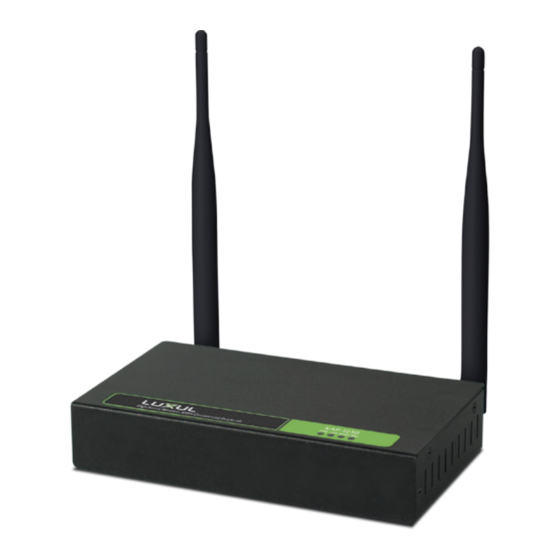

- Page 1 QUICK INSTALL GUIDE High Power Wireless 300N Commercial Grade Access Point XAP-1230 Includes: One: XAP-1230 Wireless Access Point „ Two: 5dBi Dipole Antennas „ One: PoE Injector and Power Cord „ One: Ethernet Cables „ Four: Rubber Feet „...
-
Page 2: Physical Installation
Single Access Point Placement: Because the signal generated by the XAP-1230 is omnidirectional, the unit should be located as near as possible to the center of the desired coverage area. - Page 3 APs in the range of -60 to -70 dBm at the midway point between two APs XAP-1230 Multiple AP Coverage and Overlap Note: Consider using Ekahau HeatMapper to assist with this process, available from www.ekahau.com. Luxul also offers an informative “How-To” video on HeatMapper at luxul.com/how-to-videos.
- Page 4 With two antennas installed and the XAP-1230 properly mounted, plug the Ethernet cable into the RJ-45 connector on the Access Point. The XAP-1230 is PoE ready and supports 802.3af PoE. A PoE injector is included with the device. To apply power, simply connect the opposite end of the Ethernet cable to which the access point is connected to the provided PoE injector or other PoE switch or injector.
- Page 5 Preparing for Access IP Addressing If the XAP-1230 is connected to a network with a 192.168.0.X address scheme, and your computer shares a similar address on the same network, you can skip to the next step, Access and Setup .
-
Page 6: Led Indicators
XAP-1230. Note: The XAP-1230 is not a router and will need to be connected to a network with a router in order to deliver Internet access. Hardware Operation... - Page 7 Reset Button: The Reset button is located on the rear panel of the XAP-1230 and is used to restore factory default settings. To Restore Default Settings, with the XAP-1230 powered on, press and hold the Reset button for 10 seconds, then release.
-
Page 8: Technical Support
