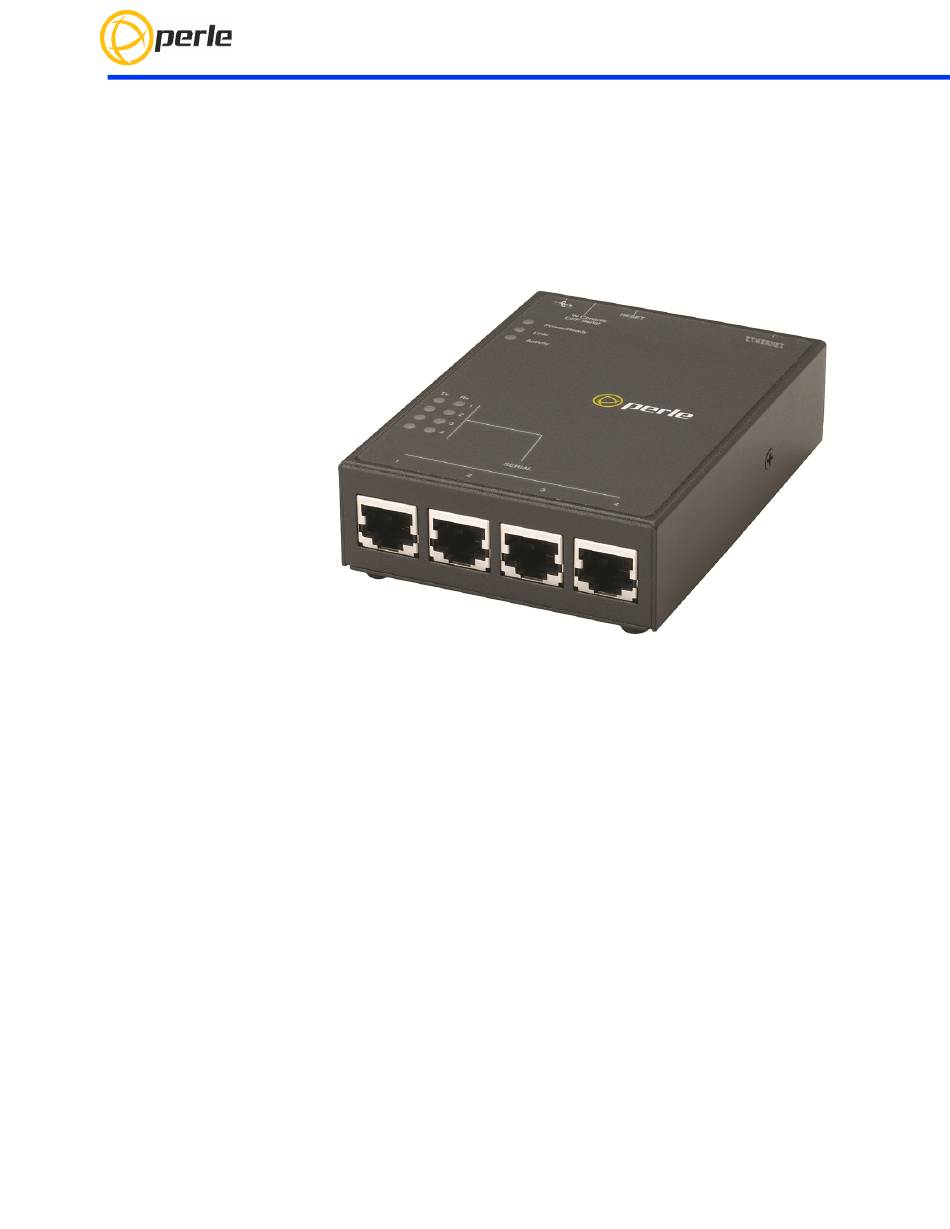

- Page 1 IOLAN SDG4/SDG4 TX/STG4 Hardware Installation Guide Updated: September 2019 Version A.1.09.01.2019 www.perle.com Document Part#:5500422-10(Rev. C)
- Page 2 Modifications to this product not authorized by Perle could void the FCC approval and negate your authority to operate the product. Perle reserves the right to make changes without further notice, to any products to improve reliability, function, or design.
-
Page 3: Table Of Contents
IOLAN SDG4 TX (Side View with Terminal Block Connector) ....... . -
Page 4: Hardware
SDG4/SDG4 TX/STG4. It covers hardware features as well as installation and operation of the IOLAN. This document does not cover how to configure your Perle IOLAN SDG4/ SDG4 TX/STG4. Information to configure your Perle IOLAN SDG can be found in the IOLAN User’s Guide. Document Conventions This document contains the following conventions: Most text is presented in the typeface used in this paragraph. -
Page 5: Overview

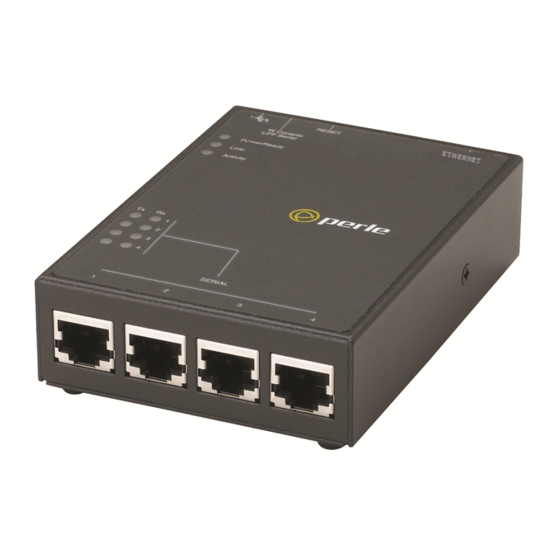

Overview The IOLAN 4 port comes in various models. • SDG4 - Four RJ45 serial ports • SDG4 TX - Extended Temperature with four RJ45 serial ports • STG4 - Four RJ45 serial ports (RS232 only) NOTE: Extended Temperature models can operate in the range of -40 to 74 degrees C. IOLAN SDG4/SDG4 TX/STG4 (Top View) The IOLAN STG4 only supports RS-232 on RJ45-10 pin. -
Page 6: Iolan Sdg4/Stg4 (Side View With Barrel Connector)
IOLAN SDG4/STG4 (Side View with Barrel connector) IOLAN SDG4 TX (Side View with Terminal Block Connector) Note: Terminal Block is fixed to the IOLAN Ethernet and Serial Ports 10/100/1000Base-T Port The Ethernet port provides the standard gigabit Ethernet interface speeds of 10/100/ 1000 Mbps through twisted pair (UTP) cables of up to 100 meters (328ft) in length. -
Page 7: Led Indicators
DIP switch in the serial position. In console mode, this port can be used to provide access to the IOLAN management function using the industry standard CLI command set (see Console Port Mode). See the IOLAN Command Line Interface Reference Guide for a complete set of the com- mands available via the console. -
Page 8: Installation
Installation General Cautions and Warnings Warning: Power sources must be off prior to beginning the power connection steps. Read the installation instructions before you connect the unit to its power source. Warning: Ensure that the voltage and current ratings of the intended power source are appropriate for the IOLAN as indicated on the product label. -
Page 9: Connecting The Serial Ports
4. Turn on power at source. See LED Indicators for power up sequence. Grounding and Power Cord Relief clip If your installation requires additional grounding, follow this procedure. Grounding the chassis requires the following items: • One grounding lug (not provided) •... -
Page 10: Connecting Data Ports
• 9600 baud • 8 data bits • 1 stop bit • No parity • None (flow control) 9. You should now be able to see all messages sent to the console of the IOLAN. Serial Port Mode Serial mode is used when the IOLAN acts as a communication sever to provide access to the serial device which is connected to its serial port. - Page 11 Ethernet Connector - 8-pin RJ-45 IOLAN SDG4/SDG4 TX/STG4 Hardware Installation Guide...
-
Page 12: Operation
“Reset” and hold the reset button between 3 and 10 seconds, the IOLAN will reset the configuration to factory default (either the Perle or custom default configuration). If you hold the reset button greater than 10 seconds, then the IOLAN will reset the configura- tion to the Perle factory default configuration. -
Page 13: Configuring The Iolan
SSH, SNMP or the Web interface. Web Manager The Perle Web Manager is an embedded Web based application that provides an easy to use browser interface for configuring and managing the IOLAN. Once an IP address has been assigned/configured on IOLAN, it can be accessed through any standard desktop web browser. -
Page 14: Appendix A - Technical Specifications
Appendix A - Technical Specifications IOLAN SDG4/SDG4 TX/STG4 Port Technical Specifications Power Input 12/24VDC (9-30VDC) Power Supply Options Power via external power 9-30v DC (SDG4/STG4), 4.8 Watts, terminal block connector (STG4 TX) Power Consumption@24V DC (Watts) 4.8 Watts Power IOLAN over Serial 9-30v DC with RJ45 model SDG4/SDG4 TX models Operating Temperature -0°C to 55°C... -
Page 15: Appendix B - Mechanical Drawing
Appendix B - Mechanical Drawing IOLAN SDG4/SDG4 TX/STG4 Hardware Installation Guide... -
Page 16: Appendix C - Labels (Sample)
Appendix C - Labels (Sample) IOLAN SDG4/SDG4 TX/STG4 Hardware Installation Guide... -
Page 17: Appendix D - Cabling And Connectors
Appendix D - Cabling and Connectors Connecting Serial Devices Ensure you have the appropriate cable for connecting your serial devices to the serial ports on the IOLAN. IOLAN RJ45 Connector EIA-485 EIA-485 Pinout EIA-232 EIA-422 Full Duplex Half Duplex Power In Power In Power In Power In... - Page 18 3. To change the power pin out, locate the set of three pins associated with the line you want to set (Serial port 1 is P3; Serial port 2 is P2, Serial port 3 is P6 and Serial Port 4 is P5.
-
Page 19: Appendix E - Iolan Maintenance
Appendix E - IOLAN Maintenance • Ensure there is clearance of 50.8mm (2 inches) on all sides of the IOLAN to provide proper airflow through the unit • Do not use solvents or cleaning agents on this unit • Keep vent holes clear of debris •... -
Page 20: Contacting Perle Systems Limited
Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below. https://www.perle.com/support_services/support_request.shtm Warranty / Registration This product is covered by the Perle IOLAN SDG Warranty. Details can be found at: https://www.perle.com/support_services/warranty.shtml IOLAN SDG4/SDG4 TX/STG4 Hardware Installation Guide...
